IslandPath Analysis: Treponema denticola ATCC 35405

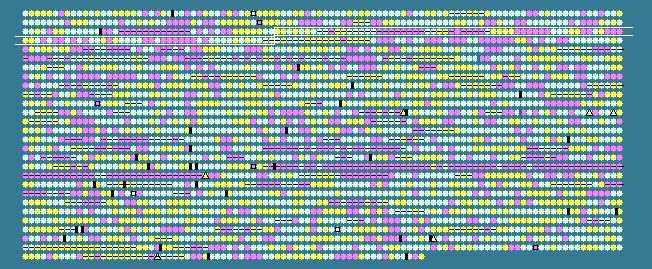

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
243	 40.93	0	277579..279303	-	574	42525762	-	TDE0244	-	ABC transporter, ATP-binding/permease protein
244	 40.95	0	279315..281033	-	572	42525763	-	TDE0245	-	ABC transporter, ATP-binding/permease protein
245	 36.49	0	281186..281755	-	189	42525764	-	TDE0246	-	TetR family transcriptional regulator
246	 43.36	+1	282208..282576	+	122	42525765	-	TDE0248	-	hypothetical protein
247	 39.54	0	282679..283242	+	187	42525766	-	TDE0249	-	flavoredoxin, putative
248	 42.23	0	283400..284725	-	441	42525767	-	TDE0250	-	sodium-dependent transporter, putative
249	 40.58	0	284807..286186	-	459	42525768	tnaA	TDE0251	-	tryptophanase
250	 38.22	0	286403..287221	+	272	42525769	-	TDE0252	-	hypothetical protein
251	 39.09	0	287292..288785	+	497	42525770	-	TDE0253	-	hypothetical protein
252	 30.22	-1	288794..289372	+	192	42525771	-	TDE0254	-	hypothetical protein
253	 46.81	+1	289408..290832	-	474	42525772	-	TDE0255	-	ABC transporter, ATP-binding protein
254	 43.35	+1	290832..291530	-	232	42525773	-	TDE0256	-	hypothetical protein
255	 39.64	0	291586..292188	-	200	42525774	-	TDE0257	-	hypothetical protein
256	 38.65	0	292222..292974	-	250	42525775	-	TDE0258	-	UbiE/COQ5 family methlytransferase
257	 37.75	0	293397..293849	+	150	42525776	-	TDE0259	-	MarR family transcriptional regulator
258	 37.17	0	293874..294785	+	303	42525777	-	TDE0260	-	iron-sulfur cluster-binding protein
259	 36.82	0	294782..295240	+	152	42525778	-	TDE0261	-	flavodoxin
260	 27.56	-1	295317..296390	-	357	42525779	-	TDE0262	-	hypothetical protein
261	 32.23	0	296490..297032	-	180	42525780	-	TDE0263	-	spermidine N1-acetyltransferase, putative
262	 31.09	-1	297111..297377	-	88	42525781	-	TDE0264	-	CopG family protein
263	 31.06	-1	297857..298648	-	263	42525782	-	TDE0266	-	hypothetical protein
264	 28.57	-1	298653..299198	-	181	42525783	-	TDE0267	-	HAM1 protein
265	 26.11	-1	299309..300139	-	276	42525784	-	TDE0268	-	hypothetical protein
266	 32.52	0	300286..300777	-	163	42525785	-	TDE0269	-	hypothetical protein
267	 28.27	-1	300935..301960	-	341	42525786	-	TDE0270	-	hypothetical protein
268	 34.03	0	302116..302259	+	47	42525787	-	TDE0271	-	hypothetical protein
269	 35.45	0	302346..302960	-	204	42525788	-	TDE0272	-	hypothetical protein
270	 43.63	+1	302957..304723	-	588	42525789	-	TDE0273	-	ABC transporter, ATP-binding/permease protein
271	 45.71	+1	304720..306513	-	597	42525790	-	TDE0274	-	ABC transporter, ATP-binding/permease protein
272	 31.08	-1	306773..307438	+	221	42525791	-	TDE0275	-	CAAX amino terminal protease family protein
273	 26.79	-1	307493..308119	-	208	42525792	-	TDE0276	-	HD domain-containing protein
274	 25.25	-2	308199..308594	-	131	42525793	-	TDE0277	-	hypothetical protein
275	 31.56	0	308591..308872	-	93	42525794	-	TDE0278	-	hypothetical protein
276	 31.08	-1	308898..309872	-	324	42525795	-	TDE0279	-	hypothetical protein
277	 31.84	0	309985..310386	-	133	42525796	-	TDE0280	-	PilT domain-containing protein
278	 35.35	0	310383..310580	-	65	42525797	-	TDE0281	-	hypothetical protein
279	 41.16	0	310745..312214	-	489	42525798	-	TDE0282	-	ABC transporter, ATP-binding protein
280	 45.67	+1	312211..312915	-	234	42525799	-	TDE0283	-	transporter, putative
281	 41.79	0	312916..313518	-	200	42525800	-	TDE0284	-	hypothetical protein
282	 46.39	+1	313762..315813	+	683	42525801	fusA-1	TDE0285	-	elongation factor G
283	 31.60	0	315858..317468	-	536	42525802	-	TDE0286	-	ABC transporter, ATP-binding protein
284	 32.03	0	317465..319150	-	561	42525803	-	TDE0287	-	ABC transporter, ATP-binding protein, putative
285	 31.92	0	319214..320134	-	306	42525804	-	TDE0288	-	hypothetical protein
286	 29.34	-1	320161..320736	-	191	42525805	-	TDE0289	-	hypothetical protein
287	 21.88	-2	320789..320884	-	31	42525806	-	TDE0290	-	hypothetical protein
288	 31.46	-1	320884..321150	-	88	42525807	-	TDE0291	-	hypothetical protein
289	 38.33	0	321265..322104	-	279	42525808	-	TDE0292	-	hypothetical protein
290	 38.53	0	322108..323511	-	467	42525809	-	TDE0293	-	MATE efflux family protein
291	 38.08	0	323563..324300	-	245	42525810	-	TDE0294	-	TrkA domain-containing protein
292	 45.10	+1	324310..326757	-	815	42525811	gyrA	TDE0295	-	DNA gyrase, A subunit
293	 43.44	+1	326932..327831	-	299	42525812	-	TDE0296	-	formiminotransferase, putative
294	 22.40	-2	327886..328068	-	60	42525813	-	TDE0297	-	hypothetical protein
295	 31.24	-1	328103..330061	+	652	42525814	-	TDE0298	-	hypothetical protein
296	 36.67	0	330220..330639	+	139	42525815	mutT	TDE0299	-	mutator mutT protein
297	 42.00	0	330983..332413	+	476	42525816	-	TDE0300	-	leucyl aminopeptidase
298	 30.22	-1	332487..333290	+	267	42525817	-	TDE0301	-	tetracenomycin polyketide synthesis O-methyltransferase TcmP, putative
299	 33.33	0	333363..333641	+	92	42525818	-	TDE0302	-	hypothetical protein
300	 30.14	-1	333638..333919	+	93	42525819	-	TDE0303	-	hypothetical protein
301	 41.50	0	334023..335552	+	509	42525820	-	TDE0304	-	hypothetical protein
302	 44.26	+1	335735..336841	-	368	42525821	ychF	TDE0305	-	translation-associated GTPase
303	 40.11	0	336880..338709	-	609	42525822	sppA	TDE0306	-	signal peptide peptidase SppA
304	 29.91	-1	338795..339700	+	301	42525823	-	TDE0307	-	hypothetical protein
305	 35.33	0	339727..340776	+	349	42525824	-	TDE0308	-	hypothetical protein
306	 26.29	-1	340806..341756	+	316	42525825	-	TDE0309	-	putative lipoprotein
307	 29.83	-1	341760..342872	+	370	42525826	-	TDE0310	-	hypothetical protein
308	 40.70	0	342956..343756	+	266	42525827	thyX	TDE0311	-	FAD-dependent thymidylate synthase
309	 31.88	0	343775..345499	+	574	42525828	-	TDE0312	-	TrkH family potassium uptake protein
310	 37.66	0	345514..346206	+	230	42525829	-	TDE0313	-	TrkA domain-containing protein
311	 30.15	-1	346217..346969	+	250	42525830	-	TDE0314	-	hypothetical protein
312	 36.08	0	347078..348862	+	594	42525831	-	TDE0315	-	ABC transporter ATP-binding protein/peptidase
313	 33.90	0	348960..350549	-	529	42525832	-	TDE0316	-	ABC transporter, ATP-binding/permease protein
314	 41.73	0	350796..351176	+	126	42525833	-	TDE0317	-	hypothetical protein
315	 31.75	0	351222..351536	+	104	42525834	-	TDE0318	-	hypothetical protein
316	 42.26	0	351600..352607	+	335	42525835	-	TDE0319	-	hypothetical protein
317	 34.33	0	352570..353868	-	432	42525836	-	TDE0320	-	CBS domain-containing protein
318	 34.24	0	353865..355184	-	439	42525837	-	TDE0321	-	CBS domain-containing protein
319	 37.33	0	355196..355495	-	99	42525838	-	TDE0322	-	P-II family regulatory protein
320	 37.76	0	355840..357285	-	481	42525839	-	TDE0323	-	hypothetical protein
321	 33.66	0	357584..358204	+	206	42525840	-	TDE0324	-	hypothetical protein
322	 30.85	-1	358191..358793	+	200	42525841	-	TDE0325	-	hypothetical protein
323	 39.77	0	358838..360718	-	626	42525842	recQ	TDE0326	-	ATP-dependent DNA helicase RecQ
324	 31.35	-1	361021..365208	+	1395	42525843	-	TDE0327	-	CRISPR-associated Cas5e family protein
325	 32.76	0	365205..366077	+	290	42525844	cas1	TDE0328	-	CRISPR-associated Cas1 family protein
326	 31.05	-1	366082..366387	+	101	42525845	-	TDE0329	-	CRISPR-associated Cas2 family protein
327	 25.78	-1	366384..367058	+	224	42525846	-	TDE0330	-	CRISPR-associated Csn2 family protein
328	 30.39	-1	370932..371033	-	33	42525847	-	TDE0331	-	hypothetical protein
329	 33.33	0	371080..371706	+	208	42525848	-	TDE0332	-	TetR family transcriptional regulator
330	 37.46	0	371788..373143	+	451	42525849	-	TDE0333	-	MATE efflux family protein
331	 32.40	0	373386..374138	-	250	42525850	-	TDE0334	-	hypothetical protein
332	 39.30	0	374210..375265	-	351	42525851	nrdF	TDE0335	-	ribonucleotide-diphosphate reductase subunit beta
333	 34.32	0	375283..376401	-	372	42525852	-	TDE0336	-	hypothetical protein
334	 36.53	0	376385..377197	-	270	42525853	nagB	TDE0337	-	glucosamine-6-phosphate deaminase
335	 35.47	0	377457..377924	+	155	42525854	-	TDE0338	-	methyl-accepting chemotaxis protein-like protein
336	 44.50	+1	378011..378628	+	205	42525855	-	TDE0339	-	TetR family transcriptional regulator
337	 39.41	0	378779..379666	+	295	42525856	-	TDE0340	-	fructose-1,6-bisphosphate aldolase
338	 42.24	0	379679..382216	-	845	42525857	nrdA	TDE0341	-	ribonucleotide-diphosphate reductase subunit alpha
339	 37.86	0	382218..383831	-	537	42525858	mviN	TDE0342	-	integral membrane protein MviN
340	 37.18	0	384337..385455	-	372	42525859	-	TDE0343	-	alpha/beta fold family hydrolase
341	 38.74	0	385457..385678	-	73	42525860	-	TDE0344	-	AbrB family transcriptional regulator
342	 41.20	0	385834..387066	-	410	42525861	dmcB	TDE0345	-	methyl-accepting chemotaxis protein DmcB
37.25	MEAN

5.76	STD DEV
