IslandPath Analysis: Treponema denticola ATCC 35405

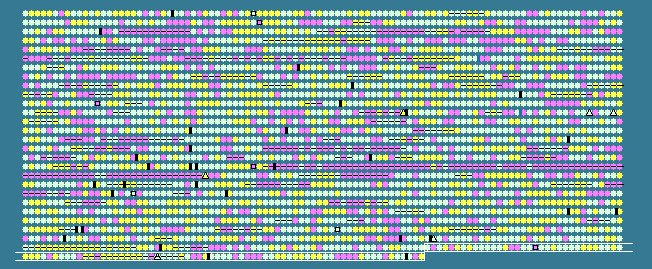

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.25 STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2668	 37.02	0	2727286..2728344	-	352	42528187	-	TDE2687	-	L-threonine-O-3-phosphate decarboxylase, putative
2669	 23.02	-2	2728397..2728522	+	41	42528188	-	TDE2688	-	hypothetical protein
2670	 34.61	0	2728516..2728908	+	130	42528189	-	TDE2689	-	hypothetical protein
2671	 42.31	0	2728833..2728988	-	51	42528190	-	TDE2690	-	hypothetical protein
2672	 31.47	-1	2728978..2729406	+	142	42528191	-	TDE2691	-	hypothetical protein
2673	 43.45	+1	2729561..2731171	+	536	42528192	pyrG	TDE2692	-	CTP synthetase
2674	 40.69	0	2731273..2734074	+	933	42528193	-	TDE2693	-	ankyrin repeat-containing protein
2675	 42.33	0	2734169..2736391	-	740	42528194	-	TDE2694	-	hypothetical protein
2676	 36.88	0	2736464..2739169	-	901	42528195	-	TDE2695	-	fused transcript cleavage factor/uncharacterized domain-containing protein
2677	 37.91	0	2739188..2740126	-	312	42528196	-	TDE2696	-	TPR domain-containing protein
2678	 36.95	0	2740400..2741173	+	257	42528197	-	TDE2697	-	3-oxo-5-alpha-steroid 4-dehydrogenase family protein
2679	 39.72	0	2741192..2742835	+	547	42528198	-	TDE2698	-	hypothetical protein
2680	 38.85	0	2742856..2744523	+	555	42528199	-	TDE2699	-	antigen, putative
2681	 42.30	0	2744536..2745828	+	430	42528200	-	TDE2700	-	CCS family citrate carrier protein
2682	 32.26	0	2745829..2745921	+	30	42528201	-	TDE2701	-	hypothetical protein
2683	 33.62	0	2745922..2747664	-	580	42528202	-	TDE2702	-	hypothetical protein
2684	 36.64	0	2747695..2748480	-	261	42528203	-	TDE2703	-	hypothetical protein
2685	 34.07	0	2748473..2751169	-	898	42528204	-	TDE2704	-	hypothetical protein
2686	 31.46	-1	2751217..2751855	-	212	42528205	-	TDE2705	-	ISTde3, transposase
2687	 37.75	0	2752006..2753883	-	625	42528206	-	TDE2706	-	hypothetical protein
2688	 36.10	0	2754087..2754989	+	300	42528207	-	TDE2707	-	hypothetical protein
2689	 44.22	+1	2755226..2761588	-	2120	42528208	-	TDE2708	-	hypothetical protein
2690	 37.73	0	2761784..2766448	-	1554	42528209	-	TDE2709	-	BNR domain-containing protein
2691	 39.49	0	2766670..2768034	+	454	42528210	-	TDE2710	-	MATE efflux family protein
2692	 39.56	0	2768152..2769051	+	299	42528211	-	TDE2711	-	hypothetical protein
2693	 35.98	0	2769148..2769675	+	175	42528212	-	TDE2712	-	hypothetical protein
2694	 40.89	0	2769647..2770414	-	255	42528213	-	TDE2713	-	RNA methyltransferase
2695	 51.91	+2	2770717..2772708	-	663	42528214	-	TDE2714	-	hypothetical protein
2696	 55.03	+2	2772808..2772996	+	62	42528215	-	TDE2715	-	hypothetical protein
2697	 39.73	0	2773335..2773991	+	218	42528216	-	TDE2716	-	HAD family hydrolase
2698	 40.51	0	2774011..2774637	-	208	42528217	-	TDE2717	-	phosphatidate cytidylyltransferase, putative
2699	 40.99	0	2774642..2776000	-	452	42528218	mgtE	TDE2718	-	magnesium transporter
2700	 35.80	0	2776185..2777075	+	296	42528219	-	TDE2719	-	hypothetical protein
2701	 41.58	0	2777086..2777922	-	278	42528220	-	TDE2720	-	hypothetical protein
2702	 45.52	+1	2777923..2779695	-	590	42528221	-	TDE2721	-	helicase domain-containing protein
2703	 41.36	0	2779756..2780964	-	402	42528222	-	TDE2722	-	carbhohydrate kinase
2704	 40.73	0	2780961..2782217	-	418	42528223	prs	TDE2723	-	phosphoribosylpyrophosphate synthetase
2705	 30.30	-1	2782244..2782342	+	32	42528224	-	TDE2724	-	hypothetical protein
2706	 41.18	0	2782330..2783298	-	322	42528225	-	TDE2725	-	cyclic nucleotide binding/GGDEF domain-containing protein
2707	 39.11	0	2783291..2784259	-	322	42528226	-	TDE2726	-	cyclic nucleotide binding/GGDEF domain-containing protein
2708	 35.34	0	2784341..2785435	-	364	42528227	-	TDE2727	-	GTPase YjeQ, putative
2709	 39.53	0	2785747..2785875	+	42	42528228	-	TDE2728	-	hypothetical protein
2710	 33.76	0	2785846..2786547	-	233	42528229	-	TDE2729	-	hypothetical protein
2711	 42.76	0	2786726..2787499	+	257	42528230	-	TDE2730	-	TatD family hydrolase
2712	 47.21	+1	2787512..2788513	+	333	42528231	-	TDE2731	-	NifR3 family TIM-barrel protein
2713	 32.26	0	2788588..2788680	+	30	42528232	-	TDE2732	-	hypothetical protein
2714	 43.25	+1	2788713..2789186	+	157	42528233	-	TDE2733	-	hypothetical protein
2715	 52.32	+2	2789211..2789921	+	236	42528234	-	TDE2734	-	hypothetical protein
2716	 47.36	+1	2790294..2791676	+	460	42528235	-	TDE2735	-	surface antigen, putative
2717	 46.85	+1	2791792..2791902	-	36	42528236	-	TDE2736	-	hypothetical protein
2718	 47.77	+1	2792010..2792750	+	246	42528237	-	TDE2737	-	hypothetical protein
2719	 44.02	+1	2792903..2794633	+	576	42528238	-	TDE2738	-	oligoendopeptidase F, putative
2720	 42.93	0	2794813..2795229	+	138	42528239	-	TDE2739	-	hypothetical protein
2721	 34.15	0	2795342..2795830	+	162	42528240	-	TDE2740	-	type I restriction-modification system, S subunit, truncation
2722	 32.82	0	2796003..2796782	+	259	42528241	-	TDE2741	-	hypothetical protein
2723	 39.38	0	2796940..2797749	-	269	42528242	-	TDE2742	-	phage integrase family site specific recombinase
2724	 36.17	0	2797810..2798337	+	175	42528243	-	TDE2743	-	type I restriction-modification system, S subunit, truncation
2725	 36.77	0	2798345..2799943	-	532	42528244	hsdS	TDE2744	-	type I restriction-modification system, S subunit
2726	 38.85	0	2799971..2800786	-	271	42528245	-	TDE2745	-	fic family protein
2727	 43.31	+1	2800783..2802225	-	480	42528246	hsdM-2	TDE2746	-	type I restriction-modification system, M subunit
2728	 39.68	0	2802228..2805032	-	934	42528247	hsdR-2	TDE2747	-	type I restriction-modification system, R subunit
2729	 31.59	0	2805248..2805706	+	152	42528248	-	TDE2748	-	acetyltransferase
2730	 30.77	-1	2805766..2806116	+	116	42528249	-	TDE2749	-	hypothetical protein
2731	 43.54	+1	2806173..2807348	+	391	42528250	-	TDE2750	-	GTP-binding protein HflX, truncation
2732	 39.09	0	2807710..2809254	+	514	42528251	-	TDE2751	-	hypothetical protein
2733	 37.36	0	2809258..2809530	+	90	42528252	-	TDE2752	-	hypothetical protein
2734	 39.93	0	2809648..2810739	-	363	42528253	-	TDE2753	-	LysM/M23/M37 peptidase
2735	 40.49	0	2810851..2811870	-	339	42528254	arcB	TDE2754	-	ornithine cyclodeaminase
2736	 30.70	-1	2811888..2812001	+	37	42528255	-	TDE2755	-	hypothetical protein
2737	 37.78	0	2811988..2813607	-	539	42528256	-	TDE2756	-	solute-binding family 5 protein
2738	 22.98	-2	2813813..2814121	+	102	42528257	-	TDE2757	-	nucleotidyltransferase family protein
2739	 28.57	-1	2814105..2814461	+	118	42528258	-	TDE2758	-	hypothetical protein
2740	 24.75	-2	2814451..2815161	+	236	42528259	-	TDE2759	-	hypothetical protein
2741	 37.13	0	2815156..2815971	-	271	42528260	fliP	TDE2760	-	flagellar biosynthesis protein FliP
2742	 37.27	0	2815968..2816627	-	219	42528261	-	TDE2761	-	hypothetical protein
2743	 44.50	+1	2816653..2817834	-	393	42528262	fliY	TDE2762	-	flagellar motor switch protein FliY
2744	 43.19	+1	2817827..2818861	-	344	42528263	fliM	TDE2763	-	flagellar motor switch protein FliM
2745	 35.71	0	2818876..2819421	-	181	42528264	fliL	TDE2764	-	flagellar basal body-associated protein FliL
2746	 44.31	+1	2819464..2820183	-	239	42528265	motB	TDE2765	-	flagellar motor protein MotB
2747	 43.21	+1	2820185..2820964	-	259	42528266	motA	TDE2766	-	motility protein A
2748	 36.36	0	2820986..2821183	-	65	42528267	-	TDE2767	-	flagellar protein-related protein
2749	 44.54	+1	2821209..2822600	-	463	42528268	flgE	TDE2768	-	flagellar hook protein FlgE
2750	 41.76	0	2822613..2823122	-	169	42528269	flgD	TDE2769	-	flagellar basal body rod modification protein
2751	 40.03	0	2823134..2824507	-	457	42528270	fliK	TDE2770	-	flagellar hook-length control protein FliK
2752	 38.85	0	2824859..2825710	+	283	42528271	-	TDE2771	-	hypothetical protein
2753	 32.70	0	2825786..2825944	+	52	42528272	-	TDE2772	-	ABC transporter, ATP-binding protein, truncation
2754	 29.08	-1	2825913..2826053	-	46	42528273	-	TDE2773	-	hypothetical protein
2755	 27.96	-1	2826134..2826319	+	61	42528274	-	TDE2774	-	hypothetical protein
2756	 32.63	0	2826336..2827190	+	284	42528275	-	TDE2775	-	putative lipoprotein
2757	 40.98	0	2827504..2828445	+	313	42528276	pip	TDE2776	-	proline iminopeptidase
2758	 34.17	0	2828452..2829411	+	319	42528277	-	TDE2777	-	hypothetical protein
2759	 38.46	0	2829461..2829694	-	77	42528278	-	TDE2778	-	PspC domain-containing protein
2760	 39.60	0	2829718..2830515	-	265	42528279	-	TDE2779	-	hypothetical protein
2761	 32.46	0	2830598..2830711	-	37	42528280	-	TDE2780	-	hypothetical protein
2762	 41.58	0	2830729..2832558	-	609	42528281	-	TDE2781	-	ABC transporter, ATP-binding/permease protein
2763	 39.25	0	2832576..2834366	-	596	42528282	-	TDE2782	-	ABC transporter, ATP-binding/permease protein
2764	 38.67	0	2834550..2836667	+	705	42528283	-	TDE2783	-	methyl-accepting chemotaxis protein
2765	 36.96	0	2836978..2838687	+	569	42528284	-	TDE2784	-	hypothetical protein
2766	 33.16	0	2838691..2839272	-	193	42528285	-	TDE2785	-	hypothetical protein
2767	 41.80	0	2839313..2842762	-	1149	42528286	dnaE	TDE2786	-	DNA polymerase III subunit alpha
37.25	MEAN

5.76	STD DEV
