IslandPath Analysis: Treponema denticola ATCC 35405

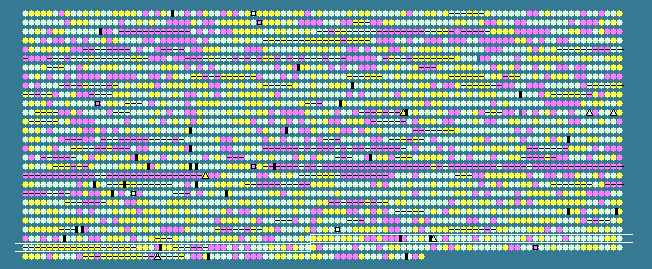

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2549	 43.73	+1	2595282..2596445	+	387	42528068	thiI	TDE2568	-	thiamine biosynthesis protein ThiI
2550	 42.95	0	2596448..2597518	+	356	42528069	aroF	TDE2569	-	phospho-2-dehydro-3-deoxyheptonate aldolase
2551	 44.72	+1	2597515..2597997	+	160	42528070	rnhA	TDE2570	-	ribonuclease HI
2552	 44.16	+1	2598012..2598242	-	76	42528071	-	TDE2571	-	hypothetical protein
2553	 37.71	0	2598235..2598828	-	197	42528072	pgsA	TDE2572	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
2554	 42.65	0	2598942..2600519	+	525	42528073	pgi	TDE2573	-	glucose-6-phosphate isomerase
2555	 41.16	0	2600516..2601154	+	212	42528074	-	TDE2574	-	hypothetical protein
2556	 38.70	0	2601158..2601772	+	204	42528075	-	TDE2575	-	hypothetical protein
2557	 41.63	0	2601812..2602546	+	244	42528076	-	TDE2576	-	RNA pseudouridylate synthase family protein
2558	 30.68	-1	2602580..2602993	-	137	42528077	-	TDE2577	-	hypothetical protein
2559	 32.94	0	2602990..2603244	-	84	42528078	-	TDE2578	-	hypothetical protein
2560	 45.95	+1	2603378..2605414	-	678	42528079	recG	TDE2579	-	ATP-dependent DNA helicase RecG
2561	 29.69	-1	2605586..2610910	+	1774	42528080	-	TDE2580	-	GGDEF domain-containing protein
2562	 24.64	-2	2610922..2611692	+	256	42528081	-	TDE2581	-	hypothetical protein
2563	 29.21	-1	2611929..2616224	+	1431	42528082	-	TDE2582	-	GGDEF domain-containing protein
2564	 18.18	-2	2616462..2616560	+	32	42528083	-	TDE2583	-	hypothetical protein
2565	 39.53	0	2616553..2618004	+	483	42528084	-	TDE2584	-	dipeptidase
2566	 35.27	0	2618066..2620393	-	775	42528085	-	TDE2585	-	methyl-accepting chemotaxis domain/unknown domain-containing protein
2567	 43.07	+1	2620341..2622179	-	612	42528086	-	TDE2586	-	DNA polymerase III subunits gamma and tau
2568	 40.10	0	2622331..2623350	+	339	42528087	-	TDE2587	-	endonuclease/exonuclease/phosphatase family protein
2569	 39.07	0	2623636..2624838	+	400	42528088	-	TDE2588	-	integrase domain-containing protein
2570	 39.30	0	2625090..2626496	-	468	42528089	-	TDE2589	-	putative aminopeptidase 1
2571	 23.68	-2	2626622..2626735	+	37	42528090	-	TDE2590	-	hypothetical protein
2572	 37.78	0	2626710..2627069	+	119	42528091	-	TDE2591	-	rhodanese-like domain-containing protein
2573	 37.48	0	2627166..2627792	+	208	42528092	-	TDE2592	-	DbpA RNA-binding domain-containing protein
2574	 37.73	0	2627887..2629023	+	378	42528093	-	TDE2593	-	sigma-54-binding protein
2575	 36.51	0	2629020..2630120	-	366	42528094	-	TDE2594	-	hypothetical protein
2576	 33.43	0	2630124..2631170	-	348	42528095	-	TDE2595	-	hypothetical protein
2577	 38.32	0	2631167..2632129	-	320	42528096	-	TDE2596	-	hypothetical protein
2578	 42.38	0	2632126..2632755	-	209	42528097	rpe	TDE2597	-	ribulose-phosphate 3-epimerase
2579	 36.44	0	2632809..2633420	-	203	42528098	-	TDE2598	-	hypothetical protein
2580	 40.32	0	2633424..2634053	-	209	42528099	tmk	TDE2599	-	thymidylate kinase
2581	 34.48	0	2634098..2638615	+	1505	42528100	-	TDE2600	-	hypothetical protein
2582	 35.08	0	2638630..2641086	+	818	42528101	-	TDE2601	-	surface antigen, putative
2583	 37.31	0	2641096..2641623	+	175	42528102	-	TDE2602	-	outer membrane protein, putative
2584	 43.31	+1	2641616..2644291	+	891	42528103	mutS	TDE2603	-	DNA mismatch repair protein
2585	 27.27	-1	2644314..2645864	-	516	42528104	-	TDE2604	-	hypothetical protein
2586	 37.02	0	2645958..2646500	+	180	42528105	-	TDE2605	-	phosphoglycerate mutase family protein
2587	 47.06	+1	2646587..2648611	+	674	42528106	hutU	TDE2606	-	urocanate hydratase
2588	 38.12	0	2648726..2649394	+	222	42528107	-	TDE2607	-	hypothetical protein
2589	 38.61	0	2649415..2650533	+	372	42528108	-	TDE2608	-	hypothetical protein
2590	 40.17	0	2650561..2651964	+	467	42528109	-	TDE2609	-	putative tRNA modifying protein
2591	 33.33	0	2651944..2652060	-	38	42528110	-	TDE2610	-	hypothetical protein
2592	 38.69	0	2652120..2654339	+	739	42528111	-	TDE2611	-	hypothetical protein
2593	 35.81	0	2654347..2655519	+	390	42528112	-	TDE2612	-	hypothetical protein
2594	 35.56	0	2655512..2655916	+	134	42528113	-	TDE2613	-	hypothetical protein
2595	 37.46	0	2656108..2657223	-	371	42528114	-	TDE2614	-	ApbE family protein
2596	 37.93	0	2657236..2657757	-	173	42528115	lspA	TDE2615	-	signal peptidase II
2597	 40.00	0	2657770..2658429	-	219	42528116	-	TDE2616	-	cyclic nucleotide-binding protein
2598	 41.82	0	2658433..2659434	-	333	42528117	-	TDE2617	-	cyclic nucleotide-binding protein
2599	 45.21	+1	2659532..2660407	+	291	42528118	-	TDE2618	-	phosphotransferase domain-containing protein
2600	 38.11	0	2660420..2661634	+	404	42528119	-	TDE2619	-	RNA methyltransferase
2601	 35.48	0	2661678..2662097	+	139	42528120	-	TDE2620	-	hypothetical protein
2602	 36.05	0	2662111..2662257	+	48	42528121	-	TDE2621	-	hypothetical protein
2603	 48.27	+1	2662268..2663680	-	470	42528122	-	TDE2622	-	ABC transporter, ATP-binding protein
2604	 48.72	+1	2663674..2664414	-	246	42528123	-	TDE2623	-	hypothetical protein
2605	 43.76	+1	2664411..2664995	-	194	42528124	-	TDE2624	-	hypothetical protein
2606	 48.97	+2	2665015..2666754	-	579	42528125	-	TDE2625	-	ABC transporter, ATP-binding/permease protein
2607	 48.34	+1	2666747..2668492	-	581	42528126	-	TDE2626	-	ABC transporter, ATP-binding/permease protein
2608	 44.99	+1	2668622..2669230	-	202	42528127	-	TDE2627	-	TetR family transcriptional regulator
2609	 41.03	0	2669208..2669402	+	64	42528128	-	TDE2628	-	hypothetical protein
2610	 47.23	+1	2669469..2671022	+	517	42528129	-	TDE2629	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
2611	 44.34	+1	2671019..2671972	+	317	42528130	-	TDE2630	-	peptide ABC transporter, permease protein, putative
2612	 48.12	+1	2671969..2672793	+	274	42528131	-	TDE2631	-	peptide ABC transporter, permease protein, putative
2613	 49.32	+2	2672790..2674484	+	564	42528132	-	TDE2632	-	peptide ABC transporter, ATP-binding protein, putative
2614	 37.12	0	2674499..2674762	+	87	42528133	-	TDE2633	-	hypothetical protein
2615	 40.89	0	2674765..2675571	+	268	42528134	-	TDE2634	-	hypothetical protein
2616	 34.33	0	2675593..2676093	+	166	42528135	-	TDE2635	-	acetyltransferase
2617	 44.50	+1	2676210..2676809	+	199	42528136	-	TDE2636	-	hypothetical protein
2618	 43.05	+1	2676882..2677406	-	174	42528137	-	TDE2637	-	hypothetical protein
2619	 36.84	0	2677633..2678259	+	208	42528138	-	TDE2638	-	hypothetical protein
2620	 42.49	0	2678260..2680149	+	629	42528139	pepF	TDE2639	-	oligoendopeptidase F
2621	 42.59	0	2680174..2681091	+	305	42528140	-	TDE2640	-	hypothetical protein
2622	 34.35	0	2681142..2682128	+	328	42528141	-	TDE2641	-	Fic family protein
2623	 28.47	-1	2682201..2682344	-	47	42528142	-	TDE2642	-	hypothetical protein
2624	 44.42	+1	2682325..2683794	+	489	42528143	-	TDE2643	-	oxidoreductase, FAD-dependent
2625	 43.87	+1	2683791..2685119	+	442	42528144	-	TDE2644	-	pyridine nucleotide-disulphide oxidoreductase family protein
2626	 40.97	0	2685112..2685504	+	130	42528145	-	TDE2645	-	hypothetical protein
2627	 39.47	0	2685488..2686090	+	200	42528146	-	TDE2646	-	ABC transporter, ATP-binding protein, putative
2628	 38.45	0	2686092..2687087	-	331	42528147	-	TDE2647	-	lipoyltransferase and lipoate-protein ligase family protein
2629	 26.15	-1	2687172..2687867	-	231	42528148	-	TDE2648	-	hypothetical protein
2630	 32.18	0	2687869..2688738	-	289	42528149	-	TDE2649	-	ABC transporter, ATP-binding protein
2631	 35.25	0	2688756..2689121	-	121	42528150	-	TDE2650	-	transcriptional regulator, putative
2632	 26.87	-1	2689289..2690278	+	329	42528151	-	TDE2651	-	ABC transporter, ATP-binding protein
2633	 25.79	-1	2690275..2691030	+	251	42528152	-	TDE2652	-	hypothetical protein
2634	 26.23	-1	2691031..2691804	+	257	42528153	-	TDE2653	-	hypothetical protein
2635	 36.63	0	2691815..2693059	+	414	42528154	-	TDE2654	-	macrolide efflux protein, putative
2636	 31.48	-1	2693053..2693160	-	35	42528155	-	TDE2655	-	hypothetical protein
2637	 37.04	0	2693205..2693960	+	251	42528156	cbiK	TDE2656	-	cobalt chelatase
2638	 31.54	0	2693962..2694630	+	222	42528157	-	TDE2657	-	precorrin-2 C20-methyltransferase, putative
2639	 35.04	0	2694634..2695923	+	429	42528158	-	TDE2658	-	cobyrinic acid a,c-diamide synthase, putative
2640	 39.55	0	2695990..2697243	+	417	42528159	-	TDE2659	-	GAF domain/HD domain-containing protein
2641	 37.78	0	2697248..2697607	-	119	42528160	-	TDE2660	-	hypothetical protein
2642	 44.98	+1	2697614..2697862	-	82	42528161	-	TDE2661	-	hypothetical protein
2643	 36.69	0	2697877..2698740	-	287	42528162	-	TDE2662	-	putative lipoprotein
2644	 42.36	0	2698706..2702008	-	1100	42528163	ileS	TDE2663	-	isoleucyl-tRNA synthetase
2645	 26.13	-1	2702063..2702173	+	36	42528164	-	TDE2664	-	hypothetical protein
2646	 43.56	+1	2702157..2703671	+	504	42528165	guaB	TDE2665	-	inositol-5-monophosphate dehydrogenase
2647	 37.98	0	2703753..2704484	-	243	42528166	-	TDE2666	-	carbon-nitrogen family hydrolase
2648	 40.48	0	2704514..2704639	+	41	42528167	-	TDE2667	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
