IslandPath Analysis: Treponema denticola ATCC 35405

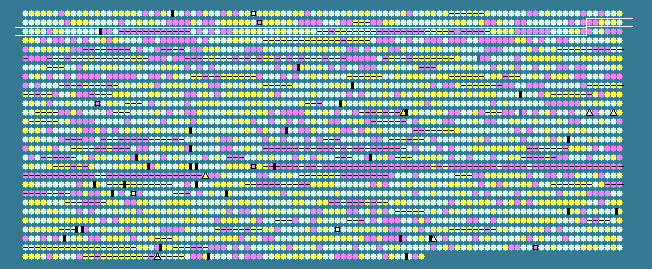

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
195	 27.18	-1	232711..232905	+	64	42525714	-	TDE0196	-	hypothetical protein
196	 27.82	-1	232905..233285	+	126	42525715	-	TDE0197	-	PilT domain-containing protein
197	 41.01	0	233295..234284	+	329	42525716	-	TDE0198	-	hypothetical protein
198	 39.02	0	234289..234798	-	169	42525717	-	TDE0199	-	hypothetical protein
199	 42.56	0	234761..235432	+	223	42525718	-	TDE0200	-	tetrapyrrole methylase family protein
200	 35.11	0	235503..235784	+	93	42525719	-	TDE0201	-	hypothetical protein
201	 37.15	0	235960..236982	-	340	42525720	-	TDE0202	-	hypothetical protein
202	 34.30	0	236810..237118	+	102	42525721	-	TDE0203	-	hypothetical protein
203	 42.93	0	237108..238628	+	506	42525722	gltX	TDE0204	-	glutamyl-tRNA synthetase
204	 37.09	0	238684..239748	+	354	42525723	-	TDE0205	-	adenylate/guanylate cyclase catalytic domain-containing protein
205	 29.19	-1	239761..241617	-	618	42525724	-	TDE0206	-	surface antigen, putative
206	 42.77	0	241742..243097	+	451	42525725	-	TDE0207	-	GntP family permease
207	 44.64	+1	243122..244288	+	388	42525726	glxK	TDE0208	-	glycerate kinase
208	 38.85	0	244335..245621	+	428	42525727	-	TDE0209	-	arsenical pump membrane protein, putative
209	 39.53	0	245691..246206	+	171	42525728	cobO	TDE0210	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
210	 33.88	0	246645..247376	-	243	42525729	-	TDE0211	-	ABC transporter permease
211	 39.57	0	247348..248325	-	325	42525730	-	TDE0212	-	hypothetical protein
212	 35.35	0	248408..249550	-	380	42525731	-	TDE0213	-	TPR domain-containing protein
213	 38.62	0	249595..250539	-	314	42525732	-	TDE0214	-	hypothetical protein
214	 26.85	-1	251353..251460	-	35	42525733	-	TDE0215	-	hypothetical protein
215	 31.07	-1	251445..252680	+	411	42525734	-	TDE0216	-	hypothetical protein
216	 34.10	0	252688..253206	+	172	42525735	ogt	TDE0217	-	methylated-DNA--protein-cysteine methyltransferase
217	 20.16	-2	253299..253427	+	42	42525736	-	TDE0218	-	hypothetical protein
218	 31.08	-1	253446..253934	-	162	42525737	-	TDE0219	-	hypothetical protein
219	 31.21	-1	253955..254095	-	46	42525738	-	TDE0220	-	hypothetical protein
220	 32.72	0	254136..254786	-	216	42525739	-	TDE0221	-	hypothetical protein
221	 28.00	-1	254786..255310	-	174	42525740	-	TDE0222	-	acetyltransferase
222	 26.82	-1	255335..255994	-	219	42525741	-	TDE0223	-	hypothetical protein
223	 28.33	-1	256088..256207	-	39	42525742	-	TDE0224	-	hypothetical protein
224	 29.67	-1	256195..256467	-	90	42525743	-	TDE0225	-	prevent-host-death family protein
225	 31.67	0	256484..256783	-	99	42525744	-	TDE0226	-	hypothetical protein
226	 25.09	-2	257076..259709	+	877	42525745	-	TDE0227	-	adenine-specific DNA modification methyltransferase
227	 28.60	-1	259701..260693	-	330	42525746	-	TDE0228	-	hypothetical protein
228	 24.67	-2	260956..262836	-	626	42525747	-	TDE0229	-	ATPase family protein
229	 35.46	0	262889..263971	-	360	42525748	recF	TDE0230	-	DNA replication and repair protein RecF
230	 31.97	0	263980..265083	-	367	42525749	dnaN	TDE0231	-	DNA polymerase III, beta subunit
231	 34.46	0	265354..265884	+	176	42525750	-	TDE0232	-	appr-1-p processing domain-containing protein
232	 33.16	0	265877..267010	-	377	42525751	-	TDE0233	-	fic family protein
233	 38.58	0	267193..269004	+	603	42525752	-	TDE0234	-	ABC transporter ATP-binding protein
234	 26.59	-1	269062..269313	+	83	42525753	-	TDE0235	-	hypothetical protein
235	 30.17	-1	269297..269707	+	136	42525754	-	TDE0236	-	PilT domain-containing protein
236	 45.10	+1	269751..271280	-	509	42525755	-	TDE0237	-	hypothetical protein
237	 43.52	+1	271520..271843	+	107	42525756	trx	TDE0238	-	thioredoxin, selenocysteine-containing
238	 49.35	+2	271918..273072	-	384	42525757	grdD	TDE0239	-	glycine reductase complex protein GrdD
239	 45.87	+1	273085..274623	-	512	42525758	grdC	TDE0240	-	glycine reductase complex protein GrdC
240	 40.80	0	274791..275393	-	200	42525759	-	TDE0241	-	hypothetical protein
241	 34.18	0	275404..276114	-	236	42525760	-	TDE0242	-	hypothetical protein
242	 37.74	0	276116..277591	-	491	42525761	-	TDE0243	-	ABC transporter, ATP-binding protein
243	 40.93	0	277579..279303	-	574	42525762	-	TDE0244	-	ABC transporter, ATP-binding/permease protein
244	 40.95	0	279315..281033	-	572	42525763	-	TDE0245	-	ABC transporter, ATP-binding/permease protein
245	 36.49	0	281186..281755	-	189	42525764	-	TDE0246	-	TetR family transcriptional regulator
246	 43.36	+1	282208..282576	+	122	42525765	-	TDE0248	-	hypothetical protein
247	 39.54	0	282679..283242	+	187	42525766	-	TDE0249	-	flavoredoxin, putative
248	 42.23	0	283400..284725	-	441	42525767	-	TDE0250	-	sodium-dependent transporter, putative
249	 40.58	0	284807..286186	-	459	42525768	tnaA	TDE0251	-	tryptophanase
250	 38.22	0	286403..287221	+	272	42525769	-	TDE0252	-	hypothetical protein
251	 39.09	0	287292..288785	+	497	42525770	-	TDE0253	-	hypothetical protein
252	 30.22	-1	288794..289372	+	192	42525771	-	TDE0254	-	hypothetical protein
253	 46.81	+1	289408..290832	-	474	42525772	-	TDE0255	-	ABC transporter, ATP-binding protein
254	 43.35	+1	290832..291530	-	232	42525773	-	TDE0256	-	hypothetical protein
255	 39.64	0	291586..292188	-	200	42525774	-	TDE0257	-	hypothetical protein
256	 38.65	0	292222..292974	-	250	42525775	-	TDE0258	-	UbiE/COQ5 family methlytransferase
257	 37.75	0	293397..293849	+	150	42525776	-	TDE0259	-	MarR family transcriptional regulator
258	 37.17	0	293874..294785	+	303	42525777	-	TDE0260	-	iron-sulfur cluster-binding protein
259	 36.82	0	294782..295240	+	152	42525778	-	TDE0261	-	flavodoxin
260	 27.56	-1	295317..296390	-	357	42525779	-	TDE0262	-	hypothetical protein
261	 32.23	0	296490..297032	-	180	42525780	-	TDE0263	-	spermidine N1-acetyltransferase, putative
262	 31.09	-1	297111..297377	-	88	42525781	-	TDE0264	-	CopG family protein
263	 31.06	-1	297857..298648	-	263	42525782	-	TDE0266	-	hypothetical protein
264	 28.57	-1	298653..299198	-	181	42525783	-	TDE0267	-	HAM1 protein
265	 26.11	-1	299309..300139	-	276	42525784	-	TDE0268	-	hypothetical protein
266	 32.52	0	300286..300777	-	163	42525785	-	TDE0269	-	hypothetical protein
267	 28.27	-1	300935..301960	-	341	42525786	-	TDE0270	-	hypothetical protein
268	 34.03	0	302116..302259	+	47	42525787	-	TDE0271	-	hypothetical protein
269	 35.45	0	302346..302960	-	204	42525788	-	TDE0272	-	hypothetical protein
270	 43.63	+1	302957..304723	-	588	42525789	-	TDE0273	-	ABC transporter, ATP-binding/permease protein
271	 45.71	+1	304720..306513	-	597	42525790	-	TDE0274	-	ABC transporter, ATP-binding/permease protein
272	 31.08	-1	306773..307438	+	221	42525791	-	TDE0275	-	CAAX amino terminal protease family protein
273	 26.79	-1	307493..308119	-	208	42525792	-	TDE0276	-	HD domain-containing protein
274	 25.25	-2	308199..308594	-	131	42525793	-	TDE0277	-	hypothetical protein
275	 31.56	0	308591..308872	-	93	42525794	-	TDE0278	-	hypothetical protein
276	 31.08	-1	308898..309872	-	324	42525795	-	TDE0279	-	hypothetical protein
277	 31.84	0	309985..310386	-	133	42525796	-	TDE0280	-	PilT domain-containing protein
278	 35.35	0	310383..310580	-	65	42525797	-	TDE0281	-	hypothetical protein
279	 41.16	0	310745..312214	-	489	42525798	-	TDE0282	-	ABC transporter, ATP-binding protein
280	 45.67	+1	312211..312915	-	234	42525799	-	TDE0283	-	transporter, putative
281	 41.79	0	312916..313518	-	200	42525800	-	TDE0284	-	hypothetical protein
282	 46.39	+1	313762..315813	+	683	42525801	fusA-1	TDE0285	-	elongation factor G
283	 31.60	0	315858..317468	-	536	42525802	-	TDE0286	-	ABC transporter, ATP-binding protein
284	 32.03	0	317465..319150	-	561	42525803	-	TDE0287	-	ABC transporter, ATP-binding protein, putative
285	 31.92	0	319214..320134	-	306	42525804	-	TDE0288	-	hypothetical protein
286	 29.34	-1	320161..320736	-	191	42525805	-	TDE0289	-	hypothetical protein
287	 21.88	-2	320789..320884	-	31	42525806	-	TDE0290	-	hypothetical protein
288	 31.46	-1	320884..321150	-	88	42525807	-	TDE0291	-	hypothetical protein
289	 38.33	0	321265..322104	-	279	42525808	-	TDE0292	-	hypothetical protein
290	 38.53	0	322108..323511	-	467	42525809	-	TDE0293	-	MATE efflux family protein
291	 38.08	0	323563..324300	-	245	42525810	-	TDE0294	-	TrkA domain-containing protein
292	 45.10	+1	324310..326757	-	815	42525811	gyrA	TDE0295	-	DNA gyrase, A subunit
293	 43.44	+1	326932..327831	-	299	42525812	-	TDE0296	-	formiminotransferase, putative
294	 22.40	-2	327886..328068	-	60	42525813	-	TDE0297	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
