IslandPath Analysis: Treponema denticola ATCC 35405

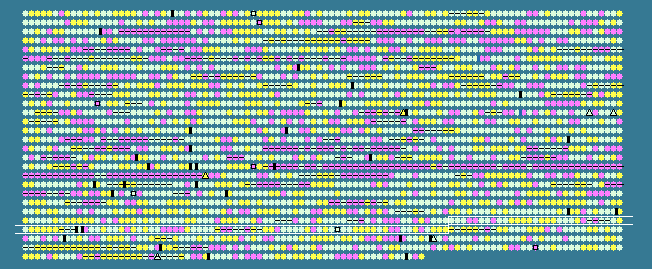

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2372	 36.69	0	2419605..2420648	-	347	42527891	-	TDE2390	-	hypothetical protein
2373	 39.83	0	2420672..2421640	-	322	42527892	-	TDE2391	-	peptidyl-prolyl cis-trans isomerase
2374	 35.69	0	2421763..2422440	-	225	42527893	-	TDE2392	-	hypothetical protein
2375	 33.33	0	2422538..2422648	+	36	42527894	-	TDE2393	-	hypothetical protein
2376	 26.04	-1	2422607..2422702	-	31	42527895	-	TDE2394	-	hypothetical protein
2377	 37.69	0	2422834..2423544	-	236	42527896	-	TDE2395	-	Jag protein, putative
2378	 39.45	0	2423740..2425488	-	582	42527897	-	TDE2396	-	putative inner membrane protein translocase component YidC
2379	 32.58	0	2425523..2425654	-	43	42527898	-	TDE2397	-	hypothetical protein
2380	 37.84	0	2425676..2425897	-	73	42527899	-	TDE2398	-	hypothetical protein
2381	 37.82	0	2425894..2426250	-	118	42527900	rnpA	TDE2399	-	ribonuclease P protein component
2382	 48.08	+1	2426262..2426417	-	51	42527901	rpmH	TDE2400	-	50S ribosomal protein L34
2383	 43.98	+1	2426646..2427782	+	378	42527902	-	TDE2401	-	hypothetical protein
2384	 40.94	0	2427831..2428724	+	297	42527903	-	TDE2402	-	radical SAM domain-containing protein
2385	 43.30	+1	2428731..2429372	-	213	42527904	-	TDE2403	-	metallo-beta-lactamase family protein
2386	 39.80	0	2429403..2430794	-	463	42527905	-	TDE2404	-	RNA polymerase sigma-54 factor, putative
2387	 43.30	+1	2430806..2432140	-	444	42527906	-	TDE2405	-	hypothetical protein
2388	 45.33	+1	2432137..2433603	-	488	42527907	-	TDE2406	-	TldD/PmbA family protein
2389	 47.40	+1	2433734..2435197	-	487	42527908	purF	TDE2407	-	amidophosphoribosyltransferase
2390	 36.84	0	2435307..2435477	-	56	42527909	-	TDE2408	-	hypothetical protein
2391	 38.51	0	2435575..2436096	-	173	42527910	-	TDE2409	-	hypothetical protein
2392	 36.05	0	2436123..2437337	-	404	42527911	-	TDE2410	-	hemolysin
2393	 42.14	0	2437324..2439777	-	817	42527912	glgP	TDE2411	-	glycogen phosphorylase
2394	 31.41	-1	2439885..2440352	-	155	42527913	-	TDE2412	-	acetyltransferase
2395	 34.23	0	2440413..2441078	-	221	42527914	-	TDE2413	-	hypothetical protein
2396	 26.67	-1	2441111..2441710	-	199	42527915	-	TDE2414	-	hypothetical protein
2397	 39.65	0	2441803..2442435	-	210	42527916	-	TDE2415	-	hypothetical protein
2398	 36.94	0	2442446..2442889	-	147	42527917	-	TDE2416	-	hypothetical protein
2399	 39.83	0	2442902..2443378	-	158	42527918	-	TDE2417	-	nitroimidazole resistance protein, putative
2400	 44.84	+1	2443420..2443923	-	167	42527919	-	TDE2418	-	hypothetical protein
2401	 40.43	0	2444113..2444859	-	248	42527920	-	TDE2419	-	hypothetical protein
2402	 44.82	+1	2445050..2449324	-	1424	42527921	-	TDE2420	-	DNA-directed RNA polymerase subunit beta'
2403	 43.29	+1	2449349..2452852	-	1167	42527922	rpoB	TDE2421	-	DNA-directed RNA polymerase subunit beta
2404	 44.87	+1	2453001..2453390	-	129	42527923	rplL	TDE2422	-	50S ribosomal protein L7/L12
2405	 45.47	+1	2453507..2454124	-	205	42527924	rplJ	TDE2423	-	50S ribosomal protein L10
2406	 45.96	+1	2454127..2454807	-	226	42527925	rplA	TDE2424	-	50S ribosomal protein L1
2407	 46.30	+1	2454809..2455240	-	143	42527926	rplK	TDE2425	-	50S ribosomal protein L11
2408	 40.14	0	2455332..2455889	-	185	42527927	nusG	TDE2426	-	transcription antitermination protein NusG
2409	 38.33	0	2455893..2456072	-	59	42527928	secE	TDE2427	-	preprotein translocase subunit SecE
2410	 34.50	0	2456212..2456382	-	56	42527929	rpmG	TDE2428	-	50S ribosomal protein L33
2411	 33.55	0	2456718..2458127	-	469	42527930	-	TDE2429	-	hypothetical protein
2412	 37.28	0	2458124..2459263	-	379	42527931	-	TDE2430	-	bacteriocin ABC transporter, bacteriocin-binding protein, putative
2413	 39.78	0	2459260..2461539	-	759	42527932	-	TDE2431	-	bacteriocin ABC transporter, ATP-binding/permease protein, putative
2414	 42.02	0	2461554..2462624	+	356	42527933	-	TDE2432	-	treponemal membrane protein, putative
2415	 40.46	0	2462624..2463325	+	233	42527934	-	TDE2433	-	treponemal membrane protein, putative
2416	 38.17	0	2463390..2465747	-	785	42527935	-	TDE2434	-	polysaccharide deacetylase family protein
2417	 43.72	+1	2465956..2466552	-	198	42527936	-	TDE2435	-	hypothetical protein
2418	 30.07	-1	2466742..2467506	+	254	42527937	-	TDE2436	-	hypothetical protein
2419	 41.30	0	2467508..2468047	-	179	42527938	-	TDE2437	-	cyclic nucleotide binding domain-containing protein
2420	 40.45	0	2468055..2469347	-	430	42527939	-	TDE2438	-	hypothetical protein
2421	 46.15	+1	2469360..2470451	-	363	42527940	-	TDE2439	-	hypothetical protein
2422	 35.03	0	2470538..2472133	-	531	42527941	-	TDE2440	-	ABC transporter, ATP-binding/permease protein, putative
2423	 36.88	0	2472446..2472586	-	46	42527942	-	TDE2441	-	hypothetical protein
2424	 27.16	-1	2472561..2473256	-	231	42527943	-	TDE2442	-	surface protein, putative
2425	 29.78	-1	2473325..2473549	-	74	42527944	-	TDE2443	-	hypothetical protein
2426	 29.75	-1	2473829..2474302	-	157	42527945	-	TDE2444	-	hypothetical protein
2427	 29.74	-1	2474422..2474727	+	101	42527946	-	TDE2445	-	DNA-binding protein
2428	 44.72	+1	2474864..2476339	-	491	42527947	-	TDE2446	-	malate dehydrogenase
2429	 36.95	0	2476410..2477018	-	202	42527948	aroK	TDE2447	-	shikimate kinase
2430	 37.87	0	2477067..2477507	-	146	42527949	-	TDE2448	-	hypothetical protein
2431	 39.73	0	2477550..2478956	-	468	42527950	-	TDE2449	-	hypothetical protein
2432	 39.31	0	2479045..2479947	+	300	42527951	-	TDE2450	-	ankyrin repeat-containing protein
2433	 43.49	+1	2479972..2481015	+	347	42527952	queA	TDE2451	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2434	 26.94	-1	2481150..2481446	+	98	42527953	-	TDE2452	-	hypothetical protein
2435	 32.82	0	2481577..2482161	+	194	42527954	-	TDE2453	-	hypothetical protein
2436	 33.92	0	2482441..2483466	-	341	42527955	-	TDE2454	-	hypothetical protein
2437	 38.81	0	2484226..2484663	-	145	42527956	-	TDE2456	-	hypothetical protein
2438	 32.65	0	2484788..2485660	-	290	42527957	-	TDE2457	-	hypothetical protein
2439	 43.59	+1	2485754..2485909	+	51	42527958	-	TDE2458	-	hypothetical protein
2440	 38.01	0	2485854..2486024	-	56	42527959	-	TDE2459	-	hypothetical protein
2441	 44.99	+1	2486123..2487289	+	388	42527960	-	TDE2460	-	aminotransferase, class V
2442	 41.69	0	2487286..2488350	-	354	42527961	selD	TDE2461	-	selenide, water dikinase (selenocysteine-containing)
2443	 31.67	0	2488395..2488514	-	39	42527962	-	TDE2462	-	hypothetical protein
2444	 38.14	0	2488630..2489253	+	207	42527963	-	TDE2463	-	hypothetical protein
2445	 34.69	0	2489283..2489429	+	48	42527964	-	TDE2464	-	hypothetical protein
2446	 36.78	0	2489481..2489741	-	86	42527965	-	TDE2465	-	hypothetical protein
2447	 38.10	0	2489741..2489950	-	69	42527966	-	TDE2466	-	hypothetical protein
2448	 42.76	0	2489971..2491020	-	349	42527967	-	TDE2467	-	hypothetical protein
2449	 32.84	0	2491045..2491245	+	66	42527968	-	TDE2468	-	hypothetical protein
2450	 36.23	0	2491326..2492639	-	437	42527969	-	TDE2469	-	hexokinase family protein
2451	 44.70	+1	2492689..2493858	-	389	42527970	metK	TDE2470	-	S-adenosylmethionine synthetase
2452	 36.57	0	2493954..2495036	-	360	42527971	-	TDE2471	-	hypothetical protein
2453	 34.85	0	2495102..2496286	+	394	42527972	-	TDE2472	-	ISTde1, transposase
2454	 36.67	0	2496438..2496647	+	69	42527973	rpsU	TDE2473	-	30S ribosomal protein S21
2455	 39.19	0	2496692..2497186	-	164	42527974	-	TDE2474	-	acetyltransferase
2456	 40.88	0	2497220..2498611	-	463	42527975	-	TDE2475	-	MATE efflux family protein
2457	 44.73	+1	2498611..2499540	-	309	42527976	arcC	TDE2476	-	carbamate kinase
2458	 44.62	+1	2499663..2501009	+	448	42527977	selA	TDE2477	-	selenocysteine synthase
2459	 44.46	+1	2501013..2502971	+	652	42527978	uvrC	TDE2478	-	excinuclease ABC, C subunit
2460	 37.18	0	2502991..2503380	-	129	42527979	-	TDE2479	-	hypothetical protein
2461	 40.82	0	2503456..2505378	-	640	42527980	htpG	TDE2480	-	heat shock protein 90
2462	 23.81	-2	2505442..2505567	-	41	42527981	-	TDE2481	-	hypothetical protein
2463	 24.64	-2	2505676..2505882	+	68	42527982	-	TDE2482	-	hypothetical protein
2464	 35.77	0	2505970..2506749	-	259	42527983	-	TDE2483	-	hypothetical protein
2465	 38.86	0	2506743..2507810	-	355	42527984	-	TDE2484	-	hypothetical protein
2466	 46.36	+1	2507993..2509213	-	406	42527985	-	TDE2485	-	hypothetical protein
2467	 25.95	-1	2509377..2509931	+	184	42527986	-	TDE2486	-	hypothetical protein
2468	 36.09	0	2509947..2510453	+	168	42527987	-	TDE2487	-	acetyltransferase
2469	 41.82	0	2510485..2511474	-	329	42527988	-	TDE2488	-	HemK family modification methylase
2470	 45.95	+1	2511481..2512566	-	361	42527989	prfA	TDE2489	-	peptide chain release factor 1
2471	 45.03	+1	2512793..2514775	-	660	42527990	priA	TDE2490	-	primosomal protein N'
37.25	MEAN

5.76	STD DEV
