IslandPathversion 1.0

IslandPath Analysis: Treponema denticola ATCC 35405

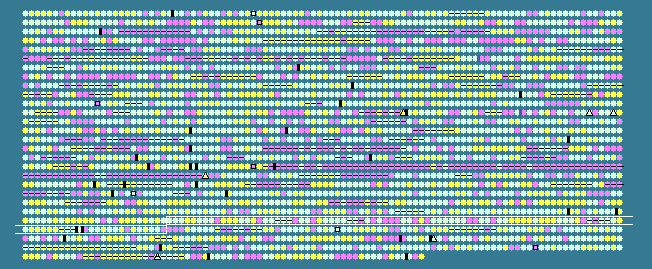

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.25 STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2325	 37.18	0	2380473..2381330	-	285	42527844	cdsA	TDE2343	-	phosphatidate cytidylyltransferase
2326	 39.04	0	2381352..2382035	-	227	42527845	uppS	TDE2344	-	undecaprenyl diphosphate synthase
2327	 39.96	0	2382036..2382593	-	185	42527846	frr	TDE2345	-	ribosome recycling factor
2328	 40.93	0	2382677..2383519	-	280	42527847	tsf	TDE2346	-	elongation factor Ts
2329	 40.75	0	2383593..2384468	-	291	42527848	rpsB	TDE2347	-	30S ribosomal protein S2
2330	 39.22	0	2384698..2385309	-	203	42527849	maf	TDE2348	-	maf protein
2331	 38.16	0	2385326..2386030	-	234	42527850	-	TDE2349	-	hypothetical protein
2332	 37.11	0	2386143..2386751	-	202	42527851	-	TDE2350	-	putative lipoprotein
2333	 33.74	0	2386873..2387364	+	163	42527852	-	TDE2351	-	hypothetical protein
2334	 43.43	+1	2387375..2389246	+	623	42527853	flgK	TDE2352	-	flagellar hook-associated protein FlgK
2335	 45.43	+1	2389269..2390516	+	415	42527854	-	TDE2353	-	flagellar hook-associated protein FlgL
2336	 40.99	0	2390535..2390978	+	147	42527855	-	TDE2354	-	flagellar assembly protein FliW
2337	 39.47	0	2390978..2391205	+	75	42527856	csrA	TDE2355	-	carbon storage regulator
2338	 38.49	0	2391229..2392158	+	309	42527857	-	TDE2356	-	iron compound ABC transporter, periplasmic iron compound-binding protein, putative
2339	 46.04	+1	2392178..2393161	+	327	42527858	-	TDE2357	-	iron compound ABC transporter, permease protein
2340	 33.33	0	2393219..2394226	-	335	42527859	-	TDE2358	-	hypothetical protein
2341	 36.35	0	2394243..2394872	-	209	42527860	-	TDE2359	-	DAK2 domain-containing protein
2342	 38.00	0	2394882..2395889	-	335	42527861	-	TDE2360	-	dihydroxyacetone kinase family protein
2343	 35.06	0	2395899..2397056	-	385	42527862	-	TDE2361	-	high-affinity branched chain amino acid ABC transporter, amino acid-binding protein
2344	 35.10	0	2397053..2397562	-	169	42527863	-	TDE2362	-	hypothetical protein
2345	 35.31	0	2397562..2398269	-	235	42527864	-	TDE2363	-	high-affinity branched chain amino acid ABC transporter, ATP-binding protein
2346	 33.33	0	2398269..2399039	-	256	42527865	-	TDE2364	-	high-affinity branched-chain amino acid ABC transporter, ATP-binding protein
2347	 34.90	0	2399020..2400039	-	339	42527866	-	TDE2365	-	high-affinity branched-chain amino acid ABC transporter, permease protein
2348	 35.33	0	2400049..2400948	-	299	42527867	-	TDE2366	-	high-affinity branched-chain amino acid ABC transporter, permease protein
2349	 32.40	0	2401220..2401864	+	214	42527868	-	TDE2367	-	transcriptional regulator, putative
2350	 43.07	+1	2401870..2402331	+	153	42527869	-	TDE2368	-	YbaK/prolyl-tRNA synthetase domain-containing protein
2351	 38.98	0	2402432..2403529	+	365	42527870	-	TDE2369	-	hypothetical protein
2352	 34.06	0	2403530..2403667	+	45	42527871	-	TDE2370	-	hypothetical protein
2353	 39.81	0	2403723..2404556	+	277	42527872	-	TDE2371	-	iron-sulfur cluster-binding protein
2354	 39.74	0	2404651..2405259	+	202	42527873	-	TDE2372	-	hypothetical protein
2355	 36.33	0	2405263..2405862	+	199	42527874	-	TDE2373	-	precorrin-6Y C5,15-methyltransferase, putative
2356	 37.06	0	2405849..2406412	+	187	42527875	-	TDE2374	-	precorrin-8W decarboxylase, putative
2357	 29.87	-1	2406434..2406751	-	105	42527876	-	TDE2375	-	hypothetical protein
2358	 34.14	0	2406751..2407617	-	288	42527877	-	TDE2376	-	hypothetical protein
2359	 28.26	-1	2407620..2407757	-	45	42527878	-	TDE2377	-	hypothetical protein
2360	 38.23	0	2407859..2408797	+	312	42527879	-	TDE2378	-	ABC transporter, ATP-binding protein, putative
2361	 29.65	-1	2408809..2409948	+	379	42527880	-	TDE2379	-	hypothetical protein
2362	 31.53	0	2409959..2411122	+	387	42527881	-	TDE2380	-	hypothetical protein
2363	 29.94	-1	2411209..2412357	+	382	42527882	-	TDE2381	-	histidine kinase-related ATPase, putative
2364	 36.78	0	2412418..2412969	+	183	42527883	cobU	TDE2382	-	cobinamide kinase/cobinamide phosphate guanyltransferase
2365	 34.99	0	2412966..2413748	+	260	42527884	cobS	TDE2383	-	cobalamin 5'-phosphate synthase
2366	 33.67	0	2413766..2414356	+	196	42527885	-	TDE2384	-	phosphoglycerate mutase family protein
2367	 41.37	0	2414439..2415545	+	368	42527886	-	TDE2385	-	D-alanine--D-alanine ligase
2368	 21.80	-2	2415551..2416183	+	210	42527887	-	TDE2386	-	hypothetical protein
2369	 38.32	0	2416180..2417802	+	540	42527888	malQ	TDE2387	-	4-alpha-glucanotransferase
2370	 39.64	0	2417877..2418479	+	200	42527889	clpP	TDE2388	-	ATP-dependent Clp protease proteolytic subunit
2371	 37.43	0	2418438..2419511	-	357	42527890	cobD	TDE2389	-	cobalamin biosynthesis protein CobD
2372	 36.69	0	2419605..2420648	-	347	42527891	-	TDE2390	-	hypothetical protein
2373	 39.83	0	2420672..2421640	-	322	42527892	-	TDE2391	-	peptidyl-prolyl cis-trans isomerase
2374	 35.69	0	2421763..2422440	-	225	42527893	-	TDE2392	-	hypothetical protein
2375	 33.33	0	2422538..2422648	+	36	42527894	-	TDE2393	-	hypothetical protein
2376	 26.04	-1	2422607..2422702	-	31	42527895	-	TDE2394	-	hypothetical protein
2377	 37.69	0	2422834..2423544	-	236	42527896	-	TDE2395	-	Jag protein, putative
2378	 39.45	0	2423740..2425488	-	582	42527897	-	TDE2396	-	putative inner membrane protein translocase component YidC
2379	 32.58	0	2425523..2425654	-	43	42527898	-	TDE2397	-	hypothetical protein
2380	 37.84	0	2425676..2425897	-	73	42527899	-	TDE2398	-	hypothetical protein
2381	 37.82	0	2425894..2426250	-	118	42527900	rnpA	TDE2399	-	ribonuclease P protein component
2382	 48.08	+1	2426262..2426417	-	51	42527901	rpmH	TDE2400	-	50S ribosomal protein L34
2383	 43.98	+1	2426646..2427782	+	378	42527902	-	TDE2401	-	hypothetical protein
2384	 40.94	0	2427831..2428724	+	297	42527903	-	TDE2402	-	radical SAM domain-containing protein
2385	 43.30	+1	2428731..2429372	-	213	42527904	-	TDE2403	-	metallo-beta-lactamase family protein
2386	 39.80	0	2429403..2430794	-	463	42527905	-	TDE2404	-	RNA polymerase sigma-54 factor, putative
2387	 43.30	+1	2430806..2432140	-	444	42527906	-	TDE2405	-	hypothetical protein
2388	 45.33	+1	2432137..2433603	-	488	42527907	-	TDE2406	-	TldD/PmbA family protein
2389	 47.40	+1	2433734..2435197	-	487	42527908	purF	TDE2407	-	amidophosphoribosyltransferase
2390	 36.84	0	2435307..2435477	-	56	42527909	-	TDE2408	-	hypothetical protein
2391	 38.51	0	2435575..2436096	-	173	42527910	-	TDE2409	-	hypothetical protein
2392	 36.05	0	2436123..2437337	-	404	42527911	-	TDE2410	-	hemolysin
2393	 42.14	0	2437324..2439777	-	817	42527912	glgP	TDE2411	-	glycogen phosphorylase
2394	 31.41	-1	2439885..2440352	-	155	42527913	-	TDE2412	-	acetyltransferase
2395	 34.23	0	2440413..2441078	-	221	42527914	-	TDE2413	-	hypothetical protein
2396	 26.67	-1	2441111..2441710	-	199	42527915	-	TDE2414	-	hypothetical protein
2397	 39.65	0	2441803..2442435	-	210	42527916	-	TDE2415	-	hypothetical protein
2398	 36.94	0	2442446..2442889	-	147	42527917	-	TDE2416	-	hypothetical protein
2399	 39.83	0	2442902..2443378	-	158	42527918	-	TDE2417	-	nitroimidazole resistance protein, putative
2400	 44.84	+1	2443420..2443923	-	167	42527919	-	TDE2418	-	hypothetical protein
2401	 40.43	0	2444113..2444859	-	248	42527920	-	TDE2419	-	hypothetical protein
2402	 44.82	+1	2445050..2449324	-	1424	42527921	-	TDE2420	-	DNA-directed RNA polymerase subunit beta'
2403	 43.29	+1	2449349..2452852	-	1167	42527922	rpoB	TDE2421	-	DNA-directed RNA polymerase subunit beta
2404	 44.87	+1	2453001..2453390	-	129	42527923	rplL	TDE2422	-	50S ribosomal protein L7/L12
2405	 45.47	+1	2453507..2454124	-	205	42527924	rplJ	TDE2423	-	50S ribosomal protein L10
2406	 45.96	+1	2454127..2454807	-	226	42527925	rplA	TDE2424	-	50S ribosomal protein L1
2407	 46.30	+1	2454809..2455240	-	143	42527926	rplK	TDE2425	-	50S ribosomal protein L11
2408	 40.14	0	2455332..2455889	-	185	42527927	nusG	TDE2426	-	transcription antitermination protein NusG
2409	 38.33	0	2455893..2456072	-	59	42527928	secE	TDE2427	-	preprotein translocase subunit SecE
2410	 34.50	0	2456212..2456382	-	56	42527929	rpmG	TDE2428	-	50S ribosomal protein L33
2411	 33.55	0	2456718..2458127	-	469	42527930	-	TDE2429	-	hypothetical protein
2412	 37.28	0	2458124..2459263	-	379	42527931	-	TDE2430	-	bacteriocin ABC transporter, bacteriocin-binding protein, putative
2413	 39.78	0	2459260..2461539	-	759	42527932	-	TDE2431	-	bacteriocin ABC transporter, ATP-binding/permease protein, putative
2414	 42.02	0	2461554..2462624	+	356	42527933	-	TDE2432	-	treponemal membrane protein, putative
2415	 40.46	0	2462624..2463325	+	233	42527934	-	TDE2433	-	treponemal membrane protein, putative
2416	 38.17	0	2463390..2465747	-	785	42527935	-	TDE2434	-	polysaccharide deacetylase family protein
2417	 43.72	+1	2465956..2466552	-	198	42527936	-	TDE2435	-	hypothetical protein
2418	 30.07	-1	2466742..2467506	+	254	42527937	-	TDE2436	-	hypothetical protein
2419	 41.30	0	2467508..2468047	-	179	42527938	-	TDE2437	-	cyclic nucleotide binding domain-containing protein
2420	 40.45	0	2468055..2469347	-	430	42527939	-	TDE2438	-	hypothetical protein
2421	 46.15	+1	2469360..2470451	-	363	42527940	-	TDE2439	-	hypothetical protein
2422	 35.03	0	2470538..2472133	-	531	42527941	-	TDE2440	-	ABC transporter, ATP-binding/permease protein, putative
2423	 36.88	0	2472446..2472586	-	46	42527942	-	TDE2441	-	hypothetical protein
2424	 27.16	-1	2472561..2473256	-	231	42527943	-	TDE2442	-	surface protein, putative
37.25	MEAN

5.76	STD DEV
