IslandPath Analysis: Treponema denticola ATCC 35405

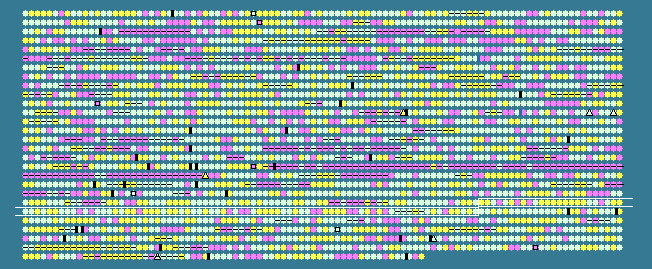

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.25 STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2177	 46.99	+1	2229353..2229850	-	165	42527696	-	TDE2193	-	deoxycytidylate deaminase, putative
2178	 44.02	+1	2229935..2231122	-	395	42527697	-	TDE2194	-	8-amino-7-oxononanoate synthase, putative
2179	 38.96	0	2231261..2231971	+	236	42527698	-	TDE2195	-	RNA pseudouridylate synthase family protein
2180	 32.55	0	2231973..2232737	-	254	42527699	-	TDE2196	-	hypothetical protein
2181	 36.27	0	2232837..2232938	-	33	42527700	-	TDE2197	-	hypothetical protein
2182	 45.76	+1	2232992..2236597	-	1201	42527701	-	TDE2198	-	pyruvate-ferredoxin oxidoreductase
2183	 33.48	0	2236566..2237240	-	224	42527702	-	TDE2199	-	racemase
2184	 42.54	0	2237340..2238545	-	401	42527703	megL	TDE2200	-	methionine gamma-lyase
2185	 20.45	-2	2238582..2238713	-	43	42527704	-	TDE2201	-	hypothetical protein
2186	 35.58	0	2238774..2239664	+	296	42527705	-	TDE2202	-	membrane protein
2187	 43.16	+1	2241309..2242610	+	433	42527706	-	TDE2204	-	Na+/H+ antiporter family protein
2188	 42.50	0	2242665..2244845	-	726	42527707	-	TDE2205	-	enoate reductase, putative
2189	 43.69	+1	2245011..2245454	-	147	42527708	-	TDE2206	-	hypothetical protein
2190	 41.77	0	2245456..2246724	-	422	42527709	-	TDE2207	-	hypothetical protein
2191	 42.18	0	2246873..2247652	+	259	42527710	-	TDE2208	-	hypothetical protein
2192	 44.49	+1	2247729..2249360	+	543	42527711	-	TDE2209	-	CarB family protein
2193	 41.97	0	2249484..2250791	-	435	42527712	-	TDE2210	-	hypothetical protein
2194	 47.50	+1	2250807..2251406	-	199	42527713	-	TDE2211	-	hypothetical protein
2195	 39.17	0	2251572..2252771	-	399	42527714	galK	TDE2212	-	galactokinase
2196	 35.66	0	2252940..2253197	+	85	42527715	-	TDE2213	-	hypothetical protein
2197	 33.04	0	2253190..2253525	+	111	42527716	-	TDE2214	-	hypothetical protein
2198	 39.76	0	2253531..2255225	-	564	42527717	-	TDE2215	-	galactoside ABC transporter, permease protein, putative
2199	 41.57	0	2255250..2256743	-	497	42527718	mglA	TDE2216	-	galactoside ABC transporter, ATP-binding protein
2200	 43.98	+1	2256854..2258065	-	403	42527719	mglB	TDE2217	-	galactose/glucose-binding lipoprotein
2201	 38.65	0	2258160..2259062	+	300	42527720	-	TDE2218	-	hypothetical protein
2202	 39.68	0	2259051..2260736	-	561	42527721	-	TDE2219	-	hypothetical protein
2203	 43.62	+1	2261025..2262812	+	595	42527722	proS	TDE2220	-	prolyl-tRNA synthetase
2204	 35.56	0	2262824..2263858	+	344	42527723	-	TDE2221	-	hypothetical protein
2205	 41.02	0	2263878..2264762	+	294	42527724	-	TDE2222	-	hypothetical protein
2206	 41.90	0	2264782..2264886	+	34	42527725	-	TDE2223	-	hypothetical protein
2207	 37.98	0	2264883..2265011	+	42	42527726	-	TDE2224	-	hypothetical protein
2208	 40.20	0	2265008..2265415	+	135	42527727	-	TDE2225	-	thioesterase family protein
2209	 40.12	0	2265501..2266472	+	323	42527728	-	TDE2226	-	ABC transporter, substrate-binding protein, putative
2210	 31.36	-1	2266535..2267194	+	219	42527729	-	TDE2227	-	hypothetical protein
2211	 40.18	0	2267377..2268822	-	481	42527730	-	TDE2228	-	aminoacyl-histidine dipeptidase, putative
2212	 32.52	0	2268922..2269167	-	81	42527731	-	TDE2229	-	hypothetical protein
2213	 34.44	0	2269151..2269513	+	120	42527732	-	TDE2230	-	hypothetical protein
2214	 34.55	0	2269778..2270599	+	273	42527733	-	TDE2231	-	internalin-related protein
2215	 37.95	0	2270596..2271375	-	259	42527734	-	TDE2232	-	iron compound ABC transporter, ATP-binding protein, putative
2216	 43.82	+1	2271381..2272400	-	339	42527735	-	TDE2233	-	iron compound ABC transporter, permease protein, putative
2217	 39.42	0	2272400..2273335	-	311	42527736	-	TDE2234	-	iron compound ABC transporter, periplasmic iron compound-binding protein, putative
2218	 44.47	+1	2273440..2274678	-	412	42527737	-	TDE2235	-	methylaspartate ammonia-lyase
2219	 46.78	+1	2274750..2276207	-	485	42527738	glmE	TDE2236	-	methylaspartate mutase, E subunit
2220	 29.52	-1	2276388..2276492	-	34	42527739	-	TDE2237	-	hypothetical protein
2221	 42.64	0	2276477..2276605	+	42	42527740	-	TDE2238	-	hypothetical protein
2222	 50.05	+2	2276644..2277636	-	330	42527741	-	TDE2239	-	hypothetical protein
2223	 42.73	0	2277715..2278512	-	265	42527742	-	TDE2240	-	hypothetical protein
2224	 38.57	0	2278596..2279741	-	381	42527743	-	TDE2241	-	glycosyl transferase, group 2 family protein
2225	 40.92	0	2279659..2282124	-	821	42527744	-	TDE2242	-	antigen, putative
2226	 42.11	0	2282304..2283044	-	246	42527745	-	TDE2243	-	CutC family protein
2227	 35.38	0	2283160..2284380	+	406	42527746	-	TDE2244	-	hypothetical protein
2228	 42.85	0	2284380..2286197	+	605	42527747	-	TDE2245	-	DNA topoisomerase IV subunit B
2229	 39.92	0	2286272..2286514	+	80	42527748	-	TDE2246	-	hypothetical protein
2230	 36.97	0	2286502..2286831	+	109	42527749	-	TDE2247	-	PemK family protein
2231	 42.32	0	2286846..2287568	-	240	42527750	-	TDE2248	-	HesA/MoeB/ThiF family protein
2232	 39.85	0	2287588..2288646	-	352	42527751	mraY	TDE2249	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
2233	 40.03	0	2288708..2289469	+	253	42527752	-	TDE2250	-	hypothetical protein
2234	 42.28	0	2289580..2290842	+	420	42527753	uraA	TDE2251	-	uracil transporter
2235	 32.32	0	2290936..2291133	+	65	42527754	-	TDE2252	-	hypothetical protein
2236	 37.41	0	2291143..2291559	+	138	42527755	-	TDE2253	-	hypothetical protein
2237	 32.83	0	2291535..2291732	-	65	42527756	-	TDE2254	-	hypothetical protein
2238	 32.94	0	2291731..2292243	+	170	42527757	-	TDE2255	-	hypothetical protein
2239	 37.65	0	2292296..2293477	-	393	42527758	-	TDE2256	-	hypothetical protein
2240	 43.70	+1	2293593..2295194	-	533	42527759	-	TDE2257	-	5'-nucleotidase family protein
2241	 45.13	+1	2295424..2296491	-	355	42527760	-	TDE2258	-	surface antigen BspA, putative
2242	 47.12	+1	2296617..2297327	-	236	42527761	-	TDE2259	-	hypothetical protein
2243	 41.03	0	2297478..2297633	+	51	42527762	-	TDE2260	-	hypothetical protein
2244	 39.39	0	2298005..2298103	-	32	42527763	-	TDE2261	-	hypothetical protein
2245	 40.72	0	2298123..2299367	-	414	42527764	-	TDE2262	-	U32 family peptidase
2246	 41.42	0	2299367..2300281	-	304	42527765	-	TDE2263	-	acetyl hydrolase, putative
2247	 37.91	0	2300333..2302123	-	596	42527766	-	TDE2264	-	ABC transporter, ATP-binding/permease protein
2248	 35.90	0	2302305..2302694	+	129	42527767	-	TDE2265	-	hypothetical protein
2249	 32.12	0	2303132..2304118	-	328	42527768	-	TDE2266	-	reverse transcriptase family protein
2250	 32.51	0	2304072..2304554	-	160	42527769	-	TDE2267	-	HRDC domain-containing protein
2251	 56.52	+2	2304912..2305049	-	45	42527770	-	TDE2268	-	hypothetical protein
2252	 46.46	+1	2305021..2306010	-	329	42527771	-	TDE2269	-	hypothetical protein
2253	 41.33	0	2306370..2308469	-	699	42527772	-	TDE2270	-	methyl-accepting chemotaxis protein
2254	 41.71	0	2308571..2309155	-	194	42527773	-	TDE2271	-	HAM1 protein
2255	 32.07	0	2309070..2310098	-	342	42527774	-	TDE2272	-	hypothetical protein
2256	 25.81	-1	2310120..2310212	+	30	42527775	-	TDE2273	-	hypothetical protein
2257	 39.95	0	2310341..2311216	+	291	42527776	-	TDE2274	-	hypothetical protein
2258	 42.50	0	2311216..2312022	+	268	42527777	truA	TDE2275	-	tRNA pseudouridine synthase A
2259	 32.38	0	2312035..2312766	-	243	42527778	-	TDE2276	-	hypothetical protein
2260	 41.27	0	2312820..2313575	+	251	42527779	-	TDE2277	-	Sir2 family transcriptional regulator
2261	 29.17	-1	2313638..2313901	+	87	42527780	-	TDE2278	-	hypothetical protein
2262	 36.75	0	2313871..2315361	+	496	42527781	-	TDE2279	-	HD domain-containing protein
2263	 40.11	0	2315382..2317448	-	688	42527782	-	TDE2280	-	Slt family transglycosylase
2264	 37.99	0	2317510..2318583	-	357	42527783	-	TDE2281	-	LysM domain-containing protein
2265	 39.88	0	2318718..2319755	-	345	42527784	-	TDE2282	-	tRNA synthetase, class II family protein
2266	 42.86	0	2319769..2321007	-	412	42527785	-	TDE2283	-	permease, putative
2267	 39.92	0	2321015..2321986	-	323	42527786	-	TDE2284	-	RND family efflux transporter MFP subunit
2268	 36.66	0	2321987..2323399	-	470	42527787	-	TDE2285	-	hypothetical protein
2269	 41.37	0	2323494..2324339	+	281	42527788	-	TDE2286	-	MazG family protein
2270	 39.87	0	2324399..2325148	-	249	42527789	-	TDE2287	-	peptidyl-prolyl cis-trans isomerase, FKBP-type
2271	 30.43	-1	2325252..2325734	-	160	42527790	-	TDE2288	-	hypothetical protein
2272	 41.38	0	2325904..2327556	+	550	42527791	-	TDE2289	-	phosphoribulokinase/uridine kinase family protein
2273	 42.26	0	2327617..2328243	+	208	42527792	-	TDE2290	-	transcriptional regulator, putative
2274	 39.48	0	2328230..2328961	+	243	42527793	ispD	TDE2291	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
2275	 41.15	0	2328958..2329443	+	161	42527794	ispF	TDE2292	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
2276	 39.00	0	2329415..2332660	-	1081	42527795	-	TDE2293	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
