IslandPath Analysis: Treponema denticola ATCC 35405

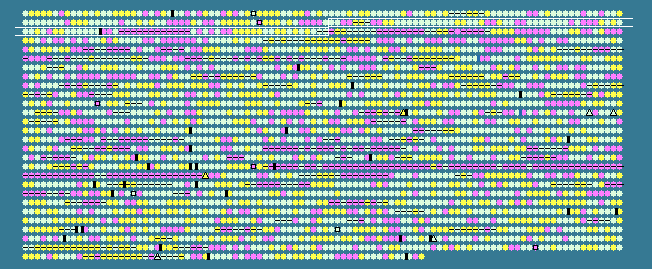

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
152	 37.09	0	173212..174567	-	451	42525671	-	TDE0152	-	amino acid permease family protein
153	 38.63	0	174578..176275	-	565	42525672	-	TDE0153	-	coenzyme A disulfide reductase, putative
154	 32.56	0	176298..178376	-	692	42525673	-	TDE0154	-	adenylate/guanylate cyclase catalytic domain-containing protein
155	 32.32	0	178373..180244	-	623	42525674	-	TDE0155	-	adenylate/guanylate cyclase catalytic domain-containing protein
156	 46.00	+1	180434..183661	-	1075	42525675	-	TDE0156	-	adenylate/guanylate cyclase catalytic domain-containing protein
157	 43.15	+1	183999..185771	+	590	42525676	-	TDE0157	-	KHG/KDPG family aldolase/carbohydrate kinase
158	 35.11	0	185814..186038	-	74	42525677	-	TDE0158	-	hypothetical protein
159	 27.72	-1	187235..187786	-	183	42525678	-	TDE0160	-	hypothetical protein
160	 21.90	-2	187815..187919	-	34	42525679	-	TDE0161	-	hypothetical protein
161	 43.30	+1	188038..192942	+	1634	42525680	-	TDE0162	-	hypothetical protein
162	 44.29	+1	193036..193473	-	145	42525681	-	TDE0163	-	flavodoxin
163	 38.83	0	193507..194088	-	193	42525682	-	TDE0164	-	hypothetical protein
164	 34.97	0	194262..195116	+	284	42525683	-	TDE0165	-	hypothetical protein
165	 35.52	0	195140..195961	-	273	42525684	-	TDE0166	-	hypothetical protein
166	 38.03	0	195963..196664	-	233	42525685	-	TDE0167	-	ABC transporter, ATP-binding protein
167	 40.05	0	196757..197158	-	133	42525686	-	TDE0168	-	GntR family transcriptional regulator
168	 40.45	0	197224..198882	-	552	42525687	-	TDE0169	-	methyl-accepting chemotaxis domain-containing protein
169	 40.54	0	198929..200080	+	383	42525688	-	TDE0170	-	nuclease SbcCD, D subunit, putative
170	 39.61	0	200105..203197	+	1030	42525689	-	TDE0171	-	nuclease SbcCD, C subunit, putative
171	 39.63	0	203276..204085	+	269	42525690	uppP	TDE0172	-	undecaprenyl pyrophosphate phosphatase
172	 40.10	0	204110..206650	+	846	42525691	-	TDE0173	-	FtsK/SpoIIIE family protein
173	 41.06	0	206674..208110	+	478	42525692	-	TDE0174	-	nicotinate phosphoribosyltransferase
174	 41.59	0	208219..208872	-	217	42525693	pcp	TDE0175	-	pyrrolidone-carboxylate peptidase
175	 38.64	0	208890..209888	-	332	42525694	-	TDE0176	-	hypothetical protein
176	 37.63	0	209881..210555	-	224	42525695	-	TDE0177	-	hypothetical protein
177	 44.76	+1	210628..212718	-	696	42525696	-	TDE0178	-	methyl-accepting chemotaxis protein
178	 32.43	0	212861..212971	-	36	42525697	-	TDE0179	-	hypothetical protein
179	 32.73	0	212944..213108	-	54	42525698	-	TDE0180	-	hypothetical protein
180	 42.90	0	213077..215167	-	696	42525699	-	TDE0181	-	methyl-accepting chemotaxis protein
181	 37.58	0	215224..216873	-	549	42525700	-	TDE0182	-	ABC transporter, ATP-binding protein
182	 39.80	0	216873..218681	-	602	42525701	-	TDE0183	-	ABC transporter, permease protein
183	 32.65	0	218888..220648	+	586	42525702	-	TDE0184	-	ABC transporter, ATP-binding protein
184	 32.82	0	220638..222395	+	585	42525703	-	TDE0185	-	ABC transporter ATP-binding protein
185	 39.67	0	222463..223788	-	441	42525704	-	TDE0186	-	hypothetical protein
186	 36.20	0	223985..224752	+	255	42525705	-	TDE0187	-	carboxylesterase, putative
187	 37.33	0	224861..225760	+	299	42525706	-	TDE0188	-	adenosine deaminase
188	 37.26	0	225762..226550	-	262	42525707	-	TDE0189	-	hypothetical protein
189	 38.63	0	226569..227456	-	295	42525708	-	TDE0190	-	hypothetical protein
190	 35.90	0	227468..227896	-	142	42525709	-	TDE0191	-	acetyltransferase
191	 37.39	0	227907..228671	-	254	42525710	-	TDE0192	-	hypothetical protein
192	 32.17	0	228703..230679	-	658	42525711	-	TDE0193	-	hypothetical protein
193	 38.58	0	230829..231971	-	380	42525712	-	TDE0194	-	hypothetical protein
194	 32.11	0	232032..232601	-	189	42525713	-	TDE0195	-	acetyltransferase
195	 27.18	-1	232711..232905	+	64	42525714	-	TDE0196	-	hypothetical protein
196	 27.82	-1	232905..233285	+	126	42525715	-	TDE0197	-	PilT domain-containing protein
197	 41.01	0	233295..234284	+	329	42525716	-	TDE0198	-	hypothetical protein
198	 39.02	0	234289..234798	-	169	42525717	-	TDE0199	-	hypothetical protein
199	 42.56	0	234761..235432	+	223	42525718	-	TDE0200	-	tetrapyrrole methylase family protein
200	 35.11	0	235503..235784	+	93	42525719	-	TDE0201	-	hypothetical protein
201	 37.15	0	235960..236982	-	340	42525720	-	TDE0202	-	hypothetical protein
202	 34.30	0	236810..237118	+	102	42525721	-	TDE0203	-	hypothetical protein
203	 42.93	0	237108..238628	+	506	42525722	gltX	TDE0204	-	glutamyl-tRNA synthetase
204	 37.09	0	238684..239748	+	354	42525723	-	TDE0205	-	adenylate/guanylate cyclase catalytic domain-containing protein
205	 29.19	-1	239761..241617	-	618	42525724	-	TDE0206	-	surface antigen, putative
206	 42.77	0	241742..243097	+	451	42525725	-	TDE0207	-	GntP family permease
207	 44.64	+1	243122..244288	+	388	42525726	glxK	TDE0208	-	glycerate kinase
208	 38.85	0	244335..245621	+	428	42525727	-	TDE0209	-	arsenical pump membrane protein, putative
209	 39.53	0	245691..246206	+	171	42525728	cobO	TDE0210	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
210	 33.88	0	246645..247376	-	243	42525729	-	TDE0211	-	ABC transporter permease
211	 39.57	0	247348..248325	-	325	42525730	-	TDE0212	-	hypothetical protein
212	 35.35	0	248408..249550	-	380	42525731	-	TDE0213	-	TPR domain-containing protein
213	 38.62	0	249595..250539	-	314	42525732	-	TDE0214	-	hypothetical protein
214	 26.85	-1	251353..251460	-	35	42525733	-	TDE0215	-	hypothetical protein
215	 31.07	-1	251445..252680	+	411	42525734	-	TDE0216	-	hypothetical protein
216	 34.10	0	252688..253206	+	172	42525735	ogt	TDE0217	-	methylated-DNA--protein-cysteine methyltransferase
217	 20.16	-2	253299..253427	+	42	42525736	-	TDE0218	-	hypothetical protein
218	 31.08	-1	253446..253934	-	162	42525737	-	TDE0219	-	hypothetical protein
219	 31.21	-1	253955..254095	-	46	42525738	-	TDE0220	-	hypothetical protein
220	 32.72	0	254136..254786	-	216	42525739	-	TDE0221	-	hypothetical protein
221	 28.00	-1	254786..255310	-	174	42525740	-	TDE0222	-	acetyltransferase
222	 26.82	-1	255335..255994	-	219	42525741	-	TDE0223	-	hypothetical protein
223	 28.33	-1	256088..256207	-	39	42525742	-	TDE0224	-	hypothetical protein
224	 29.67	-1	256195..256467	-	90	42525743	-	TDE0225	-	prevent-host-death family protein
225	 31.67	0	256484..256783	-	99	42525744	-	TDE0226	-	hypothetical protein
226	 25.09	-2	257076..259709	+	877	42525745	-	TDE0227	-	adenine-specific DNA modification methyltransferase
227	 28.60	-1	259701..260693	-	330	42525746	-	TDE0228	-	hypothetical protein
228	 24.67	-2	260956..262836	-	626	42525747	-	TDE0229	-	ATPase family protein
229	 35.46	0	262889..263971	-	360	42525748	recF	TDE0230	-	DNA replication and repair protein RecF
230	 31.97	0	263980..265083	-	367	42525749	dnaN	TDE0231	-	DNA polymerase III, beta subunit
231	 34.46	0	265354..265884	+	176	42525750	-	TDE0232	-	appr-1-p processing domain-containing protein
232	 33.16	0	265877..267010	-	377	42525751	-	TDE0233	-	fic family protein
233	 38.58	0	267193..269004	+	603	42525752	-	TDE0234	-	ABC transporter ATP-binding protein
234	 26.59	-1	269062..269313	+	83	42525753	-	TDE0235	-	hypothetical protein
235	 30.17	-1	269297..269707	+	136	42525754	-	TDE0236	-	PilT domain-containing protein
236	 45.10	+1	269751..271280	-	509	42525755	-	TDE0237	-	hypothetical protein
237	 43.52	+1	271520..271843	+	107	42525756	trx	TDE0238	-	thioredoxin, selenocysteine-containing
238	 49.35	+2	271918..273072	-	384	42525757	grdD	TDE0239	-	glycine reductase complex protein GrdD
239	 45.87	+1	273085..274623	-	512	42525758	grdC	TDE0240	-	glycine reductase complex protein GrdC
240	 40.80	0	274791..275393	-	200	42525759	-	TDE0241	-	hypothetical protein
241	 34.18	0	275404..276114	-	236	42525760	-	TDE0242	-	hypothetical protein
242	 37.74	0	276116..277591	-	491	42525761	-	TDE0243	-	ABC transporter, ATP-binding protein
243	 40.93	0	277579..279303	-	574	42525762	-	TDE0244	-	ABC transporter, ATP-binding/permease protein
244	 40.95	0	279315..281033	-	572	42525763	-	TDE0245	-	ABC transporter, ATP-binding/permease protein
245	 36.49	0	281186..281755	-	189	42525764	-	TDE0246	-	TetR family transcriptional regulator
246	 43.36	+1	282208..282576	+	122	42525765	-	TDE0248	-	hypothetical protein
247	 39.54	0	282679..283242	+	187	42525766	-	TDE0249	-	flavoredoxin, putative
248	 42.23	0	283400..284725	-	441	42525767	-	TDE0250	-	sodium-dependent transporter, putative
249	 40.58	0	284807..286186	-	459	42525768	tnaA	TDE0251	-	tryptophanase
250	 38.22	0	286403..287221	+	272	42525769	-	TDE0252	-	hypothetical protein
251	 39.09	0	287292..288785	+	497	42525770	-	TDE0253	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
