IslandPath Analysis: Treponema denticola ATCC 35405

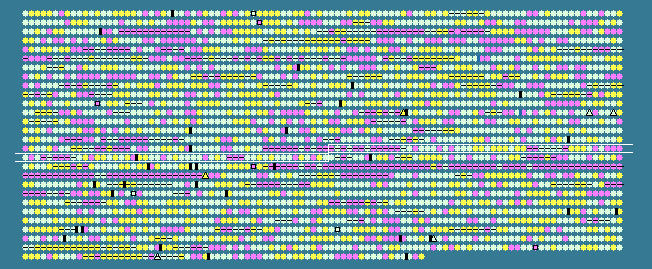

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.25 STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1552	 31.17	-1	1615833..1616573	+	246	42527071	-	TDE1563	-	hypothetical protein
1553	 36.59	0	1616642..1616764	+	40	42527072	-	TDE1564	-	hypothetical protein
1554	 24.44	-2	1617033..1617482	+	149	42527073	-	TDE1565	-	hypothetical protein
1555	 36.75	0	1617962..1619044	+	360	42527074	-	TDE1566	-	hypothetical protein
1556	 31.33	-1	1619052..1619651	+	199	42527075	-	TDE1567	-	hypothetical protein
1557	 28.43	-1	1619684..1619887	+	67	42527076	-	TDE1568	-	hypothetical protein
1558	 34.23	0	1619925..1620035	+	36	42527077	-	TDE1569	-	hypothetical protein
1559	 24.30	-2	1620202..1620666	+	154	42527078	-	TDE1570	-	hypothetical protein
1560	 23.23	-2	1620808..1620906	+	32	42527079	-	TDE1571	-	hypothetical protein
1561	 20.35	-2	1621003..1621572	+	189	42527080	-	TDE1572	-	hypothetical protein
1562	 31.40	-1	1621631..1621888	-	85	42527081	-	TDE1573	-	DNA-damage-inducible protein J, putative
1563	 24.56	-2	1621940..1622053	+	37	42527082	-	TDE1574	-	hypothetical protein
1564	 39.06	0	1622043..1622915	+	290	42527083	lipA	TDE1575	-	lipoyl synthase
1565	 39.53	0	1622918..1624273	+	451	42527084	miaB	TDE1576	-	tRNA-i(6)A37 modification enzyme MiaB
1566	 33.57	0	1624649..1625506	+	285	42527085	-	TDE1577	-	putative lipoprotein
1567	 35.00	0	1625510..1626169	+	219	42527086	-	TDE1578	-	phosphoesterase, putative
1568	 35.45	0	1626164..1627579	-	471	42527087	-	TDE1579	-	fibronectin/fibrinogen-binding protein, internal deletion
1569	 34.63	0	1627579..1629816	-	745	42527088	-	TDE1580	-	hypothetical protein
1570	 32.37	0	1629818..1630336	-	172	42527089	-	TDE1581	-	hypothetical protein
1571	 39.63	0	1630374..1631849	-	491	42527090	glgA	TDE1582	-	glycogen synthase
1572	 32.50	0	1631948..1632067	+	39	42527091	-	TDE1583	-	hypothetical protein
1573	 36.67	0	1632165..1632914	+	249	42527092	-	TDE1584	-	putative lipoprotein
1574	 37.18	0	1633022..1633489	-	155	42527093	-	TDE1585	-	hypothetical protein
1575	 39.34	0	1633528..1634010	-	160	42527094	-	TDE1586	-	hypothetical protein
1576	 45.12	+1	1634173..1635945	+	590	42527095	aspS	TDE1587	-	aspartyl-tRNA synthetase
1577	 44.32	+1	1635953..1637026	+	357	42527096	-	TDE1588	-	tryptophanyl-tRNA synthetase II
1578	 38.86	0	1637144..1637650	+	168	42527097	cheW-2	TDE1589	-	purine-binding chemotaxis protein
1579	 40.74	0	1637656..1638681	+	341	42527098	-	TDE1590	-	aminotransferase
1580	 40.82	0	1638722..1639576	+	284	42527099	-	TDE1591	-	inorganic polyphosphate/ATP-NAD kinase, putative
1581	 41.68	0	1639631..1641283	+	550	42527100	-	TDE1592	-	ABC transporter, ATP-binding protein
1582	 40.70	0	1641299..1643089	-	596	42527101	-	TDE1593	-	Fe-hydrogenase
1583	 43.39	+1	1643083..1644912	-	609	42527102	-	TDE1594	-	putative glutamate synthase (NADPH) small subunit
1584	 42.03	0	1645038..1646129	-	363	42527103	cbiD	TDE1595	-	cobalamin biosynthesis protein CbiD
1585	 32.99	0	1646189..1646770	-	193	42527104	-	TDE1596	-	hypothetical protein
1586	 30.65	-1	1646785..1647492	-	235	42527105	-	TDE1597	-	transporter, putative
1587	 34.66	0	1647492..1649000	-	502	42527106	-	TDE1598	-	ABC transporter, ATP-binding protein
1588	 35.07	0	1649010..1650734	-	574	42527107	-	TDE1599	-	ABC transporter, ATP-binding/permease protein
1589	 35.16	0	1650735..1652486	-	583	42527108	-	TDE1600	-	ABC transporter, ATP-binding/permease protein
1590	 35.34	0	1652479..1653126	-	215	42527109	-	TDE1601	-	TetR family transcriptional regulator
1591	 27.93	-1	1653237..1653347	-	36	42527110	-	TDE1602	-	hypothetical protein
1592	 45.44	+1	1653501..1654946	-	481	42527111	-	TDE1603	-	ABC transporter, ATP-binding protein
1593	 41.05	0	1654937..1655623	-	228	42527112	-	TDE1604	-	ABC transporter, permease protein, putative
1594	 42.14	0	1655623..1656201	-	192	42527113	-	TDE1605	-	hypothetical protein
1595	 37.17	0	1656271..1656948	-	225	42527114	-	TDE1606	-	TetR family transcriptional regulator
1596	 29.33	-1	1657097..1657621	-	174	42527115	-	TDE1607	-	MutT/nudix family protein
1597	 39.72	0	1657710..1658429	+	239	42527116	-	TDE1608	-	hypothetical protein
1598	 32.97	0	1658466..1659287	+	273	42527117	-	TDE1609	-	hypothetical protein
1599	 29.04	-1	1659284..1659586	-	100	42527118	-	TDE1610	-	DNA-binding protein
1600	 28.90	-1	1659841..1660494	+	217	42527119	-	TDE1611	-	hypothetical protein
1601	 40.21	0	1660689..1661750	+	353	42527120	-	TDE1612	-	phosphoribosyl transferase domain-containing protein
1602	 29.76	-1	1661765..1662379	+	204	42527121	-	TDE1613	-	hypothetical protein
1603	 35.95	0	1662385..1663377	-	330	42527122	-	TDE1614	-	hypothetical protein
1604	 27.11	-1	1663397..1663798	-	133	42527123	-	TDE1615	-	hypothetical protein
1605	 39.11	0	1663845..1664813	-	322	42527124	hprA	TDE1616	-	glycerate dehydrogenase
1606	 30.56	-1	1664806..1664949	-	47	42527125	-	TDE1617	-	hypothetical protein
1607	 27.48	-1	1665440..1666276	+	278	42527126	-	TDE1618	-	hypothetical protein
1608	 28.46	-1	1666269..1666658	+	129	42527127	-	TDE1619	-	hypothetical protein
1609	 33.98	0	1667049..1669052	-	667	42527128	-	TDE1620	-	hypothetical protein
1610	 34.00	0	1669043..1670833	-	596	42527129	-	TDE1621	-	hypothetical protein
1611	 55.56	+2	1670910..1671071	-	53	42527130	-	TDE1622	-	hypothetical protein
1612	 27.73	-1	1671108..1672070	-	320	42527131	-	TDE1623	-	hypothetical protein
1613	 44.51	+1	1672161..1673609	-	482	42527132	gcvP2	TDE1624	-	glycine dehydrogenase subunit 2
1614	 42.45	0	1673609..1674913	-	434	42527133	gcvP1	TDE1625	-	glycine dehydrogenase subunit 1
1615	 39.57	0	1675001..1675369	-	122	42527134	gcvH	TDE1626	-	glycine cleavage system H protein
1616	 42.46	0	1675428..1676501	-	357	42527135	gcvT	TDE1627	-	glycine cleavage system T protein
1617	 34.66	0	1676569..1676946	-	125	42527136	-	TDE1628	-	hypothetical protein
1618	 41.19	0	1677243..1678604	-	453	42527137	lpdA	TDE1629	-	dihydrolipoamide dehydrogenase
1619	 30.36	-1	1678732..1679772	-	346	42527138	-	TDE1630	-	hypothetical protein
1620	 42.75	0	1680150..1681646	-	498	42527139	citF	TDE1631	-	citrate lyase, alpha subunit
1621	 44.83	+1	1681659..1682528	-	289	42527140	citE	TDE1632	-	citrate lyase, beta subunit
1622	 39.77	0	1682518..1682781	-	87	42527141	citD	TDE1633	-	citrate lyase subunit gamma
1623	 35.84	0	1682875..1683153	-	92	42527142	-	TDE1634	-	hypothetical protein
1624	 31.94	0	1683122..1683409	-	95	42527143	-	TDE1635	-	hypothetical protein
1625	 38.54	0	1683607..1686045	-	812	42527144	-	TDE1636	-	surface antigen, putative
1626	 42.16	0	1686212..1689022	+	936	42527145	polA	TDE1637	-	DNA polymerase I
1627	 34.97	0	1689022..1689693	+	223	42527146	-	TDE1638	-	dephospho-CoA kinase, putative
1628	 39.71	0	1689703..1690533	+	276	42527147	-	TDE1639	-	sporulation repeat-containing protein
1629	 37.58	0	1690536..1692017	+	493	42527148	-	TDE1640	-	3-dehydroquinate dehydratase, type 1, putative/shikimate 5-dehydrogenase, putative
1630	 38.47	0	1692017..1692736	+	239	42527149	rpiA	TDE1641	-	ribose 5-phosphate isomerase A
1631	 33.75	0	1692861..1693577	-	238	42527150	-	TDE1642	-	hypothetical protein
1632	 39.07	0	1693649..1694641	-	330	42527151	-	TDE1643	-	PASTA domain-containing protein
1633	 40.87	0	1694668..1695636	-	322	42527152	fmt	TDE1644	-	methionyl-tRNA formyltransferase
1634	 35.29	0	1695633..1696142	-	169	42527153	def	TDE1645	-	polypeptide deformylase
1635	 25.76	-1	1696139..1696270	-	43	42527154	-	TDE1646	-	hypothetical protein
1636	 33.62	0	1696245..1696592	-	115	42527155	-	TDE1647	-	DNA-binding protein
1637	 29.80	-1	1696576..1696830	-	84	42527156	-	TDE1648	-	hypothetical protein
1638	 33.95	0	1696880..1697527	-	215	42527157	-	TDE1649	-	hypothetical protein
1639	 38.60	0	1697467..1698207	-	246	42527158	-	TDE1650	-	ABC transporter, ATP-binding protein
1640	 41.01	0	1698211..1698822	-	203	42527159	-	TDE1651	-	BioY family protein
1641	 37.23	0	1698947..1700614	-	555	42527160	-	TDE1652	-	ABC transporter, ATP-binding/permease protein
1642	 41.22	0	1702359..1704971	+	870	42527161	-	TDE1654	-	ATP-dependent helicase HrpA, putative
1643	 35.03	0	1705098..1705628	+	176	42527162	-	TDE1655	-	hypothetical protein
1644	 38.21	0	1705649..1707310	-	553	42527163	-	TDE1656	-	putative lipoprotein
1645	 37.96	0	1707320..1707730	-	136	42527164	nusB	TDE1657	-	transcription antitermination protein NusB
1646	 33.61	0	1707745..1708821	-	358	42527165	-	TDE1658	-	basic membrane protein, putative
1647	 42.32	0	1708921..1710723	-	600	42527166	alaS	TDE1659	-	alanyl-tRNA synthetase
1648	 38.51	0	1710800..1715356	-	1518	42527167	-	TDE1660	-	leucine rich repeat domain-containing protein
1649	 32.87	0	1715542..1715970	+	142	42527168	-	TDE1661	-	hypothetical protein
1650	 42.38	0	1716038..1717375	+	445	42527169	dnaB	TDE1662	-	replicative DNA helicase
1651	 34.92	0	1717459..1717962	+	167	42527170	-	TDE1663	-	OmpA family protein
37.25	MEAN

5.76	STD DEV
