IslandPath Analysis: Treponema denticola ATCC 35405

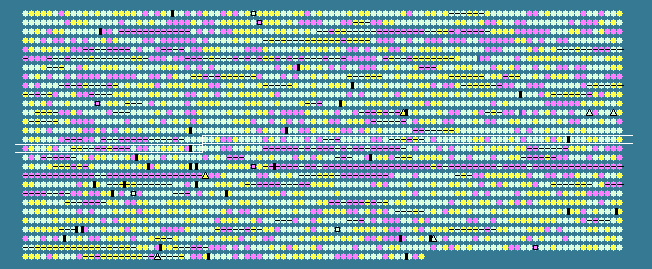

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 37.25 STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1431	 39.94	0	1487556..1488902	+	448	42526950	hisS	TDE1442	-	histidyl-tRNA synthetase
1432	 40.28	0	1488899..1489675	-	258	42526951	-	TDE1443	-	RNA methyltransferase
1433	 40.84	0	1489682..1491094	-	470	42526952	-	TDE1444	-	metallo-beta-lactamase family protein
1434	 33.10	0	1491169..1492017	-	282	42526953	-	TDE1445	-	hypothetical protein
1435	 33.65	0	1492110..1492739	+	209	42526954	-	TDE1446	-	hypothetical protein
1436	 41.81	0	1492752..1493648	+	298	42526955	miaA	TDE1447	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1437	 36.76	0	1493675..1494490	+	271	42526956	-	TDE1448	-	glutamate racemase, putative
1438	 38.08	0	1494492..1495439	+	315	42526957	yjeQ	TDE1449	-	GTPase YjeQ
1439	 40.42	0	1495460..1497916	+	818	42526958	-	TDE1450	-	MutS2 family protein
1440	 39.50	0	1497940..1499058	-	372	42526959	-	TDE1451	-	hypothetical protein
1441	 28.00	-1	1499031..1499180	+	49	42526960	-	TDE1452	-	hypothetical protein
1442	 41.42	0	1499252..1501576	+	774	42526961	-	TDE1453	-	alpha-galactosidase
1443	 39.63	0	1501578..1502942	+	454	42526962	-	TDE1454	-	sugar transporter
1444	 30.34	-1	1503005..1503271	+	88	42526963	-	TDE1455	-	prevent-host-death family protein
1445	 35.50	0	1503402..1504829	-	475	42526964	-	TDE1456	-	GGDEF domain-containing protein
1446	 34.58	0	1504829..1506352	-	507	42526965	-	TDE1457	-	hypothetical protein
1447	 36.01	0	1506349..1507878	-	509	42526966	-	TDE1458	-	hypothetical protein
1448	 33.55	0	1507862..1508797	-	311	42526967	-	TDE1459	-	hypothetical protein
1449	 36.73	0	1508797..1511181	-	794	42526968	-	TDE1460	-	hypothetical protein
1450	 33.33	0	1511321..1511770	+	149	42526969	-	TDE1461	-	septum formation initiator family protein
1451	 36.76	0	1511745..1512299	+	184	42526970	-	TDE1462	-	Sua5/YciO/YrdC/YwlC family protein
1452	 37.49	0	1512296..1513162	-	288	42526971	-	TDE1463	-	hypothetical protein
1453	 33.12	0	1513166..1513630	-	154	42526972	smpB	TDE1464	-	SsrA-binding protein
1454	 34.76	0	1513704..1514405	+	233	42526973	-	TDE1465	-	signal peptidase I, putative
1455	 34.95	0	1514402..1515577	+	391	42526974	-	TDE1466	-	oxygen-independent coproporphyrinogen III oxidase, putative
1456	 34.45	0	1515581..1516741	-	386	42526975	-	TDE1467	-	HD domain-containing protein
1457	 36.99	0	1516770..1517426	-	218	42526976	-	TDE1468	-	glycoprotease family protein
1458	 34.95	0	1517423..1517854	-	143	42526977	-	TDE1469	-	hypothetical protein
1459	 32.57	0	1517856..1518116	-	86	42526978	-	TDE1470	-	hypothetical protein
1460	 32.34	0	1518235..1518837	-	200	42526979	-	TDE1471	-	hypothetical protein
1461	 36.29	0	1518847..1520805	-	652	42526980	fliD	TDE1472	-	flagellar hook-associated protein FliD
1462	 38.71	0	1520850..1521221	-	123	42526981	-	TDE1473	-	flagellin FlaG, putative
1463	 35.48	0	1521351..1521443	-	30	42526982	-	TDE1474	-	hypothetical protein
1464	 43.12	+1	1521424..1522281	-	285	42526983	-	TDE1475	-	flagellar filament core protein
1465	 32.80	0	1522317..1522505	+	62	42526984	-	TDE1476	-	hypothetical protein
1466	 45.64	+1	1522563..1523423	-	286	42526985	-	TDE1477	-	flagellar filament core protein
1467	 34.81	0	1523565..1524107	-	180	42526986	-	TDE1478	-	hypothetical protein
1468	 38.72	0	1524181..1525182	-	333	42526987	-	TDE1479	-	DHH superfamily protein, subfamily 1
1469	 33.57	0	1525252..1525671	-	139	42526988	-	TDE1480	-	hypothetical protein
1470	 36.24	0	1525797..1526933	+	378	42526989	-	TDE1481	-	hypothetical protein
1471	 38.91	0	1527036..1528793	+	585	42526990	-	TDE1482	-	peptidase, M24 family protein
1472	 37.33	0	1528903..1529127	+	74	42526991	-	TDE1483	-	hypothetical protein
1473	 40.39	0	1529295..1529804	+	169	42526992	-	TDE1484	-	hypothetical protein
1474	 38.61	0	1529837..1530442	+	201	42526993	-	TDE1485	-	hypothetical protein
1475	 39.68	0	1530439..1530753	+	104	42526994	-	TDE1486	-	hypothetical protein
1476	 43.68	+1	1530845..1531588	+	247	42526995	-	TDE1487	-	hypothetical protein
1477	 40.86	0	1531694..1532743	-	349	42526996	gap	TDE1488	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1478	 32.74	0	1532820..1533662	-	280	42526997	-	TDE1489	-	hypothetical protein
1479	 36.18	0	1533662..1534819	-	385	42526998	-	TDE1490	-	hypothetical protein
1480	 40.15	0	1534949..1537354	+	801	42526999	cheA	TDE1491	-	chemotaxis protein CheA
1481	 38.50	0	1537371..1538705	+	444	42527000	cheW-1	TDE1492	-	chemotaxis protein CheW
1482	 43.44	+1	1538730..1539194	+	154	42527001	cheX	TDE1493	-	chemotaxis protein CheX
1483	 39.91	0	1539216..1539656	+	146	42527002	cheY	TDE1494	-	chemotaxis protein CheY
1484	 29.31	-1	1539686..1540306	-	206	42527003	-	TDE1495	-	hypothetical protein
1485	 38.91	0	1540425..1543367	+	980	42527004	-	TDE1496	-	chromosome partition protein SmC, putative
1486	 35.25	0	1543348..1543764	+	138	42527005	-	TDE1497	-	hypothetical protein
1487	 38.11	0	1543809..1545314	+	501	42527006	-	TDE1498	-	hypothetical protein
1488	 42.41	0	1545406..1546848	+	480	42527007	-	TDE1499	-	adenylosuccinate lyase, putative
1489	 33.33	0	1546853..1548160	-	435	42527008	-	TDE1500	-	hypothetical protein
1490	 42.79	0	1548181..1550982	+	933	42527009	ppdK	TDE1501	-	pyruvate phosphate dikinase
1491	 38.10	0	1551060..1551437	+	125	42527010	aroH	TDE1502	-	chorismate mutase
1492	 40.32	0	1551807..1553453	+	548	42527011	rho	TDE1503	-	transcription termination factor Rho
1493	 35.78	0	1553490..1553693	+	67	42527012	rpmE	TDE1504	-	50S ribosomal protein L31
1494	 38.29	0	1553754..1554197	+	147	42527013	-	TDE1505	-	hypothetical protein
1495	 45.68	+1	1554242..1555132	-	296	42527014	sdhA	TDE1506	-	L-serine dehydratase, iron-sulfur-dependent, alpha subunit
1496	 44.19	+1	1555152..1555814	-	220	42527015	sdhB	TDE1507	-	L-serine dehydratase, iron-sulfur-dependent, beta subunit
1497	 37.12	0	1556116..1556511	+	131	42527016	-	TDE1508	-	hypothetical protein
1498	 36.34	0	1556529..1557194	+	221	42527017	-	TDE1509	-	lipoprotein releasing system, ATP-binding protein, putative
1499	 36.80	0	1557320..1558588	+	422	42527018	-	TDE1510	-	hypothetical protein
1500	 43.86	+1	1558628..1559254	+	208	42527019	-	TDE1511	-	pathogen-specific surface antigen, putative
1501	 32.78	0	1559343..1560611	+	422	42527020	-	TDE1512	-	hypothetical protein
1502	 40.74	0	1560624..1560758	+	44	42527021	-	TDE1513	-	hypothetical protein
1503	 39.12	0	1560792..1562069	+	425	42527022	-	TDE1514	-	permease domain protein
1504	 38.77	0	1562118..1563239	+	373	42527023	-	TDE1515	-	permease domain protein
1505	 41.41	0	1563267..1563959	+	230	42527024	-	TDE1516	-	ABC transporter, ATP-binding protein, putative
1506	 33.33	0	1563956..1564405	+	149	42527025	-	TDE1517	-	hypothetical protein
1507	 33.83	0	1564424..1565635	+	403	42527026	-	TDE1518	-	permease, putative
1508	 35.27	0	1565741..1566412	+	223	42527027	-	TDE1519	-	hypothetical protein
1509	 42.55	0	1566491..1567336	+	281	42527028	-	TDE1520	-	fumarate hydratase
1510	 42.91	0	1567351..1567914	+	187	42527029	-	TDE1521	-	fumarate hydratase
1511	 34.69	0	1567920..1568948	+	342	42527030	citC	TDE1522	-	citrate lyase ligase
1512	 37.50	0	1568966..1570381	+	471	42527031	-	TDE1523	-	citXG protein, putative
1513	 30.11	-1	1570432..1570524	+	30	42527032	-	TDE1524	-	hypothetical protein
1514	 29.96	-1	1570478..1570714	+	78	42527033	-	TDE1525	-	hypothetical protein
1515	 41.98	0	1570705..1570947	+	80	42527034	-	TDE1526	-	hypothetical protein
1516	 27.08	-1	1570944..1571855	+	303	42527035	-	TDE1527	-	hypothetical protein
1517	 25.51	-2	1571865..1573001	+	378	42527036	-	TDE1528	-	hypothetical protein
1518	 22.50	-2	1573004..1575127	+	707	42527037	-	TDE1529	-	hypothetical protein
1519	 39.64	0	1575186..1575962	-	258	42527038	-	TDE1530	-	hypothetical protein
1520	 31.09	-1	1576091..1576669	+	192	42527039	-	TDE1531	-	hypothetical protein
1521	 32.63	0	1576659..1577228	+	189	42527040	-	TDE1532	-	hypothetical protein
1522	 39.21	0	1577254..1578717	+	487	42527041	-	TDE1533	-	hypothetical protein
1523	 38.31	0	1578757..1579218	-	153	42527042	-	TDE1534	-	hypothetical protein
1524	 41.42	0	1579227..1580030	-	267	42527043	-	TDE1535	-	hypothetical protein
1525	 41.33	0	1580034..1580558	-	174	42527044	-	TDE1536	-	TPR domain-containing protein
1526	 39.98	0	1580562..1581614	-	350	42527045	-	TDE1537	-	polyprenyl synthetase family protein
1527	 42.16	0	1581708..1583645	+	645	42527046	ligA	TDE1538	-	DNA ligase, NAD-dependent
1528	 30.68	-1	1583648..1584250	+	200	42527047	-	TDE1539	-	hypothetical protein
1529	 38.26	0	1584562..1585008	+	148	42527048	-	TDE1540	-	hypothetical protein
1530	 40.19	0	1585038..1586000	+	320	42527049	-	TDE1541	-	metallo-beta-lactamase family protein
37.25	MEAN

5.76	STD DEV
