IslandPath Analysis: Treponema denticola ATCC 35405

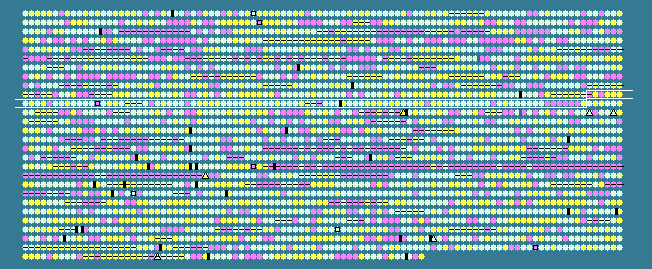

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 37.25   STD DEV: 5.76
Treponema denticola ATCC 35405, complete genome - 1..2843201
2767 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
995	 26.67	-1	1029251..1029385	+	44	42526514	-	TDE1003	-	hypothetical protein
996	 44.02	+1	1029366..1030226	-	286	42526515	-	TDE1004	-	flagellar filament core protein
997	 28.57	-1	1030346..1030555	+	69	42526516	-	TDE1005	-	hypothetical protein
998	 41.94	0	1030567..1031379	+	270	42526517	flgG-1	TDE1006	-	flagellar basal-body rod protein FlgG
999	 47.17	+1	1031401..1032195	+	264	42526518	flgG	TDE1007	-	flagellar basal body rod protein FlgG
1000	 44.28	+1	1032246..1032866	+	206	42526519	-	TDE1008	-	flagellar protein, putative
1001	 40.40	0	1033093..1035186	-	697	42526520	-	TDE1009	-	methyl-accepting chemotaxis protein
1002	 46.46	+1	1035367..1038231	+	954	42526521	uvrA	TDE1010	-	excinuclease ABC, A subunit
1003	 34.26	0	1038241..1041462	+	1073	42526522	-	TDE1011	-	hypothetical protein
1004	 43.44	+1	1041533..1043986	+	817	42526523	-	TDE1012	-	tex protein, putative
1005	 30.43	-1	1044067..1044480	-	137	42526524	-	TDE1013	-	hemerythrin-related protein
1006	 35.88	0	1044537..1045634	-	365	42526525	-	TDE1014	-	hypothetical protein
1007	 34.80	0	1045456..1045659	+	67	42526526	-	TDE1015	-	hypothetical protein
1008	 44.03	+1	1048075..1049271	+	398	42526527	xseA	TDE1017	-	exodeoxyribonuclease VII, large subunit
1009	 34.73	0	1049367..1049795	+	142	42526528	-	TDE1018	-	hypothetical protein
1010	 38.64	0	1049792..1051639	-	615	42526529	-	TDE1019	-	dicarboxylate transporter, DctM subunit, putative
1011	 37.41	0	1051655..1052683	-	342	42526530	-	TDE1020	-	dicarboxylate transporter, periplasmic dicarboxylate-binding protein, putative
1012	 40.10	0	1052680..1053654	-	324	42526531	-	TDE1021	-	putative lipoprotein
1013	 31.75	0	1054002..1055078	-	358	42526532	-	TDE1022	-	ISTde2, transposase
1014	 40.24	0	1055263..1055682	+	139	42526533	mamA	TDE1023	-	methylaspartate mutase subunit S
1015	 44.20	+1	1055715..1057094	+	459	42526534	-	TDE1024	-	hypothetical protein
1016	 42.86	0	1057241..1057429	+	62	42526535	rpmF	TDE1025	-	50S ribosomal protein L32
1017	 37.97	0	1057442..1057678	+	78	42526536	acpP	TDE1026	-	acyl carrier protein
1018	 42.11	0	1057702..1058442	+	246	42526537	rnc	TDE1027	-	ribonuclease III
1019	 39.13	0	1058584..1058721	+	45	42526538	-	TDE1028	-	hypothetical protein
1020	 39.46	0	1058714..1059154	+	146	42526539	-	TDE1029	-	Hsp20/alpha crystallin family protein
1021	 36.40	0	1059254..1060102	+	282	42526540	-	TDE1030	-	hypothetical protein
1022	 25.00	-2	1060150..1060245	+	31	42526541	-	TDE1031	-	hypothetical protein
1023	 40.51	0	1060294..1061157	+	287	42526542	-	TDE1032	-	hypothetical protein
1024	 44.84	+1	1061209..1062555	+	448	42526543	-	TDE1033	-	polyA polymerase family protein
1025	 37.94	0	1062594..1063526	+	310	42526544	-	TDE1034	-	magnesium and cobalt transporter, putative
1026	 40.67	0	1063594..1063920	+	108	42526545	-	TDE1035	-	PadR family transcriptional regulator
1027	 36.02	0	1063945..1064613	+	222	42526546	-	TDE1036	-	hypothetical protein
1028	 32.02	0	1064610..1065521	+	303	42526547	-	TDE1037	-	hypothetical protein
1029	 40.71	0	1065495..1067066	-	523	42526548	-	TDE1038	-	hypothetical protein
1030	 41.44	0	1067212..1068075	+	287	42526549	-	TDE1039	-	riboflavin biosynthesis protein, putative
1031	 40.74	0	1068079..1068348	+	89	42526550	rpsO	TDE1040	-	30S ribosomal protein S15
1032	 45.73	+1	1068464..1070560	+	698	42526551	pnp	TDE1041	-	polynucleotide phosphorylase/polyadenylase
1033	 47.13	+1	1070632..1071066	+	144	42526552	dut	TDE1042	-	deoxyuridine 5'triphosphate nucleotidohydrolase
1034	 35.98	0	1071085..1072218	+	377	42526553	-	TDE1043	-	hypothetical protein
1035	 35.38	0	1072215..1073288	+	357	42526554	-	TDE1044	-	hypothetical protein
1036	 34.29	0	1073380..1073799	+	139	42526555	-	TDE1045	-	hypothetical protein
1037	 33.90	0	1073786..1074136	+	116	42526556	-	TDE1046	-	hypothetical protein
1038	 48.53	+1	1074237..1074611	+	124	42526557	rpsL	TDE1047	-	30S ribosomal protein S12
1039	 46.92	+1	1074622..1075092	+	156	42526558	rpsG	TDE1048	-	30S ribosomal protein S7
1040	 44.11	+1	1075427..1077514	+	695	42526559	fusA-2	TDE1049	-	elongation factor G
1041	 40.20	0	1077527..1078210	+	227	42526560	-	TDE1050	-	hypothetical protein
1042	 35.09	0	1078302..1078586	-	94	42526561	-	TDE1051	-	hypothetical protein
1043	 45.28	+1	1078802..1078960	-	52	42526562	-	TDE1052	-	rubredoxin
1044	 37.51	0	1079020..1080816	-	598	42526563	-	TDE1053	-	putative lipoprotein
1045	 37.04	0	1080980..1083058	+	692	42526564	-	TDE1054	-	methyl-accepting chemotaxis protein
1046	 40.00	0	1083072..1084421	-	449	42526565	-	TDE1055	-	MATE efflux family protein
1047	 48.84	+2	1085350..1085955	+	201	42526566	-	TDE1056	-	hypothetical protein
1048	 43.97	+1	1086195..1086335	-	46	42526567	-	TDE1057	-	hypothetical protein
1049	 37.78	0	1086322..1086456	-	44	42526568	-	TDE1058	-	hypothetical protein
1050	 30.56	-1	1086588..1086695	-	35	42526569	-	TDE1059	-	hypothetical protein
1051	 34.07	0	1086659..1086793	+	44	42526570	-	TDE1060	-	hypothetical protein
1052	 37.59	0	1086786..1088570	+	594	42526571	-	TDE1061	-	ABC transporter ATP-binding protein/peptidase
1053	 38.98	0	1088570..1090447	+	625	42526572	-	TDE1062	-	ABC transporter ATP-binding protein
1054	 44.58	+1	1090647..1093028	+	793	42526573	metG	TDE1063	-	methionyl-tRNA synthetase
1055	 36.48	0	1093121..1093756	-	211	42526574	-	TDE1064	-	hypothetical protein
1056	 34.36	0	1093753..1094241	-	162	42526575	-	TDE1065	-	hypothetical protein
1057	 40.48	0	1094425..1094634	-	69	42526576	-	TDE1066	-	hypothetical protein
1058	 42.49	0	1094634..1095791	-	385	42526577	-	TDE1067	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
1059	 41.99	0	1095784..1096776	-	330	42526578	-	TDE1068	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
1060	 41.30	0	1096773..1097789	-	338	42526579	-	TDE1069	-	oligopeptide/dipeptide ABC transporter, permease protein
1061	 37.13	0	1097790..1098815	-	341	42526580	-	TDE1070	-	oligopeptide/dipeptide ABC transporter, permease protein
1062	 41.55	0	1098903..1100678	-	591	42526581	oppA	TDE1071	-	peptide ABC transporter, peptide-binding protein OppA
1063	 43.73	+1	1100881..1103496	+	871	42526582	-	TDE1072	-	putative lipoprotein
1064	 40.06	0	1103655..1104695	+	346	42526583	-	TDE1073	-	oligopeptide/dipeptide ABC transporter, permease protein
1065	 39.28	0	1104695..1106089	+	464	42526584	-	TDE1074	-	oligopeptide/dipeptide ABC transporter, permease protein
1066	 44.27	+1	1106102..1107079	+	325	42526585	-	TDE1075	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
1067	 44.96	+1	1107076..1108116	+	346	42526586	-	TDE1076	-	oligopeptide/dipeptide ABC transporter, ATP-binding protein
1068	 32.92	0	1108535..1109740	+	401	42526587	-	TDE1077	-	hypothetical protein
1069	 41.48	0	1109879..1111105	+	408	42526588	-	TDE1078	-	metallo-beta-lactamase family protein
1070	 40.92	0	1111260..1111865	+	201	42526589	-	TDE1079	-	DNA-binding protein/PTS system, IIA component
1071	 37.87	0	1111878..1112759	+	293	42526590	ksgA	TDE1080	-	dimethyladenosine transferase
1072	 40.20	0	1112779..1113288	+	169	42526591	-	TDE1081	-	hypothetical protein
1073	 38.82	0	1113275..1114312	+	345	42526592	-	TDE1082	-	ribosomal large subunit pseudouridine synthase D
1074	 38.42	0	1114306..1115091	+	261	42526593	-	TDE1083	-	RNA pseudouridylate synthase
1075	 40.06	0	1115024..1116376	-	450	42526594	-	TDE1084	-	folylpolyglutamate synthetase, putative
1076	 39.99	0	1116468..1117910	+	480	42526595	murC	TDE1085	-	UDP-N-acetylmuramate--L-alanine ligase
1077	 36.22	0	1117926..1118792	+	288	42526596	-	TDE1086	-	hypothetical protein
1078	 36.52	0	1118810..1119373	+	187	42526597	cmk	TDE1087	-	cytidylate kinase
1079	 32.60	0	1119365..1120045	-	226	42526598	-	TDE1088	-	hypothetical protein
1080	 36.31	0	1120060..1121034	-	324	42526599	-	TDE1089	-	hypothetical protein
1081	 43.17	+1	1121246..1123003	+	585	42526600	thrS	TDE1090	-	threonyl-tRNA synthetase
1082	 38.87	0	1123107..1123865	-	252	42526601	-	TDE1091	-	hypothetical protein
1083	 39.64	0	1123896..1127255	-	1119	42526602	-	TDE1092	-	hypothetical protein
1084	 35.18	0	1127514..1128218	+	234	42526603	-	TDE1093	-	hypothetical protein
1085	 38.72	0	1128205..1129782	+	525	42526604	-	TDE1094	-	hypothetical protein
1086	 39.47	0	1129966..1131105	+	379	42526605	alr	TDE1095	-	alanine racemase
1087	 38.97	0	1131129..1131998	+	289	42526606	ispH	TDE1096	-	hydroxymethylbutenyl pyrophosphate reductase
1088	 29.12	-1	1132002..1132856	-	284	42526607	-	TDE1097	-	acetyltransferase
1089	 29.26	-1	1132860..1133768	-	302	42526608	-	TDE1098	-	hypothetical protein
1090	 27.13	-1	1133826..1134341	-	171	42526609	-	TDE1099	-	acetyltransferase
1091	 27.65	-1	1134358..1134762	-	134	42526610	-	TDE1100	-	acetyltransferase
1092	 29.79	-1	1134753..1135232	-	159	42526611	-	TDE1101	-	acetyltransferase
1093	 32.13	0	1135354..1136265	-	303	42526612	-	TDE1102	-	hypothetical protein
1094	 42.42	0	1136500..1136730	+	76	42526613	-	TDE1103	-	hypothetical protein
37.25	MEAN

5.76	STD DEV
