IslandPath Analysis: Thermoplasma volcanium GSS1

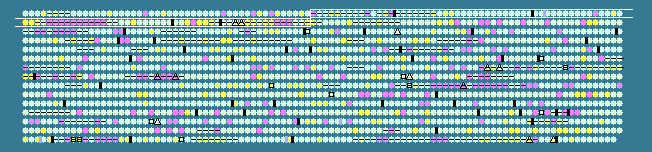

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
49	 35.48	-1	49989..50546	+	185	13540880	-	TVN0049	-	V-type ATP synthase subunit E
50	 40.06	0	50548..51618	+	356	13540881	-	TVN0050	-	V-type ATP synthase subunit C
51	 40.32	0	51620..51934	+	104	13540882	-	TVN0051	-	V-type ATP synthase subunit F
52	 44.36	+1	51944..54274	+	776	13540883	-	TVN0052	-	V-type ATP synthase subunit A
53	 45.84	+1	54255..55637	+	460	13540884	-	TVN0053	-	V-type ATP synthase subunit B
54	 42.90	0	55622..56269	+	215	13540885	-	TVN0054	-	V-type ATP synthase subunit D
55	 40.48	0	56417..56752	+	111	13540886	-	TVN0055	-	V-type ATP synthase subunit H
56	 41.46	0	56755..58686	+	643	13540887	-	TVN0056	-	V-type ATP synthase subunit I
57	 39.83	0	58751..59350	+	199	13540888	-	TVN0057	-	glutamine amidotransferase subunit PdxT
58	 37.28	-1	59351..60439	+	362	13540889	-	TVN0058	-	aminomethyltransferase (glycine cleavage system T protein)
59	 38.98	0	60866..61804	-	312	13540890	-	TVN0059	-	UDP-glucose 4-epimerase
60	 40.69	0	61978..62181	+	67	13540891	-	TVN0060	-	nucleic-acid-binding protein (Zn-ribbon)
61	 44.82	+1	62254..62871	+	205	13540892	-	TVN0061	-	superoxide dismutase
62	 36.42	-1	62879..63493	+	204	13540893	-	TVN0062	-	N-glycosylase/DNA lyase
63	 42.31	0	63671..64561	-	296	13540894	-	TVN0063	-	phosphate permease
64	 41.77	0	64561..65125	-	188	13540895	-	TVN0064	-	hypothetical protein
65	 43.82	0	65335..65973	+	212	13540896	-	TVN0065	-	MarC family integral membrane protein
66	 39.39	0	65980..66474	+	164	13540897	-	TVN0066	-	2'-5' RNA ligase
67	 42.75	0	66522..67031	+	169	13540898	-	TVN0067	-	hypothetical protein
68	 41.30	0	67028..67504	-	158	13540899	-	TVN0068	-	nucleic-acid-binding protein
69	 48.17	+2	67506..68678	-	390	13540900	-	TVN0069	-	acetyl-CoA acetyltransferase
70	 41.67	0	69015..70322	+	435	13540901	-	TVN0070	-	proline/betaine transport permease
71	 47.00	+1	70571..71521	+	316	13540902	-	TVN0071	-	threonine synthase
72	 45.51	+1	71521..72555	+	344	13540903	-	TVN0072	-	hypothetical protein
73	 41.68	0	72606..74006	+	466	13540904	-	TVN0073	-	metal-binding protein containing
74	 44.31	+1	74056..75057	+	333	13540905	-	TVN0074	-	D-mannonate dehydratase
75	 43.38	0	75046..75831	-	261	13540906	-	TVN0075	-	aldose dehydrogenase
76	 42.83	0	75867..76361	-	164	13540907	-	TVN0076	-	hypothetical protein
77	 43.06	0	76358..77128	-	256	13540908	-	TVN0077	-	hypothetical protein
78	 39.19	0	77159..78166	-	335	13540909	-	TVN0078	-	histidinol-phosphate aminotransferase
79	 40.32	0	78297..79184	+	295	13540910	-	TVN0079	-	hypothetical protein
80	 40.00	0	79186..79590	+	134	13540911	-	TVN0080	-	hypothetical protein
81	 42.78	0	79558..80637	-	359	13540912	-	TVN0081	-	nucleoside-diphosphate-sugar pyrophosphorylase
82	 38.16	0	80863..81816	-	317	13540913	-	TVN0082	-	hypothetical protein
83	 43.57	0	81827..83194	-	455	13540914	-	TVN0083	-	cytochrome bd-type quinol oxidase, subunit 1
84	 42.23	0	83526..84143	+	205	13540915	-	TVN0084	-	transcription activator
85	 42.30	0	84357..84869	-	170	13540916	-	TVN0085	-	hypothetical protein
86	 40.92	0	85061..85666	+	201	13540917	-	TVN0086	-	alpha/beta superfamily hydrolase
87	 40.82	0	85663..86076	+	137	13540918	-	TVN0087	-	molybdopterin converting factor, large subunit
88	 44.09	0	89391..90245	-	284	13540919	-	TVN0088	-	ATPase involved in chromosome partitioning
89	 43.89	0	90326..91936	-	536	13540920	-	TVN0089	-	formyltetrahydrofolate synthetase
90	 40.81	0	91933..92547	-	204	13540921	-	TVN0090	-	formiminotetrahydrofolate cyclodeaminase
91	 42.02	0	92631..93539	-	302	13540922	-	TVN0091	-	glutamate formiminotransferase
92	 42.40	0	93749..96052	+	767	13540923	-	TVN0092	-	ribonucleotide-diphosphate reductase subunit alpha
93	 39.53	0	96070..96843	-	257	13540924	-	TVN0093	-	metal-dependent hydrolase
94	 42.10	0	97142..98920	-	592	13540925	-	TVN0094	-	chloride channel protein
95	 38.39	0	99129..100097	-	322	13540926	-	TVN0095	-	cell wall biosynthesis glycosyltransferase
96	 36.93	-1	100132..100770	-	212	13540927	-	TVN0096	-	2-phosphosulfolactate phosphatase
97	 42.66	0	100811..101839	-	342	13540928	-	TVN0097	-	Kef-type K+ transporter NAD-binding component
98	 41.99	0	102084..102626	+	180	13540929	-	TVN0098	-	hypothetical protein
99	 45.31	+1	102621..103931	-	436	13540930	-	TVN0099	-	dihydrolipoamide dehydrogenase
100	 43.84	0	103933..105141	-	402	13540931	-	TVN0100	-	branched-chain alpha-keto acid dehydrogenase subunit E2
101	 47.92	+2	105141..106100	-	319	13540932	-	TVN0101	-	thiamine pyrophosphate-dependent dehydrogenase, E1 component beta subunit
102	 46.15	+1	106097..107110	-	337	13540933	-	TVN0102	-	branched-chain alpha-ketoacid dehydrogenase, E1 component alpha subunit
103	 44.98	+1	107310..108185	-	291	13540934	-	TVN0103	-	methionine aminopeptidase
104	 41.74	0	108190..108867	-	225	13540935	-	TVN0104	-	hypothetical protein
105	 27.59	-2	110650..110910	-	86	13540936	-	TVN0105	-	hypothetical protein
106	 28.90	-2	110910..111878	-	322	13540937	-	TVN0106	-	hypothetical protein
107	 28.69	-2	111880..112590	-	236	13540938	-	TVN0107	-	hypothetical protein
108	 27.63	-2	112611..113768	-	385	13540939	-	TVN0108	-	hypothetical protein
109	 30.98	-2	113769..114659	-	296	13540940	-	TVN0109	-	hypothetical protein
110	 34.35	-1	114661..115350	-	229	13540941	-	TVN0110	-	hypothetical protein
111	 29.48	-2	115343..115783	-	146	13540942	-	TVN0111	-	hypothetical protein
112	 29.68	-2	115828..118155	-	775	13540943	-	TVN0112	-	HD superfamily hydrolase
113	 25.77	-2	118145..118858	-	237	13540944	-	TVN0113	-	hypothetical protein
114	 23.75	-2	119105..120325	+	406	13540945	-	TVN0114	-	hypothetical protein
115	 43.91	0	123780..124526	+	248	13540946	-	TVN0115	-	hypothetical protein
116	 41.55	0	124519..124725	+	68	13540947	-	TVN0116	-	hypothetical protein
117	 42.16	0	124714..126027	-	437	13540948	-	TVN0117	-	tRNA CCA-pyrophosphorylase
118	 43.33	0	126024..126383	-	119	13540949	nac	TVN0118	-	nascent polypeptide-associated complex protein
119	 47.75	+2	127036..127458	-	140	13540950	-	TVN0119	-	ferredoxin
120	 40.85	0	127681..128172	+	163	13540951	-	TVN0120	-	hypothetical protein
121	 38.46	0	128375..128764	-	129	13540952	-	TVN0121	-	hypothetical protein
122	 42.19	0	128958..130538	+	526	13540953	-	TVN0122	-	Acyl-coenzyme A synthetase
123	 43.79	0	130805..132220	+	471	13540954	-	TVN0123	-	phosphate ABC transporter permease
124	 38.46	0	132662..133675	+	337	13540955	-	TVN0124	-	adenine specific DNA methylase
125	 42.02	0	133681..134727	+	348	13540956	-	TVN0125	-	adenine specific DNA methylase
126	 40.29	0	135483..136991	-	502	13540957	-	TVN0126	-	Acyl-CoA synthetase (AMP-forming)
127	 43.60	0	137051..138433	-	460	13540958	-	TVN0127	-	sugar kinase
128	 45.69	+1	138528..139547	+	339	13540959	-	TVN0128	-	oxidoreductase
129	 36.30	-1	139649..139918	+	89	13540960	-	TVN0129	-	hypothetical protein
130	 45.08	+1	139971..141026	+	351	13540961	-	TVN0130	-	hypothetical protein
131	 45.21	+1	141013..142182	+	389	13540962	-	TVN0131	-	acetyl-CoA acetyltransferase
132	 47.26	+1	142185..142586	+	133	13540963	-	TVN0132	-	nucleic-acid-binding protein
133	 40.91	0	142583..143242	-	219	13540964	rnhB	TVN0133	-	ribonuclease HII
134	 39.17	0	143455..143985	+	176	13540965	-	TVN0134	-	hypothetical protein
135	 38.62	0	143986..144477	+	163	13540966	-	TVN0135	-	hypothetical protein
136	 43.11	0	144724..144948	+	74	13540967	-	TVN0136	-	integrase/recombinase
137	 45.72	+1	145021..145569	+	182	13540968	-	TVN0137	-	integrase/recombinase
138	 47.73	+1	145846..147033	-	395	13540969	-	TVN0138	-	multidrug efflux permease
139	 44.74	+1	147168..147614	-	148	13540970	-	TVN0139	-	hypothetical protein
140	 39.05	0	147946..148155	-	69	13540971	-	TVN0140	-	transposon-encoded protein
141	 45.61	+1	148313..148825	+	170	13540972	-	TVN0141	-	hypothetical protein
142	 47.46	+1	148943..149119	+	58	13540973	-	TVN0142	-	hypothetical protein
143	 35.35	-1	149208..149603	+	131	13540974	-	TVN0143	-	hypothetical protein
144	 32.70	-2	149832..150464	+	210	13540975	-	TVN0144	-	hypothetical protein
145	 34.29	-1	151549..152070	+	173	13540976	-	TVN0145	-	hypothetical protein
146	 41.41	0	152244..153692	-	482	13540977	-	TVN0146	-	Na+/proline symporter permease
147	 37.95	0	153694..153888	-	64	13540978	-	TVN0147	-	hypothetical protein
148	 45.11	+1	154235..158269	-	1344	13540979	-	TVN0148	-	multitransmembrane protein
40.87	MEAN

3.44	STD DEV
