IslandPath Analysis: Thermoplasma volcanium GSS1

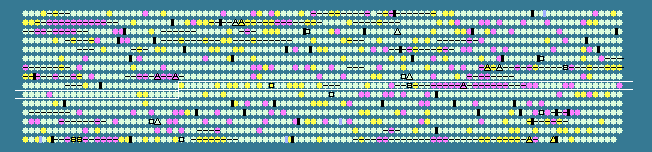

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
827	 45.03	+1	862775..863458	+	227	13541658	-	TVN0827	-	Uracil-DNA glycosylase
828	 44.10	0	863466..864737	-	423	13541659	-	TVN0828	-	Mn2+ transporter
829	 42.34	0	864852..867938	+	1028	13541660	ileS	TVN0829	-	isoleucyl-tRNA synthetase
830	 40.58	0	867995..868615	+	206	13541661	-	TVN0830	-	rhodanese-related protein
831	 41.53	0	868766..869119	+	117	13541662	-	TVN0831	-	hypothetical protein
832	 40.39	0	869124..869690	+	188	13541663	-	TVN0832	-	phosphoglycerate mutase
833	 46.81	+1	869966..870514	+	182	13541664	-	TVN0833	-	2-oxoacid-ferredoxin oxidoreductase, gamma subunit
834	 43.86	0	870523..870807	+	94	13541665	-	TVN0834	-	2-oxoisovalerate-ferredoxin oxidoreductase, subunit delta (vorD)
835	 45.46	+1	870804..871982	+	392	13541666	-	TVN0835	-	pyruvate:ferredoxin oxidoreductase, alpha subunit
836	 48.87	+2	871982..872869	+	295	13541667	-	TVN0836	-	2-ketoisovalerate ferredoxin oxidoreductase subunit beta
837	 43.37	0	872883..873440	-	185	13541668	-	TVN0837	-	SAM-dependent methyltransferase
838	 45.05	+1	873691..874800	+	369	13541669	-	TVN0838	-	coenzyme PQQ synthesis protein E
839	 40.18	0	874790..875242	-	150	13541670	-	TVN0839	-	hypothetical protein
840	 44.82	+1	875243..876487	-	414	13541671	-	TVN0840	-	glycerol-3-phosphate dehydrogenase
841	 42.98	0	876539..877129	-	196	13541672	-	TVN0841	-	glycerophosphoryl diester phosphodiesterase
842	 44.67	+1	877087..878391	-	434	13541673	-	TVN0842	-	transposase
843	 41.98	0	878378..878782	-	134	13541674	-	TVN0843	-	hypothetical protein
844	 43.78	0	878825..879025	-	66	13541675	-	TVN0844	-	hypothetical protein
845	 44.51	+1	879099..879635	-	178	13541676	-	TVN0845	-	nicotinamide-nucleotide adenylyltransferase
846	 45.77	+1	879862..881751	+	629	13541677	-	TVN0846	-	2-oxoacid--ferredoxin oxidoreductase, alpha subunit
847	 46.54	+1	881741..882664	+	307	13541678	-	TVN0847	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
848	 44.19	0	882679..883839	-	386	13541679	-	TVN0848	-	aspartate aminotransferase
849	 42.93	0	883980..884813	+	277	13541680	-	TVN0849	-	site-specific DNA methylase
850	 45.68	+1	884896..885567	+	223	13541681	-	TVN0850	-	metal-dependent hydrolase
851	 43.17	0	885564..885929	-	121	13541682	-	TVN0851	-	nucleic acid-binding protein
852	 41.99	0	885910..886521	-	203	13541683	-	TVN0852	-	2-phosphoglycerate kinase
853	 41.88	0	886521..887105	-	194	13541684	-	TVN0853	-	nicotinamidase-like amidase
854	 43.82	0	887209..887952	+	247	13541685	-	TVN0854	-	dolichol-phosphate-mannosyltransferase
855	 41.67	0	887956..888279	-	107	13541686	-	TVN0855	-	hypothetical protein
856	 42.68	0	888403..889953	-	516	13541687	-	TVN0856	-	family X DNA polymerase
857	 41.32	0	890000..890362	-	120	13541688	-	TVN0857	-	hypothetical protein
858	 46.88	+1	890402..891058	-	218	13541689	-	TVN0858	-	metal-dependent hydrolase
859	 43.88	0	891084..891320	-	78	13541690	-	TVN0859	-	nucleic-acid-binding protein (Zn-ribbon)
860	 38.44	0	891399..891770	+	123	13541691	-	TVN0860	-	hypothetical protein
861	 38.91	0	891777..892583	-	268	13541692	-	TVN0861	-	prephenate dehydratase
862	 34.81	-1	892969..893913	-	314	13541693	-	TVN0862	-	cell wall biosynthesis glycosyltransferase
863	 37.92	0	893971..895104	-	377	13541694	-	TVN0863	-	glycosyltransferase
864	 42.12	0	895451..896554	-	367	13541695	-	TVN0864	-	glycosyltransferase
865	 41.24	0	897346..897522	+	58	13541696	-	TVN0865	-	transposase
866	 46.45	+1	897658..898023	+	121	13541697	-	TVN0866	-	hypothetical protein
867	 42.89	0	898063..898533	+	156	13541698	-	TVN0867	-	hypothetical protein
868	 40.94	0	898622..899173	-	183	13541699	-	TVN0868	-	hypothetical protein
869	 29.15	-2	899600..900412	+	270	13541700	-	TVN0869	-	cell wall biosynthesis glycosyltransferase
870	 25.57	-2	901335..901553	+	72	13541701	-	TVN0870	-	hypothetical protein
871	 26.90	-2	902108..902620	+	170	13541702	-	TVN0871	-	cell wall biosynthesis glycosyltransferase
872	 33.77	-2	903798..904250	+	150	13541703	-	TVN0872	-	glycosyltransferase
873	 32.99	-2	904721..905596	-	291	13541704	-	TVN0873	-	SAM-dependent methyltransferase
874	 31.76	-2	908448..908765	+	105	13541705	-	TVN0874	-	integrase/recombinase
875	 37.93	0	909830..910003	-	57	13541706	-	TVN0875	-	aldo/keto reductase
876	 22.16	-2	910396..911451	-	351	13541707	-	TVN0876	-	cell wall biosynthesis glycosyltransferase
877	 30.59	-2	911574..912704	-	376	13541708	-	TVN0877	-	glycosyltransferase
878	 37.12	-1	912906..913169	-	87	13541709	-	TVN0878	-	translation initiation factor IF-1
879	 31.20	-2	913498..916074	-	858	13541710	-	TVN0879	-	hypothetical protein
880	 28.91	-2	917701..918762	-	353	13541711	-	TVN0880	-	glycosyltransferase
881	 32.44	-2	919339..920010	+	223	13541712	-	TVN0881	-	SAM-dependent methyltransferase
882	 41.67	0	921433..921852	+	139	13541713	-	TVN0882	-	hypothetical protein
883	 41.99	0	922132..922512	+	126	13541714	-	TVN0883	-	hypothetical protein
884	 36.60	-1	922748..923542	-	264	13541715	-	TVN0884	-	cell wall biosynthesis glycosyltransferase
885	 36.74	-1	923753..924280	-	175	13541716	-	TVN0885	-	hypothetical protein
886	 34.50	-1	924334..925968	-	544	13541717	-	TVN0886	-	hypothetical protein
887	 37.99	0	926017..926940	+	307	13541718	-	TVN0887	-	nucleoside-diphosphate-sugar epimerase
888	 37.95	0	926937..927911	+	324	13541719	-	TVN0888	-	kinase related to galactokinase and mevalonate kinase
889	 38.99	0	928372..929892	+	506	13541720	-	TVN0889	-	O-antigen and teichoic acid export protein
890	 39.35	0	930644..932389	+	581	13541721	-	TVN0890	-	acylaminoacyl-peptidase
891	 32.55	-2	933646..934671	+	341	13541722	-	TVN0891	-	glycosyltransferase
892	 30.30	-2	935209..936231	-	340	13541723	-	TVN0892	-	cell wall biosynthesis glycosyltransferase
893	 41.91	0	937737..939251	+	504	13541724	-	TVN0893	-	gamma-glutamyltranspeptidase
894	 43.50	0	939308..940537	+	409	13541725	-	TVN0894	-	sugar transport permease
895	 41.77	0	940548..943640	-	1030	13541726	-	TVN0895	-	Tricorn protease
896	 39.30	0	943731..944468	+	245	13541727	-	TVN0896	-	SAM-dependent methyltransferase
897	 43.49	0	944469..945029	-	186	13541728	-	TVN0897	-	hypothetical protein
898	 41.00	0	945253..946674	+	473	13541729	-	TVN0898	-	amino acid transporter
899	 39.05	0	947223..948272	+	349	13541730	-	TVN0899	-	dTDP-glucose pyrophosphorylase
900	 36.77	-1	948279..949121	+	280	13541731	-	TVN0900	-	dTDP-4-dehydrorhamnose reductase
901	 38.52	0	949118..949657	+	179	13541732	-	TVN0901	-	dTDP-4-dehydrorhamnose 3,5-epimerase
902	 38.56	0	949654..950610	+	318	13541733	-	TVN0902	-	dTDP-D-glucose 4,6-dehydratase
903	 42.71	0	951870..952253	+	127	13541734	-	TVN0903	-	hypothetical protein
904	 39.06	0	952290..953267	+	325	13541735	-	TVN0904	-	cell wall biosynthesis glycosyltransferase
905	 36.96	-1	953314..954084	+	256	13541736	-	TVN0905	-	nucleoside-diphosphate-sugar epimerase
906	 38.10	0	955769..956419	+	216	13541737	-	TVN0906	-	DNA-binding protein
907	 44.30	0	956954..958321	-	455	13541738	-	TVN0907	-	major facilitator superfamily permease
908	 41.20	0	958399..959517	-	372	13541739	-	TVN0908	-	carnitine dehydratase
909	 41.26	0	959514..960548	-	344	13541740	-	TVN0909	-	isopropylmalate synthase
910	 41.92	0	960913..961809	-	298	13541741	-	TVN0910	-	proline iminopeptidase
911	 44.11	0	961784..963184	-	466	13541742	-	TVN0911	-	amino acid transporter
912	 41.20	0	963693..965471	+	592	13541743	-	TVN0912	-	acylaminoacyl-peptidase
913	 39.66	0	965581..965928	+	115	13541744	-	TVN0913	-	hypothetical protein
914	 42.50	0	965932..967317	-	461	13541745	-	TVN0914	-	metal-dependent hydrolase
915	 40.08	0	967872..968612	+	246	13541746	-	TVN0915	-	enoyl-CoA hydratase
916	 42.09	0	968891..970615	-	574	13541747	-	TVN0916	-	cobalamin biosynthesis protein (CbiG-related)/precorrin-6Y methylase
917	 43.71	0	970612..971366	-	251	13541748	-	TVN0917	-	precorrin-4 methylase
918	 38.84	0	971375..972064	-	229	13541749	-	TVN0918	-	precorrin-2 methylase
919	 41.42	0	972073..972678	-	201	13541750	-	TVN0919	-	precorrin-6Y methylase
920	 45.50	+1	972668..973801	-	377	13541751	cbiD	TVN0920	-	cobalt-precorrin-6A synthase
921	 45.11	+1	973788..974543	-	251	13541752	-	TVN0921	-	precorrin-3B methylase
922	 44.12	0	974537..975250	-	237	13541753	-	TVN0922	-	precorrin isomerase
923	 41.90	0	975318..976076	-	252	13541754	-	TVN0923	-	uroporphyrinogen-III methylase
924	 40.00	0	976073..976717	-	214	13541755	-	TVN0924	-	siroheme synthase
925	 39.34	0	976779..977111	-	110	13541756	-	TVN0925	-	hypothetical protein
926	 40.82	0	977291..977878	-	195	13541757	-	TVN0926	-	aspartokinase beta subunit
40.87	MEAN

3.44	STD DEV
