IslandPath Analysis: Thermoplasma volcanium GSS1

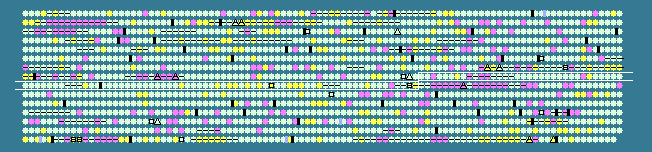

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.87   STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
767	 37.75	0	782917..783822	-	301	13541598	-	TVN0767	-	acetyltransferase
768	 41.50	0	783936..785282	+	448	13541599	-	TVN0768	-	malate oxidoreductase (malic enzyme)
769	 37.15	-1	785263..785733	+	156	13541600	-	TVN0769	-	acetyltransferase
770	 44.00	0	786138..786887	-	249	13541601	-	TVN0770	-	hypothetical protein
771	 39.02	0	787296..787823	+	175	13541602	-	TVN0771	-	nicotinamidase-like amidase
772	 42.29	0	787900..789597	+	565	13541603	-	TVN0772	-	methylmalonyl-CoA mutase, alpha subunit
773	 47.20	+1	789560..790006	+	148	13541604	-	TVN0773	-	methylmalonyl-CoA mutase, cobalamin-binding subunit
774	 39.77	0	790007..790954	+	315	13541605	-	TVN0774	-	GTPase
775	 37.07	-1	790978..791352	+	124	13541606	-	TVN0775	-	molecular chaperone (small heat shock protein, hsp20-related)
776	 39.33	0	791355..792887	-	510	13541607	-	TVN0776	-	protein kinase
777	 36.94	-1	792902..793234	-	110	13541608	-	TVN0777	-	thioredoxin
778	 36.42	-1	793261..793584	-	107	13541609	-	TVN0778	-	hypothetical protein
779	 39.51	0	793726..794454	+	242	13541610	-	TVN0779	-	TPR repeat-containing protein
780	 40.83	0	794445..794924	-	159	13541611	-	TVN0780	-	hypothetical protein
781	 42.03	0	794990..795955	+	321	13541612	-	TVN0781	-	bifunctional methylated DNA-protein cysteine methyltransferase/deoxyinosine 3'endonuclease
782	 41.48	0	795952..797031	-	359	13541613	-	TVN0782	-	mevalonate pyrophosphate decarboxylase
783	 40.06	0	797109..798371	-	420	13541614	-	TVN0783	-	glycerate kinase
784	 43.51	0	798467..799969	+	500	13541615	-	TVN0784	-	benzoylformate decarboxylase
785	 42.91	0	799969..800469	+	166	13541616	-	TVN0785	-	Rossmann fold nucleotide-binding protein
786	 38.38	0	800502..800897	+	131	13541617	-	TVN0786	-	hypothetical protein
787	 38.88	0	800944..802692	-	582	13541618	-	TVN0787	-	amino acid transporter
788	 38.51	0	802745..803188	-	147	13541619	-	TVN0788	-	hypothetical protein
789	 37.75	0	803300..804319	+	339	13541620	-	TVN0789	-	hypothetical protein
790	 40.32	0	804316..805746	+	476	13541621	-	TVN0790	-	thiamine biosynthesis protein ThiI
791	 40.77	0	805714..806385	-	223	13541622	-	TVN0791	-	hypothetical protein
792	 44.32	+1	806423..807460	-	345	13541623	-	TVN0792	-	cell division protein FtsZ
793	 40.21	0	807623..808276	+	217	13541624	-	TVN0793	-	hypothetical protein
794	 37.32	-1	808305..808580	+	91	13541625	-	TVN0794	-	molybdopterin converting factor, small subunit
795	 44.43	+1	808604..810415	-	603	13541626	-	TVN0795	-	aldehyde:ferredoxin oxidoreductase
796	 40.21	0	810543..811706	+	387	13541627	-	TVN0796	-	glycine hydroxymethyltransferase
797	 40.06	0	811696..812781	+	361	13541628	-	TVN0797	-	CBS domain-containing protein
798	 42.03	0	812849..814159	+	436	13541629	-	TVN0798	-	Zn-dependent protease
799	 40.35	0	814156..815451	+	431	13541630	-	TVN0799	-	Zn-dependent protease
800	 41.71	0	815552..817891	+	779	13541631	-	TVN0800	-	aminopeptidase N
801	 41.22	0	817924..819318	+	464	13541632	-	TVN0801	-	multidrug efflux permease
802	 41.81	0	819699..820736	+	345	13541633	-	TVN0802	-	carbamoyl phosphate synthase small subunit
803	 42.46	0	820729..823863	+	1044	13541634	carB	TVN0803	-	carbamoyl phosphate synthase large subunit
804	 43.83	0	823875..824522	+	215	13541635	-	TVN0804	-	endonuclease III
805	 42.36	0	824539..826311	-	590	13541636	-	TVN0805	-	amino acid transporter
806	 42.28	0	826402..827631	+	409	13541637	-	TVN0806	-	diaminopimelate decarboxylase
807	 40.16	0	827724..831149	+	1141	13541638	-	TVN0807	-	chromosome segregation ATPase
808	 39.31	0	831139..831891	+	250	13541639	-	TVN0808	-	hypothetical protein
809	 39.39	0	831893..832486	-	197	13541640	-	TVN0809	-	hypothetical protein
810	 41.16	0	832637..833926	+	429	13541641	-	TVN0810	-	major facilitator superfamily permease
811	 45.26	+1	834091..835692	-	533	13541642	-	TVN0811	-	N-methylhydaintoinase B
812	 41.81	0	835694..837664	-	656	13541643	-	TVN0812	-	N-methylhydaintoinase A
813	 37.46	0	838588..839460	-	290	13541644	-	TVN0813	-	phospholipase D
814	 41.14	0	841665..843689	+	674	13541645	-	TVN0814	-	ski2-like helicase
815	 38.64	0	843667..844590	+	307	13541646	-	TVN0815	-	methyltransferase
816	 44.27	0	844763..846070	+	435	13541647	-	TVN0816	-	NAD(FAD)-dependent dehydrogenase
817	 44.13	0	846072..848756	+	894	13541648	-	TVN0817	-	Lhr-like helicase
818	 41.12	0	848765..850447	-	560	13541649	-	TVN0818	-	membrane-associated Zn-dependent protease 1
819	 42.24	0	850702..853338	-	878	13541650	alaS	TVN0819	-	alanyl-tRNA synthetase
820	 40.19	0	853481..853903	-	140	13541651	-	TVN0820	-	GAF domain-containing protein
821	 40.27	0	853975..854868	-	297	13541652	-	TVN0821	-	small-conductance mechanosensitive channel protein
822	 42.30	0	855624..856916	-	430	13541653	-	TVN0822	-	major facilitator superfamily permease
823	 42.72	0	857055..859451	+	798	13541654	-	TVN0823	-	DNA polymerase II
824	 40.84	0	859714..860619	-	301	13541655	-	TVN0824	-	ornithine cyclodeaminase
825	 41.96	0	860769..861800	+	343	13541656	-	TVN0825	-	glucosamine 6-phosphate synthase
826	 42.60	0	861874..862758	+	294	13541657	-	TVN0826	-	3-hydroxyacyl-CoA dehydrogenase
827	 45.03	+1	862775..863458	+	227	13541658	-	TVN0827	-	Uracil-DNA glycosylase
828	 44.10	0	863466..864737	-	423	13541659	-	TVN0828	-	Mn2+ transporter
829	 42.34	0	864852..867938	+	1028	13541660	ileS	TVN0829	-	isoleucyl-tRNA synthetase
830	 40.58	0	867995..868615	+	206	13541661	-	TVN0830	-	rhodanese-related protein
831	 41.53	0	868766..869119	+	117	13541662	-	TVN0831	-	hypothetical protein
832	 40.39	0	869124..869690	+	188	13541663	-	TVN0832	-	phosphoglycerate mutase
833	 46.81	+1	869966..870514	+	182	13541664	-	TVN0833	-	2-oxoacid-ferredoxin oxidoreductase, gamma subunit
834	 43.86	0	870523..870807	+	94	13541665	-	TVN0834	-	2-oxoisovalerate-ferredoxin oxidoreductase, subunit delta (vorD)
835	 45.46	+1	870804..871982	+	392	13541666	-	TVN0835	-	pyruvate:ferredoxin oxidoreductase, alpha subunit
836	 48.87	+2	871982..872869	+	295	13541667	-	TVN0836	-	2-ketoisovalerate ferredoxin oxidoreductase subunit beta
837	 43.37	0	872883..873440	-	185	13541668	-	TVN0837	-	SAM-dependent methyltransferase
838	 45.05	+1	873691..874800	+	369	13541669	-	TVN0838	-	coenzyme PQQ synthesis protein E
839	 40.18	0	874790..875242	-	150	13541670	-	TVN0839	-	hypothetical protein
840	 44.82	+1	875243..876487	-	414	13541671	-	TVN0840	-	glycerol-3-phosphate dehydrogenase
841	 42.98	0	876539..877129	-	196	13541672	-	TVN0841	-	glycerophosphoryl diester phosphodiesterase
842	 44.67	+1	877087..878391	-	434	13541673	-	TVN0842	-	transposase
843	 41.98	0	878378..878782	-	134	13541674	-	TVN0843	-	hypothetical protein
844	 43.78	0	878825..879025	-	66	13541675	-	TVN0844	-	hypothetical protein
845	 44.51	+1	879099..879635	-	178	13541676	-	TVN0845	-	nicotinamide-nucleotide adenylyltransferase
846	 45.77	+1	879862..881751	+	629	13541677	-	TVN0846	-	2-oxoacid--ferredoxin oxidoreductase, alpha subunit
847	 46.54	+1	881741..882664	+	307	13541678	-	TVN0847	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
848	 44.19	0	882679..883839	-	386	13541679	-	TVN0848	-	aspartate aminotransferase
849	 42.93	0	883980..884813	+	277	13541680	-	TVN0849	-	site-specific DNA methylase
850	 45.68	+1	884896..885567	+	223	13541681	-	TVN0850	-	metal-dependent hydrolase
851	 43.17	0	885564..885929	-	121	13541682	-	TVN0851	-	nucleic acid-binding protein
852	 41.99	0	885910..886521	-	203	13541683	-	TVN0852	-	2-phosphoglycerate kinase
853	 41.88	0	886521..887105	-	194	13541684	-	TVN0853	-	nicotinamidase-like amidase
854	 43.82	0	887209..887952	+	247	13541685	-	TVN0854	-	dolichol-phosphate-mannosyltransferase
855	 41.67	0	887956..888279	-	107	13541686	-	TVN0855	-	hypothetical protein
856	 42.68	0	888403..889953	-	516	13541687	-	TVN0856	-	family X DNA polymerase
857	 41.32	0	890000..890362	-	120	13541688	-	TVN0857	-	hypothetical protein
858	 46.88	+1	890402..891058	-	218	13541689	-	TVN0858	-	metal-dependent hydrolase
859	 43.88	0	891084..891320	-	78	13541690	-	TVN0859	-	nucleic-acid-binding protein (Zn-ribbon)
860	 38.44	0	891399..891770	+	123	13541691	-	TVN0860	-	hypothetical protein
861	 38.91	0	891777..892583	-	268	13541692	-	TVN0861	-	prephenate dehydratase
862	 34.81	-1	892969..893913	-	314	13541693	-	TVN0862	-	cell wall biosynthesis glycosyltransferase
863	 37.92	0	893971..895104	-	377	13541694	-	TVN0863	-	glycosyltransferase
864	 42.12	0	895451..896554	-	367	13541695	-	TVN0864	-	glycosyltransferase
865	 41.24	0	897346..897522	+	58	13541696	-	TVN0865	-	transposase
866	 46.45	+1	897658..898023	+	121	13541697	-	TVN0866	-	hypothetical protein
40.87	MEAN

3.44	STD DEV
