IslandPathversion 1.0

IslandPath Analysis: Thermoplasma volcanium GSS1

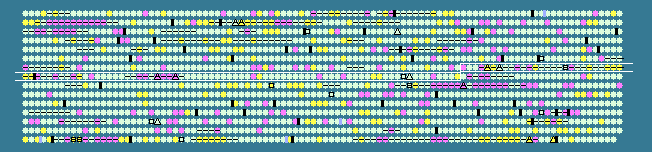

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
674	 36.49	-1	669823..671343	+	506	13541505	-	TVN0674	-	MutS-like ATPase involved in mismatch repair
675	 37.72	0	671340..672842	+	500	13541506	-	TVN0675	-	MutS-like ATPase involved in mismatch repair
676	 41.04	0	673748..674383	+	211	13541507	-	TVN0676	-	formylmethanofuran dehydrogenase subunit E
677	 34.93	-1	674771..675523	+	250	13541508	-	TVN0677	-	permease
678	 49.35	+2	676728..678044	+	438	13541509	-	TVN0678	-	integrase/recombinase
679	 48.05	+2	678392..678982	-	196	13541510	-	TVN0679	-	hypothetical protein
680	 44.31	0	680695..680940	+	81	13541511	-	TVN0680	-	integrase/recombinase
681	 42.03	0	681337..684360	+	1007	13541512	-	TVN0681	-	Type II restriction enzyme, methylase subunit
682	 43.45	0	684344..687475	+	1043	13541513	-	TVN0682	-	helicase
683	 35.50	-1	687568..688074	-	168	13541514	-	TVN0683	-	hypothetical protein
684	 42.18	0	689289..689729	+	146	13541515	-	TVN0684	-	hypothetical protein
685	 34.51	-1	689781..691226	+	481	13541516	-	TVN0685	-	Beta-galactosidase
686	 47.58	+1	691296..691625	+	109	13541517	-	TVN0686	-	hypothetical protein
687	 39.01	0	691828..692109	+	93	13541518	-	TVN0687	-	hypothetical protein
688	 40.28	0	692339..692554	+	71	13541519	-	TVN0688	-	hypothetical protein
689	 42.64	0	693675..694007	+	110	13541520	-	TVN0689	-	hypothetical protein
690	 38.01	0	694060..696003	+	647	13541521	-	TVN0690	-	hypothetical protein
691	 37.56	0	696958..697170	+	70	13541522	-	TVN0691	-	transposase
692	 37.38	-1	697684..698004	+	106	13541523	-	TVN0692	-	hypothetical protein
693	 43.65	0	698340..698591	+	83	13541524	-	TVN0693	-	hypothetical protein
694	 40.16	0	698845..699210	+	121	13541525	-	TVN0694	-	hypothetical protein
695	 45.67	+1	699600..700142	+	180	13541526	-	TVN0695	-	site-specific recombinase, DNA invertase Pin-related
696	 43.72	0	700497..700679	+	60	13541527	-	TVN0696	-	AAA ATPase family protein
697	 44.09	0	702334..702900	-	188	13541528	-	TVN0697	-	hypothetical protein
698	 49.88	+2	703424..703840	-	138	13541529	-	TVN0698	-	hypothetical protein
699	 48.28	+2	703837..704973	-	378	13541530	-	TVN0699	-	hypothetical protein
700	 52.82	+2	705358..705711	-	117	13541531	-	TVN0700	-	hypothetical protein
701	 52.85	+2	705804..706346	-	180	13541532	-	TVN0701	-	hypothetical protein
702	 44.65	+1	707052..708014	+	320	13541533	-	TVN0702	-	hypothetical protein
703	 37.29	-1	708255..708911	-	218	13541534	-	TVN0703	-	Serine/threonine protein phosphatase
704	 37.79	0	708898..709548	-	216	13541535	-	TVN0704	-	sugar fermentation stimulation protein A
705	 39.10	0	709660..710526	+	288	13541536	-	TVN0705	-	small-conductance mechanosensitive channel protein
706	 36.32	-1	710523..710924	-	133	13541537	-	TVN0706	-	thioesterase
707	 38.14	0	710951..711241	-	96	13541538	-	TVN0707	-	coiled-coil protein
708	 40.94	0	711315..712958	-	547	13541539	-	TVN0708	-	amino acid transporter
709	 34.27	-1	714418..714843	-	141	13541540	-	TVN0709	-	hypothetical protein
710	 45.22	+1	715045..719175	+	1376	13541541	-	TVN0710	-	hypothetical protein
711	 41.76	0	719265..720035	+	256	13541542	-	TVN0711	-	3-oxoacyl-[acyl-carrier-protein] reductase
712	 34.62	-1	720480..720869	+	129	13541543	-	TVN0712	-	hypothetical protein
713	 37.56	0	720929..721141	+	70	13541544	-	TVN0713	-	hypothetical protein
714	 43.10	0	721251..721670	+	139	13541545	-	TVN0714	-	hypothetical protein
715	 38.68	0	721703..722263	+	186	13541546	-	TVN0715	-	threonine efflux protein
716	 40.79	0	722669..723097	+	142	13541547	-	TVN0716	-	nucleotide-binding protein (UspA-related)
717	 40.63	0	723257..723982	-	241	13541548	-	TVN0717	-	ribose-5-phosphate isomerase A
718	 43.12	0	724374..725804	-	476	13541549	-	TVN0718	-	amino acid transporter
719	 42.60	0	726109..726669	-	186	13541550	-	TVN0719	-	hypothetical protein
720	 30.86	-2	727696..728988	-	430	13541551	-	TVN0720	-	methyltransferase
721	 36.87	-1	730400..731305	+	301	13541552	-	TVN0721	-	major facilitator superfamily permease
722	 41.93	0	732760..733434	-	224	13541553	-	TVN0722	-	restriction endonuclease
723	 30.80	-2	734352..734942	+	196	13541554	-	TVN0723	-	integrase/recombinase
724	 31.33	-2	737684..738181	-	165	13541555	-	TVN0724	-	hypothetical protein
725	 33.33	-2	739837..740145	-	102	13541556	-	TVN0725	-	Type II restriction enzyme, methylase subunit
726	 35.48	-1	740668..741039	+	123	13541557	-	TVN0726	-	integrase/recombinase
727	 43.46	0	741296..742213	+	305	13541558	-	TVN0727	-	esterase
728	 41.98	0	742429..743376	-	315	13541559	-	TVN0728	-	transcription regulator
729	 42.56	0	743399..744493	-	364	13541560	-	TVN0729	-	chorismate synthase
730	 41.40	0	744794..745363	-	189	13541561	-	TVN0730	-	phosphoglycerate mutase
731	 39.97	0	745716..747659	+	647	13541562	-	TVN0731	-	thioredoxin domain-containing protein
732	 43.57	0	747748..749124	+	458	13541563	-	TVN0732	-	cytochrome bd-type quinol oxidase, subunit 1
733	 40.99	0	749130..750122	+	330	13541564	-	TVN0733	-	hypothetical protein
734	 40.97	0	750626..751384	-	252	13541565	-	TVN0734	-	geranylgeranylglyceryl phosphate synthase-like protein
735	 38.52	0	751384..752193	-	269	13541566	-	TVN0735	-	(S)-2,3-di-O-geranylgeranylglyceryl phosphate synthase
736	 41.89	0	752240..753268	-	342	13541567	-	TVN0736	-	N(2),N(2)-dimethylguanosine tRNA methyltransferase
737	 40.11	0	753265..753810	-	181	13541568	-	TVN0737	-	putative NTPase
738	 41.32	0	753807..754169	-	120	13541569	-	TVN0738	-	hypothetical protein
739	 35.93	-1	754205..756862	-	885	13541570	-	TVN0739	-	DNA helicase II
740	 45.84	+1	757029..758219	+	396	13541571	-	TVN0740	-	metal-dependent carboxypeptidase
741	 41.13	0	758278..758931	-	217	13541572	-	TVN0741	-	hypothetical protein
742	 40.59	0	759000..759302	-	100	13541573	-	TVN0742	-	DNA-directed RNA polymerase subunit M
743	 40.99	0	759485..759889	+	134	13541574	-	TVN0743	-	CoA-binding protein
744	 38.71	0	760262..760633	-	123	13541575	-	TVN0744	-	succinate dehydrogenase, hydrophobic anchor subunit
745	 41.13	0	760633..761055	-	140	13541576	-	TVN0745	-	succinate dehydrogenase, subunit C
746	 43.29	0	761062..761784	-	240	13541577	sdhB	TVN0746	-	succinate dehydrogenase iron-sulfur subunit
747	 43.84	0	761794..763497	-	567	13541578	sdhA	TVN0747	-	succinate dehydrogenase flavoprotein subunit
748	 40.33	0	763616..764458	+	280	13541579	-	TVN0748	-	DMT family permease
749	 37.97	0	764460..764912	-	150	161760541	moaC	TVN0749	-	putative molybdenum cofactor biosynthesis protein C
750	 35.90	-1	765016..765249	-	77	13541581	-	TVN0750	-	hypothetical protein
751	 40.29	0	765628..766116	+	162	13541582	-	TVN0751	-	molybdopterin biosynthesis protein
752	 40.37	0	766521..767543	-	340	13541583	-	TVN0752	-	threonine synthase
753	 38.63	0	767609..768061	-	150	13541584	-	TVN0753	-	hypothetical protein
754	 36.15	-1	768171..769271	+	366	13541585	-	TVN0754	-	hypothetical protein
755	 39.44	0	769333..769512	+	59	13541586	-	TVN0755	-	metal-binding protein
756	 37.97	0	769525..770235	-	236	13541587	-	TVN0756	-	metal-dependent hydrolase
757	 38.69	0	770326..771612	+	428	13541588	-	TVN0757	-	folylpolyglutamate synthase
758	 40.33	0	771819..773033	+	404	13541589	cdc6	TVN0758	-	cell division control protein 6
759	 45.03	+1	773051..774358	-	435	13541590	-	TVN0759	-	glutamate dehydrogenase
760	 44.68	+1	774569..775819	-	416	13541591	-	TVN0760	-	glutamate dehydrogenase
761	 39.04	0	775903..778635	-	910	13541592	leuS	TVN0761	-	leucyl-tRNA synthetase
762	 41.71	0	778593..779141	-	182	13541593	-	TVN0762	-	pyruvoyl-dependent arginine decarboxylase
763	 43.30	0	779361..780822	+	486	13541594	-	TVN0763	-	amino acid transporter
764	 41.97	0	780828..782078	-	416	13541595	-	TVN0764	-	transposase
765	 38.50	0	782068..782480	-	137	13541596	-	TVN0765	-	site-specific integrase-resolvase
766	 38.73	0	782700..782903	+	67	13541597	-	TVN0766	-	hypothetical protein
767	 37.75	0	782917..783822	-	301	13541598	-	TVN0767	-	acetyltransferase
768	 41.50	0	783936..785282	+	448	13541599	-	TVN0768	-	malate oxidoreductase (malic enzyme)
769	 37.15	-1	785263..785733	+	156	13541600	-	TVN0769	-	acetyltransferase
770	 44.00	0	786138..786887	-	249	13541601	-	TVN0770	-	hypothetical protein
771	 39.02	0	787296..787823	+	175	13541602	-	TVN0771	-	nicotinamidase-like amidase
772	 42.29	0	787900..789597	+	565	13541603	-	TVN0772	-	methylmalonyl-CoA mutase, alpha subunit
773	 47.20	+1	789560..790006	+	148	13541604	-	TVN0773	-	methylmalonyl-CoA mutase, cobalamin-binding subunit
40.87	MEAN

3.44	STD DEV
