IslandPath Analysis: Thermoplasma volcanium GSS1

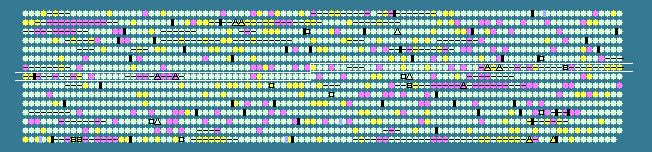

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
649	 45.07	+1	642581..643747	+	388	13541480	-	TVN0649	-	acetyl-CoA acetyltransferase
650	 42.66	0	643821..645074	+	417	13541481	-	TVN0650	-	glycine oxidase (deaminating)
651	 37.53	0	645211..645996	+	261	13541482	-	TVN0651	-	hypothetical protein
652	 37.37	-1	645988..646284	-	98	13541483	-	TVN0652	-	hypothetical protein
653	 43.48	0	646436..647983	+	515	13541484	-	TVN0653	-	NAD-dependent aldehyde dehydrogenase
654	 38.38	0	648029..649573	+	514	13541485	-	TVN0654	-	O-antigen and teichoic acid export protein
655	 39.55	0	649580..650206	-	208	13541486	-	TVN0655	-	translation initiation factor IF-2 subunit beta
656	 38.13	0	650357..650773	+	138	13541487	-	TVN0656	-	hypothetical protein
657	 37.41	-1	650770..651504	+	244	13541488	-	TVN0657	-	cell division GTPase
658	 41.20	0	651564..651995	-	143	13541489	-	TVN0658	-	transcription regulator
659	 39.68	0	652127..653071	+	314	13541490	-	TVN0659	-	asparagine synthetase A
660	 34.00	-2	653073..653675	-	200	13541491	-	TVN0660	-	DNA polymerase elongation subunit
661	 41.84	0	653656..655077	-	473	13541492	-	TVN0661	-	multidrug efflux permease
662	 38.77	0	655098..655520	-	140	13541493	-	TVN0662	-	CBS domain-containing protein
663	 43.24	0	656015..656650	+	211	13541494	-	TVN0663	-	proteasome protease subunit beta
664	 45.00	+1	656692..658611	+	639	13541495	-	TVN0664	-	metal-dependent RNase
665	 40.51	0	658721..660406	+	561	13541496	-	TVN0665	-	hypothetical protein
666	 42.26	0	660430..661101	-	223	13541497	-	TVN0666	-	putative translaldolase
667	 41.32	0	661085..662035	-	316	13541498	-	TVN0667	-	transketolase
668	 44.65	+1	662032..662853	-	273	13541499	-	TVN0668	-	transketolase
669	 39.56	0	663048..663914	-	288	13541500	-	TVN0669	-	dihydrodipicolinate synthase
670	 43.22	0	664080..665333	-	417	13541501	-	TVN0670	-	Acyl-CoA dehydrogenase
671	 39.05	0	665344..666900	-	518	13541502	-	TVN0671	-	Acyl-CoA synthetase (AMP-forming)
672	 36.41	-1	667678..668251	-	191	13541503	-	TVN0672	-	hypothetical protein
673	 40.92	0	668267..668635	-	122	13541504	-	TVN0673	-	hypothetical protein
674	 36.49	-1	669823..671343	+	506	13541505	-	TVN0674	-	MutS-like ATPase involved in mismatch repair
675	 37.72	0	671340..672842	+	500	13541506	-	TVN0675	-	MutS-like ATPase involved in mismatch repair
676	 41.04	0	673748..674383	+	211	13541507	-	TVN0676	-	formylmethanofuran dehydrogenase subunit E
677	 34.93	-1	674771..675523	+	250	13541508	-	TVN0677	-	permease
678	 49.35	+2	676728..678044	+	438	13541509	-	TVN0678	-	integrase/recombinase
679	 48.05	+2	678392..678982	-	196	13541510	-	TVN0679	-	hypothetical protein
680	 44.31	0	680695..680940	+	81	13541511	-	TVN0680	-	integrase/recombinase
681	 42.03	0	681337..684360	+	1007	13541512	-	TVN0681	-	Type II restriction enzyme, methylase subunit
682	 43.45	0	684344..687475	+	1043	13541513	-	TVN0682	-	helicase
683	 35.50	-1	687568..688074	-	168	13541514	-	TVN0683	-	hypothetical protein
684	 42.18	0	689289..689729	+	146	13541515	-	TVN0684	-	hypothetical protein
685	 34.51	-1	689781..691226	+	481	13541516	-	TVN0685	-	Beta-galactosidase
686	 47.58	+1	691296..691625	+	109	13541517	-	TVN0686	-	hypothetical protein
687	 39.01	0	691828..692109	+	93	13541518	-	TVN0687	-	hypothetical protein
688	 40.28	0	692339..692554	+	71	13541519	-	TVN0688	-	hypothetical protein
689	 42.64	0	693675..694007	+	110	13541520	-	TVN0689	-	hypothetical protein
690	 38.01	0	694060..696003	+	647	13541521	-	TVN0690	-	hypothetical protein
691	 37.56	0	696958..697170	+	70	13541522	-	TVN0691	-	transposase
692	 37.38	-1	697684..698004	+	106	13541523	-	TVN0692	-	hypothetical protein
693	 43.65	0	698340..698591	+	83	13541524	-	TVN0693	-	hypothetical protein
694	 40.16	0	698845..699210	+	121	13541525	-	TVN0694	-	hypothetical protein
695	 45.67	+1	699600..700142	+	180	13541526	-	TVN0695	-	site-specific recombinase, DNA invertase Pin-related
696	 43.72	0	700497..700679	+	60	13541527	-	TVN0696	-	AAA ATPase family protein
697	 44.09	0	702334..702900	-	188	13541528	-	TVN0697	-	hypothetical protein
698	 49.88	+2	703424..703840	-	138	13541529	-	TVN0698	-	hypothetical protein
699	 48.28	+2	703837..704973	-	378	13541530	-	TVN0699	-	hypothetical protein
700	 52.82	+2	705358..705711	-	117	13541531	-	TVN0700	-	hypothetical protein
701	 52.85	+2	705804..706346	-	180	13541532	-	TVN0701	-	hypothetical protein
702	 44.65	+1	707052..708014	+	320	13541533	-	TVN0702	-	hypothetical protein
703	 37.29	-1	708255..708911	-	218	13541534	-	TVN0703	-	Serine/threonine protein phosphatase
704	 37.79	0	708898..709548	-	216	13541535	-	TVN0704	-	sugar fermentation stimulation protein A
705	 39.10	0	709660..710526	+	288	13541536	-	TVN0705	-	small-conductance mechanosensitive channel protein
706	 36.32	-1	710523..710924	-	133	13541537	-	TVN0706	-	thioesterase
707	 38.14	0	710951..711241	-	96	13541538	-	TVN0707	-	coiled-coil protein
708	 40.94	0	711315..712958	-	547	13541539	-	TVN0708	-	amino acid transporter
709	 34.27	-1	714418..714843	-	141	13541540	-	TVN0709	-	hypothetical protein
710	 45.22	+1	715045..719175	+	1376	13541541	-	TVN0710	-	hypothetical protein
711	 41.76	0	719265..720035	+	256	13541542	-	TVN0711	-	3-oxoacyl-[acyl-carrier-protein] reductase
712	 34.62	-1	720480..720869	+	129	13541543	-	TVN0712	-	hypothetical protein
713	 37.56	0	720929..721141	+	70	13541544	-	TVN0713	-	hypothetical protein
714	 43.10	0	721251..721670	+	139	13541545	-	TVN0714	-	hypothetical protein
715	 38.68	0	721703..722263	+	186	13541546	-	TVN0715	-	threonine efflux protein
716	 40.79	0	722669..723097	+	142	13541547	-	TVN0716	-	nucleotide-binding protein (UspA-related)
717	 40.63	0	723257..723982	-	241	13541548	-	TVN0717	-	ribose-5-phosphate isomerase A
718	 43.12	0	724374..725804	-	476	13541549	-	TVN0718	-	amino acid transporter
719	 42.60	0	726109..726669	-	186	13541550	-	TVN0719	-	hypothetical protein
720	 30.86	-2	727696..728988	-	430	13541551	-	TVN0720	-	methyltransferase
721	 36.87	-1	730400..731305	+	301	13541552	-	TVN0721	-	major facilitator superfamily permease
722	 41.93	0	732760..733434	-	224	13541553	-	TVN0722	-	restriction endonuclease
723	 30.80	-2	734352..734942	+	196	13541554	-	TVN0723	-	integrase/recombinase
724	 31.33	-2	737684..738181	-	165	13541555	-	TVN0724	-	hypothetical protein
725	 33.33	-2	739837..740145	-	102	13541556	-	TVN0725	-	Type II restriction enzyme, methylase subunit
726	 35.48	-1	740668..741039	+	123	13541557	-	TVN0726	-	integrase/recombinase
727	 43.46	0	741296..742213	+	305	13541558	-	TVN0727	-	esterase
728	 41.98	0	742429..743376	-	315	13541559	-	TVN0728	-	transcription regulator
729	 42.56	0	743399..744493	-	364	13541560	-	TVN0729	-	chorismate synthase
730	 41.40	0	744794..745363	-	189	13541561	-	TVN0730	-	phosphoglycerate mutase
731	 39.97	0	745716..747659	+	647	13541562	-	TVN0731	-	thioredoxin domain-containing protein
732	 43.57	0	747748..749124	+	458	13541563	-	TVN0732	-	cytochrome bd-type quinol oxidase, subunit 1
733	 40.99	0	749130..750122	+	330	13541564	-	TVN0733	-	hypothetical protein
734	 40.97	0	750626..751384	-	252	13541565	-	TVN0734	-	geranylgeranylglyceryl phosphate synthase-like protein
735	 38.52	0	751384..752193	-	269	13541566	-	TVN0735	-	(S)-2,3-di-O-geranylgeranylglyceryl phosphate synthase
736	 41.89	0	752240..753268	-	342	13541567	-	TVN0736	-	N(2),N(2)-dimethylguanosine tRNA methyltransferase
737	 40.11	0	753265..753810	-	181	13541568	-	TVN0737	-	putative NTPase
738	 41.32	0	753807..754169	-	120	13541569	-	TVN0738	-	hypothetical protein
739	 35.93	-1	754205..756862	-	885	13541570	-	TVN0739	-	DNA helicase II
740	 45.84	+1	757029..758219	+	396	13541571	-	TVN0740	-	metal-dependent carboxypeptidase
741	 41.13	0	758278..758931	-	217	13541572	-	TVN0741	-	hypothetical protein
742	 40.59	0	759000..759302	-	100	13541573	-	TVN0742	-	DNA-directed RNA polymerase subunit M
743	 40.99	0	759485..759889	+	134	13541574	-	TVN0743	-	CoA-binding protein
744	 38.71	0	760262..760633	-	123	13541575	-	TVN0744	-	succinate dehydrogenase, hydrophobic anchor subunit
745	 41.13	0	760633..761055	-	140	13541576	-	TVN0745	-	succinate dehydrogenase, subunit C
746	 43.29	0	761062..761784	-	240	13541577	sdhB	TVN0746	-	succinate dehydrogenase iron-sulfur subunit
747	 43.84	0	761794..763497	-	567	13541578	sdhA	TVN0747	-	succinate dehydrogenase flavoprotein subunit
748	 40.33	0	763616..764458	+	280	13541579	-	TVN0748	-	DMT family permease
40.87	MEAN

3.44	STD DEV
