IslandPathversion 1.0

IslandPath Analysis: Thermoplasma volcanium GSS1

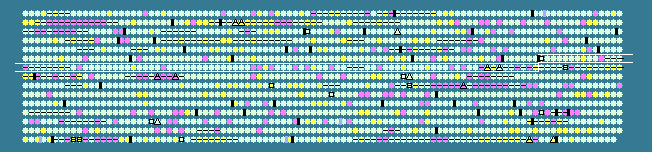

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
587	 40.58	0	575161..575781	+	206	13541418	-	TVN0587	-	transposase
588	 42.39	0	576190..577437	+	415	13541419	-	TVN0588	-	peptide chain release factor 1
589	 42.58	0	577443..578372	+	309	13541420	-	TVN0589	-	cysteine synthase
590	 37.75	0	578390..579613	+	407	13541421	hemA	TVN0590	-	glutamyl-tRNA reductase
591	 41.07	0	579516..580265	-	249	13541422	-	TVN0591	-	ICC-like phosphoesterase
592	 44.07	0	580405..581550	-	381	13541423	-	TVN0592	-	hypothetical protein
593	 39.53	0	581547..582449	-	300	13541424	-	TVN0593	-	Fe-S oxidoreductase
594	 44.72	+1	582526..583737	-	403	13541425	-	TVN0594	-	major facilitator superfamily permease
595	 44.33	+1	584082..585218	-	378	13541426	-	TVN0595	-	Fe-S oxidoreductase
596	 42.90	0	585220..586599	-	459	13541427	-	TVN0596	-	FAD/FMN-containing dehydrogenase
597	 36.65	-1	586833..590237	+	1134	13541428	-	TVN0597	-	hypothetical protein
598	 37.97	0	590215..590688	+	157	13541429	-	TVN0598	-	phosphatase
599	 40.11	0	590669..591982	-	437	13541430	-	TVN0599	-	DNA-binding protein
600	 39.12	0	591988..592764	-	258	13541431	-	TVN0600	-	undecaprenyl pyrophosphate synthase
601	 35.51	-1	592854..593312	-	152	13541432	-	TVN0601	-	hypothetical protein
602	 37.63	0	593418..593813	+	131	13541433	-	TVN0602	-	hypothetical protein
603	 37.91	0	593814..594797	+	327	13541434	-	TVN0603	-	transcription regulator (HTH)
604	 40.74	0	594890..595213	+	107	13541435	-	TVN0604	-	transcription regulator
605	 38.10	0	595236..596849	+	537	13541436	pheT	TVN0605	-	phenylalanyl-tRNA synthetase subunit beta
606	 38.43	0	596843..597352	-	169	13541437	-	TVN0606	-	acetyltransferase
607	 45.03	+1	597888..598631	+	247	13541438	-	TVN0607	-	flagellin
608	 38.49	0	598670..599134	+	154	13541439	-	TVN0608	-	flagellar protein C
609	 42.35	0	599131..599784	+	217	13541440	-	TVN0609	-	flagellar protein E
610	 33.82	-2	599774..600187	+	137	13541441	-	TVN0610	-	flagellar protein F
611	 42.79	0	600188..600631	+	147	13541442	-	TVN0611	-	flagellar protein G
612	 43.90	0	600636..601307	+	223	13541443	-	TVN0612	-	flagellar accessory protein FlaH
613	 42.04	0	601313..602920	+	535	13541444	-	TVN0613	-	ATPase
614	 39.66	0	602910..604568	+	552	13541445	-	TVN0614	-	flagellar assembly protein J
615	 38.85	0	605411..609019	+	1202	13541446	-	TVN0615	-	TPR repeat-containing protein
616	 41.62	0	609064..609642	+	192	13541447	-	TVN0616	-	Zn-dependent protease
617	 37.91	0	609673..610743	-	356	13541448	-	TVN0617	-	glycosyltransferase
618	 38.41	0	610740..611015	-	91	13541449	ef1B	TVN0618	-	elongation factor 1-beta
619	 45.83	+1	611012..611179	-	55	13541450	-	TVN0619	-	RNA-binding protein involved in translation
620	 41.96	0	611334..612677	+	447	13541451	-	TVN0620	-	phosphomannomutase
621	 39.33	0	612669..613268	-	199	13541452	-	TVN0621	-	phosphatidylglycerophosphate synthase
622	 38.53	0	613288..613749	-	153	13541453	-	TVN0622	-	nucleotide kinase (related to CMP and AMP kinase)
623	 40.81	0	613788..615125	-	445	13541454	-	TVN0623	-	purine-cytosine permease
624	 36.79	-1	615221..615712	+	163	13541455	-	TVN0624	-	transcription regulator
625	 43.20	0	615821..617128	+	435	13541456	-	TVN0625	-	phosphoribosylamine--glycine ligase
626	 42.59	0	617441..617710	+	89	13541457	-	TVN0626	-	hypothetical protein
627	 41.87	0	617864..618226	+	120	13541458	-	TVN0627	-	ArsR family transcriptional regulator
628	 40.13	0	618303..620303	+	666	13541459	-	TVN0628	-	hypothetical protein
629	 40.17	0	620800..621501	+	233	13541460	-	TVN0629	-	SAM-dependent methyltransfera
630	 43.20	0	621603..623447	+	614	13541461	-	TVN0630	-	Mg-chelatase, I and D subunits
631	 41.83	0	623523..624440	+	305	13541462	pyrB	TVN0631	-	aspartate carbamoyltransferase catalytic subunit
632	 38.34	0	624442..624900	+	152	13541463	-	TVN0632	-	aspartate carbamoyltransferase regulatory subunit
633	 37.63	0	625033..625731	-	232	13541464	hemD	TVN0633	-	uroporphyrinogen-III synthase
634	 38.81	0	625731..626624	-	297	13541465	hemC	TVN0634	-	porphobilinogen deaminase
635	 41.81	0	626624..627886	-	420	13541466	-	TVN0635	-	glutamate-1-semialdehyde aminotransferase
636	 41.14	0	628081..628554	+	157	13541467	dcd	TVN0636	-	deoxycytidine triphosphate deaminase
637	 40.76	0	628696..629193	+	165	13541468	-	TVN0637	-	Acyl-CoA hydrolase
638	 38.58	0	629529..630443	+	304	13541469	-	TVN0638	-	hypothetical protein
639	 35.74	-1	630455..632449	+	664	13541470	-	TVN0639	-	ATPase
640	 36.98	-1	632516..632707	-	63	13541471	-	TVN0640	-	hypothetical protein
641	 45.16	+1	632920..633900	+	326	13541472	-	TVN0641	-	HSP70 class molecular chaperone involved in cell morphogenesis
642	 33.33	-2	633909..634229	+	106	13541473	-	TVN0642	-	hypothetical protein
643	 37.93	0	634882..635229	+	115	13541474	-	TVN0643	-	hypothetical protein
644	 40.62	0	635240..636076	+	278	13541475	-	TVN0644	-	permease
645	 39.98	0	636160..641301	+	1713	13541476	-	TVN0645	-	helicase (Lhr-related)
646	 36.42	-1	641348..641800	+	150	13541477	-	TVN0646	-	nucleotide-binding protein (UspA-related)
647	 37.72	0	641871..642098	+	75	13541478	rps17E	TVN0647	-	30S ribosomal protein S17e
648	 34.09	-1	642101..642496	+	131	13541479	-	TVN0648	-	hypothetical protein
649	 45.07	+1	642581..643747	+	388	13541480	-	TVN0649	-	acetyl-CoA acetyltransferase
650	 42.66	0	643821..645074	+	417	13541481	-	TVN0650	-	glycine oxidase (deaminating)
651	 37.53	0	645211..645996	+	261	13541482	-	TVN0651	-	hypothetical protein
652	 37.37	-1	645988..646284	-	98	13541483	-	TVN0652	-	hypothetical protein
653	 43.48	0	646436..647983	+	515	13541484	-	TVN0653	-	NAD-dependent aldehyde dehydrogenase
654	 38.38	0	648029..649573	+	514	13541485	-	TVN0654	-	O-antigen and teichoic acid export protein
655	 39.55	0	649580..650206	-	208	13541486	-	TVN0655	-	translation initiation factor IF-2 subunit beta
656	 38.13	0	650357..650773	+	138	13541487	-	TVN0656	-	hypothetical protein
657	 37.41	-1	650770..651504	+	244	13541488	-	TVN0657	-	cell division GTPase
658	 41.20	0	651564..651995	-	143	13541489	-	TVN0658	-	transcription regulator
659	 39.68	0	652127..653071	+	314	13541490	-	TVN0659	-	asparagine synthetase A
660	 34.00	-2	653073..653675	-	200	13541491	-	TVN0660	-	DNA polymerase elongation subunit
661	 41.84	0	653656..655077	-	473	13541492	-	TVN0661	-	multidrug efflux permease
662	 38.77	0	655098..655520	-	140	13541493	-	TVN0662	-	CBS domain-containing protein
663	 43.24	0	656015..656650	+	211	13541494	-	TVN0663	-	proteasome protease subunit beta
664	 45.00	+1	656692..658611	+	639	13541495	-	TVN0664	-	metal-dependent RNase
665	 40.51	0	658721..660406	+	561	13541496	-	TVN0665	-	hypothetical protein
666	 42.26	0	660430..661101	-	223	13541497	-	TVN0666	-	putative translaldolase
667	 41.32	0	661085..662035	-	316	13541498	-	TVN0667	-	transketolase
668	 44.65	+1	662032..662853	-	273	13541499	-	TVN0668	-	transketolase
669	 39.56	0	663048..663914	-	288	13541500	-	TVN0669	-	dihydrodipicolinate synthase
670	 43.22	0	664080..665333	-	417	13541501	-	TVN0670	-	Acyl-CoA dehydrogenase
671	 39.05	0	665344..666900	-	518	13541502	-	TVN0671	-	Acyl-CoA synthetase (AMP-forming)
672	 36.41	-1	667678..668251	-	191	13541503	-	TVN0672	-	hypothetical protein
673	 40.92	0	668267..668635	-	122	13541504	-	TVN0673	-	hypothetical protein
674	 36.49	-1	669823..671343	+	506	13541505	-	TVN0674	-	MutS-like ATPase involved in mismatch repair
675	 37.72	0	671340..672842	+	500	13541506	-	TVN0675	-	MutS-like ATPase involved in mismatch repair
676	 41.04	0	673748..674383	+	211	13541507	-	TVN0676	-	formylmethanofuran dehydrogenase subunit E
677	 34.93	-1	674771..675523	+	250	13541508	-	TVN0677	-	permease
678	 49.35	+2	676728..678044	+	438	13541509	-	TVN0678	-	integrase/recombinase
679	 48.05	+2	678392..678982	-	196	13541510	-	TVN0679	-	hypothetical protein
680	 44.31	0	680695..680940	+	81	13541511	-	TVN0680	-	integrase/recombinase
681	 42.03	0	681337..684360	+	1007	13541512	-	TVN0681	-	Type II restriction enzyme, methylase subunit
682	 43.45	0	684344..687475	+	1043	13541513	-	TVN0682	-	helicase
683	 35.50	-1	687568..688074	-	168	13541514	-	TVN0683	-	hypothetical protein
684	 42.18	0	689289..689729	+	146	13541515	-	TVN0684	-	hypothetical protein
685	 34.51	-1	689781..691226	+	481	13541516	-	TVN0685	-	Beta-galactosidase
686	 47.58	+1	691296..691625	+	109	13541517	-	TVN0686	-	hypothetical protein
40.87	MEAN

3.44	STD DEV
