IslandPath Analysis: Thermoplasma volcanium GSS1

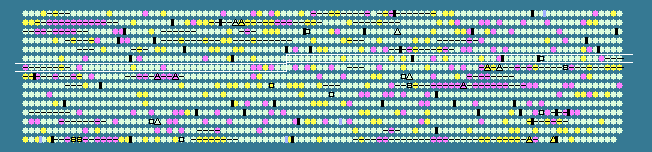

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
545	 41.51	0	535417..536211	+	264	13541376	-	TVN0545	-	ABC-type molybdate transport system, permease component
546	 40.53	0	536198..537100	+	300	13541377	-	TVN0546	-	ABC-type molybdate transporter, ATPase component
547	 39.97	0	537452..538204	-	250	13541378	-	TVN0547	-	cell wall biosynthesis glycosyltransferase
548	 39.15	0	538221..538409	-	62	13541379	-	TVN0548	-	hypothetical protein
549	 40.50	0	538469..539431	-	320	13541380	-	TVN0549	-	hypothetical protein
550	 40.18	0	539478..539813	-	111	13541381	-	TVN0550	-	nucleic acid binding protein
551	 37.78	0	539914..540138	+	74	13541382	-	TVN0551	-	phosphoribosylformylglycinamidine synthase
552	 38.25	0	540271..541998	+	575	13541383	-	TVN0552	-	hypothetical protein
553	 38.26	0	542231..542920	+	229	13541384	-	TVN0553	-	hypothetical protein
554	 45.28	+1	542914..543273	-	119	13541385	-	TVN0554	-	hypothetical protein
555	 40.36	0	543386..543769	+	127	13541386	-	TVN0555	-	30S ribosomal protein S8e
556	 41.57	0	543776..544030	+	84	13541387	-	TVN0556	-	Signal recognition particle 19 kDa protein
557	 39.63	0	544022..545005	-	327	13541388	-	TVN0557	-	DNA primase large subunit
558	 41.64	0	545002..546084	-	360	13541389	-	TVN0558	-	putative proline dipeptidase
559	 40.60	0	546468..547169	+	233	13541390	radB	TVN0559	-	DNA repair and recombination protein RadB
560	 40.87	0	547159..548166	+	335	13541391	-	TVN0560	-	flap endonuclease-1
561	 40.46	0	548252..549499	+	415	13541392	-	TVN0561	-	major facilitator superfamily permease
562	 45.74	+1	549581..550096	+	171	13541393	rps13p	TVN0562	-	30S ribosomal protein S13P
563	 44.28	0	550107..550709	+	200	13541394	rps4p	TVN0563	-	30S ribosomal protein S4
564	 45.36	+1	550687..551085	+	132	13541395	rps11p	TVN0564	-	30S ribosomal protein S11P
565	 43.26	0	551086..551901	+	271	13541396	-	TVN0565	-	DNA-directed RNA polymerase subunit D
566	 41.31	0	552135..553325	+	396	13541397	-	TVN0566	-	molybdopterin biosynthesis protein
567	 40.88	0	553331..555211	+	626	13541398	-	TVN0567	-	molybdopterin biosynthesis protein
568	 41.16	0	555376..556167	-	263	13541399	-	TVN0568	-	hypothetical protein
569	 37.36	-1	556254..556526	+	90	13541400	-	TVN0569	-	molybdopterin converting factor, small subunit
570	 41.48	0	556601..557275	+	224	13541401	-	TVN0570	-	transcription initiation factor IIB
571	 44.62	+1	557379..558521	-	380	13541402	-	TVN0571	-	aminotransferase
572	 42.98	0	558589..559821	-	410	13541403	-	TVN0572	-	hypothetical protein
573	 42.11	0	559784..561151	-	455	13541404	-	TVN0573	-	DNA helicase
574	 40.58	0	561228..562373	+	381	13541405	-	TVN0574	-	SAM-dependent methyltransferase
575	 40.65	0	562457..563044	+	195	13541406	ribA	TVN0575	-	GTP cyclohydrolase II
576	 42.74	0	563052..563636	-	194	13541407	-	TVN0576	-	indolepyruvate oxidoreductase subunit B
577	 44.79	+1	563624..565438	-	604	13541408	-	TVN0577	-	indolepyruvate:ferredoxin oxidoreductase, alpha and beta subunits
578	 40.77	0	565645..566451	+	268	13541409	-	TVN0578	-	FKBP-type peptidyl-prolyl cis-trans isomerase
579	 42.50	0	566438..567190	+	250	13541410	-	TVN0579	-	rRNA methylase
580	 36.42	-1	567165..567488	+	107	13541411	-	TVN0580	-	hypothetical protein
581	 41.07	0	568043..569632	+	529	13541412	-	TVN0581	-	Fe-S oxidoreductase
582	 43.29	0	569675..570508	+	277	13541413	-	TVN0582	-	hypothetical protein
583	 39.91	0	570518..571216	+	232	13541414	-	TVN0583	-	hypothetical protein
584	 38.39	0	571194..572399	-	401	13541415	-	TVN0584	-	Serine/threonine protein kinase
585	 43.93	0	572464..573237	-	257	13541416	-	TVN0585	-	competence damage-inducible protein A
586	 41.37	0	573246..573929	-	227	13541417	pyrH	TVN0586	-	uridylate kinase
587	 40.58	0	575161..575781	+	206	13541418	-	TVN0587	-	transposase
588	 42.39	0	576190..577437	+	415	13541419	-	TVN0588	-	peptide chain release factor 1
589	 42.58	0	577443..578372	+	309	13541420	-	TVN0589	-	cysteine synthase
590	 37.75	0	578390..579613	+	407	13541421	hemA	TVN0590	-	glutamyl-tRNA reductase
591	 41.07	0	579516..580265	-	249	13541422	-	TVN0591	-	ICC-like phosphoesterase
592	 44.07	0	580405..581550	-	381	13541423	-	TVN0592	-	hypothetical protein
593	 39.53	0	581547..582449	-	300	13541424	-	TVN0593	-	Fe-S oxidoreductase
594	 44.72	+1	582526..583737	-	403	13541425	-	TVN0594	-	major facilitator superfamily permease
595	 44.33	+1	584082..585218	-	378	13541426	-	TVN0595	-	Fe-S oxidoreductase
596	 42.90	0	585220..586599	-	459	13541427	-	TVN0596	-	FAD/FMN-containing dehydrogenase
597	 36.65	-1	586833..590237	+	1134	13541428	-	TVN0597	-	hypothetical protein
598	 37.97	0	590215..590688	+	157	13541429	-	TVN0598	-	phosphatase
599	 40.11	0	590669..591982	-	437	13541430	-	TVN0599	-	DNA-binding protein
600	 39.12	0	591988..592764	-	258	13541431	-	TVN0600	-	undecaprenyl pyrophosphate synthase
601	 35.51	-1	592854..593312	-	152	13541432	-	TVN0601	-	hypothetical protein
602	 37.63	0	593418..593813	+	131	13541433	-	TVN0602	-	hypothetical protein
603	 37.91	0	593814..594797	+	327	13541434	-	TVN0603	-	transcription regulator (HTH)
604	 40.74	0	594890..595213	+	107	13541435	-	TVN0604	-	transcription regulator
605	 38.10	0	595236..596849	+	537	13541436	pheT	TVN0605	-	phenylalanyl-tRNA synthetase subunit beta
606	 38.43	0	596843..597352	-	169	13541437	-	TVN0606	-	acetyltransferase
607	 45.03	+1	597888..598631	+	247	13541438	-	TVN0607	-	flagellin
608	 38.49	0	598670..599134	+	154	13541439	-	TVN0608	-	flagellar protein C
609	 42.35	0	599131..599784	+	217	13541440	-	TVN0609	-	flagellar protein E
610	 33.82	-2	599774..600187	+	137	13541441	-	TVN0610	-	flagellar protein F
611	 42.79	0	600188..600631	+	147	13541442	-	TVN0611	-	flagellar protein G
612	 43.90	0	600636..601307	+	223	13541443	-	TVN0612	-	flagellar accessory protein FlaH
613	 42.04	0	601313..602920	+	535	13541444	-	TVN0613	-	ATPase
614	 39.66	0	602910..604568	+	552	13541445	-	TVN0614	-	flagellar assembly protein J
615	 38.85	0	605411..609019	+	1202	13541446	-	TVN0615	-	TPR repeat-containing protein
616	 41.62	0	609064..609642	+	192	13541447	-	TVN0616	-	Zn-dependent protease
617	 37.91	0	609673..610743	-	356	13541448	-	TVN0617	-	glycosyltransferase
618	 38.41	0	610740..611015	-	91	13541449	ef1B	TVN0618	-	elongation factor 1-beta
619	 45.83	+1	611012..611179	-	55	13541450	-	TVN0619	-	RNA-binding protein involved in translation
620	 41.96	0	611334..612677	+	447	13541451	-	TVN0620	-	phosphomannomutase
621	 39.33	0	612669..613268	-	199	13541452	-	TVN0621	-	phosphatidylglycerophosphate synthase
622	 38.53	0	613288..613749	-	153	13541453	-	TVN0622	-	nucleotide kinase (related to CMP and AMP kinase)
623	 40.81	0	613788..615125	-	445	13541454	-	TVN0623	-	purine-cytosine permease
624	 36.79	-1	615221..615712	+	163	13541455	-	TVN0624	-	transcription regulator
625	 43.20	0	615821..617128	+	435	13541456	-	TVN0625	-	phosphoribosylamine--glycine ligase
626	 42.59	0	617441..617710	+	89	13541457	-	TVN0626	-	hypothetical protein
627	 41.87	0	617864..618226	+	120	13541458	-	TVN0627	-	ArsR family transcriptional regulator
628	 40.13	0	618303..620303	+	666	13541459	-	TVN0628	-	hypothetical protein
629	 40.17	0	620800..621501	+	233	13541460	-	TVN0629	-	SAM-dependent methyltransfera
630	 43.20	0	621603..623447	+	614	13541461	-	TVN0630	-	Mg-chelatase, I and D subunits
631	 41.83	0	623523..624440	+	305	13541462	pyrB	TVN0631	-	aspartate carbamoyltransferase catalytic subunit
632	 38.34	0	624442..624900	+	152	13541463	-	TVN0632	-	aspartate carbamoyltransferase regulatory subunit
633	 37.63	0	625033..625731	-	232	13541464	hemD	TVN0633	-	uroporphyrinogen-III synthase
634	 38.81	0	625731..626624	-	297	13541465	hemC	TVN0634	-	porphobilinogen deaminase
635	 41.81	0	626624..627886	-	420	13541466	-	TVN0635	-	glutamate-1-semialdehyde aminotransferase
636	 41.14	0	628081..628554	+	157	13541467	dcd	TVN0636	-	deoxycytidine triphosphate deaminase
637	 40.76	0	628696..629193	+	165	13541468	-	TVN0637	-	Acyl-CoA hydrolase
638	 38.58	0	629529..630443	+	304	13541469	-	TVN0638	-	hypothetical protein
639	 35.74	-1	630455..632449	+	664	13541470	-	TVN0639	-	ATPase
640	 36.98	-1	632516..632707	-	63	13541471	-	TVN0640	-	hypothetical protein
641	 45.16	+1	632920..633900	+	326	13541472	-	TVN0641	-	HSP70 class molecular chaperone involved in cell morphogenesis
642	 33.33	-2	633909..634229	+	106	13541473	-	TVN0642	-	hypothetical protein
643	 37.93	0	634882..635229	+	115	13541474	-	TVN0643	-	hypothetical protein
644	 40.62	0	635240..636076	+	278	13541475	-	TVN0644	-	permease
40.87	MEAN

3.44	STD DEV
