IslandPath Analysis: Thermoplasma volcanium GSS1

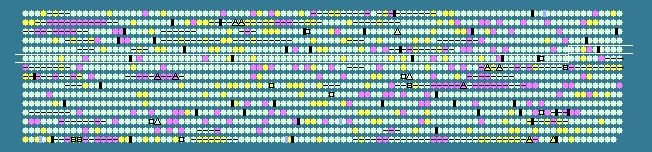

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
492	 41.74	0	475673..476992	+	439	13541323	-	TVN0492	-	membrane-bound serine protease
493	 37.72	0	477074..477415	+	113	13541324	-	TVN0493	-	hypothetical protein
494	 44.51	+1	477602..479569	+	655	13541325	-	TVN0494	-	ATP-dependent protease Lon
495	 37.32	-1	479924..480700	-	258	13541326	cobS	TVN0495	-	cobalamin synthase
496	 42.10	0	480705..481742	-	345	13541327	-	TVN0496	-	aspartate aminotransferase
497	 41.20	0	483190..483672	-	160	13541328	-	TVN0497	-	hypothetical protein
498	 43.60	0	483803..485350	+	515	13541329	-	TVN0498	-	RNA polymerase II complex ELP3 subunit
499	 40.50	0	485525..487282	+	585	13541330	-	TVN0499	-	potassium-transporting ATPase subunit A
500	 39.96	0	487279..489285	+	668	13541331	-	TVN0500	-	potassium-transporting ATPase subunit B
501	 40.63	0	489279..489908	+	209	13541332	-	TVN0501	-	potassium-transporting ATPase subunit C
502	 40.17	0	489921..490739	-	272	13541333	-	TVN0502	-	nucleotide-binding protein (UspA-related)
503	 41.41	0	491021..491515	+	164	13541334	-	TVN0503	-	hypothetical protein
504	 44.14	0	491501..492490	-	329	13541335	-	TVN0504	-	kinase related to galactokinase and mevalonate kinase
505	 42.81	0	492576..493451	+	291	13541336	-	TVN0505	-	nucleoside-diphosphate sugar epimerase
506	 42.07	0	493454..494392	-	312	13541337	-	TVN0506	-	tRNA-modifying enzyme
507	 45.75	+1	494466..496100	-	544	13541338	-	TVN0507	-	chaperonin GroEL
508	 40.72	0	496174..496809	-	211	13541339	thiE	TVN0508	-	thiamine-phosphate pyrophosphorylase
509	 41.67	0	496806..497861	-	351	13541340	-	TVN0509	-	hydrogenase maturation factor
510	 42.86	0	497989..499542	+	517	13541341	-	TVN0510	-	amino acid transporter
511	 36.92	-1	499547..500467	+	306	13541342	-	TVN0511	-	ABC-type peptide transport system, ATPase component
512	 41.09	0	500469..501242	+	257	13541343	-	TVN0512	-	ABC-type peptide transporter, ATPase component
513	 41.20	0	501372..502172	-	266	13541344	-	TVN0513	-	phosphomethylpyrimidine kinase
514	 41.12	0	502242..502922	-	226	13541345	-	TVN0514	-	transcription regulator
515	 40.49	0	503027..504283	-	418	13541346	-	TVN0515	-	metal-dependent hydrolase
516	 40.81	0	504400..504867	+	155	13541347	-	TVN0516	-	transcription regulator
517	 43.36	0	504854..506299	+	481	13541348	-	TVN0517	-	multidrug efflux permease
518	 41.97	0	506316..507890	+	524	13541349	-	TVN0518	-	hypothetical protein
519	 40.12	0	509497..510159	+	220	13541350	-	TVN0519	-	transcription regulator of a riboflavin/FAD biosynthetic operon
520	 34.98	-1	510164..510406	-	80	13541351	-	TVN0520	-	hypothetical protein
521	 43.46	0	510425..512704	-	759	13541352	-	TVN0521	-	phosphoribosylformylglycinamidine synthase II
522	 40.59	0	512809..513897	-	362	13541353	-	TVN0522	-	glycosyltransferase
523	 42.22	0	513972..515018	-	348	13541354	-	TVN0523	-	hypothetical protein
524	 43.75	0	515205..516404	+	399	13541355	-	TVN0524	-	multidrug efflux permease
525	 41.34	0	516499..517110	-	203	13541356	-	TVN0525	-	MarC family integral membrane protein
526	 41.87	0	517148..517873	-	241	13541357	-	TVN0526	-	ABC-type multidrug transport system, permease component
527	 43.21	0	517863..518702	-	279	13541358	-	TVN0527	-	ABC-type daunorubicin transport system, ATPase component
528	 41.69	0	518780..519952	+	390	13541359	-	TVN0528	-	nucleoside-diphosphate-sugar epimerase
529	 42.65	0	519949..520689	-	246	13541360	-	TVN0529	-	dTDP-glucose pyrophosphorylase
530	 43.19	0	520765..521991	+	408	13541361	pgk	TVN0530	-	phosphoglycerate kinase
531	 36.64	-1	521996..522388	+	130	13541362	-	TVN0531	-	prefoldin subunit alpha
532	 39.47	0	522395..523258	+	287	13541363	-	TVN0532	-	Signal recognition particle GTPase
533	 38.58	0	523302..523625	+	107	13541364	-	TVN0533	-	nucleic acid binding protein
534	 40.46	0	523625..524887	+	420	13541365	-	TVN0534	-	replication factor C large subunit
535	 45.29	+1	524958..525551	+	197	13541366	-	TVN0535	-	50S ribosomal protein L15e
536	 42.44	0	525832..526731	+	299	13541367	-	TVN0536	-	polysaccharide deacetylase
537	 42.05	0	526852..527241	+	129	13541368	-	TVN0537	-	translation initiation factor IF-5A
538	 40.68	0	527199..528110	+	303	13541369	-	TVN0538	-	agmatinase
539	 44.63	+1	528148..528678	-	176	13541370	rpl10e	TVN0539	-	50S ribosomal protein L10e
540	 39.51	0	528853..529095	-	80	13541371	-	TVN0540	-	hypothetical protein
541	 41.43	0	529230..531155	+	641	13541372	gyrB	TVN0541	-	DNA gyrase subunit B
542	 42.71	0	531167..533545	+	792	13541373	-	TVN0542	-	DNA gyrase subunit A
543	 40.03	0	533595..534221	+	208	13541374	-	TVN0543	-	nicotinamidase-like amidase
544	 43.08	0	534246..535415	+	389	13541375	-	TVN0544	-	ABC-type molybdate transport system, solute-binding component
545	 41.51	0	535417..536211	+	264	13541376	-	TVN0545	-	ABC-type molybdate transport system, permease component
546	 40.53	0	536198..537100	+	300	13541377	-	TVN0546	-	ABC-type molybdate transporter, ATPase component
547	 39.97	0	537452..538204	-	250	13541378	-	TVN0547	-	cell wall biosynthesis glycosyltransferase
548	 39.15	0	538221..538409	-	62	13541379	-	TVN0548	-	hypothetical protein
549	 40.50	0	538469..539431	-	320	13541380	-	TVN0549	-	hypothetical protein
550	 40.18	0	539478..539813	-	111	13541381	-	TVN0550	-	nucleic acid binding protein
551	 37.78	0	539914..540138	+	74	13541382	-	TVN0551	-	phosphoribosylformylglycinamidine synthase
552	 38.25	0	540271..541998	+	575	13541383	-	TVN0552	-	hypothetical protein
553	 38.26	0	542231..542920	+	229	13541384	-	TVN0553	-	hypothetical protein
554	 45.28	+1	542914..543273	-	119	13541385	-	TVN0554	-	hypothetical protein
555	 40.36	0	543386..543769	+	127	13541386	-	TVN0555	-	30S ribosomal protein S8e
556	 41.57	0	543776..544030	+	84	13541387	-	TVN0556	-	Signal recognition particle 19 kDa protein
557	 39.63	0	544022..545005	-	327	13541388	-	TVN0557	-	DNA primase large subunit
558	 41.64	0	545002..546084	-	360	13541389	-	TVN0558	-	putative proline dipeptidase
559	 40.60	0	546468..547169	+	233	13541390	radB	TVN0559	-	DNA repair and recombination protein RadB
560	 40.87	0	547159..548166	+	335	13541391	-	TVN0560	-	flap endonuclease-1
561	 40.46	0	548252..549499	+	415	13541392	-	TVN0561	-	major facilitator superfamily permease
562	 45.74	+1	549581..550096	+	171	13541393	rps13p	TVN0562	-	30S ribosomal protein S13P
563	 44.28	0	550107..550709	+	200	13541394	rps4p	TVN0563	-	30S ribosomal protein S4
564	 45.36	+1	550687..551085	+	132	13541395	rps11p	TVN0564	-	30S ribosomal protein S11P
565	 43.26	0	551086..551901	+	271	13541396	-	TVN0565	-	DNA-directed RNA polymerase subunit D
566	 41.31	0	552135..553325	+	396	13541397	-	TVN0566	-	molybdopterin biosynthesis protein
567	 40.88	0	553331..555211	+	626	13541398	-	TVN0567	-	molybdopterin biosynthesis protein
568	 41.16	0	555376..556167	-	263	13541399	-	TVN0568	-	hypothetical protein
569	 37.36	-1	556254..556526	+	90	13541400	-	TVN0569	-	molybdopterin converting factor, small subunit
570	 41.48	0	556601..557275	+	224	13541401	-	TVN0570	-	transcription initiation factor IIB
571	 44.62	+1	557379..558521	-	380	13541402	-	TVN0571	-	aminotransferase
572	 42.98	0	558589..559821	-	410	13541403	-	TVN0572	-	hypothetical protein
573	 42.11	0	559784..561151	-	455	13541404	-	TVN0573	-	DNA helicase
574	 40.58	0	561228..562373	+	381	13541405	-	TVN0574	-	SAM-dependent methyltransferase
575	 40.65	0	562457..563044	+	195	13541406	ribA	TVN0575	-	GTP cyclohydrolase II
576	 42.74	0	563052..563636	-	194	13541407	-	TVN0576	-	indolepyruvate oxidoreductase subunit B
577	 44.79	+1	563624..565438	-	604	13541408	-	TVN0577	-	indolepyruvate:ferredoxin oxidoreductase, alpha and beta subunits
578	 40.77	0	565645..566451	+	268	13541409	-	TVN0578	-	FKBP-type peptidyl-prolyl cis-trans isomerase
579	 42.50	0	566438..567190	+	250	13541410	-	TVN0579	-	rRNA methylase
580	 36.42	-1	567165..567488	+	107	13541411	-	TVN0580	-	hypothetical protein
581	 41.07	0	568043..569632	+	529	13541412	-	TVN0581	-	Fe-S oxidoreductase
582	 43.29	0	569675..570508	+	277	13541413	-	TVN0582	-	hypothetical protein
583	 39.91	0	570518..571216	+	232	13541414	-	TVN0583	-	hypothetical protein
584	 38.39	0	571194..572399	-	401	13541415	-	TVN0584	-	Serine/threonine protein kinase
585	 43.93	0	572464..573237	-	257	13541416	-	TVN0585	-	competence damage-inducible protein A
586	 41.37	0	573246..573929	-	227	13541417	pyrH	TVN0586	-	uridylate kinase
587	 40.58	0	575161..575781	+	206	13541418	-	TVN0587	-	transposase
588	 42.39	0	576190..577437	+	415	13541419	-	TVN0588	-	peptide chain release factor 1
589	 42.58	0	577443..578372	+	309	13541420	-	TVN0589	-	cysteine synthase
590	 37.75	0	578390..579613	+	407	13541421	hemA	TVN0590	-	glutamyl-tRNA reductase
591	 41.07	0	579516..580265	-	249	13541422	-	TVN0591	-	ICC-like phosphoesterase
40.87	MEAN

3.44	STD DEV
