IslandPath Analysis: Thermoplasma volcanium GSS1

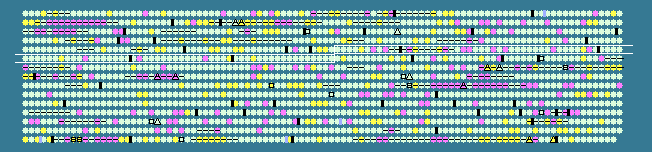

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
453	 44.24	0	438400..440169	+	589	13541284	-	TVN0453	-	translation initiation factor IF-2
454	 41.93	0	440460..441413	-	317	13541285	-	TVN0454	-	UDP-glucose 4-epimerase
455	 41.50	0	441622..442698	+	358	13541286	-	TVN0455	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
456	 40.70	0	442721..443236	-	171	13541287	-	TVN0456	-	regulator of amino acid metabolism
457	 45.99	+1	443339..444310	-	323	13541288	radA	TVN0457	-	DNA repair and recombination protein RadA
458	 42.18	0	444310..445326	-	338	13541289	-	TVN0458	-	glyceraldehyde-3-phosphate dehydrogenase
459	 34.80	-1	445619..449104	+	1161	13541290	-	TVN0459	-	hypothetical protein
460	 41.58	0	449193..449738	+	181	13541291	-	TVN0460	-	hypothetical protein
461	 36.43	-1	449750..450298	+	182	13541292	-	TVN0461	-	aromatic acid decarboxylase
462	 38.61	0	450261..450734	+	157	13541293	-	TVN0462	-	hypothetical protein
463	 39.49	0	450731..451753	+	340	13541294	-	TVN0463	-	RNA-binding protein (pelota-related)
464	 37.47	0	452430..452888	-	152	13541295	-	TVN0464	-	restriction endonuclease S subunit fragment
465	 36.95	-1	452892..453140	-	82	13541296	-	TVN0465	-	restriction endonuclease S subunit fragment
466	 47.46	+1	453177..453806	+	209	13541297	-	TVN0466	-	hypothetical protein
467	 38.65	0	454214..454984	-	256	13541298	-	TVN0467	-	hypothetical protein
468	 42.23	0	455305..456192	-	295	13541299	-	TVN0468	-	hypothetical protein
469	 41.26	0	456214..456579	-	121	13541300	-	TVN0469	-	hypothetical protein
470	 45.87	+1	456921..457223	+	100	13541301	-	TVN0470	-	thioredoxin reductase
471	 28.55	-2	457516..458142	-	208	13541302	-	TVN0471	-	transcription regulator (HTH)
472	 40.99	0	458260..459657	+	465	13541303	-	TVN0472	-	transporter component
473	 38.13	0	459941..461107	+	388	13541304	-	TVN0473	-	NAD(FAD)-dependent dehydrogenase
474	 32.62	-2	461113..461535	+	140	13541305	-	TVN0474	-	hypothetical protein
475	 34.99	-1	461540..462262	-	240	13541306	-	TVN0475	-	hypothetical protein
476	 43.84	0	462512..463720	+	402	13541307	-	TVN0476	-	transporter component
477	 39.06	0	464026..465282	-	418	13541308	-	TVN0477	-	arginine deiminase
478	 38.69	0	465345..466352	-	335	13541309	-	TVN0478	-	NMD protein (ribosome stability and mRNA decay protein)
479	 37.24	-1	466379..466993	-	204	13541310	-	TVN0479	-	hypothetical protein
480	 43.49	0	467069..468151	+	360	13541311	-	TVN0480	-	hypothetical protein
481	 36.96	-1	468197..468499	+	100	13541312	-	TVN0481	-	hypothetical protein
482	 43.45	0	468494..468661	-	55	13541313	-	TVN0482	-	30S ribosomal protein S27ae
483	 40.33	0	468673..468972	-	99	13541314	rps24e	TVN0483	-	30S ribosomal protein S24e
484	 39.72	0	468984..469484	-	166	13541315	-	TVN0484	-	hypothetical protein
485	 40.51	0	469462..469656	-	64	13541316	rpoE	TVN0485	-	DNA-directed RNA polymerase subunit E''
486	 43.18	0	469653..470231	-	192	13541317	-	TVN0486	-	DNA-directed RNA polymerase subunit E'
487	 42.90	0	470348..471445	-	365	13541318	-	TVN0487	-	molecular chaperone (DnaJ-related)
488	 43.51	0	471466..473313	-	615	13541319	dnaK	TVN0488	-	molecular chaperone DnaK
489	 37.10	-1	473313..473843	-	176	13541320	-	TVN0489	-	molecular chaperone GrpE (heat shock protein)
490	 39.25	0	473958..475190	+	410	13541321	-	TVN0490	-	multidrug efflux permease
491	 38.48	0	475215..475661	+	148	13541322	-	TVN0491	-	phospholipid-binding protein
492	 41.74	0	475673..476992	+	439	13541323	-	TVN0492	-	membrane-bound serine protease
493	 37.72	0	477074..477415	+	113	13541324	-	TVN0493	-	hypothetical protein
494	 44.51	+1	477602..479569	+	655	13541325	-	TVN0494	-	ATP-dependent protease Lon
495	 37.32	-1	479924..480700	-	258	13541326	cobS	TVN0495	-	cobalamin synthase
496	 42.10	0	480705..481742	-	345	13541327	-	TVN0496	-	aspartate aminotransferase
497	 41.20	0	483190..483672	-	160	13541328	-	TVN0497	-	hypothetical protein
498	 43.60	0	483803..485350	+	515	13541329	-	TVN0498	-	RNA polymerase II complex ELP3 subunit
499	 40.50	0	485525..487282	+	585	13541330	-	TVN0499	-	potassium-transporting ATPase subunit A
500	 39.96	0	487279..489285	+	668	13541331	-	TVN0500	-	potassium-transporting ATPase subunit B
501	 40.63	0	489279..489908	+	209	13541332	-	TVN0501	-	potassium-transporting ATPase subunit C
502	 40.17	0	489921..490739	-	272	13541333	-	TVN0502	-	nucleotide-binding protein (UspA-related)
503	 41.41	0	491021..491515	+	164	13541334	-	TVN0503	-	hypothetical protein
504	 44.14	0	491501..492490	-	329	13541335	-	TVN0504	-	kinase related to galactokinase and mevalonate kinase
505	 42.81	0	492576..493451	+	291	13541336	-	TVN0505	-	nucleoside-diphosphate sugar epimerase
506	 42.07	0	493454..494392	-	312	13541337	-	TVN0506	-	tRNA-modifying enzyme
507	 45.75	+1	494466..496100	-	544	13541338	-	TVN0507	-	chaperonin GroEL
508	 40.72	0	496174..496809	-	211	13541339	thiE	TVN0508	-	thiamine-phosphate pyrophosphorylase
509	 41.67	0	496806..497861	-	351	13541340	-	TVN0509	-	hydrogenase maturation factor
510	 42.86	0	497989..499542	+	517	13541341	-	TVN0510	-	amino acid transporter
511	 36.92	-1	499547..500467	+	306	13541342	-	TVN0511	-	ABC-type peptide transport system, ATPase component
512	 41.09	0	500469..501242	+	257	13541343	-	TVN0512	-	ABC-type peptide transporter, ATPase component
513	 41.20	0	501372..502172	-	266	13541344	-	TVN0513	-	phosphomethylpyrimidine kinase
514	 41.12	0	502242..502922	-	226	13541345	-	TVN0514	-	transcription regulator
515	 40.49	0	503027..504283	-	418	13541346	-	TVN0515	-	metal-dependent hydrolase
516	 40.81	0	504400..504867	+	155	13541347	-	TVN0516	-	transcription regulator
517	 43.36	0	504854..506299	+	481	13541348	-	TVN0517	-	multidrug efflux permease
518	 41.97	0	506316..507890	+	524	13541349	-	TVN0518	-	hypothetical protein
519	 40.12	0	509497..510159	+	220	13541350	-	TVN0519	-	transcription regulator of a riboflavin/FAD biosynthetic operon
520	 34.98	-1	510164..510406	-	80	13541351	-	TVN0520	-	hypothetical protein
521	 43.46	0	510425..512704	-	759	13541352	-	TVN0521	-	phosphoribosylformylglycinamidine synthase II
522	 40.59	0	512809..513897	-	362	13541353	-	TVN0522	-	glycosyltransferase
523	 42.22	0	513972..515018	-	348	13541354	-	TVN0523	-	hypothetical protein
524	 43.75	0	515205..516404	+	399	13541355	-	TVN0524	-	multidrug efflux permease
525	 41.34	0	516499..517110	-	203	13541356	-	TVN0525	-	MarC family integral membrane protein
526	 41.87	0	517148..517873	-	241	13541357	-	TVN0526	-	ABC-type multidrug transport system, permease component
527	 43.21	0	517863..518702	-	279	13541358	-	TVN0527	-	ABC-type daunorubicin transport system, ATPase component
528	 41.69	0	518780..519952	+	390	13541359	-	TVN0528	-	nucleoside-diphosphate-sugar epimerase
529	 42.65	0	519949..520689	-	246	13541360	-	TVN0529	-	dTDP-glucose pyrophosphorylase
530	 43.19	0	520765..521991	+	408	13541361	pgk	TVN0530	-	phosphoglycerate kinase
531	 36.64	-1	521996..522388	+	130	13541362	-	TVN0531	-	prefoldin subunit alpha
532	 39.47	0	522395..523258	+	287	13541363	-	TVN0532	-	Signal recognition particle GTPase
533	 38.58	0	523302..523625	+	107	13541364	-	TVN0533	-	nucleic acid binding protein
534	 40.46	0	523625..524887	+	420	13541365	-	TVN0534	-	replication factor C large subunit
535	 45.29	+1	524958..525551	+	197	13541366	-	TVN0535	-	50S ribosomal protein L15e
536	 42.44	0	525832..526731	+	299	13541367	-	TVN0536	-	polysaccharide deacetylase
537	 42.05	0	526852..527241	+	129	13541368	-	TVN0537	-	translation initiation factor IF-5A
538	 40.68	0	527199..528110	+	303	13541369	-	TVN0538	-	agmatinase
539	 44.63	+1	528148..528678	-	176	13541370	rpl10e	TVN0539	-	50S ribosomal protein L10e
540	 39.51	0	528853..529095	-	80	13541371	-	TVN0540	-	hypothetical protein
541	 41.43	0	529230..531155	+	641	13541372	gyrB	TVN0541	-	DNA gyrase subunit B
542	 42.71	0	531167..533545	+	792	13541373	-	TVN0542	-	DNA gyrase subunit A
543	 40.03	0	533595..534221	+	208	13541374	-	TVN0543	-	nicotinamidase-like amidase
544	 43.08	0	534246..535415	+	389	13541375	-	TVN0544	-	ABC-type molybdate transport system, solute-binding component
545	 41.51	0	535417..536211	+	264	13541376	-	TVN0545	-	ABC-type molybdate transport system, permease component
546	 40.53	0	536198..537100	+	300	13541377	-	TVN0546	-	ABC-type molybdate transporter, ATPase component
547	 39.97	0	537452..538204	-	250	13541378	-	TVN0547	-	cell wall biosynthesis glycosyltransferase
548	 39.15	0	538221..538409	-	62	13541379	-	TVN0548	-	hypothetical protein
549	 40.50	0	538469..539431	-	320	13541380	-	TVN0549	-	hypothetical protein
550	 40.18	0	539478..539813	-	111	13541381	-	TVN0550	-	nucleic acid binding protein
551	 37.78	0	539914..540138	+	74	13541382	-	TVN0551	-	phosphoribosylformylglycinamidine synthase
552	 38.25	0	540271..541998	+	575	13541383	-	TVN0552	-	hypothetical protein
40.87	MEAN

3.44	STD DEV
