IslandPath Analysis: Thermoplasma volcanium GSS1

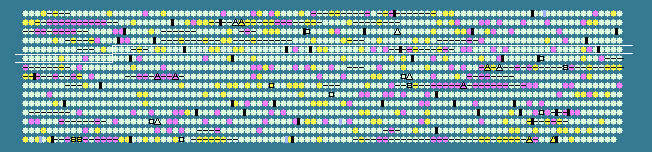

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
416	 38.52	0	404043..404408	+	121	13541247	-	TVN0416	-	hypothetical protein
417	 42.70	0	404401..405222	-	273	13541248	-	TVN0417	-	spermidine synthase
418	 42.66	0	405413..406345	+	310	13541249	-	TVN0418	-	putative deoxyhypusine synthase
419	 41.61	0	406476..406934	+	152	13541250	-	TVN0419	-	peroxiredoxin
420	 47.94	+2	407122..407436	-	104	13541251	rpl12p	TVN0420	-	50S ribosomal protein L12P
421	 42.86	0	407450..408394	-	314	13541252	rplP0	TVN0421	-	acidic ribosomal protein P0
422	 43.73	0	408391..409044	-	217	13541253	rpl1P	TVN0422	-	50S ribosomal protein L1P
423	 45.70	+1	409059..409535	-	158	13541254	rpl11p	TVN0423	-	50S ribosomal protein L11P
424	 44.74	+1	409698..410258	+	186	13541255	-	TVN0424	-	intracellular protease
425	 39.08	0	410584..411609	+	341	13541256	-	TVN0425	-	hypothetical protein
426	 39.19	0	411662..412771	-	369	13541257	-	TVN0426	-	mevalonate pyrophosphate decarboxylase
427	 42.81	0	414098..414403	+	101	13541258	-	TVN0427	-	hypothetical protein
428	 42.54	0	415361..417271	-	636	13541259	-	TVN0428	-	hypothetical protein
429	 40.64	0	417372..419177	+	601	13541260	-	TVN0429	-	glycogen debranching protein
430	 42.34	0	419174..420283	+	369	13541261	-	TVN0430	-	glycosyltransferase
431	 41.07	0	420280..421416	+	378	13541262	-	TVN0431	-	Alpha-amylase
432	 46.06	+1	421440..422264	+	274	13541263	-	TVN0432	-	asparaginase
433	 45.36	+1	422270..422635	+	121	13541264	-	TVN0433	-	hypothetical protein
434	 38.14	0	422661..423014	-	117	13541265	-	TVN0434	-	hypothetical protein
435	 39.37	0	423096..424040	-	314	13541266	-	TVN0435	-	nucleoside-diphosphate-sugar pyrophosphorylase
436	 44.54	+1	424218..425555	+	445	13541267	-	TVN0436	-	major facilitator superfamily permease
437	 45.10	+1	425663..426886	-	407	13541268	-	TVN0437	-	RNA processing exonuclease
438	 42.25	0	426892..427665	-	257	13541269	-	TVN0438	-	5'-methylthioadenosine phosphorylase II
439	 40.08	0	427721..428431	-	236	13541270	-	TVN0439	-	asparagine synthase
440	 43.71	0	428481..430262	+	593	13541271	-	TVN0440	-	ATPase
441	 43.08	0	430273..430785	+	170	13541272	-	TVN0441	-	hypothetical protein
442	 41.57	0	430782..431825	-	347	13541273	-	TVN0442	-	adenine-specific DNA methylase
443	 43.70	0	432246..432380	+	44	13541274	-	TVN0443	-	peroxiredoxin fragment (inactivated)
444	 37.78	0	432540..432809	+	89	13541275	-	TVN0444	-	peroxiredoxin fragment (inactivated)
445	 42.04	0	433464..434393	-	309	13541276	-	TVN0445	-	ATPase
446	 33.99	-2	434445..434747	-	100	13541277	-	TVN0446	-	hypothetical protein
447	 38.91	0	434910..435626	+	238	13541278	-	TVN0447	-	DNA-binding protein
448	 41.76	0	435696..436799	+	367	13541279	-	TVN0448	-	dehydrogenase
449	 43.17	0	437191..437556	+	121	13541280	rpl7ae	TVN0449	-	50S ribosomal protein L7Ae
450	 50.00	+2	437567..437776	+	69	13541281	rps28e	TVN0450	-	30S ribosomal protein S28e
451	 45.27	+1	437779..437979	+	66	13541282	-	TVN0451	-	50S ribosomal protein L24e
452	 41.22	0	437979..438422	+	147	13541283	-	TVN0452	-	nucleoside diphosphate kinase
453	 44.24	0	438400..440169	+	589	13541284	-	TVN0453	-	translation initiation factor IF-2
454	 41.93	0	440460..441413	-	317	13541285	-	TVN0454	-	UDP-glucose 4-epimerase
455	 41.50	0	441622..442698	+	358	13541286	-	TVN0455	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
456	 40.70	0	442721..443236	-	171	13541287	-	TVN0456	-	regulator of amino acid metabolism
457	 45.99	+1	443339..444310	-	323	13541288	radA	TVN0457	-	DNA repair and recombination protein RadA
458	 42.18	0	444310..445326	-	338	13541289	-	TVN0458	-	glyceraldehyde-3-phosphate dehydrogenase
459	 34.80	-1	445619..449104	+	1161	13541290	-	TVN0459	-	hypothetical protein
460	 41.58	0	449193..449738	+	181	13541291	-	TVN0460	-	hypothetical protein
461	 36.43	-1	449750..450298	+	182	13541292	-	TVN0461	-	aromatic acid decarboxylase
462	 38.61	0	450261..450734	+	157	13541293	-	TVN0462	-	hypothetical protein
463	 39.49	0	450731..451753	+	340	13541294	-	TVN0463	-	RNA-binding protein (pelota-related)
464	 37.47	0	452430..452888	-	152	13541295	-	TVN0464	-	restriction endonuclease S subunit fragment
465	 36.95	-1	452892..453140	-	82	13541296	-	TVN0465	-	restriction endonuclease S subunit fragment
466	 47.46	+1	453177..453806	+	209	13541297	-	TVN0466	-	hypothetical protein
467	 38.65	0	454214..454984	-	256	13541298	-	TVN0467	-	hypothetical protein
468	 42.23	0	455305..456192	-	295	13541299	-	TVN0468	-	hypothetical protein
469	 41.26	0	456214..456579	-	121	13541300	-	TVN0469	-	hypothetical protein
470	 45.87	+1	456921..457223	+	100	13541301	-	TVN0470	-	thioredoxin reductase
471	 28.55	-2	457516..458142	-	208	13541302	-	TVN0471	-	transcription regulator (HTH)
472	 40.99	0	458260..459657	+	465	13541303	-	TVN0472	-	transporter component
473	 38.13	0	459941..461107	+	388	13541304	-	TVN0473	-	NAD(FAD)-dependent dehydrogenase
474	 32.62	-2	461113..461535	+	140	13541305	-	TVN0474	-	hypothetical protein
475	 34.99	-1	461540..462262	-	240	13541306	-	TVN0475	-	hypothetical protein
476	 43.84	0	462512..463720	+	402	13541307	-	TVN0476	-	transporter component
477	 39.06	0	464026..465282	-	418	13541308	-	TVN0477	-	arginine deiminase
478	 38.69	0	465345..466352	-	335	13541309	-	TVN0478	-	NMD protein (ribosome stability and mRNA decay protein)
479	 37.24	-1	466379..466993	-	204	13541310	-	TVN0479	-	hypothetical protein
480	 43.49	0	467069..468151	+	360	13541311	-	TVN0480	-	hypothetical protein
481	 36.96	-1	468197..468499	+	100	13541312	-	TVN0481	-	hypothetical protein
482	 43.45	0	468494..468661	-	55	13541313	-	TVN0482	-	30S ribosomal protein S27ae
483	 40.33	0	468673..468972	-	99	13541314	rps24e	TVN0483	-	30S ribosomal protein S24e
484	 39.72	0	468984..469484	-	166	13541315	-	TVN0484	-	hypothetical protein
485	 40.51	0	469462..469656	-	64	13541316	rpoE	TVN0485	-	DNA-directed RNA polymerase subunit E''
486	 43.18	0	469653..470231	-	192	13541317	-	TVN0486	-	DNA-directed RNA polymerase subunit E'
487	 42.90	0	470348..471445	-	365	13541318	-	TVN0487	-	molecular chaperone (DnaJ-related)
488	 43.51	0	471466..473313	-	615	13541319	dnaK	TVN0488	-	molecular chaperone DnaK
489	 37.10	-1	473313..473843	-	176	13541320	-	TVN0489	-	molecular chaperone GrpE (heat shock protein)
490	 39.25	0	473958..475190	+	410	13541321	-	TVN0490	-	multidrug efflux permease
491	 38.48	0	475215..475661	+	148	13541322	-	TVN0491	-	phospholipid-binding protein
492	 41.74	0	475673..476992	+	439	13541323	-	TVN0492	-	membrane-bound serine protease
493	 37.72	0	477074..477415	+	113	13541324	-	TVN0493	-	hypothetical protein
494	 44.51	+1	477602..479569	+	655	13541325	-	TVN0494	-	ATP-dependent protease Lon
495	 37.32	-1	479924..480700	-	258	13541326	cobS	TVN0495	-	cobalamin synthase
496	 42.10	0	480705..481742	-	345	13541327	-	TVN0496	-	aspartate aminotransferase
497	 41.20	0	483190..483672	-	160	13541328	-	TVN0497	-	hypothetical protein
498	 43.60	0	483803..485350	+	515	13541329	-	TVN0498	-	RNA polymerase II complex ELP3 subunit
499	 40.50	0	485525..487282	+	585	13541330	-	TVN0499	-	potassium-transporting ATPase subunit A
500	 39.96	0	487279..489285	+	668	13541331	-	TVN0500	-	potassium-transporting ATPase subunit B
501	 40.63	0	489279..489908	+	209	13541332	-	TVN0501	-	potassium-transporting ATPase subunit C
502	 40.17	0	489921..490739	-	272	13541333	-	TVN0502	-	nucleotide-binding protein (UspA-related)
503	 41.41	0	491021..491515	+	164	13541334	-	TVN0503	-	hypothetical protein
504	 44.14	0	491501..492490	-	329	13541335	-	TVN0504	-	kinase related to galactokinase and mevalonate kinase
505	 42.81	0	492576..493451	+	291	13541336	-	TVN0505	-	nucleoside-diphosphate sugar epimerase
506	 42.07	0	493454..494392	-	312	13541337	-	TVN0506	-	tRNA-modifying enzyme
507	 45.75	+1	494466..496100	-	544	13541338	-	TVN0507	-	chaperonin GroEL
508	 40.72	0	496174..496809	-	211	13541339	thiE	TVN0508	-	thiamine-phosphate pyrophosphorylase
509	 41.67	0	496806..497861	-	351	13541340	-	TVN0509	-	hydrogenase maturation factor
510	 42.86	0	497989..499542	+	517	13541341	-	TVN0510	-	amino acid transporter
511	 36.92	-1	499547..500467	+	306	13541342	-	TVN0511	-	ABC-type peptide transport system, ATPase component
512	 41.09	0	500469..501242	+	257	13541343	-	TVN0512	-	ABC-type peptide transporter, ATPase component
513	 41.20	0	501372..502172	-	266	13541344	-	TVN0513	-	phosphomethylpyrimidine kinase
514	 41.12	0	502242..502922	-	226	13541345	-	TVN0514	-	transcription regulator
515	 40.49	0	503027..504283	-	418	13541346	-	TVN0515	-	metal-dependent hydrolase
40.87	MEAN

3.44	STD DEV
