IslandPath Analysis: Thermoplasma volcanium GSS1

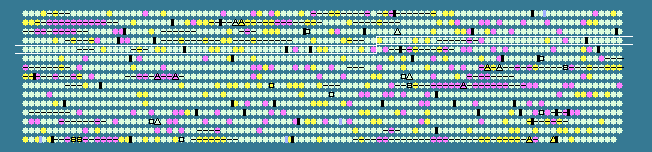

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
360	 44.54	+1	353081..353785	+	234	13541191	-	TVN0360	-	hypothetical protein
361	 39.57	0	354006..355256	+	416	13541192	-	TVN0361	-	hypothetical protein
362	 40.31	0	355283..357232	+	649	13541193	-	TVN0362	-	polyferredoxin
363	 42.67	0	357199..357873	-	224	13541194	-	TVN0363	-	enoyl-CoA hydratase
364	 38.89	0	357925..358554	+	209	13541195	-	TVN0364	-	DNA-binding protein
365	 37.57	0	358547..359065	-	172	13541196	-	TVN0365	-	hypothetical protein
366	 46.78	+1	359295..360023	+	242	13541197	-	TVN0366	-	Rieske Fe-S protein
367	 43.25	0	360034..361647	+	537	13541198	-	TVN0367	-	cytochrome b subunit of the bc complex
368	 44.44	+1	361650..362531	-	293	13541199	-	TVN0368	-	carboxyphosphonoenolpyruvate phosphonomutase
369	 41.22	0	362515..363846	-	443	13541200	-	TVN0369	-	hypothetical protein
370	 41.27	0	363970..364788	-	272	13541201	-	TVN0370	-	Sec-independent protein secretion pathway component (TatC-related)
371	 39.60	0	364778..365080	-	100	13541202	-	TVN0371	-	Sec-independent protein secretion pathway component
372	 42.50	0	365507..366346	+	279	13541203	-	TVN0372	-	Rieske Fe-S protein
373	 41.41	0	366349..367524	+	391	13541204	-	TVN0373	-	cytochrome b subunit of the bc complex
374	 40.10	0	367521..367712	+	63	13541205	-	TVN0374	-	hypothetical protein
375	 36.96	-1	367751..368053	+	100	13541206	-	TVN0375	-	hypothetical protein
376	 37.78	0	368053..368277	+	74	13541207	-	TVN0376	-	hypothetical protein
377	 34.66	-1	368274..368801	-	175	13541208	-	TVN0377	-	transcription regulator
378	 37.43	-1	368934..369104	-	56	13541209	-	TVN0378	-	transcription regulator (HTH)
379	 40.65	0	369160..371058	-	632	13541210	-	TVN0379	-	ATPase
380	 38.33	0	371051..371671	-	206	13541211	-	TVN0380	-	hypothetical protein
381	 41.24	0	371934..372401	+	155	13541212	-	TVN0381	-	hypothetical protein
382	 39.18	0	372394..373521	+	375	13541213	-	TVN0382	-	ATPase of the AAA+ class involved in cell division
383	 40.69	0	373629..374267	+	212	13541214	-	TVN0383	-	coiled-coil domain-containing protein
384	 42.07	0	374366..374674	-	102	13541215	-	TVN0384	-	hypothetical protein
385	 40.83	0	374780..375766	+	328	13541216	-	TVN0385	-	homoserine dehydrogenase
386	 43.30	0	375941..376753	+	270	13541217	-	TVN0386	-	ABC-type nitrate transporter, ATPase component
387	 40.90	0	376750..378375	+	541	13541218	-	TVN0387	-	ABC-type nitrate transport permease
388	 46.32	+1	378387..378848	-	153	13541219	-	TVN0388	-	hypothetical protein
389	 37.76	0	378908..379201	-	97	13541220	-	TVN0389	-	hypothetical protein
390	 40.37	0	379541..380506	+	321	13541221	-	TVN0390	-	dehydrogenase
391	 34.78	-1	380519..380863	+	114	13541222	-	TVN0391	-	hypothetical protein
392	 39.07	0	380902..381372	-	156	13541223	-	TVN0392	-	hypothetical protein
393	 38.32	0	382012..383193	+	393	13541224	-	TVN0393	-	Kef-type K+ transport system, membrane component
394	 42.50	0	383770..384816	-	348	13541225	-	TVN0394	-	major facilitator superfamily permease
395	 42.22	0	385512..385916	+	134	13541226	-	TVN0395	-	sterol carrier protein
396	 40.91	0	385927..387048	+	373	13541227	-	TVN0396	-	alcohol dehydrogenase IV
397	 43.49	0	387045..388541	+	498	13541228	-	TVN0397	-	NAD-dependent aldehyde dehydrogenase
398	 42.55	0	388568..389749	-	393	13541229	-	TVN0398	-	2-amino-3-ketobutyrate coenzyme A ligase
399	 41.17	0	389981..390580	+	199	13541230	rps2P	TVN0399	-	30S ribosomal protein S2
400	 40.16	0	390826..391704	-	292	13541231	-	TVN0400	-	tRNA splicing endonuclease
401	 38.95	0	391697..392212	-	171	13541232	-	TVN0401	-	GTPase
402	 39.95	0	392327..393535	+	402	13541233	-	TVN0402	-	transcription regulator
403	 38.80	0	393600..394586	+	328	13541234	-	TVN0403	-	fused phosphopantetheine adenylyltransferase/unknown domain-containing protein
404	 39.39	0	394567..395457	-	296	13541235	-	TVN0404	-	Ca2+/Na+ antiporter
405	 44.27	0	395474..395866	-	130	13541236	-	TVN0405	-	S-adenosylmethionine decarboxylase proenzyme
406	 40.58	0	396051..396809	-	252	13541237	-	TVN0406	-	transcription regulator
407	 39.14	0	396861..397721	-	286	13541238	ubiA	TVN0407	-	prenyltransferase
408	 43.22	0	397730..399175	-	481	13541239	-	TVN0408	-	4-hydroxybenzoate decarboxylase
409	 42.12	0	399197..400561	-	454	13541240	-	TVN0409	-	cobyrinic acid a,c-diamide synthase
410	 40.34	0	400558..401313	-	251	13541241	-	TVN0410	-	hypothetical protein
411	 39.68	0	401285..401473	-	62	13541242	-	TVN0411	-	H/ACA RNA-protein complex component Nop10p
412	 42.48	0	401470..402234	-	254	13541243	-	TVN0412	-	translation initiation factor IF-2 subunit alpha
413	 42.93	0	402231..402428	-	65	13541244	rps27e	TVN0413	-	30S ribosomal protein S27e
414	 44.68	+1	402431..402712	-	93	13541245	rpl44e	TVN0414	-	50S ribosomal protein L44e
415	 40.62	0	403403..403690	-	95	13541246	-	TVN0415	-	hypothetical protein
416	 38.52	0	404043..404408	+	121	13541247	-	TVN0416	-	hypothetical protein
417	 42.70	0	404401..405222	-	273	13541248	-	TVN0417	-	spermidine synthase
418	 42.66	0	405413..406345	+	310	13541249	-	TVN0418	-	putative deoxyhypusine synthase
419	 41.61	0	406476..406934	+	152	13541250	-	TVN0419	-	peroxiredoxin
420	 47.94	+2	407122..407436	-	104	13541251	rpl12p	TVN0420	-	50S ribosomal protein L12P
421	 42.86	0	407450..408394	-	314	13541252	rplP0	TVN0421	-	acidic ribosomal protein P0
422	 43.73	0	408391..409044	-	217	13541253	rpl1P	TVN0422	-	50S ribosomal protein L1P
423	 45.70	+1	409059..409535	-	158	13541254	rpl11p	TVN0423	-	50S ribosomal protein L11P
424	 44.74	+1	409698..410258	+	186	13541255	-	TVN0424	-	intracellular protease
425	 39.08	0	410584..411609	+	341	13541256	-	TVN0425	-	hypothetical protein
426	 39.19	0	411662..412771	-	369	13541257	-	TVN0426	-	mevalonate pyrophosphate decarboxylase
427	 42.81	0	414098..414403	+	101	13541258	-	TVN0427	-	hypothetical protein
428	 42.54	0	415361..417271	-	636	13541259	-	TVN0428	-	hypothetical protein
429	 40.64	0	417372..419177	+	601	13541260	-	TVN0429	-	glycogen debranching protein
430	 42.34	0	419174..420283	+	369	13541261	-	TVN0430	-	glycosyltransferase
431	 41.07	0	420280..421416	+	378	13541262	-	TVN0431	-	Alpha-amylase
432	 46.06	+1	421440..422264	+	274	13541263	-	TVN0432	-	asparaginase
433	 45.36	+1	422270..422635	+	121	13541264	-	TVN0433	-	hypothetical protein
434	 38.14	0	422661..423014	-	117	13541265	-	TVN0434	-	hypothetical protein
435	 39.37	0	423096..424040	-	314	13541266	-	TVN0435	-	nucleoside-diphosphate-sugar pyrophosphorylase
436	 44.54	+1	424218..425555	+	445	13541267	-	TVN0436	-	major facilitator superfamily permease
437	 45.10	+1	425663..426886	-	407	13541268	-	TVN0437	-	RNA processing exonuclease
438	 42.25	0	426892..427665	-	257	13541269	-	TVN0438	-	5'-methylthioadenosine phosphorylase II
439	 40.08	0	427721..428431	-	236	13541270	-	TVN0439	-	asparagine synthase
440	 43.71	0	428481..430262	+	593	13541271	-	TVN0440	-	ATPase
441	 43.08	0	430273..430785	+	170	13541272	-	TVN0441	-	hypothetical protein
442	 41.57	0	430782..431825	-	347	13541273	-	TVN0442	-	adenine-specific DNA methylase
443	 43.70	0	432246..432380	+	44	13541274	-	TVN0443	-	peroxiredoxin fragment (inactivated)
444	 37.78	0	432540..432809	+	89	13541275	-	TVN0444	-	peroxiredoxin fragment (inactivated)
445	 42.04	0	433464..434393	-	309	13541276	-	TVN0445	-	ATPase
446	 33.99	-2	434445..434747	-	100	13541277	-	TVN0446	-	hypothetical protein
447	 38.91	0	434910..435626	+	238	13541278	-	TVN0447	-	DNA-binding protein
448	 41.76	0	435696..436799	+	367	13541279	-	TVN0448	-	dehydrogenase
449	 43.17	0	437191..437556	+	121	13541280	rpl7ae	TVN0449	-	50S ribosomal protein L7Ae
450	 50.00	+2	437567..437776	+	69	13541281	rps28e	TVN0450	-	30S ribosomal protein S28e
451	 45.27	+1	437779..437979	+	66	13541282	-	TVN0451	-	50S ribosomal protein L24e
452	 41.22	0	437979..438422	+	147	13541283	-	TVN0452	-	nucleoside diphosphate kinase
453	 44.24	0	438400..440169	+	589	13541284	-	TVN0453	-	translation initiation factor IF-2
454	 41.93	0	440460..441413	-	317	13541285	-	TVN0454	-	UDP-glucose 4-epimerase
455	 41.50	0	441622..442698	+	358	13541286	-	TVN0455	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
456	 40.70	0	442721..443236	-	171	13541287	-	TVN0456	-	regulator of amino acid metabolism
457	 45.99	+1	443339..444310	-	323	13541288	radA	TVN0457	-	DNA repair and recombination protein RadA
458	 42.18	0	444310..445326	-	338	13541289	-	TVN0458	-	glyceraldehyde-3-phosphate dehydrogenase
459	 34.80	-1	445619..449104	+	1161	13541290	-	TVN0459	-	hypothetical protein
40.87	MEAN

3.44	STD DEV
