IslandPath Analysis: Thermoplasma volcanium GSS1

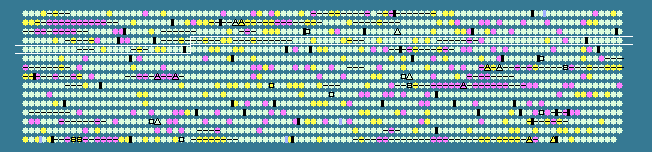

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.87   STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
329	 42.54	0	335393..335848	+	151	13541160	rpl22p	TVN0329	-	50S ribosomal protein L22P
330	 41.74	0	335845..336522	+	225	13541161	rps3p	TVN0330	-	30S ribosomal protein S3P
331	 45.27	+1	336449..336649	+	66	13541162	rpmC	TVN0331	-	50S ribosomal protein L29
332	 41.58	0	336650..336952	+	100	13541163	-	TVN0332	-	translation initiation factor Sui1
333	 39.26	0	336949..337218	+	89	13541164	-	TVN0333	-	ribonuclease P protein component 1
334	 44.55	+1	337220..337549	+	109	13541165	rps17p	TVN0334	-	30S ribosomal protein S17P
335	 46.62	+1	337546..337944	+	132	13541166	rpl14p	TVN0335	-	50S ribosomal protein L14P
336	 39.27	0	337953..338390	+	145	13541167	rpl24p	TVN0336	-	50S ribosomal protein L24P
337	 43.08	0	338380..339087	+	235	13541168	-	TVN0337	-	30S ribosomal protein S4e
338	 40.94	0	339084..339596	+	170	13541169	rpl5p	TVN0338	-	50S ribosomal protein L5P
339	 44.44	+1	339601..339762	+	53	13541170	rps14P	TVN0339	-	30S ribosomal protein S14P
340	 37.69	0	339772..340161	+	129	13541171	rps8p	TVN0340	-	30S ribosomal protein S8P
341	 40.41	0	340175..340711	+	178	13541172	rpl6p	TVN0341	-	50S ribosomal protein L6P
342	 42.12	0	340713..341099	+	128	13541173	rpl32e	TVN0342	-	50S ribosomal protein L32e
343	 41.33	0	341109..341558	+	149	13541174	rpl19e	TVN0343	-	50S ribosomal protein L19e
344	 41.82	0	341564..342046	+	160	13541175	rpl18p	TVN0344	-	50S ribosomal protein L18P
345	 44.14	0	342043..342708	+	221	13541176	rps5p	TVN0345	-	30S ribosomal protein S5P
346	 41.16	0	342686..343183	+	165	13541177	rpl30p	TVN0346	-	50S ribosomal protein L30P
347	 41.78	0	343164..343601	+	145	13541178	rpl15p	TVN0347	-	50S ribosomal protein L15P
348	 42.08	0	343579..345339	+	586	13541179	-	TVN0348	-	preprotein translocase SecY
349	 46.15	+1	345340..345885	+	181	13541180	-	TVN0349	-	adenylate kinase
350	 41.00	0	345882..346559	+	225	13541181	-	TVN0350	-	hypothetical protein
351	 39.09	0	346556..347128	+	190	13541182	-	TVN0351	-	cytidylate kinase
352	 43.03	0	347179..348240	+	353	13541183	-	TVN0352	-	H/ACA RNA-protein complex component Cbf5p
353	 43.48	0	348263..348814	+	183	13541184	-	TVN0353	-	Nop56p-related protein (ribosomal biogenesis)
354	 44.42	+1	348801..350225	-	474	13541185	-	TVN0354	-	amidophosphoribosyltransferase
355	 46.06	+1	350173..350337	-	54	13541186	rpl37e	TVN0355	-	50S ribosomal protein L37e
356	 39.68	0	350334..350585	-	83	13541187	-	TVN0356	-	small nuclear ribonucleoprotein
357	 43.05	0	350720..351553	+	277	13541188	-	TVN0357	-	nucleoside-diphosphate-sugar epimerase
358	 38.25	0	351555..352022	-	155	13541189	-	TVN0358	-	hypothetical protein
359	 39.00	0	352110..353009	+	299	13541190	-	TVN0359	-	translation elongation factor (GTPase)
360	 44.54	+1	353081..353785	+	234	13541191	-	TVN0360	-	hypothetical protein
361	 39.57	0	354006..355256	+	416	13541192	-	TVN0361	-	hypothetical protein
362	 40.31	0	355283..357232	+	649	13541193	-	TVN0362	-	polyferredoxin
363	 42.67	0	357199..357873	-	224	13541194	-	TVN0363	-	enoyl-CoA hydratase
364	 38.89	0	357925..358554	+	209	13541195	-	TVN0364	-	DNA-binding protein
365	 37.57	0	358547..359065	-	172	13541196	-	TVN0365	-	hypothetical protein
366	 46.78	+1	359295..360023	+	242	13541197	-	TVN0366	-	Rieske Fe-S protein
367	 43.25	0	360034..361647	+	537	13541198	-	TVN0367	-	cytochrome b subunit of the bc complex
368	 44.44	+1	361650..362531	-	293	13541199	-	TVN0368	-	carboxyphosphonoenolpyruvate phosphonomutase
369	 41.22	0	362515..363846	-	443	13541200	-	TVN0369	-	hypothetical protein
370	 41.27	0	363970..364788	-	272	13541201	-	TVN0370	-	Sec-independent protein secretion pathway component (TatC-related)
371	 39.60	0	364778..365080	-	100	13541202	-	TVN0371	-	Sec-independent protein secretion pathway component
372	 42.50	0	365507..366346	+	279	13541203	-	TVN0372	-	Rieske Fe-S protein
373	 41.41	0	366349..367524	+	391	13541204	-	TVN0373	-	cytochrome b subunit of the bc complex
374	 40.10	0	367521..367712	+	63	13541205	-	TVN0374	-	hypothetical protein
375	 36.96	-1	367751..368053	+	100	13541206	-	TVN0375	-	hypothetical protein
376	 37.78	0	368053..368277	+	74	13541207	-	TVN0376	-	hypothetical protein
377	 34.66	-1	368274..368801	-	175	13541208	-	TVN0377	-	transcription regulator
378	 37.43	-1	368934..369104	-	56	13541209	-	TVN0378	-	transcription regulator (HTH)
379	 40.65	0	369160..371058	-	632	13541210	-	TVN0379	-	ATPase
380	 38.33	0	371051..371671	-	206	13541211	-	TVN0380	-	hypothetical protein
381	 41.24	0	371934..372401	+	155	13541212	-	TVN0381	-	hypothetical protein
382	 39.18	0	372394..373521	+	375	13541213	-	TVN0382	-	ATPase of the AAA+ class involved in cell division
383	 40.69	0	373629..374267	+	212	13541214	-	TVN0383	-	coiled-coil domain-containing protein
384	 42.07	0	374366..374674	-	102	13541215	-	TVN0384	-	hypothetical protein
385	 40.83	0	374780..375766	+	328	13541216	-	TVN0385	-	homoserine dehydrogenase
386	 43.30	0	375941..376753	+	270	13541217	-	TVN0386	-	ABC-type nitrate transporter, ATPase component
387	 40.90	0	376750..378375	+	541	13541218	-	TVN0387	-	ABC-type nitrate transport permease
388	 46.32	+1	378387..378848	-	153	13541219	-	TVN0388	-	hypothetical protein
389	 37.76	0	378908..379201	-	97	13541220	-	TVN0389	-	hypothetical protein
390	 40.37	0	379541..380506	+	321	13541221	-	TVN0390	-	dehydrogenase
391	 34.78	-1	380519..380863	+	114	13541222	-	TVN0391	-	hypothetical protein
392	 39.07	0	380902..381372	-	156	13541223	-	TVN0392	-	hypothetical protein
393	 38.32	0	382012..383193	+	393	13541224	-	TVN0393	-	Kef-type K+ transport system, membrane component
394	 42.50	0	383770..384816	-	348	13541225	-	TVN0394	-	major facilitator superfamily permease
395	 42.22	0	385512..385916	+	134	13541226	-	TVN0395	-	sterol carrier protein
396	 40.91	0	385927..387048	+	373	13541227	-	TVN0396	-	alcohol dehydrogenase IV
397	 43.49	0	387045..388541	+	498	13541228	-	TVN0397	-	NAD-dependent aldehyde dehydrogenase
398	 42.55	0	388568..389749	-	393	13541229	-	TVN0398	-	2-amino-3-ketobutyrate coenzyme A ligase
399	 41.17	0	389981..390580	+	199	13541230	rps2P	TVN0399	-	30S ribosomal protein S2
400	 40.16	0	390826..391704	-	292	13541231	-	TVN0400	-	tRNA splicing endonuclease
401	 38.95	0	391697..392212	-	171	13541232	-	TVN0401	-	GTPase
402	 39.95	0	392327..393535	+	402	13541233	-	TVN0402	-	transcription regulator
403	 38.80	0	393600..394586	+	328	13541234	-	TVN0403	-	fused phosphopantetheine adenylyltransferase/unknown domain-containing protein
404	 39.39	0	394567..395457	-	296	13541235	-	TVN0404	-	Ca2+/Na+ antiporter
405	 44.27	0	395474..395866	-	130	13541236	-	TVN0405	-	S-adenosylmethionine decarboxylase proenzyme
406	 40.58	0	396051..396809	-	252	13541237	-	TVN0406	-	transcription regulator
407	 39.14	0	396861..397721	-	286	13541238	ubiA	TVN0407	-	prenyltransferase
408	 43.22	0	397730..399175	-	481	13541239	-	TVN0408	-	4-hydroxybenzoate decarboxylase
409	 42.12	0	399197..400561	-	454	13541240	-	TVN0409	-	cobyrinic acid a,c-diamide synthase
410	 40.34	0	400558..401313	-	251	13541241	-	TVN0410	-	hypothetical protein
411	 39.68	0	401285..401473	-	62	13541242	-	TVN0411	-	H/ACA RNA-protein complex component Nop10p
412	 42.48	0	401470..402234	-	254	13541243	-	TVN0412	-	translation initiation factor IF-2 subunit alpha
413	 42.93	0	402231..402428	-	65	13541244	rps27e	TVN0413	-	30S ribosomal protein S27e
414	 44.68	+1	402431..402712	-	93	13541245	rpl44e	TVN0414	-	50S ribosomal protein L44e
415	 40.62	0	403403..403690	-	95	13541246	-	TVN0415	-	hypothetical protein
416	 38.52	0	404043..404408	+	121	13541247	-	TVN0416	-	hypothetical protein
417	 42.70	0	404401..405222	-	273	13541248	-	TVN0417	-	spermidine synthase
418	 42.66	0	405413..406345	+	310	13541249	-	TVN0418	-	putative deoxyhypusine synthase
419	 41.61	0	406476..406934	+	152	13541250	-	TVN0419	-	peroxiredoxin
420	 47.94	+2	407122..407436	-	104	13541251	rpl12p	TVN0420	-	50S ribosomal protein L12P
421	 42.86	0	407450..408394	-	314	13541252	rplP0	TVN0421	-	acidic ribosomal protein P0
422	 43.73	0	408391..409044	-	217	13541253	rpl1P	TVN0422	-	50S ribosomal protein L1P
423	 45.70	+1	409059..409535	-	158	13541254	rpl11p	TVN0423	-	50S ribosomal protein L11P
424	 44.74	+1	409698..410258	+	186	13541255	-	TVN0424	-	intracellular protease
425	 39.08	0	410584..411609	+	341	13541256	-	TVN0425	-	hypothetical protein
426	 39.19	0	411662..412771	-	369	13541257	-	TVN0426	-	mevalonate pyrophosphate decarboxylase
427	 42.81	0	414098..414403	+	101	13541258	-	TVN0427	-	hypothetical protein
428	 42.54	0	415361..417271	-	636	13541259	-	TVN0428	-	hypothetical protein
40.87	MEAN

3.44	STD DEV
