IslandPath Analysis: Thermoplasma volcanium GSS1

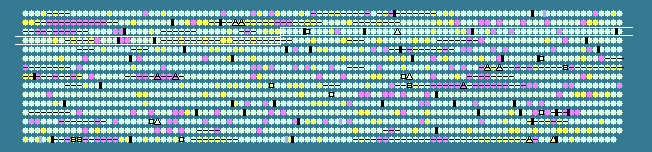

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
244	 39.00	0	257661..257960	+	99	13541075	-	TVN0244	-	hypothetical protein
245	 42.86	0	257957..258796	+	279	13541076	-	TVN0245	-	hypothetical protein
246	 41.05	0	258863..260158	+	431	13541077	-	TVN0246	-	major facilitator superfamily permease
247	 39.53	0	260458..261216	-	252	13541078	-	TVN0247	-	SAM-dependent methyltransferase
248	 41.12	0	261621..262802	+	393	13541079	-	TVN0248	-	transposase
249	 39.41	0	262873..263349	+	158	13541080	-	TVN0249	-	HIT (histidine triad) family protein
250	 42.26	0	263385..264527	+	380	13541081	-	TVN0250	-	major facilitator superfamily permease
251	 44.00	0	264489..265904	-	471	13541082	-	TVN0251	-	mercuric reductase
252	 45.33	+1	265894..266118	-	74	13541083	-	TVN0252	-	copper chaperone
253	 36.69	-1	266253..266639	+	128	13541084	-	TVN0253	-	hypothetical protein
254	 41.57	0	266641..267720	-	359	13541085	-	TVN0254	-	membrane-associated Zn-dependent protease 1
255	 37.94	0	268261..269367	-	368	13541086	-	TVN0255	-	major facilitator superfamily permease
256	 41.83	0	269460..270671	+	403	13541087	-	TVN0256	-	multidrug efflux permease
257	 42.90	0	270675..271280	-	201	13541088	-	TVN0257	-	phosphoglycerate mutase
258	 41.04	0	271512..272783	-	423	13541089	-	TVN0258	-	hypothetical protein
259	 43.25	0	272984..273901	+	305	13541090	-	TVN0259	-	carbamate kinase
260	 41.90	0	273888..274541	-	217	13541091	-	TVN0260	-	phosphoribosyltransferase
261	 41.82	0	274704..275033	-	109	13541092	-	TVN0261	-	NTP pyrophosphohydrolase
262	 42.07	0	275700..276764	+	354	13541093	-	TVN0262	-	geranylgeranyl pyrophosphate synthase
263	 44.13	0	276761..277612	-	283	13541094	-	TVN0263	-	integrase/recombinase
264	 39.31	0	277703..278338	+	211	13541095	-	TVN0264	-	ribulose-phosphate 3-epimerase
265	 43.97	0	278316..279302	-	328	13541096	-	TVN0265	-	alcohol dehydrogenase
266	 39.48	0	279375..279911	-	178	13541097	-	TVN0266	-	hypothetical protein
267	 44.00	0	280069..280218	+	49	13541098	rpl40e	TVN0267	-	50S ribosomal protein L40e
268	 43.11	0	280223..280999	+	258	13541099	-	TVN0268	-	phosphoribosylformylglycinamidine synthase subunit I
269	 44.71	+1	280992..282239	+	415	13541100	-	TVN0269	-	dihydroorotase
270	 41.25	0	282227..282820	-	197	13541101	-	TVN0270	-	RNA methylase
271	 44.12	0	282820..283125	-	101	13541102	-	TVN0271	-	hypothetical protein
272	 43.83	0	283269..284192	-	307	13541103	-	TVN0272	-	ornithine carbamoyltransferase
273	 45.80	+1	284189..285046	-	285	13541104	-	TVN0273	-	succinyl-CoA synthetase subunit alpha
274	 44.54	+1	285047..286144	-	365	13541105	sucC	TVN0274	-	succinyl-CoA synthetase subunit beta
275	 30.63	-2	288250..289470	-	406	13541106	-	TVN0275	-	hypothetical protein
276	 41.85	0	291894..292433	-	179	13541107	-	TVN0276	-	hypothetical protein
277	 39.00	0	292522..293121	-	199	13541108	-	TVN0277	-	hypothetical protein
278	 46.05	+1	293611..293838	+	75	13541109	-	TVN0278	-	hypothetical protein
279	 37.36	-1	293828..294100	-	90	13541110	-	TVN0279	-	RNAse P protein subunit RPR2
280	 38.81	0	294141..294815	+	224	13541111	-	TVN0280	-	phosphoglycolate phosphatase
281	 43.26	0	294833..295648	-	271	13541112	-	TVN0281	-	solute-binding protein
282	 37.29	-1	295743..296525	+	260	13541113	-	TVN0282	-	hypothetical protein
283	 41.69	0	296872..297936	-	354	13541114	-	TVN0283	-	ABC-type Fe3+-siderophores transporter, permease component
284	 42.34	0	298043..299008	+	321	13541115	-	TVN0284	-	ABC-type Fe3+-siderophores transporter, solute-binding component
285	 41.28	0	299333..300628	-	431	13541116	-	TVN0285	-	arsenite transport permease
286	 44.09	0	300659..301132	-	157	13541117	-	TVN0286	-	peroxiredoxin
287	 39.51	0	301512..302822	-	436	13541118	-	TVN0287	-	adenylosuccinate synthetase
288	 42.01	0	302996..303364	+	122	13541119	-	TVN0288	-	glycine cleavage system protein H
289	 40.40	0	303361..303954	+	197	13541120	-	TVN0289	-	methyltransferase involved in cell division
290	 37.32	-1	303941..304567	-	208	13541121	-	TVN0290	-	hypothetical protein
291	 40.47	0	304564..305502	-	312	13541122	-	TVN0291	-	hypothetical protein
292	 39.37	0	305692..306138	+	148	13541123	-	TVN0292	-	Fe2+ uptake regulation protein
293	 41.26	0	306280..307212	-	310	13541124	-	TVN0293	-	GMP synthase subunit B
294	 44.03	0	307259..307576	-	105	13541125	-	TVN0294	-	hypothetical protein
295	 39.74	0	307586..307819	-	77	13541126	-	TVN0295	-	transcription regulator
296	 40.48	0	307952..308581	+	209	13541127	-	TVN0296	-	organic radical activating protein
297	 40.08	0	308639..309943	+	434	13541128	-	TVN0297	-	glycine dehydrogenase subunit 1
298	 41.79	0	309940..311358	+	472	13541129	-	TVN0298	-	glycine dehydrogenase subunit 2
299	 40.75	0	311426..312436	+	336	13541130	-	TVN0299	-	heme d1 biosynthesis protein (NirJ-related)
300	 37.67	0	312896..313402	+	168	13541131	-	TVN0300	-	hypothetical protein
301	 38.15	0	313409..314239	-	276	13541132	-	TVN0301	-	metal-dependent hydrolase
302	 40.33	0	314249..315463	-	404	13541133	-	TVN0302	-	hypothetical protein
303	 41.13	0	315520..316917	-	465	13541134	-	TVN0303	-	phosphate ABC transporter permease
304	 42.17	0	317051..317752	+	233	13541135	-	TVN0304	-	proteasome subunit alpha
305	 41.85	0	317790..318482	+	230	13541136	-	TVN0305	-	putative RNA-associated protein
306	 45.29	+1	318533..319243	+	236	13541137	-	TVN0306	-	exosome complex RNA-binding protein Rrp4
307	 42.70	0	319203..319949	+	248	13541138	-	TVN0307	-	exosome complex exonuclease Rrp41
308	 43.93	0	319952..320734	+	260	13541139	-	TVN0308	-	exosome complex RNA-binding protein Rrp42
309	 46.50	+1	320740..320982	+	80	13541140	rpl37ae	TVN0309	-	50S ribosomal protein L37Ae
310	 39.86	0	320979..321116	+	45	13541141	-	TVN0310	-	DNA-directed RNA polymerase subunit P
311	 39.85	0	321120..322286	+	388	13541142	-	TVN0311	-	pseudouridylate synthase
312	 44.44	+1	322289..322585	+	98	13541143	-	TVN0312	-	50S ribosomal protein L21e
313	 35.58	-1	322589..322900	+	103	13541144	-	TVN0313	-	hypothetical protein
314	 41.17	0	322914..323462	+	182	13541145	-	TVN0314	-	RNA-binding protein
315	 38.80	0	323459..324172	+	237	13541146	-	TVN0315	-	rRNA dimethyladenosine transferase
316	 42.55	0	324117..324941	-	274	13541147	-	TVN0316	-	membrane protease subunit
317	 35.06	-1	326039..326443	+	134	13541148	-	TVN0317	-	transcription regulator
318	 35.42	-1	326520..326903	+	127	13541149	-	TVN0318	-	hypothetical protein
319	 42.26	0	326994..327161	+	55	13541150	-	TVN0319	-	preprotein translocase subunit SecG
320	 40.08	0	327166..328128	-	320	13541151	-	TVN0320	-	mevalonate pyrophosphate decarboxylase
321	 37.48	0	328339..329157	+	272	13541152	-	TVN0321	-	hypothetical protein
322	 38.50	0	329566..331095	+	509	13541153	-	TVN0322	-	membrane-associated Zn-dependent protease 1
323	 44.12	0	331403..331810	+	135	13541154	-	TVN0323	-	hypothetical protein
324	 42.77	0	332231..333226	+	331	13541155	rpl3p	TVN0324	-	50S ribosomal protein L3P
325	 43.10	0	333223..333990	+	255	13541156	rpl4lp	TVN0325	-	50S ribosomal protein L4P
326	 39.68	0	333990..334241	+	83	13541157	rplW	TVN0326	-	50S ribosomal protein L23
327	 45.96	+1	334250..334954	+	234	13541158	rpl2p	TVN0327	-	50S ribosomal protein L2P
328	 41.01	0	334941..335396	+	151	13541159	rps19p	TVN0328	-	30S ribosomal protein S19P
329	 42.54	0	335393..335848	+	151	13541160	rpl22p	TVN0329	-	50S ribosomal protein L22P
330	 41.74	0	335845..336522	+	225	13541161	rps3p	TVN0330	-	30S ribosomal protein S3P
331	 45.27	+1	336449..336649	+	66	13541162	rpmC	TVN0331	-	50S ribosomal protein L29
332	 41.58	0	336650..336952	+	100	13541163	-	TVN0332	-	translation initiation factor Sui1
333	 39.26	0	336949..337218	+	89	13541164	-	TVN0333	-	ribonuclease P protein component 1
334	 44.55	+1	337220..337549	+	109	13541165	rps17p	TVN0334	-	30S ribosomal protein S17P
335	 46.62	+1	337546..337944	+	132	13541166	rpl14p	TVN0335	-	50S ribosomal protein L14P
336	 39.27	0	337953..338390	+	145	13541167	rpl24p	TVN0336	-	50S ribosomal protein L24P
337	 43.08	0	338380..339087	+	235	13541168	-	TVN0337	-	30S ribosomal protein S4e
338	 40.94	0	339084..339596	+	170	13541169	rpl5p	TVN0338	-	50S ribosomal protein L5P
339	 44.44	+1	339601..339762	+	53	13541170	rps14P	TVN0339	-	30S ribosomal protein S14P
340	 37.69	0	339772..340161	+	129	13541171	rps8p	TVN0340	-	30S ribosomal protein S8P
341	 40.41	0	340175..340711	+	178	13541172	rpl6p	TVN0341	-	50S ribosomal protein L6P
342	 42.12	0	340713..341099	+	128	13541173	rpl32e	TVN0342	-	50S ribosomal protein L32e
343	 41.33	0	341109..341558	+	149	13541174	rpl19e	TVN0343	-	50S ribosomal protein L19e
40.87	MEAN

3.44	STD DEV
