IslandPathversion 1.0

IslandPath Analysis: Thermoplasma volcanium GSS1

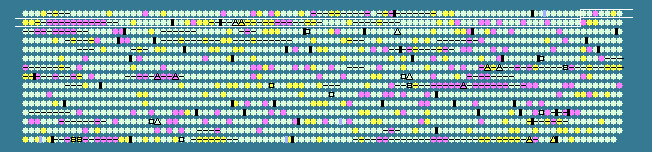

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
94	 42.10	0	97142..98920	-	592	13540925	-	TVN0094	-	chloride channel protein
95	 38.39	0	99129..100097	-	322	13540926	-	TVN0095	-	cell wall biosynthesis glycosyltransferase
96	 36.93	-1	100132..100770	-	212	13540927	-	TVN0096	-	2-phosphosulfolactate phosphatase
97	 42.66	0	100811..101839	-	342	13540928	-	TVN0097	-	Kef-type K+ transporter NAD-binding component
98	 41.99	0	102084..102626	+	180	13540929	-	TVN0098	-	hypothetical protein
99	 45.31	+1	102621..103931	-	436	13540930	-	TVN0099	-	dihydrolipoamide dehydrogenase
100	 43.84	0	103933..105141	-	402	13540931	-	TVN0100	-	branched-chain alpha-keto acid dehydrogenase subunit E2
101	 47.92	+2	105141..106100	-	319	13540932	-	TVN0101	-	thiamine pyrophosphate-dependent dehydrogenase, E1 component beta subunit
102	 46.15	+1	106097..107110	-	337	13540933	-	TVN0102	-	branched-chain alpha-ketoacid dehydrogenase, E1 component alpha subunit
103	 44.98	+1	107310..108185	-	291	13540934	-	TVN0103	-	methionine aminopeptidase
104	 41.74	0	108190..108867	-	225	13540935	-	TVN0104	-	hypothetical protein
105	 27.59	-2	110650..110910	-	86	13540936	-	TVN0105	-	hypothetical protein
106	 28.90	-2	110910..111878	-	322	13540937	-	TVN0106	-	hypothetical protein
107	 28.69	-2	111880..112590	-	236	13540938	-	TVN0107	-	hypothetical protein
108	 27.63	-2	112611..113768	-	385	13540939	-	TVN0108	-	hypothetical protein
109	 30.98	-2	113769..114659	-	296	13540940	-	TVN0109	-	hypothetical protein
110	 34.35	-1	114661..115350	-	229	13540941	-	TVN0110	-	hypothetical protein
111	 29.48	-2	115343..115783	-	146	13540942	-	TVN0111	-	hypothetical protein
112	 29.68	-2	115828..118155	-	775	13540943	-	TVN0112	-	HD superfamily hydrolase
113	 25.77	-2	118145..118858	-	237	13540944	-	TVN0113	-	hypothetical protein
114	 23.75	-2	119105..120325	+	406	13540945	-	TVN0114	-	hypothetical protein
115	 43.91	0	123780..124526	+	248	13540946	-	TVN0115	-	hypothetical protein
116	 41.55	0	124519..124725	+	68	13540947	-	TVN0116	-	hypothetical protein
117	 42.16	0	124714..126027	-	437	13540948	-	TVN0117	-	tRNA CCA-pyrophosphorylase
118	 43.33	0	126024..126383	-	119	13540949	nac	TVN0118	-	nascent polypeptide-associated complex protein
119	 47.75	+2	127036..127458	-	140	13540950	-	TVN0119	-	ferredoxin
120	 40.85	0	127681..128172	+	163	13540951	-	TVN0120	-	hypothetical protein
121	 38.46	0	128375..128764	-	129	13540952	-	TVN0121	-	hypothetical protein
122	 42.19	0	128958..130538	+	526	13540953	-	TVN0122	-	Acyl-coenzyme A synthetase
123	 43.79	0	130805..132220	+	471	13540954	-	TVN0123	-	phosphate ABC transporter permease
124	 38.46	0	132662..133675	+	337	13540955	-	TVN0124	-	adenine specific DNA methylase
125	 42.02	0	133681..134727	+	348	13540956	-	TVN0125	-	adenine specific DNA methylase
126	 40.29	0	135483..136991	-	502	13540957	-	TVN0126	-	Acyl-CoA synthetase (AMP-forming)
127	 43.60	0	137051..138433	-	460	13540958	-	TVN0127	-	sugar kinase
128	 45.69	+1	138528..139547	+	339	13540959	-	TVN0128	-	oxidoreductase
129	 36.30	-1	139649..139918	+	89	13540960	-	TVN0129	-	hypothetical protein
130	 45.08	+1	139971..141026	+	351	13540961	-	TVN0130	-	hypothetical protein
131	 45.21	+1	141013..142182	+	389	13540962	-	TVN0131	-	acetyl-CoA acetyltransferase
132	 47.26	+1	142185..142586	+	133	13540963	-	TVN0132	-	nucleic-acid-binding protein
133	 40.91	0	142583..143242	-	219	13540964	rnhB	TVN0133	-	ribonuclease HII
134	 39.17	0	143455..143985	+	176	13540965	-	TVN0134	-	hypothetical protein
135	 38.62	0	143986..144477	+	163	13540966	-	TVN0135	-	hypothetical protein
136	 43.11	0	144724..144948	+	74	13540967	-	TVN0136	-	integrase/recombinase
137	 45.72	+1	145021..145569	+	182	13540968	-	TVN0137	-	integrase/recombinase
138	 47.73	+1	145846..147033	-	395	13540969	-	TVN0138	-	multidrug efflux permease
139	 44.74	+1	147168..147614	-	148	13540970	-	TVN0139	-	hypothetical protein
140	 39.05	0	147946..148155	-	69	13540971	-	TVN0140	-	transposon-encoded protein
141	 45.61	+1	148313..148825	+	170	13540972	-	TVN0141	-	hypothetical protein
142	 47.46	+1	148943..149119	+	58	13540973	-	TVN0142	-	hypothetical protein
143	 35.35	-1	149208..149603	+	131	13540974	-	TVN0143	-	hypothetical protein
144	 32.70	-2	149832..150464	+	210	13540975	-	TVN0144	-	hypothetical protein
145	 34.29	-1	151549..152070	+	173	13540976	-	TVN0145	-	hypothetical protein
146	 41.41	0	152244..153692	-	482	13540977	-	TVN0146	-	Na+/proline symporter permease
147	 37.95	0	153694..153888	-	64	13540978	-	TVN0147	-	hypothetical protein
148	 45.11	+1	154235..158269	-	1344	13540979	-	TVN0148	-	multitransmembrane protein
149	 45.00	+1	158468..159187	+	239	13540980	-	TVN0149	-	ABC-type multidrug transport system, ATPase component
150	 38.87	0	159177..160586	+	469	13540981	-	TVN0150	-	hypothetical protein
151	 39.26	0	160657..161955	+	432	13540982	-	TVN0151	-	amino acid transporter
152	 44.35	+1	161955..162980	+	341	13540983	-	TVN0152	-	hypothetical protein
153	 41.35	0	162982..164004	-	340	13540984	-	TVN0153	-	dihydropteroate synthase
154	 43.33	0	164058..165338	-	426	13540985	hisS	TVN0154	-	histidyl-tRNA synthetase
155	 44.96	+1	165728..167215	-	495	13540986	-	TVN0155	-	ATP-dependent protease
156	 41.61	0	167197..168489	-	430	13540987	-	TVN0156	-	DNA primase
157	 41.72	0	168808..169833	+	341	13540988	-	TVN0157	-	endonuclease IV
158	 39.52	0	169835..170125	+	96	13540989	-	TVN0158	-	hypothetical protein
159	 39.12	0	170162..170662	-	166	13540990	-	TVN0159	-	hypothetical protein
160	 44.69	+1	170994..171266	+	90	13540991	-	TVN0160	-	nucleoid DNA-binding protein (HB-related)
161	 43.26	0	171420..172799	+	459	13540992	-	TVN0161	-	hypothetical protein
162	 40.64	0	172869..173429	-	186	13540993	-	TVN0162	-	30S ribosomal protein S7P
163	 42.42	0	173432..173860	-	142	13540994	rps12P	TVN0163	-	30S ribosomal protein S12P
164	 39.13	0	174519..175535	+	338	13540995	-	TVN0164	-	phosphoribosylaminoimidazole synthetase
165	 40.31	0	175536..176453	-	305	13540996	-	TVN0165	-	ABC-type multidrug transport system, ATPase component
166	 38.16	0	176458..177285	-	275	13540997	-	TVN0166	-	ABC transporter permease
167	 41.38	0	177412..178020	+	202	13540998	-	TVN0167	-	Zn-dependent hydrolase
168	 41.77	0	178079..179275	+	398	13540999	-	TVN0168	-	galactonate dehydratase
169	 39.89	0	179306..180022	+	238	13541000	-	TVN0169	-	ATPase
170	 45.24	+1	180080..180289	+	69	13541001	-	TVN0170	-	hypothetical protein
171	 42.79	0	180390..180992	-	200	13541002	-	TVN0171	-	folate-dependent phosphoribosylglycinamide formyltransferase
172	 45.67	+1	181068..181448	-	126	13541003	-	TVN0172	-	hypothetical protein
173	 37.35	-1	181531..182103	-	190	13541004	tdk	TVN0173	-	thymidylate kinase
174	 41.97	0	182184..183353	+	389	13541005	-	TVN0174	-	cystathionine gamma-lyase
175	 40.93	0	183359..184108	-	249	13541006	-	TVN0175	-	deoxyribose-phosphate aldolase
176	 43.38	0	184113..185525	-	470	13541007	-	TVN0176	-	major facilitator superfamily permease
177	 31.75	-2	185679..185867	+	62	13541008	-	TVN0177	-	hypothetical protein
178	 36.80	-1	185868..186386	-	172	13541009	-	TVN0178	-	C4-type Zn finger protein
179	 43.58	0	186390..187433	-	347	13541010	-	TVN0179	-	isopentenyl pyrophosphate isomerase
180	 36.33	-1	187430..188164	-	244	13541011	-	TVN0180	-	kinase
181	 39.74	0	188161..188691	-	176	13541012	-	TVN0181	-	acetyltransferase
182	 39.27	0	188777..189568	+	263	13541013	-	TVN0182	-	Zn-dependent hydrolase
183	 39.96	0	189621..190586	-	321	13541014	-	TVN0183	-	phosphate uptake regulator
184	 37.25	-1	190639..191352	-	237	13541015	-	TVN0184	-	hypothetical protein
185	 41.71	0	191467..192051	+	194	13541016	-	TVN0185	-	transcription regulator
186	 41.76	0	192133..192666	+	177	13541017	-	TVN0186	-	hypothetical protein
187	 40.11	0	192660..193013	+	117	13541018	-	TVN0187	-	peptidyl-tRNA hydrolase
188	 33.92	-2	193127..193297	-	56	13541019	-	TVN0188	-	hypothetical protein
189	 43.35	0	193469..196114	+	881	13541020	-	TVN0189	-	aconitate hydratase
190	 43.90	0	196177..197397	+	406	13541021	-	TVN0190	-	threonine dehydratase
191	 39.13	0	197394..197945	+	183	13541022	-	TVN0191	-	RNA methylase
192	 38.38	0	198066..198521	+	151	13541023	-	TVN0192	-	transcription regulator
193	 42.66	0	198518..199096	-	192	13541024	-	TVN0193	-	SAM-dependent methyltransferase
40.87	MEAN

3.44	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
