IslandPath Analysis: Thermoplasma volcanium GSS1

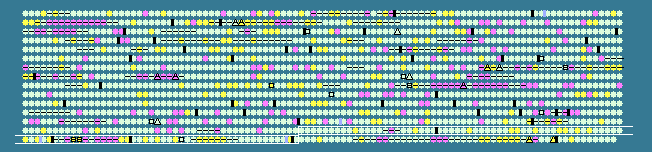

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.87   STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1347	 42.86	0	1419648..1419878	+	76	13542178	-	TVN1347	-	transcription regulator
1348	 43.53	0	1420005..1420367	+	120	13542179	-	TVN1348	-	hypothetical protein
1349	 40.78	0	1420446..1420982	+	178	13542180	-	TVN1349	-	chorismate mutase
1350	 39.56	0	1420979..1421572	+	197	13542181	-	TVN1350	-	prephenate dehydrogenase
1351	 41.64	0	1421569..1422507	+	312	13542182	-	TVN1351	-	3-deoxy-7-phosphoheptulonate synthase
1352	 40.93	0	1422495..1423547	-	350	13542183	-	TVN1352	-	pyruvate-formate lyase-activating enzyme
1353	 43.82	0	1423778..1425265	+	495	13542184	hutH	TVN1353	-	histidine ammonia-lyase
1354	 40.58	0	1425262..1425606	-	114	13542185	-	TVN1354	-	hypothetical protein
1355	 38.44	0	1425726..1427135	-	469	13542186	-	TVN1355	-	amino acid transporter
1356	 45.25	+1	1427251..1428912	+	553	13542187	-	TVN1356	-	urocanate hydratase
1357	 40.58	0	1428909..1430123	+	404	13542188	-	TVN1357	-	imidazolonepropionase
1358	 39.75	0	1430252..1431061	-	269	13542189	-	TVN1358	-	hypothetical protein
1359	 44.06	0	1431058..1431663	-	201	13542190	-	TVN1359	-	hypothetical protein
1360	 43.89	0	1431896..1433041	+	381	13542191	-	TVN1360	-	metal-dependent amidohydrolase
1361	 43.19	0	1433046..1433978	+	310	13542192	-	TVN1361	-	microcin C7 resistance protein MccF-like protein
1362	 37.04	-1	1433995..1434210	-	71	13542193	-	TVN1362	-	hypothetical protein
1363	 41.77	0	1434253..1434738	-	161	13542194	-	TVN1363	-	major facilitator superfamily permease
1364	 41.00	0	1434889..1435605	-	238	13542195	-	TVN1364	-	sugar transport permease
1365	 39.69	0	1435680..1436858	-	392	13542196	-	TVN1365	-	major facilitator superfamily permease
1366	 44.91	+1	1437000..1438442	+	480	13542197	-	TVN1366	-	multidrug efflux permease
1367	 41.61	0	1438477..1439394	+	305	13542198	-	TVN1367	-	ABC-type multidrug transport system, ATPase component
1368	 42.09	0	1439391..1440155	+	254	13542199	-	TVN1368	-	ABC transporter permease
1369	 42.02	0	1440158..1440802	+	214	13542200	-	TVN1369	-	phosphoribosyltransferase
1370	 40.32	0	1441065..1441436	+	123	13542201	-	TVN1370	-	hypothetical protein
1371	 39.47	0	1441923..1442264	+	113	13542202	-	TVN1371	-	hypothetical protein
1372	 42.44	0	1442259..1443653	-	464	13542203	-	TVN1372	-	DNA polymerase II small subunit
1373	 43.24	0	1443757..1444614	+	285	13542204	-	TVN1373	-	DMT family permease
1374	 40.32	0	1444617..1445804	-	395	13542205	-	TVN1374	-	NAD-dependent aldehyde dehydrogenase
1375	 47.67	+1	1445839..1447296	-	485	13542206	-	TVN1375	-	inositol-5-monophosphate dehydrogenase
1376	 41.33	0	1447366..1448115	-	249	13542207	-	TVN1376	-	solute-binding protein
1377	 42.26	0	1448112..1449209	-	365	13542208	-	TVN1377	-	hypothetical protein
1378	 43.14	0	1449429..1451111	+	560	13542209	-	TVN1378	-	Fe-S oxidoreductase
1379	 43.78	0	1451146..1452246	+	366	13542210	-	TVN1379	-	hypothetical protein
1380	 40.57	0	1452239..1453468	+	409	13542211	truD	TVN1380	-	tRNA pseudouridine synthase D
1381	 43.12	0	1453486..1454865	-	459	13542212	-	TVN1381	-	membrane glycosyltransferase
1382	 44.44	+1	1454962..1455843	-	293	13542213	-	TVN1382	-	electron transfer flavoprotein subunit alpha
1383	 44.44	+1	1455840..1456577	-	245	13542214	-	TVN1383	-	electron transfer flavoprotein subunit beta
1384	 40.87	0	1456691..1457884	-	397	13542215	-	TVN1384	-	major facilitator superfamily permease
1385	 43.98	0	1457991..1458422	+	143	13542216	-	TVN1385	-	hypothetical protein
1386	 44.42	+1	1458424..1459776	-	450	13542217	-	TVN1386	-	dihydrolipoamide dehydrogenase
1387	 42.05	0	1459898..1460734	+	278	13542218	-	TVN1387	-	CBS domain-containing protein
1388	 44.16	0	1460731..1462161	+	476	13542219	-	TVN1388	-	glycyl-tRNA synthetase
1389	 43.46	0	1462163..1463377	-	404	13542220	-	TVN1389	-	membrane component of an uncharacterized iron-regulated ABC-type transporter
1390	 45.99	+1	1463374..1464819	-	481	13542221	-	TVN1390	-	membrane component of an uncharacterized iron-regulated ABC-type transporter
1391	 45.88	+1	1464820..1465560	-	246	13542222	-	TVN1391	-	Iron-regulated ABC transporter ATPase subunit
1392	 41.36	0	1465653..1466300	+	215	13542223	-	TVN1392	-	transcription regulator
1393	 47.52	+1	1466311..1466613	+	100	13542224	-	TVN1393	-	aromatic ring hydroxylating enzyme
1394	 43.24	0	1466683..1467237	+	184	13542225	-	TVN1394	-	transcription factor
1395	 44.85	+1	1467238..1469217	-	659	13542226	-	TVN1395	-	Fe-S oxidoreductase
1396	 43.35	0	1469397..1470524	-	375	13542227	-	TVN1396	-	major facilitator superfamily permease
1397	 41.19	0	1470598..1470915	+	105	13542228	-	TVN1397	-	hypothetical protein
1398	 44.33	+1	1470916..1471506	-	196	13542229	-	TVN1398	-	hypothetical protein
1399	 40.88	0	1471558..1472127	+	189	13542230	-	TVN1399	-	ankyrin repeat-containing protein
1400	 43.97	0	1472194..1473030	+	278	13542231	-	TVN1400	-	adenine-specific DNA methylase
1401	 46.24	+1	1473053..1473478	+	141	13542232	-	TVN1401	-	stress-induced protein
1402	 44.12	0	1473494..1474114	-	206	13542233	-	TVN1402	-	alpha/beta superfamily hydrolase
1403	 46.05	+1	1474209..1475309	-	366	13542234	-	TVN1403	-	HD family phosphatase
1404	 42.59	0	1475681..1476274	+	197	13542235	-	TVN1404	-	SAM-dependent methyltransferase
1405	 49.85	+2	1477077..1477736	+	219	13542236	-	TVN1405	-	hypothetical protein
1406	 41.94	0	1478495..1479238	+	247	13542237	fabG	TVN1406	-	3-ketoacyl-(acyl-carrier-protein) reductase
1407	 38.25	0	1479283..1480482	-	399	13542238	-	TVN1407	-	major facilitator superfamily permease
1408	 37.19	-1	1480525..1481172	+	215	13542239	-	TVN1408	-	transcription regulator
1409	 48.10	+2	1483149..1483385	-	78	13542240	-	TVN1409	-	IS5 inactivated transposase
1410	 46.14	+1	1483393..1484040	-	215	13542241	-	TVN1410	-	IS5 inactivated transposase
1411	 31.77	-2	1484829..1485662	+	277	13542242	-	TVN1411	-	hypothetical protein
1412	 39.86	0	1485676..1485966	-	96	13542243	-	TVN1412	-	hypothetical protein
1413	 35.02	-1	1487043..1487993	+	316	13542244	-	TVN1413	-	adenine-specific DNA methylase
1414	 34.85	-1	1488041..1488832	+	263	13542245	-	TVN1414	-	hypothetical protein
1415	 32.37	-2	1489932..1490552	+	206	13542246	-	TVN1415	-	hypothetical protein
1416	 33.33	-2	1490633..1491781	+	382	13542247	-	TVN1416	-	adenine-specific DNA methylase
1417	 46.67	+1	1493094..1493393	-	99	13542248	-	TVN1417	-	hypothetical protein
1418	 47.19	+1	1494356..1494658	+	100	13542249	-	TVN1418	-	hypothetical protein
1419	 39.62	0	1494892..1496037	-	381	13542250	-	TVN1419	-	multidrug efflux permease
1420	 40.76	0	1496158..1497099	-	313	13542251	-	TVN1420	-	hypothetical protein
1421	 45.34	+1	1497152..1497634	+	160	13542252	-	TVN1421	-	hypothetical protein
1422	 40.13	0	1497808..1498425	-	205	13542253	-	TVN1422	-	transcription regulator
1423	 45.34	+1	1498611..1500026	-	471	13542254	-	TVN1423	-	amino acid transporter
1424	 42.16	0	1500171..1502957	+	928	13542255	-	TVN1424	-	ABC-type peptide transport system, solute-binding component
1425	 42.90	0	1503014..1504393	-	459	13542256	-	TVN1425	-	multidrug efflux permease
1426	 45.40	+1	1504499..1505227	-	242	13542257	-	TVN1426	-	flagellin
1427	 40.50	0	1505360..1506196	+	278	13542258	-	TVN1427	-	transposase
1428	 40.04	0	1506208..1506684	+	158	13542259	-	TVN1428	-	GTP:adenosylcobinamide-phosphate guanylyltransferase
1429	 42.61	0	1506668..1507411	-	247	13542260	-	TVN1429	-	ABC-type Fe3+-siderophores transporter, ATPase component
1430	 45.45	+1	1507408..1507869	-	153	13542261	-	TVN1430	-	hypothetical protein
1431	 47.27	+1	1507900..1508394	-	164	13542262	-	TVN1431	-	hypothetical protein
1432	 45.21	+1	1508405..1509541	-	378	13542263	-	TVN1432	-	NAD(FAD)-dependent dehydrogenase
1433	 47.26	+1	1509547..1509783	-	78	13542264	-	TVN1433	-	transcription regulator
1434	 45.89	+1	1509794..1510207	-	137	13542265	-	TVN1434	-	hypothetical protein
1435	 38.99	0	1510489..1510824	+	111	13542266	-	TVN1435	-	DNA-directed RNA polymerase subunit L
1436	 41.74	0	1510821..1511783	+	320	13542267	-	TVN1436	-	DNA modification methylase
1437	 44.24	0	1511805..1513619	+	604	13542268	-	TVN1437	-	RNA-binding protein  snRNP
1438	 42.51	0	1513716..1514630	+	304	13542269	-	TVN1438	-	bifunctional phosphoglucose/phosphomannose isomerase
1439	 43.18	0	1514647..1515408	-	253	13542270	-	TVN1439	-	hypothetical protein
1440	 43.51	0	1515492..1515776	+	94	13542271	-	TVN1440	-	hypothetical protein
1441	 41.99	0	1515782..1516243	-	153	13542272	-	TVN1441	-	RNA-binding protein
1442	 40.18	0	1516240..1517583	-	447	13542273	-	TVN1442	-	hypothetical protein
1443	 41.64	0	1517588..1518454	-	288	13542274	nusG	TVN1443	-	transcription antitermination protein NusG
1444	 42.22	0	1518472..1518786	-	104	13542275	-	TVN1444	-	protein translocase subunit Sss1
1445	 44.77	+1	1520544..1521671	-	375	13542276	-	TVN1445	-	hypothetical protein
1446	 42.57	0	1521948..1523495	-	515	13542277	-	TVN1446	-	alternative thymidylate synthase
40.87	MEAN

3.44	STD DEV
