IslandPathversion 1.0

IslandPath Analysis: Thermoplasma volcanium GSS1

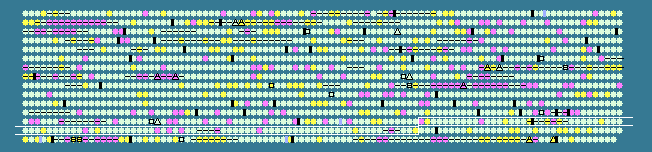

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1267	 35.93	-1	1330971..1331393	-	140	13542098	-	TVN1267	-	hypothetical protein
1268	 44.78	+1	1331499..1333358	-	619	13542099	-	TVN1268	-	Acyl-coenzyme A synthetase
1269	 43.26	0	1333406..1334554	-	382	13542100	-	TVN1269	-	isovaleryl-CoA dehydrogenase
1270	 39.34	0	1334636..1335184	-	182	13542101	-	TVN1270	-	molybdopterin-guanine dinucleotide biosynthesis protein
1271	 42.42	0	1335287..1336408	-	373	13542102	-	TVN1271	-	saccharopine dehydrogenase
1272	 42.20	0	1336486..1336812	-	108	13542103	-	TVN1272	-	transcription regulator
1273	 39.22	0	1336820..1337515	-	231	13542104	-	TVN1273	-	endonuclease III-like protein
1274	 43.37	0	1337512..1338747	-	411	13542105	-	TVN1274	-	translation initiation factor IF-2 subunit gamma
1275	 43.41	0	1338731..1339117	-	128	13542106	-	TVN1275	-	30S ribosomal protein S6e
1276	 44.00	0	1339245..1340828	+	527	13542107	-	TVN1276	-	O-sialoglycoprotein endopeptidase/protein kinase
1277	 36.74	-1	1340821..1341378	+	185	13542108	-	TVN1277	-	xanthosine triphosphate pyrophosphatase-like protein
1278	 43.82	0	1341660..1342946	+	428	13542109	-	TVN1278	-	dehydrogenase (flavoprotein)
1279	 39.56	0	1342957..1343229	+	90	13542110	-	TVN1279	-	ferredoxin-like protein
1280	 43.46	0	1343254..1344033	+	259	13542111	-	TVN1280	-	electron transfer flavoprotein subunit beta
1281	 45.43	+1	1344030..1345079	+	349	13542112	-	TVN1281	-	electron transfer flavoprotein subunit alpha
1282	 43.02	0	1345067..1347049	-	660	13542113	thrS	TVN1282	-	threonyl-tRNA synthetase
1283	 40.96	0	1347387..1348697	-	436	13542114	-	TVN1283	-	NAD-dependent aldehyde dehydrogenase
1284	 43.86	0	1348694..1349995	-	433	13542115	-	TVN1284	-	alcohol dehydrogenase IV
1285	 44.73	+1	1350001..1350816	-	271	13542116	-	TVN1285	-	Zn-dependent hydrolase (AttM-related)
1286	 39.80	0	1351159..1351854	-	231	13542117	-	TVN1286	-	hypothetical protein
1287	 40.34	0	1351870..1352511	-	213	13542118	-	TVN1287	-	triosephosphate isomerase
1288	 47.37	+1	1352610..1353122	-	170	13542119	-	TVN1288	-	deoxycytidylate deaminase
1289	 34.04	-1	1353176..1353460	-	94	13542120	-	TVN1289	-	hypothetical protein
1290	 45.03	+1	1353500..1354918	-	472	13542121	-	TVN1290	-	hypothetical protein
1291	 40.45	0	1355049..1355933	-	294	13542122	hemH	TVN1291	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1292	 39.34	0	1356017..1357015	+	332	13542123	hemE	TVN1292	-	uroporphyrinogen decarboxylase
1293	 41.53	0	1357012..1357926	+	304	13542124	hemH	TVN1293	-	ferrochelatase
1294	 40.72	0	1358012..1358959	+	315	13542125	-	TVN1294	-	dolichol kinase
1295	 41.00	0	1359071..1359370	-	99	13542126	-	TVN1295	-	hypothetical protein
1296	 37.76	0	1359439..1359732	-	97	13542127	-	TVN1296	-	hypothetical protein
1297	 45.65	+1	1359744..1360214	-	156	13542128	-	TVN1297	-	phosphoribosylcarboxyaminoimidazole carboxylase catalytic subunit
1298	 40.70	0	1360240..1361325	-	361	13542129	-	TVN1298	-	translation factor (SUA5-related)
1299	 41.79	0	1361435..1363786	+	783	13542130	-	TVN1299	-	aminopeptidase N
1300	 43.57	0	1363800..1365323	-	507	13542131	-	TVN1300	-	Na+/panthothenate symporter permease
1301	 40.80	0	1365320..1365520	-	66	13542132	-	TVN1301	-	hypothetical protein
1302	 40.10	0	1365594..1367885	-	763	13542133	-	TVN1302	-	Alpha-glucosidase
1303	 39.79	0	1368057..1369187	-	376	13542134	-	TVN1303	-	RNA helicase
1304	 46.10	+1	1369451..1370641	+	396	13542135	-	TVN1304	-	acetyl-CoA acetyltransferase
1305	 41.98	0	1370643..1371752	+	369	13542136	-	TVN1305	-	Acyl-CoA dehydrogenase
1306	 42.56	0	1371752..1372228	+	158	13542137	-	TVN1306	-	Acyl-CoA dehydrogenase
1307	 43.73	0	1372249..1372758	+	169	13542138	-	TVN1307	-	Acyl-CoA dehydrogenase
1308	 42.79	0	1373162..1373563	-	133	13542139	-	TVN1308	-	hypothetical protein
1309	 42.89	0	1373719..1375308	+	529	13542140	-	TVN1309	-	acyl-CoA synthetase
1310	 43.74	0	1375310..1377289	-	659	13542141	-	TVN1310	-	3-hydroxyacyl-CoA dehydrogenase
1311	 36.09	-1	1377296..1377622	-	108	13542142	-	TVN1311	-	sterol carrier protein
1312	 40.68	0	1377730..1378260	-	176	13542143	-	TVN1312	-	CBS domain-containing protein
1313	 45.74	+1	1378444..1380120	+	558	13542144	-	TVN1313	-	Fe-S oxidoreductase
1314	 42.79	0	1380154..1381158	+	334	13542145	-	TVN1314	-	oxidoreductase
1315	 42.67	0	1381191..1383032	-	613	13542146	-	TVN1315	-	hypothetical protein
1316	 41.55	0	1383228..1384310	+	360	13542147	aroB	TVN1316	-	3-dehydroquinate synthase
1317	 39.55	0	1384297..1385100	+	267	13542148	aroE	TVN1317	-	shikimate 5-dehydrogenase
1318	 42.87	0	1385087..1385893	+	268	13542149	-	TVN1318	-	shikimate kinase
1319	 41.61	0	1385883..1387115	+	410	13542150	-	TVN1319	-	3-phosphoshikimate 1-carboxyvinyltransferase
1320	 39.80	0	1387144..1388781	+	545	13542151	argS	TVN1320	-	arginyl-tRNA synthetase
1321	 39.69	0	1388786..1391662	-	958	13542152	-	TVN1321	-	hypothetical protein
1322	 44.11	0	1391663..1393063	-	466	13542153	-	TVN1322	-	hypothetical protein
1323	 37.35	-1	1393485..1393808	+	107	13542154	-	TVN1323	-	hypothetical protein
1324	 40.64	0	1393839..1394372	+	177	13542155	-	TVN1324	-	acetyltransferase
1325	 36.90	-1	1394373..1394708	-	111	13542156	-	TVN1325	-	hypothetical protein
1326	 39.38	0	1395016..1395957	+	313	13542157	-	TVN1326	-	Fe-S oxidoreductase
1327	 34.52	-1	1395987..1396322	-	111	13542158	-	TVN1327	-	hypothetical protein
1328	 41.70	0	1396300..1397733	-	477	13542159	-	TVN1328	-	ABC-type peptide transporter, ATPase component
1329	 38.88	0	1397733..1399301	-	522	13542160	-	TVN1329	-	ABC-type peptide transport system, ATPase component
1330	 40.83	0	1399304..1400263	-	319	13542161	-	TVN1330	-	ABC-type peptide transporter, permease component
1331	 41.85	0	1400273..1401364	-	363	13542162	-	TVN1331	-	ABC-type peptide transport system, permease component
1332	 42.42	0	1401500..1404382	-	960	13542163	-	TVN1332	-	ABC-type peptide transport system, solute-binding component
1333	 35.96	-1	1404760..1405254	+	164	13542164	-	TVN1333	-	hypothetical protein
1334	 43.16	0	1405258..1406112	-	284	13542165	-	TVN1334	-	2-oxoacid ferredoxin oxidoreductase subunit beta
1335	 42.21	0	1406112..1407869	-	585	13542166	-	TVN1335	-	2-oxoacid--ferredoxin oxidoreductase, alpha subunit
1336	 41.27	0	1408056..1409429	+	457	13542167	aspA	TVN1336	-	aspartate ammonia-lyase
1337	 38.58	0	1409444..1409977	-	177	13542168	-	TVN1337	-	transcription regulator
1338	 40.13	0	1410138..1411343	+	401	13542169	-	TVN1338	-	2-methylthioadenine synthetase
1339	 41.35	0	1411317..1412327	-	336	13542170	-	TVN1339	-	diphthamide synthase subunit DPH2
1340	 35.65	-1	1412448..1413137	-	229	13542171	-	TVN1340	-	hypothetical protein
1341	 40.16	0	1413232..1413744	-	170	13542172	-	TVN1341	-	hypothetical protein
1342	 42.27	0	1413828..1415270	-	480	13542173	-	TVN1342	-	sugar transport permease
1343	 40.05	0	1415417..1416517	-	366	13542174	-	TVN1343	-	Acyl-CoA dehydrogenase
1344	 40.62	0	1416654..1417421	+	255	13542175	fabG	TVN1344	-	3-ketoacyl-(acyl-carrier-protein) reductase
1345	 41.07	0	1417485..1418453	+	322	13542176	-	TVN1345	-	dehydrogenase
1346	 41.07	0	1418445..1419530	-	361	13542177	-	TVN1346	-	N-acylamino acid racemase
1347	 42.86	0	1419648..1419878	+	76	13542178	-	TVN1347	-	transcription regulator
1348	 43.53	0	1420005..1420367	+	120	13542179	-	TVN1348	-	hypothetical protein
1349	 40.78	0	1420446..1420982	+	178	13542180	-	TVN1349	-	chorismate mutase
1350	 39.56	0	1420979..1421572	+	197	13542181	-	TVN1350	-	prephenate dehydrogenase
1351	 41.64	0	1421569..1422507	+	312	13542182	-	TVN1351	-	3-deoxy-7-phosphoheptulonate synthase
1352	 40.93	0	1422495..1423547	-	350	13542183	-	TVN1352	-	pyruvate-formate lyase-activating enzyme
1353	 43.82	0	1423778..1425265	+	495	13542184	hutH	TVN1353	-	histidine ammonia-lyase
1354	 40.58	0	1425262..1425606	-	114	13542185	-	TVN1354	-	hypothetical protein
1355	 38.44	0	1425726..1427135	-	469	13542186	-	TVN1355	-	amino acid transporter
1356	 45.25	+1	1427251..1428912	+	553	13542187	-	TVN1356	-	urocanate hydratase
1357	 40.58	0	1428909..1430123	+	404	13542188	-	TVN1357	-	imidazolonepropionase
1358	 39.75	0	1430252..1431061	-	269	13542189	-	TVN1358	-	hypothetical protein
1359	 44.06	0	1431058..1431663	-	201	13542190	-	TVN1359	-	hypothetical protein
1360	 43.89	0	1431896..1433041	+	381	13542191	-	TVN1360	-	metal-dependent amidohydrolase
1361	 43.19	0	1433046..1433978	+	310	13542192	-	TVN1361	-	microcin C7 resistance protein MccF-like protein
1362	 37.04	-1	1433995..1434210	-	71	13542193	-	TVN1362	-	hypothetical protein
1363	 41.77	0	1434253..1434738	-	161	13542194	-	TVN1363	-	major facilitator superfamily permease
1364	 41.00	0	1434889..1435605	-	238	13542195	-	TVN1364	-	sugar transport permease
1365	 39.69	0	1435680..1436858	-	392	13542196	-	TVN1365	-	major facilitator superfamily permease
1366	 44.91	+1	1437000..1438442	+	480	13542197	-	TVN1366	-	multidrug efflux permease
40.87	MEAN

3.44	STD DEV
