IslandPath Analysis: Thermoplasma volcanium GSS1

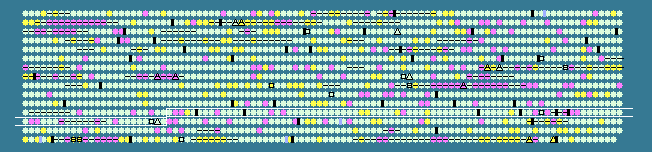

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1125	 39.27	0	1178481..1179272	-	263	13541956	-	TVN1125	-	5,10-methylenetetrahydrofolate reductase
1126	 34.98	-1	1179340..1179765	+	141	13541957	-	TVN1126	-	hypothetical protein
1127	 35.05	-1	1179749..1180156	-	135	13541958	-	TVN1127	-	transcription regulator
1128	 46.52	+1	1180337..1181974	+	545	13541959	-	TVN1128	-	chaperonin GroEL
1129	 42.37	0	1182043..1183005	+	320	13541960	-	TVN1129	-	thioredoxin reductase
1130	 41.67	0	1183365..1184036	+	223	13541961	-	TVN1130	-	threonine dehydratase
1131	 40.88	0	1184142..1184459	+	105	13541962	-	TVN1131	-	hypothetical protein
1132	 38.52	0	1184913..1185779	+	288	13541963	-	TVN1132	-	protoheme IX farnesyltransferase
1133	 36.69	-1	1185824..1186360	+	178	13541964	-	TVN1133	-	hypothetical protein
1134	 41.73	0	1186695..1187063	+	122	13541965	-	TVN1134	-	50S ribosomal protein L18e
1135	 38.44	0	1187069..1187479	+	136	13541966	rpl13p	TVN1135	-	50S ribosomal protein L13P
1136	 41.85	0	1187481..1187879	+	132	13541967	rps9p	TVN1136	-	30S ribosomal protein S9P
1137	 40.64	0	1187885..1188103	+	72	13541968	-	TVN1137	-	DNA-directed RNA polymerase subunit N
1138	 41.08	0	1189091..1190485	+	464	13541969	-	TVN1138	-	hypothetical protein
1139	 40.95	0	1190495..1191334	-	279	13541970	-	TVN1139	-	pyrroline-5-carboxylate reductase
1140	 39.19	0	1191381..1191875	-	164	13541971	-	TVN1140	-	hypothetical protein
1141	 41.42	0	1192129..1193625	-	498	13541972	-	TVN1141	-	glycerol kinase
1142	 37.34	-1	1193765..1194688	+	307	13541973	-	TVN1142	-	hypothetical protein
1143	 41.72	0	1194876..1196198	+	440	13541974	-	TVN1143	-	sugar-binding protein
1144	 37.31	-1	1196202..1197131	+	309	13541975	-	TVN1144	-	ABC-type sugar transporter, permease component
1145	 40.09	0	1197134..1198021	+	295	13541976	-	TVN1145	-	sugar permease
1146	 41.04	0	1198028..1199143	+	371	13541977	-	TVN1146	-	ABC-type sugar transporter, ATPase component
1147	 40.68	0	1199109..1201040	+	643	13541978	-	TVN1147	-	glycogen debranching protein
1148	 38.74	0	1201046..1202803	+	585	13541979	-	TVN1148	-	glycogen debranching protein
1149	 40.13	0	1202787..1203845	-	352	13541980	-	TVN1149	-	transcription regulator
1150	 43.22	0	1204140..1206092	+	650	13541981	-	TVN1150	-	Acyl-coenzyme A synthetase
1151	 43.79	0	1206089..1206700	+	203	13541982	-	TVN1151	-	hypothetical protein
1152	 41.18	0	1206711..1207577	-	288	13541983	-	TVN1152	-	aldo/keto reductase
1153	 43.21	0	1207583..1208473	-	296	13541984	-	TVN1153	-	hypothetical protein
1154	 38.10	0	1208678..1208887	-	69	13541985	-	TVN1154	-	hypothetical protein
1155	 42.07	0	1209022..1210005	+	327	13541986	-	TVN1155	-	permease
1156	 38.85	0	1210002..1210382	+	126	13541987	-	TVN1156	-	hypothetical protein
1157	 44.95	+1	1210440..1211894	+	484	13541988	-	TVN1157	-	putative oxidoreductase
1158	 45.62	+1	1212110..1213330	+	406	13541989	-	TVN1158	-	cofactor-independent phosphoglycerate mutase
1159	 42.54	0	1213430..1213972	+	180	13541990	-	TVN1159	-	hypothetical protein
1160	 44.10	0	1213986..1215350	-	454	13541991	-	TVN1160	-	proline/betaine transport permease
1161	 41.92	0	1215416..1216615	-	399	13541992	-	TVN1161	-	carnitine dehydratase
1162	 40.28	0	1216673..1217104	-	143	13541993	-	TVN1162	-	transcription regulator (SlyA-related)
1163	 44.90	+1	1217101..1218864	-	587	13541994	-	TVN1163	-	multidrug efflux permease
1164	 34.70	-1	1218962..1219474	+	170	13541995	-	TVN1164	-	hypothetical protein
1165	 39.14	0	1219531..1219926	+	131	13541996	-	TVN1165	-	hypothetical protein
1166	 38.79	0	1219960..1220490	-	176	13541997	-	TVN1166	-	secreted endonuclease distantly related to Holliday junction resolvase
1167	 40.14	0	1220593..1221180	+	195	13541998	-	TVN1167	-	alpha/beta superfamily hydrolase
1168	 44.44	+1	1221182..1222441	-	419	13541999	-	TVN1168	-	hydroxymethylglutaryl-CoA reductase
1169	 40.16	0	1222485..1223699	-	404	13542000	-	TVN1169	-	multidrug efflux permease
1170	 42.27	0	1223864..1224769	+	301	13542001	-	TVN1170	-	dihydroorotate dehydrogenase 1B
1171	 41.97	0	1224766..1225518	+	250	13542002	-	TVN1171	-	dihydroorotate dehydrogenase electron transfer subunit
1172	 37.45	0	1225570..1228122	+	850	13542003	-	TVN1172	-	TPR repeat-containing protein
1173	 38.18	0	1228061..1228927	-	288	13542004	-	TVN1173	-	hypothetical protein
1174	 41.50	0	1228987..1229292	-	101	13542005	-	TVN1174	-	hypothetical protein
1175	 42.88	0	1230030..1231223	+	397	13542006	-	TVN1175	-	Acyl-CoA dehydrogenase
1176	 40.89	0	1231330..1231911	+	193	13542007	-	TVN1176	-	putative RNA-processing protein
1177	 37.83	0	1232029..1232784	-	251	13542008	-	TVN1177	-	serine/threonine protein kinase
1178	 41.13	0	1232812..1233183	-	123	13542009	-	TVN1178	-	translation initiation factor IF-1A
1179	 37.76	0	1233261..1233689	-	142	13542010	nusA	TVN1179	-	transcription elongation factor NusA-like protein
1180	 42.67	0	1233699..1235240	-	513	13542011	-	TVN1180	-	DNA-directed RNA polymerase subunit A''
1181	 44.19	0	1235237..1237897	-	886	13542012	-	TVN1181	-	DNA-directed RNA polymerase subunit alpha
1182	 45.43	+1	1237894..1241481	-	1195	13542013	-	TVN1182	-	DNA-directed RNA polymerase subunit beta
1183	 38.26	0	1241478..1241741	-	87	13542014	rpoH	TVN1183	-	DNA-directed RNA polymerase subunit H
1184	 40.56	0	1241900..1242715	-	271	13542015	-	TVN1184	-	hypothetical protein
1185	 40.48	0	1242712..1243788	-	358	13542016	-	TVN1185	-	replication factor A
1186	 34.62	-1	1243935..1244633	+	232	13542017	-	TVN1186	-	transcription regulator
1187	 40.86	0	1244656..1245837	-	393	13542018	-	TVN1187	-	transposase
1188	 28.09	-2	1245857..1246180	-	107	13542019	-	TVN1188	-	transcription regulator
1189	 38.63	0	1246465..1246974	-	169	13542020	-	TVN1189	-	inorganic pyrophosphatase
1190	 38.58	0	1247214..1247804	-	196	13542021	-	TVN1190	-	ATP:corrinoid adenosyltransferase
1191	 35.28	-1	1247883..1248551	+	222	13542022	-	TVN1191	-	ribosome biogenesis protein
1192	 28.12	-2	1248764..1249051	-	95	13542023	-	TVN1192	-	hypothetical protein
1193	 35.40	-1	1249252..1249542	-	96	13542024	-	TVN1193	-	hypothetical protein
1194	 38.65	0	1250055..1251221	-	388	13542025	-	TVN1194	-	galactonate dehydratase
1195	 41.74	0	1252494..1253183	+	229	13542026	-	TVN1195	-	serine/threonine protein phosphatase
1196	 38.39	0	1253697..1254131	+	144	13542027	-	TVN1196	-	transcription regulator
1197	 40.73	0	1255890..1257431	-	513	13542028	-	TVN1197	-	benzoylformate decarboxylase
1198	 40.75	0	1257432..1258361	-	309	13542029	-	TVN1198	-	2-hydroxyacid dehydrogenase
1199	 38.43	0	1258483..1258953	+	156	13542030	-	TVN1199	-	hypothetical protein
1200	 42.14	0	1258977..1261565	+	862	13542031	-	TVN1200	-	penicillin amidase related protein
1201	 41.37	0	1261595..1261930	+	111	13542032	-	TVN1201	-	hypothetical protein
1202	 36.49	-1	1262323..1262670	-	115	13542033	-	TVN1202	-	hypothetical protein
1203	 36.51	-1	1262718..1263221	-	167	13542034	-	TVN1203	-	hypothetical protein
1204	 39.73	0	1263637..1265169	+	510	13542035	-	TVN1204	-	TPR repeat-containing protein
1205	 38.89	0	1265213..1266004	+	263	13542036	-	TVN1205	-	hypothetical protein
1206	 41.99	0	1266214..1267449	+	411	13542037	-	TVN1206	-	NAD(FAD)-dependent dehydrogenase
1207	 34.02	-1	1267452..1267742	+	96	13542038	-	TVN1207	-	hypothetical protein
1208	 38.13	0	1267907..1268344	+	145	13542039	rps15p	TVN1208	-	30S ribosomal protein S15P
1209	 40.39	0	1268341..1269687	+	448	13542040	-	TVN1209	-	single-stranded DNA-specific exonuclease
1210	 37.88	0	1269764..1270423	+	219	13542041	-	TVN1210	-	hypothetical protein
1211	 38.97	0	1270428..1271207	-	259	13542042	-	TVN1211	-	hypothetical protein
1212	 38.65	0	1271204..1277434	-	2076	13542043	-	TVN1212	-	hypothetical protein
1213	 34.93	-1	1277788..1278162	+	124	13542044	-	TVN1213	-	prefoldin subunit beta
1214	 38.13	0	1278159..1279013	+	284	13542045	-	TVN1214	-	GTP cyclohydrolase
1215	 38.00	0	1279046..1279474	-	142	13542046	-	TVN1215	-	cytidylyltransferase
1216	 36.42	-1	1279532..1279984	+	150	13542047	-	TVN1216	-	acetyltransferase
1217	 40.79	0	1280038..1280493	+	151	13542048	-	TVN1217	-	HIT (histidine triad) family protein
1218	 40.70	0	1280648..1281244	+	198	13542049	-	TVN1218	-	orotate phosphoribosyltransferase
1219	 40.87	0	1281403..1282914	+	503	13542050	lysK	TVN1219	-	lysyl-tRNA synthetase
1220	 38.97	0	1282981..1284612	+	543	13542051	-	TVN1220	-	methionyl-tRNA synthetase
1221	 40.52	0	1284768..1285073	+	101	13542052	-	TVN1221	-	cationic amino acid transporter
1222	 41.81	0	1285178..1286428	-	416	13542053	-	TVN1222	-	transposase
1223	 38.17	0	1286418..1286996	-	192	13542054	-	TVN1223	-	site-specific integrase-resolvase
1224	 40.57	0	1287157..1288110	+	317	13542055	-	TVN1224	-	amino acid transporter
40.87	MEAN

3.44	STD DEV
