IslandPathversion 1.0

IslandPath Analysis: Thermoplasma volcanium GSS1

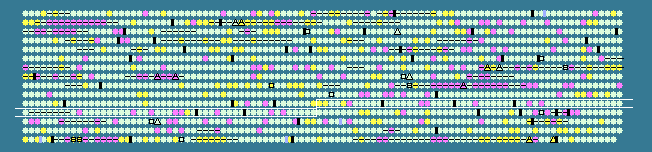

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.87 STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1050	 45.40	+1	1106762..1107076	-	104	13541881	rps10p	TVN1050	-	30S ribosomal protein S10P
1051	 46.59	+1	1107082..1108356	-	424	13541882	-	TVN1051	-	elongation factor 1-alpha
1052	 40.98	0	1108542..1109522	+	326	13541883	moaA	TVN1052	-	molybdenum cofactor biosynthesis protein A
1053	 40.54	0	1109669..1110889	+	406	13541884	-	TVN1053	-	major facilitator superfamily permease
1054	 45.83	+1	1110903..1112447	-	514	13541885	-	TVN1054	-	NAD-dependent aldehyde dehydrogenase
1055	 33.90	-2	1112501..1112677	-	58	13541886	-	TVN1055	-	hypothetical protein
1056	 41.84	0	1112685..1113848	-	387	13541887	-	TVN1056	-	arsenite transporting ATPase
1057	 41.28	0	1113858..1114838	-	326	13541888	-	TVN1057	-	octaprenyl diphosphate synthase
1058	 40.74	0	1115434..1115703	-	89	13541889	-	TVN1058	-	chromatin protein
1059	 38.18	0	1116040..1116741	+	233	13541890	-	TVN1059	-	3-oxoacyl-[acyl-carrier-protein] reductase
1060	 42.86	0	1116776..1117951	-	391	13541891	-	TVN1060	-	major facilitator superfamily permease
1061	 37.63	0	1118431..1118709	+	92	13541892	-	TVN1061	-	hypothetical protein
1062	 41.03	0	1118724..1119464	-	246	13541893	-	TVN1062	-	DNA polymerase sliding clamp
1063	 40.95	0	1119628..1120467	-	279	13541894	-	TVN1063	-	hypothetical protein
1064	 38.86	0	1120468..1121769	-	433	13541895	-	TVN1064	-	hypothetical protein
1065	 41.98	0	1121766..1122725	-	319	13541896	-	TVN1065	-	MoxR-like ATPase
1066	 39.06	0	1122712..1123095	-	127	13541897	-	TVN1066	-	hypothetical protein
1067	 35.74	-1	1123172..1123753	-	193	13541898	-	TVN1067	-	hypothetical protein
1068	 37.09	-1	1123753..1126494	-	913	13541899	-	TVN1068	-	hypothetical protein
1069	 38.36	0	1126727..1128259	-	510	13541900	-	TVN1069	-	queuine tRNA-ribosyltransferase
1070	 40.08	0	1128771..1129511	-	246	13541901	truA	TVN1070	-	tRNA pseudouridine synthase A
1071	 42.58	0	1129508..1130524	-	338	13541902	-	TVN1071	-	tRNA 2'-O-methylase
1072	 40.04	0	1130521..1131027	-	168	13541903	-	TVN1072	-	hypothetical protein
1073	 38.89	0	1131371..1131532	-	53	13541904	-	TVN1073	-	hypothetical protein
1074	 37.91	0	1131795..1132799	+	334	13541905	-	TVN1074	-	methyltransferase
1075	 40.74	0	1133061..1133276	-	71	13541906	-	TVN1075	-	small nuclear ribonucleoprotein (snRNP)-like protein
1076	 33.33	-2	1133289..1133450	-	53	13541907	-	TVN1076	-	hypothetical protein
1077	 41.05	0	1133467..1134075	-	202	13541908	-	TVN1077	-	exosome complex RNA-binding protein Csl4
1078	 38.61	0	1134366..1135520	+	384	13541909	-	TVN1078	-	major facilitator superfamily permease
1079	 42.07	0	1135544..1136722	-	392	13541910	-	TVN1079	-	succinyl-diaminopimelate desuccinylase
1080	 39.66	0	1136823..1137407	+	194	13541911	-	TVN1080	-	hypothetical protein
1081	 40.68	0	1137473..1138861	+	462	13541912	-	TVN1081	-	prolyl-tRNA synthetase
1082	 38.81	0	1138861..1139499	+	212	13541913	-	TVN1082	-	phosphoserine phosphatase
1083	 43.45	0	1139885..1140823	-	312	13541914	tfb	TVN1083	-	transcription initiation factor IIB
1084	 39.61	0	1140833..1141039	-	68	13541915	-	TVN1084	-	H/ACA RNA-protein complex component Gar1
1085	 36.50	-1	1141285..1142262	+	325	13541916	-	TVN1085	-	GTPase
1086	 41.53	0	1142243..1143889	+	548	13541917	gltX	TVN1086	-	glutamyl-tRNA synthetase
1087	 34.12	-1	1143890..1144144	-	84	13541918	-	TVN1087	-	hypothetical protein
1088	 43.02	0	1144148..1144756	-	202	13541919	-	TVN1088	-	GMP synthase subunit A
1089	 43.84	0	1144753..1145694	-	313	13541920	tfb	TVN1089	-	transcription initiation factor IIB
1090	 39.16	0	1146079..1147365	+	428	13541921	aspC	TVN1090	-	aspartyl-tRNA synthetase
1091	 38.10	0	1147653..1148597	+	314	13541922	-	TVN1091	-	3-hydroxyacyl-CoA dehydrogenase
1092	 42.36	0	1148602..1148889	-	95	13541923	-	TVN1092	-	hypothetical protein
1093	 39.81	0	1149034..1149465	-	143	13541924	-	TVN1093	-	transcription factor
1094	 40.51	0	1149537..1150205	+	222	13541925	-	TVN1094	-	fibrillarin
1095	 40.83	0	1150252..1150731	+	159	13541926	-	TVN1095	-	6-pyruvoyl-tetrahydropterin synthase
1096	 40.77	0	1150733..1151458	+	241	13541927	-	TVN1096	-	ATPase
1097	 43.25	0	1151701..1152678	-	325	13541928	-	TVN1097	-	malate dehydrogenase
1098	 39.08	0	1152945..1154372	+	475	13541929	-	TVN1098	-	ATPase
1099	 42.48	0	1154375..1154986	-	203	13541930	-	TVN1099	-	putative peroxiredoxin
1100	 43.17	0	1155064..1156029	-	321	13541931	-	TVN1100	-	delta-aminolevulinic acid dehydratase
1101	 38.14	0	1156112..1156444	+	110	13541932	-	TVN1101	-	hypothetical protein
1102	 38.62	0	1156448..1156693	-	81	13541933	-	TVN1102	-	hypothetical protein
1103	 39.64	0	1156690..1157022	-	110	13541934	-	TVN1103	-	hypothetical protein
1104	 39.45	0	1157047..1158468	-	473	13541935	-	TVN1104	-	NADH dehydrogenase subunit N
1105	 40.17	0	1158465..1160015	-	516	13541936	-	TVN1105	-	NADH dehydrogenase subunit M
1106	 42.90	0	1160017..1161072	-	351	13541937	-	TVN1106	-	NADH:ubiquinone oxidoreductase subunit 5 (chain L)
1107	 42.74	0	1161017..1162015	-	332	13541938	-	TVN1107	-	NADH:ubiquinone oxidoreductase subunit 5 (chain L)
1108	 39.10	0	1162018..1162329	-	103	13541939	-	TVN1108	-	NADH dehydrogenase subunit K
1109	 38.81	0	1162330..1162548	-	72	13541940	-	TVN1109	-	NADH dehydrogenase subunit J
1110	 34.94	-1	1162541..1162789	-	82	13541941	-	TVN1110	-	NADH dehydrogenase subunit J
1111	 39.57	0	1162786..1163250	-	154	13541942	-	TVN1111	-	NADH dehydrogenase subunit I
1112	 38.90	0	1163214..1164254	-	346	13541943	-	TVN1112	-	NADH dehydrogenase subunit H
1113	 43.03	0	1164251..1165354	-	367	13541944	-	TVN1113	-	NADH dehydrogenase subunit D
1114	 42.76	0	1165354..1165809	-	151	13541945	-	TVN1114	-	NADH dehydrogenase subunit C
1115	 44.09	0	1165809..1166282	-	157	13541946	-	TVN1115	-	NADH dehydrogenase subunit B
1116	 40.13	0	1166270..1166725	-	151	13541947	-	TVN1116	-	NADH dehydrogenase subunit A
1117	 39.57	0	1166951..1168747	-	598	13541948	-	TVN1117	-	glutamyl-tRNA(Gln) amidotransferase subunit E
1118	 39.89	0	1168744..1169964	-	406	13541949	-	TVN1118	-	glutamyl-tRNA(Gln) amidotransferase subunit D
1119	 37.21	-1	1170047..1170820	+	257	13541950	-	TVN1119	-	hypothetical protein
1120	 42.60	0	1170798..1171952	-	384	13541951	-	TVN1120	-	Acyl-CoA dehydrogenase
1121	 38.64	0	1172230..1173228	-	332	13541952	-	TVN1121	-	DNA primase small subunit
1122	 37.04	-1	1173264..1176557	+	1097	13541953	-	TVN1122	-	serine protease
1123	 38.55	0	1176554..1177588	-	344	13541954	-	TVN1123	-	methionine synthase
1124	 37.41	-1	1177590..1178471	-	293	13541955	-	TVN1124	-	hypothetical protein
1125	 39.27	0	1178481..1179272	-	263	13541956	-	TVN1125	-	5,10-methylenetetrahydrofolate reductase
1126	 34.98	-1	1179340..1179765	+	141	13541957	-	TVN1126	-	hypothetical protein
1127	 35.05	-1	1179749..1180156	-	135	13541958	-	TVN1127	-	transcription regulator
1128	 46.52	+1	1180337..1181974	+	545	13541959	-	TVN1128	-	chaperonin GroEL
1129	 42.37	0	1182043..1183005	+	320	13541960	-	TVN1129	-	thioredoxin reductase
1130	 41.67	0	1183365..1184036	+	223	13541961	-	TVN1130	-	threonine dehydratase
1131	 40.88	0	1184142..1184459	+	105	13541962	-	TVN1131	-	hypothetical protein
1132	 38.52	0	1184913..1185779	+	288	13541963	-	TVN1132	-	protoheme IX farnesyltransferase
1133	 36.69	-1	1185824..1186360	+	178	13541964	-	TVN1133	-	hypothetical protein
1134	 41.73	0	1186695..1187063	+	122	13541965	-	TVN1134	-	50S ribosomal protein L18e
1135	 38.44	0	1187069..1187479	+	136	13541966	rpl13p	TVN1135	-	50S ribosomal protein L13P
1136	 41.85	0	1187481..1187879	+	132	13541967	rps9p	TVN1136	-	30S ribosomal protein S9P
1137	 40.64	0	1187885..1188103	+	72	13541968	-	TVN1137	-	DNA-directed RNA polymerase subunit N
1138	 41.08	0	1189091..1190485	+	464	13541969	-	TVN1138	-	hypothetical protein
1139	 40.95	0	1190495..1191334	-	279	13541970	-	TVN1139	-	pyrroline-5-carboxylate reductase
1140	 39.19	0	1191381..1191875	-	164	13541971	-	TVN1140	-	hypothetical protein
1141	 41.42	0	1192129..1193625	-	498	13541972	-	TVN1141	-	glycerol kinase
1142	 37.34	-1	1193765..1194688	+	307	13541973	-	TVN1142	-	hypothetical protein
1143	 41.72	0	1194876..1196198	+	440	13541974	-	TVN1143	-	sugar-binding protein
1144	 37.31	-1	1196202..1197131	+	309	13541975	-	TVN1144	-	ABC-type sugar transporter, permease component
1145	 40.09	0	1197134..1198021	+	295	13541976	-	TVN1145	-	sugar permease
1146	 41.04	0	1198028..1199143	+	371	13541977	-	TVN1146	-	ABC-type sugar transporter, ATPase component
1147	 40.68	0	1199109..1201040	+	643	13541978	-	TVN1147	-	glycogen debranching protein
1148	 38.74	0	1201046..1202803	+	585	13541979	-	TVN1148	-	glycogen debranching protein
1149	 40.13	0	1202787..1203845	-	352	13541980	-	TVN1149	-	transcription regulator
40.87	MEAN

3.44	STD DEV
