IslandPath Analysis: Thermoplasma volcanium GSS1

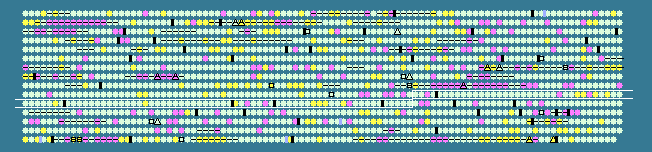

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.87   STD DEV: 3.44
Thermoplasma volcanium GSS1, complete genome - 1..1584804
1499 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
966	 39.51	0	1018247..1019152	+	301	13541797	-	TVN0966	-	phosphate uptake regulator
967	 39.47	0	1019249..1019998	+	249	13541798	-	TVN0967	-	permease
968	 33.74	-2	1020030..1020524	-	164	13541799	-	TVN0968	-	hypothetical protein
969	 39.65	0	1020565..1021134	-	189	13541800	-	TVN0969	-	hypothetical protein
970	 41.19	0	1021365..1022522	-	385	13541801	-	TVN0970	-	hypothetical protein
971	 39.98	0	1022523..1023365	-	280	13541802	-	TVN0971	-	endonuclease IV
972	 43.56	0	1023371..1024084	-	237	13541803	-	TVN0972	-	transcription regulator
973	 42.81	0	1024312..1025493	+	393	13541804	-	TVN0973	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
974	 38.43	0	1025483..1026247	+	254	13541805	-	TVN0974	-	amidohydrolase
975	 39.86	0	1026250..1026954	-	234	13541806	-	TVN0975	-	alpha/beta superfamily hydrolase
976	 44.08	0	1027096..1029756	+	886	13541807	-	TVN0976	-	pyruvate phosphate dikinase
977	 39.81	0	1029778..1030194	-	138	13541808	-	TVN0977	-	DNA-binding protein
978	 40.58	0	1030250..1030594	-	114	13541809	-	TVN0978	-	ferredoxin
979	 42.30	0	1030681..1031550	+	289	13541810	-	TVN0979	-	ribokinase family sugar kinase
980	 43.10	0	1031698..1032219	+	173	13541811	-	TVN0980	-	acetyltransferase
981	 43.28	0	1032254..1033459	+	401	13541812	eno	TVN0981	-	phosphopyruvate hydratase
982	 43.32	0	1033444..1034064	+	206	13541813	-	TVN0982	-	diphthine synthase
983	 40.26	0	1034191..1034796	-	201	13541814	-	TVN0983	-	transcription regulator
984	 42.62	0	1034799..1035347	-	182	13541815	-	TVN0984	-	molecular chaperone (small heat shock protein, hsp20-related)
985	 39.67	0	1035393..1038440	-	1015	13541816	-	TVN0985	-	transporter
986	 42.66	0	1038522..1039754	+	410	13541817	-	TVN0986	-	S-adenosyl-L-homocysteine hydrolase
987	 41.78	0	1039759..1041084	-	441	13541818	-	TVN0987	-	seryl-tRNA synthetase
988	 39.26	0	1041141..1042187	-	348	13541819	-	TVN0988	-	Kef-type K+ transporter NAD-binding component
989	 40.36	0	1042450..1043445	-	331	13541820	-	TVN0989	-	tyrosyl-tRNA synthetase
990	 36.78	-1	1043574..1043834	+	86	13541821	-	TVN0990	-	lipoate-protein ligase A
991	 43.47	0	1043836..1044624	+	262	13541822	-	TVN0991	-	lipoate-protein ligase A
992	 43.20	0	1044736..1046103	+	455	13541823	-	TVN0992	-	signal recognition particle protein Srp54
993	 46.35	+1	1046096..1047286	-	396	13541824	-	TVN0993	-	geranylgeranyl reductase
994	 44.60	+1	1047273..1047485	-	70	13541825	-	TVN0994	-	ferredoxin subunit of tungsten formylmethanofuran dehydrogenase
995	 37.25	-1	1047701..1048567	-	288	13541826	-	TVN0995	-	coiled-coil protein
996	 44.88	+1	1048762..1050051	+	429	13541827	asnC	TVN0996	-	asparaginyl-tRNA synthetase
997	 41.13	0	1050098..1050802	-	234	13541828	-	TVN0997	-	hypothetical protein
998	 47.58	+1	1050816..1051826	-	336	13541829	-	TVN0998	-	pyridoxine biosynthesis protein
999	 42.84	0	1051950..1053296	+	448	13541830	-	TVN0999	-	adenylosuccinate lyase
1000	 42.64	0	1053297..1053887	+	196	13541831	-	TVN1000	-	hypothetical protein
1001	 42.72	0	1053893..1054510	-	205	13541832	-	TVN1001	-	ATPase
1002	 41.92	0	1054535..1055338	-	267	13541833	-	TVN1002	-	thiamine monophosphate kinase
1003	 42.51	0	1055578..1057059	-	493	13541834	-	TVN1003	-	single-stranded DNA-specific exonuclease
1004	 38.94	0	1057056..1058108	-	350	13541835	-	TVN1004	-	Fe-S oxidoreductase
1005	 41.80	0	1058196..1059341	+	381	13541836	-	TVN1005	-	aspartate aminotransferase
1006	 44.84	+1	1059400..1060320	+	306	13541837	-	TVN1006	-	homoserine kinase
1007	 39.77	0	1060298..1061416	+	372	13541838	-	TVN1007	-	cystathionine beta-lyase or cystathionine gamma-synthase
1008	 38.38	0	1061681..1062076	-	131	13541839	-	TVN1008	-	hypothetical protein
1009	 40.12	0	1062110..1063258	-	382	13541840	-	TVN1009	-	translation-associated GTPase
1010	 43.50	0	1063293..1064915	-	540	13541841	-	TVN1010	-	Fe-S oxidoreductase
1011	 41.61	0	1065076..1065993	-	305	13541842	-	TVN1011	-	heat shock protein HtpX
1012	 38.42	0	1066198..1067415	+	405	13541843	-	TVN1012	-	ATPase
1013	 40.64	0	1067417..1068265	+	282	13541844	-	TVN1013	-	hypothetical protein
1014	 42.28	0	1068262..1068999	+	245	13541845	-	TVN1014	-	hypothetical protein
1015	 41.61	0	1068996..1070228	+	410	13541846	-	TVN1015	-	ATPase
1016	 38.57	0	1070221..1071519	-	432	13541847	-	TVN1016	-	NhaP-type Na+/H+ antiporter
1017	 41.43	0	1071522..1072250	-	242	13541848	nadE	TVN1017	-	NAD synthetase
1018	 41.73	0	1072456..1073301	-	281	13541849	-	TVN1018	-	5,10-methylene-tetrahydrofolate dehydrogenase
1019	 41.62	0	1073292..1074377	-	361	13541850	-	TVN1019	-	glucose 1-dehydrogenase
1020	 41.94	0	1074483..1076108	+	541	13541851	-	TVN1020	-	pyruvate kinase
1021	 45.68	+1	1076124..1077605	-	493	13541852	-	TVN1021	-	NAD-dependent aldehyde dehydrogenase
1022	 38.94	0	1077942..1078655	-	237	13541853	trpC	TVN1022	-	indole-3-glycerol-phosphate synthase
1023	 42.57	0	1078652..1079203	-	183	13541854	-	TVN1023	-	anthranilate synthase component II
1024	 42.05	0	1079200..1080255	-	351	13541855	-	TVN1024	-	anthranilate synthase component I
1025	 41.67	0	1080245..1080832	-	195	13541856	-	TVN1025	-	N-(5'-phosphoribosyl)anthranilate isomerase
1026	 42.02	0	1080804..1081793	-	329	13541857	trpD	TVN1026	-	anthranilate phosphoribosyltransferase
1027	 42.02	0	1081798..1082511	-	237	13541858	-	TVN1027	-	tryptophan synthase subunit alpha
1028	 40.25	0	1082508..1083317	-	269	13541859	-	TVN1028	-	hypothetical protein
1029	 37.50	0	1083343..1083726	-	127	13541860	-	TVN1029	-	hypothetical protein
1030	 40.18	0	1083723..1084394	-	223	13541861	-	TVN1030	-	methylase involved in ubiquinone/menaquinone biosynthesis
1031	 41.25	0	1084391..1084693	-	100	13541862	-	TVN1031	-	hypothetical protein
1032	 42.90	0	1084690..1086789	-	699	13541863	-	TVN1032	-	ATPase involved in replication control
1033	 39.70	0	1086877..1087473	-	198	13541864	-	TVN1033	-	aspartokinase beta subunit
1034	 42.61	0	1087952..1088770	+	272	13541865	ppnK	TVN1034	-	inorganic polyphosphate/ATP-NAD kinase
1035	 40.92	0	1088757..1089125	+	122	13541866	-	TVN1035	-	hypothetical protein
1036	 46.16	+1	1089346..1091037	-	563	13541867	-	TVN1036	-	amino acid transporter
1037	 41.27	0	1091235..1092683	+	482	13541868	pheS	TVN1037	-	phenylalanyl-tRNA synthetase subunit alpha
1038	 34.16	-1	1092836..1093558	+	240	13541869	-	TVN1038	-	hypothetical protein
1039	 41.69	0	1093610..1094530	+	306	13541870	-	TVN1039	-	ABC-type daunorubicin transport system, ATPase component
1040	 40.32	0	1094511..1095254	+	247	13541871	-	TVN1040	-	ABC-type multidrug transport system, permease component
1041	 37.23	-1	1095337..1095567	-	76	13541872	-	TVN1041	-	transposon-encoded protein
1042	 43.73	0	1095610..1096917	-	435	13541873	-	TVN1042	-	ammonia permease
1043	 43.00	0	1098308..1099635	+	441	13541874	-	TVN1043	-	major facilitator superfamily permease
1044	 41.71	0	1099680..1100789	+	369	13541875	-	TVN1044	-	AAA family ATPase
1045	 42.04	0	1100740..1102599	-	619	13541876	-	TVN1045	-	DNA polymerase I
1046	 44.07	0	1102602..1102778	-	58	13541877	-	TVN1046	-	hypothetical protein
1047	 37.92	0	1102801..1103214	-	137	13541878	-	TVN1047	-	hypothetical protein
1048	 40.86	0	1103735..1104505	+	256	13541879	-	TVN1048	-	ABC-type Fe3+-siderophores transporter, solute-binding component
1049	 45.16	+1	1104527..1106725	-	732	13541880	-	TVN1049	-	elongation factor EF-2
1050	 45.40	+1	1106762..1107076	-	104	13541881	rps10p	TVN1050	-	30S ribosomal protein S10P
1051	 46.59	+1	1107082..1108356	-	424	13541882	-	TVN1051	-	elongation factor 1-alpha
1052	 40.98	0	1108542..1109522	+	326	13541883	moaA	TVN1052	-	molybdenum cofactor biosynthesis protein A
1053	 40.54	0	1109669..1110889	+	406	13541884	-	TVN1053	-	major facilitator superfamily permease
1054	 45.83	+1	1110903..1112447	-	514	13541885	-	TVN1054	-	NAD-dependent aldehyde dehydrogenase
1055	 33.90	-2	1112501..1112677	-	58	13541886	-	TVN1055	-	hypothetical protein
1056	 41.84	0	1112685..1113848	-	387	13541887	-	TVN1056	-	arsenite transporting ATPase
1057	 41.28	0	1113858..1114838	-	326	13541888	-	TVN1057	-	octaprenyl diphosphate synthase
1058	 40.74	0	1115434..1115703	-	89	13541889	-	TVN1058	-	chromatin protein
1059	 38.18	0	1116040..1116741	+	233	13541890	-	TVN1059	-	3-oxoacyl-[acyl-carrier-protein] reductase
1060	 42.86	0	1116776..1117951	-	391	13541891	-	TVN1060	-	major facilitator superfamily permease
1061	 37.63	0	1118431..1118709	+	92	13541892	-	TVN1061	-	hypothetical protein
1062	 41.03	0	1118724..1119464	-	246	13541893	-	TVN1062	-	DNA polymerase sliding clamp
1063	 40.95	0	1119628..1120467	-	279	13541894	-	TVN1063	-	hypothetical protein
1064	 38.86	0	1120468..1121769	-	433	13541895	-	TVN1064	-	hypothetical protein
1065	 41.98	0	1121766..1122725	-	319	13541896	-	TVN1065	-	MoxR-like ATPase
40.87	MEAN

3.44	STD DEV
