IslandPath Analysis: Thermoanaerobacter sp. X514

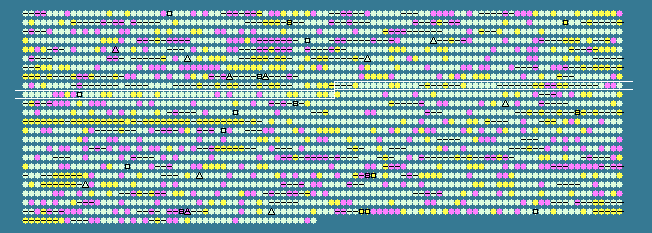

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
853	 34.76	0	909413..909622	+	69	167039528	-	Teth514_0875	-	50S ribosomal protein L29
854	 33.33	0	909640..909894	+	84	167039529	-	Teth514_0876	-	ribosomal protein S17
855	 37.13	0	909916..910284	+	122	167039530	-	Teth514_0877	-	ribosomal protein L14
856	 37.96	0	910297..910620	+	107	167039531	-	Teth514_0878	-	50S ribosomal protein L24
857	 35.37	0	910644..911183	+	179	167039532	-	Teth514_0879	-	50S ribosomal protein L5
858	 36.56	0	911200..911385	+	61	167039533	-	Teth514_0880	-	30S ribosomal protein S14
859	 35.59	0	911404..911802	+	132	167039534	-	Teth514_0881	-	ribosomal protein S8
860	 36.10	0	911825..912367	+	180	167039535	-	Teth514_0882	-	50S ribosomal protein L6
861	 35.52	0	912379..912744	+	121	167039536	-	Teth514_0883	-	50S ribosomal protein L18
862	 38.69	+1	912761..913264	+	167	167039537	-	Teth514_0884	-	ribosomal protein S5
863	 38.74	+1	913292..913735	+	147	167039538	-	Teth514_0885	-	ribosomal protein L15
864	 34.84	0	913737..914993	+	418	167039539	-	Teth514_0886	-	preprotein translocase subunit SecY
865	 35.47	0	915008..915661	+	217	167039540	-	Teth514_0887	-	adenylate kinase
866	 35.88	0	915658..916404	+	248	167039541	-	Teth514_0888	-	methionine aminopeptidase, type I
867	 36.33	0	916420..916686	+	88	167039542	-	Teth514_0889	-	hypothetical protein
868	 37.90	0	916711..916929	+	72	167039543	-	Teth514_0890	-	translation initiation factor IF-1
869	 31.21	0	916919..917059	+	46	167039544	-	Teth514_0891	-	ribosomal protein L36
870	 36.86	0	917071..917439	+	122	167039545	-	Teth514_0892	-	30S ribosomal protein S13
871	 41.48	+1	917458..917850	+	130	167039546	-	Teth514_0893	-	30S ribosomal protein S11
872	 36.07	0	917863..918483	+	206	167039547	-	Teth514_0894	-	30S ribosomal protein S4
873	 36.29	0	918532..919479	+	315	167039548	-	Teth514_0895	-	DNA-directed RNA polymerase subunit alpha
874	 39.23	+1	919493..919831	+	112	167039549	-	Teth514_0896	-	ribosomal protein L17
875	 36.21	0	919914..920747	+	277	167039550	-	Teth514_0897	-	cobalt transporter ATP-binding subunit
876	 33.45	0	920738..921598	+	286	167039551	-	Teth514_0898	-	cobalt transporter ATP-binding subunit
877	 34.45	0	921591..922397	+	268	167039552	-	Teth514_0899	-	cobalt transport protein
878	 33.33	0	922400..923134	+	244	167039553	-	Teth514_0900	-	tRNA pseudouridine synthase A
879	 34.49	0	923223..923654	+	143	167039554	-	Teth514_0901	-	50S ribosomal protein L13
880	 35.37	0	923669..924061	+	130	167039555	-	Teth514_0902	-	ribosomal protein S9
881	 34.69	0	927243..927611	+	122	167039556	-	Teth514_0903	-	hypothetical protein
882	 36.90	0	930194..930529	-	111	167039557	-	Teth514_0904	-	hypothetical protein
883	 35.96	0	931036..931530	+	164	167039558	-	Teth514_0906	-	Ferritin, Dps family protein
884	 35.73	0	931552..931926	+	124	167039559	-	Teth514_0907	-	desulfoferrodoxin, ferrous iron-binding region
885	 36.84	0	932651..933163	+	170	167039560	-	Teth514_0908	-	hypothetical protein
886	 44.06	+2	933182..934822	+	546	167039561	-	Teth514_0909	-	carbon starvation protein CstA
887	 47.62	+2	935174..936538	+	454	167039562	-	Teth514_0910	-	amino acid carrier protein
888	 29.74	-1	936941..937441	+	166	167039563	-	Teth514_0911	-	cation antiporter
889	 29.82	-1	937413..937697	+	94	167039564	-	Teth514_0912	-	multiple resistance and pH regulation protein F
890	 40.57	+1	937699..938016	+	105	167039565	-	Teth514_0913	-	monovalent cation/proton antiporter, MnhG/PhaG subunit
891	 41.27	+1	938018..938269	+	83	167039566	-	Teth514_0914	-	hypothetical protein
892	 34.85	0	938271..938996	+	241	167039567	-	Teth514_0915	-	Na+/H+ antiporter MnhB subunit-related protein
893	 33.33	0	938993..939358	+	121	167039568	-	Teth514_0916	-	NADH-ubiquinone oxidoreductase, chain 4L
894	 35.46	0	939367..940827	+	486	167039569	-	Teth514_0917	-	NADH dehydrogenase (quinone)
895	 36.19	0	940842..942521	+	559	167039570	-	Teth514_0918	-	NADH dehydrogenase (quinone)
896	 36.65	0	942551..943213	+	220	167039571	-	Teth514_0919	-	hypothetical protein
897	 34.91	0	943372..944892	+	506	167039572	-	Teth514_0920	-	thymidylate synthase complementing protein ThyX
898	 28.89	-1	944910..945224	+	104	167039573	-	Teth514_0921	-	MazG nucleotide pyrophosphohydrolase
899	 30.60	0	945303..945485	+	60	167039574	-	Teth514_0922	-	hypothetical protein
900	 36.23	0	945501..945776	+	91	167039575	-	Teth514_0923	-	coat F domain-containing protein
901	 37.70	0	945866..946780	+	304	167039576	-	Teth514_0924	-	thioredoxin reductase
902	 36.28	0	946809..947792	-	327	167039577	-	Teth514_0925	-	peptidoglycan binding domain-containing protein
903	 31.21	0	947919..948578	+	219	167039578	-	Teth514_0926	-	cell wall hydrolase/autolysin
904	 32.07	0	948662..949294	+	210	167039579	-	Teth514_0927	-	HAD family hydrolase
905	 33.97	0	949313..950257	+	314	167039580	-	Teth514_0928	-	ATPase
906	 27.62	-1	950250..951404	+	384	167039581	-	Teth514_0929	-	hypothetical protein
907	 30.83	0	951373..953565	+	730	167039582	-	Teth514_0930	-	transglutaminase domain-containing protein
908	 37.92	0	953654..954067	+	137	167039583	-	Teth514_0931	-	osmosensitive K+ channel histidine kinase-like protein
909	 29.80	-1	954077..954472	-	131	167039584	-	Teth514_0932	-	transport-associated
910	 36.83	0	954953..956212	+	419	167039585	-	Teth514_0933	-	transposase IS116/IS110/IS902 family protein
911	 37.05	0	956485..957318	+	277	167039586	-	Teth514_0934	-	hypothetical protein
912	 33.33	0	957308..958498	+	396	167039587	-	Teth514_0935	-	YbbR family protein
913	 36.25	0	958702..959763	+	353	167039588	-	Teth514_0936	-	butyrate kinase
914	 38.13	0	959777..960673	+	298	167039589	-	Teth514_0937	-	phosphate butyryltransferase
915	 38.11	0	960699..961766	+	355	167039590	-	Teth514_0938	-	Glu/Leu/Phe/Val dehydrogenase, C terminal
916	 35.96	0	961893..962960	+	355	167039591	-	Teth514_0939	-	butyrate kinase
917	 34.67	0	962975..963649	+	224	167039592	-	Teth514_0940	-	hypothetical protein
918	 32.03	0	963646..963876	+	76	167039593	-	Teth514_0941	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
919	 38.58	+1	963892..964959	+	355	167039594	-	Teth514_0942	-	2-ketoisovalerate ferredoxin reductase
920	 38.53	+1	964959..965708	+	249	167039595	-	Teth514_0943	-	thiamine pyrophosphate binding domain-containing protein
921	 35.30	0	965711..966268	+	185	167039596	-	Teth514_0944	-	pyruvate/ketoisovalerate oxidoreductase, gamma subunit
922	 36.48	0	966307..967197	+	296	167039597	-	Teth514_0945	-	phosphate butyryltransferase
923	 38.12	0	967226..968959	+	577	167039598	-	Teth514_0946	-	thiamine pyrophosphate binding domain-containing protein
924	 36.28	0	968966..969541	+	191	167039599	-	Teth514_0947	-	indolepyruvate oxidoreductase subunit B
925	 32.17	0	969663..970262	+	199	167039600	-	Teth514_0948	-	phospholipid/glycerol acyltransferase
926	 37.43	0	970331..971674	+	447	167039601	-	Teth514_0949	-	phosphoglucosamine mutase
927	 36.84	0	971935..973761	+	608	167039602	-	Teth514_0950	-	D-fructose-6-phosphate amidotransferase
928	 37.18	0	974229..974618	+	129	167039603	-	Teth514_0951	-	hypothetical protein
929	 32.68	0	974621..975544	-	307	167039604	-	Teth514_0952	-	ATP dependent DNA ligase
930	 34.81	0	975558..976370	-	270	167039605	-	Teth514_0953	-	Ku domain-containing protein
931	 34.20	0	976503..977771	+	422	167039606	-	Teth514_0954	-	peptidoglycan binding domain-containing protein
932	 32.70	0	977865..978494	-	209	167039607	-	Teth514_0955	-	hypothetical protein
933	 27.08	-1	978632..978919	+	95	167039608	-	Teth514_0956	-	hypothetical protein
934	 37.77	0	979036..980679	+	547	167039609	-	Teth514_0957	-	hydroxylamine reductase
935	 30.33	-1	980750..981148	-	132	167039610	-	Teth514_0958	-	helix-turn-helix domain-containing protein
936	 32.26	0	981326..981511	+	61	167039611	-	Teth514_0959	-	hypothetical protein
937	 33.61	0	981810..982175	+	121	167039612	-	Teth514_0960	-	hypothetical protein
938	 34.77	0	982271..982687	+	138	167039613	-	Teth514_0961	-	holo-acyl-carrier-protein synthase
939	 35.94	0	982650..984182	+	510	167039614	-	Teth514_0962	-	carbohydrate kinase, YjeF related protein
940	 28.57	-1	984197..985204	+	335	167039615	-	Teth514_0963	-	Outer membrane lipoprotein-sorting protein-like protein
941	 32.48	0	985226..986392	+	388	167039616	-	Teth514_0964	-	alanine racemase
942	 36.96	0	986482..986757	+	91	167039617	-	Teth514_0965	-	CopG family transcriptional regulator
943	 34.47	0	986760..987110	+	116	167039618	-	Teth514_0966	-	transcriptional modulator of MazE/toxin, MazF
944	 35.22	0	987438..988283	+	281	167039619	-	Teth514_0967	-	hypothetical protein
945	 39.54	+1	988299..989120	+	273	167039620	-	Teth514_0968	-	transketolase domain-containing protein
946	 41.15	+1	989121..990041	+	306	167039621	-	Teth514_0969	-	transketolase, central region
947	 37.60	0	990070..990585	-	171	167039622	-	Teth514_0970	-	ferredoxin domain-containing protein
948	 34.38	0	990769..992013	+	414	167039623	-	Teth514_0971	-	6-phosphofructokinase
949	 32.60	0	992027..993391	-	454	167039624	-	Teth514_0972	-	Na+/H+ antiporter NhaC
950	 43.40	+2	993649..993807	-	52	167039625	-	Teth514_0973	-	rubredoxin-type Fe(Cys)4 protein
951	 39.80	+1	993893..995191	-	432	167039626	-	Teth514_0974	-	thiamine biosynthesis protein ThiC
952	 32.95	0	995708..997000	+	430	167039627	-	Teth514_0975	-	homoserine dehydrogenase
34.39	MEAN

3.95	STD DEV
