IslandPath Analysis: Thermoanaerobacter sp. X514

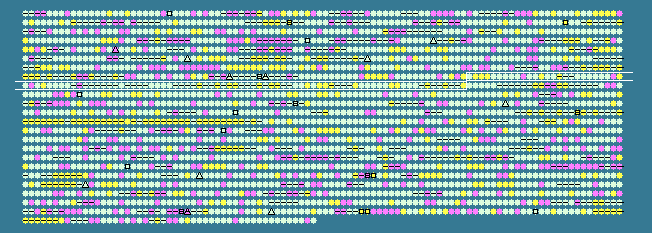

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
775	 35.25	0	830706..831071	+	121	167039450	-	Teth514_0796	-	hypothetical protein
776	 40.04	+1	831349..832899	+	516	167039451	-	Teth514_0797	-	carboxyl transferase
777	 37.98	0	832912..833169	+	85	167039452	-	Teth514_0798	-	hypothetical protein
778	 38.60	+1	833187..833585	+	132	167039453	-	Teth514_0799	-	biotin/lipoyl attachment domain-containing protein
779	 36.93	0	833722..834249	+	175	167039454	-	Teth514_0800	-	membrane protein-like protein
780	 36.07	0	834297..835064	+	255	167039455	-	Teth514_0801	-	pantothenate kinase
781	 31.98	0	835071..836180	-	369	167039456	-	Teth514_0802	-	spore germination protein
782	 33.98	0	836277..837812	+	511	167039457	-	Teth514_0803	-	GerA spore germination protein
783	 35.11	0	837814..838998	+	394	167039458	-	Teth514_0804	-	spore germination B3 GerAC family protein
784	 25.78	-2	839003..839227	+	74	167039459	-	Teth514_0805	-	hypothetical protein
785	 33.52	0	839343..839867	+	174	167039460	-	Teth514_0806	-	hypothetical protein
786	 32.78	0	839872..840780	+	302	167039461	-	Teth514_0807	-	hypothetical protein
787	 37.92	0	840794..841882	+	362	167039462	-	Teth514_0808	-	shikimate/quinate 5-dehydrogenase
788	 34.81	0	842047..842520	+	157	167039463	-	Teth514_0809	-	transcription elongation factor GreA
789	 35.87	0	842540..844039	+	499	167039464	-	Teth514_0810	-	lysyl-tRNA synthetase
790	 38.27	0	844432..844998	+	188	167039465	-	Teth514_0811	-	GTP cyclohydrolase I
791	 36.16	0	845011..845823	+	270	167039466	-	Teth514_0812	-	dihydropteroate synthase
792	 32.34	0	845820..846320	+	166	167039467	-	Teth514_0813	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
793	 33.33	0	846324..846692	+	122	167039468	-	Teth514_0814	-	putative 6-pyruvoyl tetrahydropterin synthase
794	 36.22	0	846703..847395	+	230	167039469	-	Teth514_0815	-	sugar fermentation stimulation protein A
795	 34.08	0	847499..849496	+	665	167039470	-	Teth514_0816	-	peptidase S9 prolyl oligopeptidase
796	 35.68	0	849533..850171	-	212	167039471	-	Teth514_0817	-	hypothetical protein
797	 33.77	0	850318..850545	+	75	167039472	-	Teth514_0818	-	hypothetical protein
798	 37.25	0	850566..851993	+	475	167039473	-	Teth514_0819	-	aminotransferase class-III
799	 29.01	-1	852015..852500	+	161	167039474	-	Teth514_0820	-	hypothetical protein
800	 38.05	0	852679..854991	+	770	167039475	-	Teth514_0821	-	ribonucleotide-diphosphate reductase subunit alpha
801	 31.95	0	855206..856870	+	554	167039476	-	Teth514_0822	-	diguanylate cyclase
802	 29.91	-1	857091..859049	+	652	167039477	-	Teth514_0823	-	transcriptional antiterminator, BglG
803	 32.67	0	859036..859485	+	149	167039478	-	Teth514_0824	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
804	 38.97	+1	859527..860573	+	348	167039479	-	Teth514_0825	-	PTS system, fructose subfamily, IIC subunit
805	 33.97	0	860638..860949	+	103	167039480	-	Teth514_0826	-	PTS system, fructose-specific, IIB subunnit
806	 35.42	0	861130..862851	+	573	167039481	-	Teth514_0827	-	phosphoenolpyruvate-protein phosphotransferase
807	 36.27	0	862970..865009	+	679	167039482	-	Teth514_0828	-	elongation factor G
808	 37.08	0	865457..866869	+	470	167039483	-	Teth514_0829	-	RNA-directed DNA polymerase (Reverse transcriptase)
809	 34.24	0	867028..868239	+	403	167039484	-	Teth514_0830	-	malate dehydrogenase
810	 28.12	-1	868265..868456	+	63	167039485	-	Teth514_0831	-	hypothetical protein
811	 31.37	0	868629..869087	+	152	167039486	-	Teth514_0832	-	transcriptional repressor, CtsR
812	 33.72	0	869102..869617	+	171	167039487	-	Teth514_0833	-	UvrB/UvrC protein
813	 33.43	0	869627..870646	+	339	167039488	-	Teth514_0834	-	ATP:guanido phosphotransferase
814	 36.80	0	870659..873109	+	816	167039489	-	Teth514_0835	-	ATPase
815	 36.46	0	873191..874564	+	457	167039490	-	Teth514_0836	-	DNA repair protein RadA
816	 35.10	0	874870..875265	-	131	167039491	-	Teth514_0837	-	hypothetical protein
817	 33.88	0	875549..876652	+	367	167039492	-	Teth514_0838	-	PilT domain-containing protein
818	 33.04	0	876734..877417	+	227	167039493	-	Teth514_0839	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
819	 32.77	0	877484..878728	+	414	167039494	-	Teth514_0840	-	PGAP1 family protein
820	 33.53	0	878721..879218	+	165	167039495	-	Teth514_0841	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
821	 36.08	0	879263..880975	+	570	167039496	-	Teth514_0842	-	prolyl-tRNA synthetase
822	 37.22	0	881069..881248	+	59	167039497	-	Teth514_0843	-	hypothetical protein
823	 33.81	0	881351..882808	+	485	167039498	-	Teth514_0844	-	glutamyl-tRNA synthetase
824	 36.64	0	883057..883722	+	221	167039499	-	Teth514_0845	-	serine O-acetyltransferase
825	 32.98	0	883709..885109	+	466	167039500	-	Teth514_0846	-	cysteinyl-tRNA synthetase
826	 34.23	0	885191..885523	+	110	167039501	-	Teth514_0847	-	hypothetical protein
827	 34.41	0	885533..886276	+	247	167039502	-	Teth514_0848	-	RNA methyltransferase
828	 33.74	0	886288..886782	+	164	167039503	-	Teth514_0849	-	hypothetical protein
829	 37.21	0	886863..887507	+	214	167039504	-	Teth514_0850	-	RNA polymerase factor sigma-70
830	 45.55	+2	887786..888988	+	400	167039505	-	Teth514_0851	-	elongation factor Tu
831	 32.05	0	889351..889506	+	51	167039506	-	Teth514_0853	-	preprotein translocase, SecE subunit
832	 36.19	0	889582..890106	+	174	167039507	-	Teth514_0854	-	transcription antitermination protein NusG
833	 40.66	+1	890153..890575	+	140	167039508	-	Teth514_0855	-	ribosomal protein L11
834	 36.22	0	890622..891314	+	230	167039509	-	Teth514_0856	-	50S ribosomal protein L1
835	 39.33	+1	891498..892031	+	177	167039510	-	Teth514_0857	-	ribosomal protein L10
836	 38.10	0	892069..892446	+	125	167039511	-	Teth514_0858	-	ribosomal protein L7/L12
837	 36.78	0	892673..896389	+	1238	167039512	-	Teth514_0859	-	DNA-directed RNA polymerase subunit beta
838	 37.62	0	896513..899986	+	1157	167039513	-	Teth514_0860	-	DNA-directed RNA polymerase subunit beta'
839	 37.65	0	900082..900336	+	84	167039514	-	Teth514_0861	-	putative ribosomal protein L7Ae-like
840	 40.80	+1	900364..900765	+	133	167039515	-	Teth514_0862	-	30S ribosomal protein S12
841	 36.94	0	900845..901315	+	156	167039516	-	Teth514_0863	-	30S ribosomal protein S7
842	 37.92	0	901365..903434	+	689	167039517	-	Teth514_0864	-	translation elongation factor G
843	 46.05	+2	903449..904651	+	400	167039518	-	Teth514_0865	-	elongation factor Tu
844	 33.98	0	904843..905151	+	102	167039519	-	Teth514_0866	-	30S ribosomal protein S10
845	 36.33	0	905235..905867	+	210	167039520	-	Teth514_0867	-	50S ribosomal protein L3
846	 37.20	0	905885..906505	+	206	167039521	-	Teth514_0868	-	50S ribosomal protein L4
847	 34.01	0	906505..906798	+	97	167039522	-	Teth514_0869	-	ribosomal protein L25/L23
848	 39.13	+1	906822..907649	+	275	167039523	-	Teth514_0870	-	50S ribosomal protein L2
849	 35.82	0	907672..907953	+	93	167039524	-	Teth514_0871	-	ribosomal protein S19
850	 41.37	+1	907971..908306	+	111	167039525	-	Teth514_0872	-	50S ribosomal protein L22
851	 37.99	0	908320..908985	+	221	167039526	-	Teth514_0873	-	30S ribosomal protein S3
852	 41.15	+1	908989..909423	+	144	167039527	-	Teth514_0874	-	50S ribosomal protein L16
853	 34.76	0	909413..909622	+	69	167039528	-	Teth514_0875	-	50S ribosomal protein L29
854	 33.33	0	909640..909894	+	84	167039529	-	Teth514_0876	-	ribosomal protein S17
855	 37.13	0	909916..910284	+	122	167039530	-	Teth514_0877	-	ribosomal protein L14
856	 37.96	0	910297..910620	+	107	167039531	-	Teth514_0878	-	50S ribosomal protein L24
857	 35.37	0	910644..911183	+	179	167039532	-	Teth514_0879	-	50S ribosomal protein L5
858	 36.56	0	911200..911385	+	61	167039533	-	Teth514_0880	-	30S ribosomal protein S14
859	 35.59	0	911404..911802	+	132	167039534	-	Teth514_0881	-	ribosomal protein S8
860	 36.10	0	911825..912367	+	180	167039535	-	Teth514_0882	-	50S ribosomal protein L6
861	 35.52	0	912379..912744	+	121	167039536	-	Teth514_0883	-	50S ribosomal protein L18
862	 38.69	+1	912761..913264	+	167	167039537	-	Teth514_0884	-	ribosomal protein S5
863	 38.74	+1	913292..913735	+	147	167039538	-	Teth514_0885	-	ribosomal protein L15
864	 34.84	0	913737..914993	+	418	167039539	-	Teth514_0886	-	preprotein translocase subunit SecY
865	 35.47	0	915008..915661	+	217	167039540	-	Teth514_0887	-	adenylate kinase
866	 35.88	0	915658..916404	+	248	167039541	-	Teth514_0888	-	methionine aminopeptidase, type I
867	 36.33	0	916420..916686	+	88	167039542	-	Teth514_0889	-	hypothetical protein
868	 37.90	0	916711..916929	+	72	167039543	-	Teth514_0890	-	translation initiation factor IF-1
869	 31.21	0	916919..917059	+	46	167039544	-	Teth514_0891	-	ribosomal protein L36
870	 36.86	0	917071..917439	+	122	167039545	-	Teth514_0892	-	30S ribosomal protein S13
871	 41.48	+1	917458..917850	+	130	167039546	-	Teth514_0893	-	30S ribosomal protein S11
872	 36.07	0	917863..918483	+	206	167039547	-	Teth514_0894	-	30S ribosomal protein S4
873	 36.29	0	918532..919479	+	315	167039548	-	Teth514_0895	-	DNA-directed RNA polymerase subunit alpha
874	 39.23	+1	919493..919831	+	112	167039549	-	Teth514_0896	-	ribosomal protein L17
34.39	MEAN

3.95	STD DEV
