IslandPath Analysis: Thermoanaerobacter sp. X514

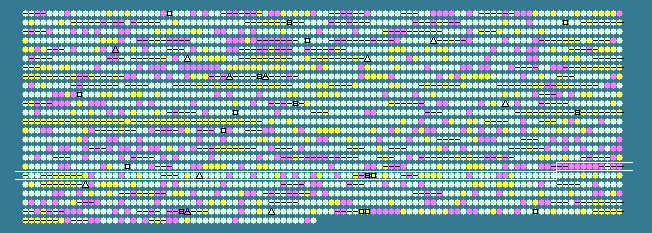

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1790	 26.63	-1	1851071..1851652	-	193	167040465	-	Teth514_1833	-	hypothetical protein
1791	 28.54	-1	1851642..1853060	-	472	167040466	-	Teth514_1834	-	hypothetical protein
1792	 27.42	-1	1853053..1855269	-	738	167040467	-	Teth514_1835	-	hypothetical protein
1793	 27.96	-1	1855266..1856810	-	514	167040468	-	Teth514_1836	-	hypothetical protein
1794	 25.70	-2	1856807..1858156	-	449	167040469	-	Teth514_1837	-	hypothetical protein
1795	 27.21	-1	1858210..1859499	-	429	167040470	-	Teth514_1838	-	CRISPR-associated TM1812 family protein
1796	 28.79	-1	1859502..1859963	-	153	167040471	-	Teth514_1839	-	hypothetical protein
1797	 25.21	-2	1860264..1860497	+	77	167040472	-	Teth514_1840	-	hypothetical protein
1798	 31.75	0	1860515..1860703	+	62	167040473	-	Teth514_1841	-	hypothetical protein
1799	 29.92	-1	1861324..1861704	-	126	167040474	-	Teth514_1843	-	large conductance mechanosensitive channel protein
1800	 30.66	0	1861746..1863542	-	598	167040475	-	Teth514_1844	-	membrane protein-like protein
1801	 33.20	0	1863559..1864314	-	251	167040476	-	Teth514_1845	-	hypothetical protein
1802	 35.59	0	1864314..1864934	-	206	167040477	-	Teth514_1846	-	nitroreductase
1803	 32.69	0	1865196..1865660	+	154	167040478	-	Teth514_1847	-	ECF subfamily RNA polymerase sigma-24 factor
1804	 33.65	0	1865661..1866620	+	319	167040479	-	Teth514_1848	-	hypothetical protein
1805	 37.84	0	1866724..1866945	-	73	167040480	-	Teth514_1849	-	hypothetical protein
1806	 49.01	+2	1867131..1868246	-	371	167040481	-	Teth514_1850	-	sodium ion-translocating decarboxylase, beta subunit
1807	 41.94	+1	1868293..1868652	-	119	167040482	-	Teth514_1851	-	sodium pump decarboxylase, gamma subunit
1808	 47.76	+2	1868689..1869090	-	133	167040483	-	Teth514_1852	-	glyoxalase/bleomycin resistance protein/dioxygenase
1809	 49.35	+2	1869104..1870033	-	309	167040484	-	Teth514_1853	-	LAO/AO transport system ATPase
1810	 46.62	+2	1870037..1870450	-	137	167040485	-	Teth514_1854	-	cobalamin B12-binding domain-containing protein
1811	 47.71	+2	1870465..1872147	-	560	167040486	-	Teth514_1855	-	methylmalonyl-CoA mutase, large subunit
1812	 29.85	-1	1872706..1873797	-	363	167040487	-	Teth514_1856	-	transglutaminase domain-containing protein
1813	 32.85	0	1874463..1874879	+	138	167040488	-	Teth514_1857	-	hypothetical protein
1814	 32.05	0	1874902..1875522	-	206	167040489	-	Teth514_1858	-	TraR/DksA family transcriptional regulator
1815	 33.01	0	1875538..1875849	-	103	167040490	-	Teth514_1859	-	hypothetical protein
1816	 35.96	0	1876070..1877251	+	393	167040491	-	Teth514_1860	-	cystathionine gamma-synthase
1817	 28.65	-1	1877285..1877818	-	177	167040492	-	Teth514_1861	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1818	 36.14	0	1877827..1878609	-	260	167040493	-	Teth514_1862	-	3-deoxy-7-phosphoheptulonate synthase
1819	 34.22	0	1878621..1879409	-	262	167040494	-	Teth514_1863	-	tryptophan synthase subunit alpha
1820	 39.46	+1	1879406..1880581	-	391	167040495	-	Teth514_1864	-	tryptophan synthase subunit beta
1821	 32.35	0	1880578..1881189	-	203	167040496	-	Teth514_1865	-	phosphoribosylanthranilate isomerase
1822	 32.69	0	1881191..1881973	-	260	167040497	-	Teth514_1866	-	indole-3-glycerol-phosphate synthase
1823	 37.27	0	1881973..1882989	-	338	167040498	-	Teth514_1867	-	anthranilate phosphoribosyltransferase
1824	 32.48	0	1882970..1883557	-	195	167040499	-	Teth514_1868	-	glutamine amidotransferase of anthranilate synthase
1825	 34.59	0	1883557..1884984	-	475	167040500	-	Teth514_1869	-	anthranilate synthase component I
1826	 31.30	0	1885423..1886601	-	392	167040501	-	Teth514_1870	-	poly-gamma-glutamate biosynthesis protein
1827	 31.97	0	1886634..1886927	-	97	167040502	-	Teth514_1871	-	hypothetical protein
1828	 37.95	0	1886948..1887142	-	64	167040503	-	Teth514_1872	-	cystathionine beta-lyase/cystathionine gamma-synthase-like protein
1829	 32.99	0	1887302..1887883	+	193	167040504	-	Teth514_1873	-	hypothetical protein
1830	 34.77	0	1888020..1889345	+	441	167040505	-	Teth514_1874	-	integrase catalytic subunit
1831	 34.08	0	1889363..1890163	+	266	167040506	-	Teth514_1875	-	AAA ATPase
1832	 31.19	0	1890333..1891358	-	341	167040507	-	Teth514_1876	-	cystathionine gamma-synthase
1833	 36.08	0	1891448..1892248	-	266	167040508	-	Teth514_1877	-	hypothetical protein
1834	 34.24	0	1892384..1893154	-	256	167040509	-	Teth514_1878	-	purine phosphorylase family 2
1835	 30.17	-1	1893169..1893927	-	252	167040510	-	Teth514_1879	-	cobalt transport protein
1836	 33.22	0	1893936..1895660	-	574	167040511	-	Teth514_1880	-	ABC transporter related
1837	 33.72	0	1895671..1896708	-	345	167040512	-	Teth514_1881	-	aIF-2BI family translation initiation factor
1838	 33.96	0	1896730..1897686	-	318	167040513	-	Teth514_1882	-	alcohol dehydrogenase
1839	 29.15	-1	1897711..1898451	-	246	167040514	-	Teth514_1883	-	GntR family transcriptional regulator
1840	 34.58	0	1898468..1899109	-	213	167040515	-	Teth514_1884	-	L-fuculose phosphate aldolase
1841	 35.42	0	1899345..1900640	-	431	167040516	-	Teth514_1885	-	amidohydrolase
1842	 37.30	0	1900688..1903486	-	932	167040517	-	Teth514_1886	-	isoleucyl-tRNA synthetase
1843	 39.43	+1	1903818..1904063	-	81	167040518	-	Teth514_1887	-	hypothetical protein
1844	 30.66	0	1904053..1904538	-	161	167040519	-	Teth514_1888	-	DivIVA family protein
1845	 33.33	0	1904566..1905312	-	248	167040520	-	Teth514_1889	-	RNA-binding S4 domain-containing protein
1846	 30.36	-1	1905309..1905611	-	100	167040521	-	Teth514_1890	-	protein of unknown function YGGT
1847	 31.16	0	1905628..1906041	-	137	167040522	-	Teth514_1891	-	hypothetical protein
1848	 32.68	0	1906045..1906653	-	202	167040523	-	Teth514_1892	-	alanine racemase domain-containing protein
1849	 28.28	-1	1906756..1907943	-	395	167040524	-	Teth514_1893	-	hypothetical protein
1850	 38.89	+1	1908239..1908616	-	125	167040525	-	Teth514_1894	-	putative endoribonuclease L-PSP
1851	 34.60	0	1908867..1910210	-	447	167040526	-	Teth514_1895	-	gluconate transporter
1852	 35.58	0	1910232..1911386	-	384	167040527	-	Teth514_1896	-	glycerate kinase
1853	 27.40	-1	1911502..1912647	-	381	167040528	-	Teth514_1897	-	transcriptional regulator, CdaR
1854	 35.00	0	1912688..1914307	-	539	167040529	-	Teth514_1898	-	putative CoA-substrate-specific enzyme activase
1855	 32.93	0	1914330..1915580	-	416	167040530	-	Teth514_1899	-	2-hydroxyglutaryl-CoA dehydratase, D-component
1856	 41.48	+1	1915655..1915789	-	44	167040531	-	Teth514_1900	-	hypothetical protein
1857	 25.16	-2	1916066..1916224	+	52	167040532	-	Teth514_1901	-	hypothetical protein
1858	 27.24	-1	1916314..1916592	+	92	167040533	-	Teth514_1902	-	transposase
1859	 38.74	+1	1916686..1917906	-	406	167040534	-	Teth514_1903	-	transposase IS116/IS110/IS902 family protein
1860	 35.26	0	1918519..1918830	-	103	167040535	-	Teth514_1904	-	hypothetical protein
1861	 38.19	0	1919240..1920001	-	253	167040536	-	Teth514_1905	-	hypothetical protein
1862	 34.08	0	1920102..1920902	+	266	167040537	-	Teth514_1906	-	hypothetical protein
1863	 34.57	0	1921574..1922221	-	215	167040538	-	Teth514_1907	-	dihydroxyacetone kinase, L subunit
1864	 37.85	0	1922666..1923661	-	331	167040539	-	Teth514_1909	-	Glycerone kinase
1865	 30.81	0	1923697..1924092	-	131	167040540	-	Teth514_1910	-	dihydroxyacetone kinase, phosphotransfer subunit
1866	 36.86	0	1924243..1925772	-	509	167040541	-	Teth514_1911	-	xylulokinase
1867	 40.46	+1	1925815..1926165	-	116	167040542	-	Teth514_1912	-	hypothetical protein
1868	 40.10	+1	1926166..1926564	-	132	167040543	-	Teth514_1913	-	hypothetical protein
1869	 38.21	0	1926740..1928194	-	484	167040544	-	Teth514_1914	-	aldehyde dehydrogenase
1870	 41.54	+1	1928195..1928584	-	129	167040545	-	Teth514_1915	-	cupin 2 domain-containing protein
1871	 34.97	0	1928756..1929730	-	324	167040546	-	Teth514_1916	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1872	 33.00	0	1929727..1930626	-	299	167040547	-	Teth514_1917	-	dihydrodipicolinate synthetase
1873	 34.84	0	1930899..1931825	-	308	167040548	-	Teth514_1918	-	ketose-bisphosphate aldolase
1874	 35.02	0	1931839..1932846	-	335	167040549	-	Teth514_1919	-	phosphotransferase domain-containing protein
1875	 30.77	0	1933326..1933598	-	90	167040550	-	Teth514_1921	-	hypothetical protein
1876	 37.45	0	1933617..1934078	-	153	167040551	-	Teth514_1922	-	RpiB/LacA/LacB family sugar-phosphate isomerase
1877	 35.86	0	1934089..1935036	-	315	167040552	-	Teth514_1923	-	transketolase domain-containing protein
1878	 34.40	0	1935029..1935874	-	281	167040553	-	Teth514_1924	-	transketolase domain-containing protein
1879	 33.50	0	1935906..1937108	-	400	167040554	-	Teth514_1925	-	transaldolase
1880	 30.73	0	1937315..1939042	-	575	167040555	-	Teth514_1926	-	sigma-54 dependent trancsriptional regulator
1881	 28.40	-1	1939644..1939886	-	80	167040556	-	Teth514_1927	-	hypothetical protein
1882	 41.41	+1	1939995..1940093	-	32	167040557	-	Teth514_1928	-	hypothetical protein
1883	 36.34	0	1940252..1940983	-	243	167040558	-	Teth514_1929	-	hypothetical protein
1884	 36.83	0	1940987..1941472	-	161	167040559	-	Teth514_1930	-	hypothetical protein
1885	 36.09	0	1941544..1942485	-	313	167040560	-	Teth514_1931	-	cobalamin biosynthesis protein CobD
1886	 33.71	0	1942576..1943376	-	266	167040561	-	Teth514_1932	-	ABC transporter related
1887	 36.66	0	1943381..1944373	-	330	167040562	-	Teth514_1933	-	transport system permease protein
1888	 36.60	0	1944375..1945322	-	315	167040563	-	Teth514_1934	-	periplasmic binding protein
1889	 34.87	0	1945757..1946926	-	389	167040564	-	Teth514_1935	-	iron-containing alcohol dehydrogenase
34.39	MEAN

3.95	STD DEV
