IslandPath Analysis: Thermoanaerobacter sp. X514

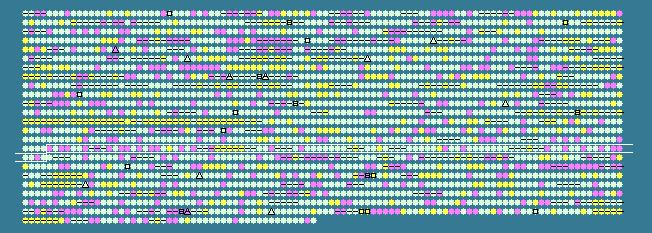

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1505	 30.75	0	1565178..1566029	+	283	167040180	-	Teth514_1542	-	ATP-NAD/AcoX kinase
1506	 35.54	0	1566058..1566510	+	150	167040181	-	Teth514_1543	-	arginine repressor
1507	 30.04	-1	1566528..1568228	+	566	167040182	-	Teth514_1544	-	DNA repair protein RecN
1508	 30.14	-1	1568347..1569660	+	437	167040183	-	Teth514_1545	-	peptidase S55, SpoIVB
1509	 32.44	0	1569746..1570528	+	260	167040184	-	Teth514_1546	-	response regulator receiver protein
1510	 33.42	0	1570734..1571855	+	373	167040185	-	Teth514_1547	-	thiamin pyrophosphokinase, catalytic region
1511	 29.13	-1	1571867..1572793	+	308	167040186	-	Teth514_1548	-	hypothetical protein
1512	 31.30	0	1572804..1573490	+	228	167040187	-	Teth514_1549	-	glycosyl transferase family protein
1513	 29.27	-1	1573502..1574314	+	270	167040188	-	Teth514_1550	-	hypothetical protein
1514	 35.28	0	1574316..1575392	+	358	167040189	-	Teth514_1551	-	hypothetical protein
1515	 30.37	-1	1575567..1576106	+	179	167040190	-	Teth514_1552	-	NUDIX hydrolase
1516	 31.88	0	1576103..1577275	+	390	167040191	-	Teth514_1553	-	hypothetical protein
1517	 26.60	-1	1577341..1577964	+	207	167040192	-	Teth514_1554	-	hypothetical protein
1518	 28.87	-1	1578048..1578920	+	290	167040193	-	Teth514_1555	-	tyrosine recombinase XerD
1519	 34.47	0	1578985..1580130	+	381	167040194	-	Teth514_1556	-	Serine-type D-Ala-D-Ala carboxypeptidase
1520	 28.27	-1	1580247..1580582	+	111	167040195	-	Teth514_1557	-	anti-sigma-factor antagonist
1521	 35.65	0	1580596..1581027	+	143	167040196	-	Teth514_1558	-	anti-sigma F factor
1522	 30.36	-1	1581037..1581777	+	246	167040197	-	Teth514_1559	-	FliA/WhiG family RNA polymerase sigma factor
1523	 30.70	0	1581857..1582198	+	113	167040198	-	Teth514_1560	-	hypothetical protein
1524	 34.90	0	1582251..1582697	+	148	167040199	-	Teth514_1561	-	SpoVA protein
1525	 38.66	+1	1582713..1583726	+	337	167040200	-	Teth514_1562	-	stage V sporulation protein AD
1526	 33.59	0	1583698..1584093	+	131	167040201	-	Teth514_1563	-	SpoVA protein
1527	 29.05	-1	1584194..1585360	+	388	167040202	-	Teth514_1564	-	polynucleotide adenylyltransferase region
1528	 35.96	0	1585363..1585971	+	202	167040203	-	Teth514_1565	-	peptidase M50
1529	 27.87	-1	1585974..1586705	+	243	167040204	-	Teth514_1566	-	chromosome segregation and condensation protein ScpA
1530	 33.53	0	1586695..1587201	+	168	167040205	-	Teth514_1567	-	putative transcriptional regulator
1531	 34.36	0	1587223..1588098	+	291	167040206	-	Teth514_1568	-	hypothetical protein
1532	 27.51	-1	1588376..1588993	+	205	167040207	-	Teth514_1569	-	hypothetical protein
1533	 38.03	0	1589000..1589446	+	148	167040208	-	Teth514_1570	-	hypothetical protein
1534	 51.78	+2	1589948..1591156	+	402	167040209	-	Teth514_1571	-	sodium:dicarboxylate symporter
1535	 52.33	+2	1591514..1592824	+	436	167040210	-	Teth514_1572	-	hypothetical protein
1536	 51.62	+2	1592840..1593829	+	329	167040211	-	Teth514_1573	-	hypothetical protein
1537	 44.79	+2	1593845..1594324	+	159	167040212	-	Teth514_1574	-	hypothetical protein
1538	 34.12	0	1595063..1596211	+	382	167040213	-	Teth514_1575	-	Serine-type D-Ala-D-Ala carboxypeptidase
1539	 33.85	0	1596297..1597268	+	323	167040214	-	Teth514_1576	-	hypothetical protein
1540	 36.60	0	1597261..1598544	+	427	167040215	-	Teth514_1577	-	glucose-inhibited division protein A
1541	 33.90	0	1598567..1599277	+	236	167040216	-	Teth514_1578	-	pseudouridine synthase
1542	 28.31	-1	1599281..1599658	+	125	167040217	-	Teth514_1579	-	hypothetical protein
1543	 33.21	0	1599704..1600537	+	277	167040218	-	Teth514_1580	-	spermidine synthase
1544	 34.83	0	1600539..1601405	+	288	167040219	-	Teth514_1581	-	putative agmatinase
1545	 34.12	0	1601485..1602882	+	465	167040220	-	Teth514_1582	-	oxaloacetate decarboxylase
1546	 36.60	0	1602990..1603418	+	142	167040221	-	Teth514_1583	-	peptidoglycan-binding LysM
1547	 29.73	-1	1603437..1604075	-	212	167040222	-	Teth514_1584	-	hypothetical protein
1548	 32.15	0	1604154..1604912	+	252	167040223	-	Teth514_1585	-	stationary-phase survival protein SurE
1549	 36.36	0	1605048..1605245	+	65	167040224	-	Teth514_1586	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1550	 36.14	0	1605242..1606381	+	379	167040225	-	Teth514_1587	-	2-oxoglutarate ferredoxin oxidoreductase subunit alpha
1551	 35.64	0	1606371..1607195	+	274	167040226	-	Teth514_1588	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
1552	 34.75	0	1607192..1607755	+	187	167040227	-	Teth514_1589	-	pyruvate/ketoisovalerate oxidoreductase, gamma subunit
1553	 32.29	0	1607734..1608597	+	287	167040228	-	Teth514_1590	-	RpiR family transcriptional regulator
1554	 36.37	0	1608695..1609945	+	416	167040229	-	Teth514_1591	-	Glu/Leu/Phe/Val dehydrogenase, C terminal
1555	 31.44	0	1610347..1611615	+	422	167040230	-	Teth514_1592	-	citrate transporter
1556	 48.83	+2	1611871..1613109	+	412	167040231	-	Teth514_1593	-	natural resistance-associated macrophage protein
1557	 35.93	0	1613409..1614179	+	256	167040232	-	Teth514_1594	-	hypothetical protein
1558	 32.65	0	1614198..1614929	+	243	167040233	-	Teth514_1595	-	allophanate hydrolase subunit 1
1559	 37.11	0	1614996..1616000	+	334	167040234	-	Teth514_1596	-	urea amidolyase related protein
1560	 38.85	+1	1616090..1616887	+	265	167040235	-	Teth514_1597	-	hypothetical protein
1561	 32.20	0	1616977..1617153	+	58	167040236	-	Teth514_1598	-	glutamate dehydrogenase/leucine dehydrogenase-like protein
1562	 31.36	0	1617224..1617931	+	235	167040237	-	Teth514_1599	-	hypothetical protein
1563	 31.43	0	1617950..1618579	+	209	167040238	-	Teth514_1600	-	phosphoglycerate mutase
1564	 32.60	0	1618576..1619796	+	406	167040239	-	Teth514_1601	-	hypothetical protein
1565	 30.95	0	1619866..1620327	+	153	167040240	-	Teth514_1602	-	hypothetical protein
1566	 32.43	0	1620755..1621420	+	221	167040241	-	Teth514_1604	-	cytidylate kinase
1567	 33.68	0	1621423..1622001	+	192	167040242	-	Teth514_1605	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
1568	 32.76	0	1622012..1622878	+	288	167040243	-	Teth514_1606	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1569	 31.42	0	1622871..1623968	+	365	167040244	-	Teth514_1607	-	RNA-binding S1 domain-containing protein
1570	 41.87	+1	1624065..1624439	+	124	167040245	-	Teth514_1608	-	S-adenosylmethionine decarboxylase proenzyme
1571	 26.15	-2	1624521..1625300	+	259	167040246	-	Teth514_1609	-	protein-glutamate O-methyltransferase
1572	 31.78	0	1625318..1626733	+	471	167040247	-	Teth514_1610	-	RNA modification protein
1573	 32.22	0	1626797..1629400	+	867	167040248	-	Teth514_1611	-	DNA mismatch repair protein
1574	 30.24	-1	1629397..1631241	+	614	167040249	-	Teth514_1612	-	DNA mismatch repair protein MutL
1575	 31.22	0	1631257..1632204	+	315	167040250	-	Teth514_1613	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1576	 35.25	0	1632247..1632507	+	86	167040251	-	Teth514_1614	-	RNA chaperone Hfq
1577	 35.72	0	1632581..1633375	+	264	167040252	-	Teth514_1615	-	pyrroline-5-carboxylate reductase
1578	 33.55	0	1633378..1633845	+	155	167040253	-	Teth514_1616	-	ribonuclease H
1579	 32.33	0	1634023..1635015	+	330	167040254	-	Teth514_1617	-	site-specific tyrosine recombinase XerC
1580	 34.98	0	1635065..1636339	-	424	167040255	-	Teth514_1618	-	aluminium resistance family protein
1581	 33.00	0	1636344..1637240	-	298	167040256	-	Teth514_1619	-	ATPase central domain-containing protein
1582	 33.76	0	1637315..1638736	-	473	167040257	-	Teth514_1620	-	adenylosuccinate lyase
1583	 32.91	0	1638750..1639937	-	395	167040258	-	Teth514_1621	-	aspartate aminotransferase
1584	 31.18	0	1639993..1640829	-	278	167040259	-	Teth514_1622	-	phosphotransferase domain-containing protein
1585	 42.53	+2	1640899..1641159	-	86	167040260	-	Teth514_1623	-	stage V sporulation protein S
1586	 32.82	0	1641232..1642014	-	260	167040261	-	Teth514_1624	-	metallophosphoesterase
1587	 37.46	0	1642142..1643668	-	508	167040262	-	Teth514_1625	-	metal dependent phosphohydrolase
1588	 25.13	-2	1643748..1644344	-	198	167040263	-	Teth514_1626	-	regulatory protein RecX
1589	 37.23	0	1644387..1645412	-	341	167040264	-	Teth514_1627	-	recombinase A
1590	 33.33	0	1645477..1646718	-	413	167040265	-	Teth514_1628	-	competence damage-inducible protein A
1591	 30.35	-1	1646732..1647268	-	178	167040266	-	Teth514_1629	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
1592	 31.73	0	1647268..1648578	-	436	167040267	-	Teth514_1630	-	MiaB-like tRNA modifying enzyme YliG
1593	 32.82	0	1648597..1650723	-	708	167040268	-	Teth514_1631	-	cell divisionFtsK/SpoIIIE
1594	 27.14	-1	1650842..1651051	-	69	167040269	-	Teth514_1632	-	hypothetical protein
1595	 33.75	0	1651051..1651767	-	238	167040270	-	Teth514_1633	-	peptidase S14, ClpP
1596	 33.42	0	1651829..1653025	-	398	167040271	-	Teth514_1634	-	aspartate kinase I
1597	 29.37	-1	1653113..1653364	-	83	167040272	-	Teth514_1635	-	PRC-barrel domain-containing protein
1598	 35.79	0	1653376..1653822	-	148	167040273	-	Teth514_1636	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
1599	 30.71	0	1653806..1655062	-	418	167040274	-	Teth514_1637	-	processing peptidase
1600	 29.57	-1	1655103..1655819	-	238	167040275	-	Teth514_1638	-	polysaccharide deacetylase
1601	 37.33	0	1655922..1658024	-	700	167040276	-	Teth514_1639	-	polynucleotide phosphorylase/polyadenylase
1602	 33.33	0	1658076..1658342	-	88	167040277	-	Teth514_1640	-	30S ribosomal protein S15
1603	 29.23	-1	1658430..1659380	-	316	167040278	-	Teth514_1641	-	bifunctional riboflavin kinase/FMN adenylyltransferase
1604	 32.63	0	1659396..1660247	-	283	167040279	-	Teth514_1642	-	tRNA pseudouridine synthase B
34.39	MEAN

3.95	STD DEV
