IslandPath Analysis: Thermoanaerobacter sp. X514

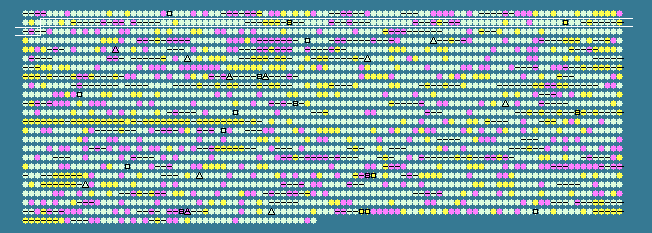

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
104	 32.38	0	103744..104787	+	347	167038779	-	Teth514_0106	-	SpoIID/LytB domain-containing protein
105	 31.54	0	104855..105691	+	278	167038780	-	Teth514_0107	-	peptidase M23B
106	 31.03	0	105823..106083	+	86	167038781	-	Teth514_0108	-	regulatory protein, DeoR
107	 38.66	+1	106215..107246	+	343	167038782	-	Teth514_0109	-	cell shape determining protein MreB
108	 34.52	0	107259..108014	+	251	167038783	-	Teth514_0110	-	flagellar basal body rod protein
109	 38.45	+1	108030..108830	+	266	167038784	-	Teth514_0111	-	hypothetical protein
110	 31.85	0	108856..109191	+	111	167038785	-	Teth514_0112	-	rod binding protein-like protein
111	 34.73	0	109583..110011	+	142	167038786	-	Teth514_0113	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
112	 33.08	0	110024..111589	+	521	167038787	-	Teth514_0114	-	integral membrane protein MviN
113	 36.82	0	111610..112728	+	372	167038788	-	Teth514_0115	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
114	 28.93	-1	112821..112979	+	52	167038789	-	Teth514_0116	-	hypothetical protein
115	 36.16	0	112995..113807	+	270	167038790	-	Teth514_0117	-	hypothetical protein
116	 28.63	-1	113958..114191	+	77	167038791	-	Teth514_0118	-	prevent-host-death family protein
117	 26.14	-2	114247..114663	+	138	167038792	-	Teth514_0119	-	hypothetical protein
118	 33.57	0	114840..117773	+	977	167038793	-	Teth514_0120	-	sigma-54 factor interaction domain-containing protein
119	 27.43	-1	117828..118301	+	157	167038794	-	Teth514_0121	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
120	 35.17	0	118767..119093	+	108	167038795	-	Teth514_0122	-	response regulator receiver protein
121	 35.87	0	119096..120475	+	459	167038796	-	Teth514_0123	-	PTS system galactitol-specific IIC component
122	 33.23	0	120618..121577	+	319	167038797	-	Teth514_0124	-	phosphoglycerate dehydrogenase
123	 32.30	0	121611..121901	+	96	167038798	-	Teth514_0125	-	SAF domain-containing protein
124	 32.91	0	121898..123067	+	389	167038799	-	Teth514_0126	-	Altronate dehydratase
125	 36.21	0	123159..124304	+	381	167038800	-	Teth514_0127	-	mandelate racemase/muconate lactonizing protein
126	 38.01	0	124393..125355	+	320	167038801	-	Teth514_0128	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
127	 36.27	0	125375..126022	+	215	167038802	-	Teth514_0129	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
128	 31.66	0	126060..127256	+	398	167038803	-	Teth514_0130	-	major facilitator transporter
129	 30.97	0	127375..130122	+	915	167038804	-	Teth514_0131	-	sigma-54 factor interaction domain-containing protein
130	 32.12	0	130293..130703	+	136	167038805	-	Teth514_0132	-	PTS system fructose subfamily IIA component
131	 35.13	0	130933..131712	+	259	167038806	-	Teth514_0133	-	phosphotransferase system PTS, sorbose-specific IIC subunit
132	 35.47	0	131731..132618	+	295	167038807	-	Teth514_0134	-	PTS system mannose/fructose/sorbose family IID component
133	 30.94	0	132737..133237	+	166	167038808	-	Teth514_0135	-	PTS system sorbose subfamily IIB component
134	 31.05	0	133361..134323	+	320	167038809	-	Teth514_0136	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
135	 32.86	0	134353..134985	+	210	167038810	-	Teth514_0137	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
136	 37.60	0	135112..136119	+	335	167038811	-	Teth514_0138	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
137	 31.28	0	136314..137723	+	469	167038812	-	Teth514_0139	-	6-phosphogluconate dehydrogenase
138	 34.52	0	137878..139221	+	447	167038813	-	Teth514_0140	-	TrkH family potassium uptake protein
139	 35.63	0	139236..139889	+	217	167038814	-	Teth514_0141	-	TrkA domain-containing protein
140	 35.52	0	140562..141293	+	243	167038815	-	Teth514_0143	-	hypothetical protein
141	 45.41	+2	141317..141871	+	184	167038816	-	Teth514_0144	-	nitroreductase
142	 43.55	+2	141920..143074	-	384	167038817	-	Teth514_0145	-	iron-containing alcohol dehydrogenase
143	 42.54	+2	143109..145073	-	654	167038818	-	Teth514_0146	-	NADH:flavin oxidoreductase/NADH oxidase
144	 37.04	0	145277..146167	+	296	167038819	-	Teth514_0147	-	LysR family transcriptional regulator
145	 46.96	+2	146444..146854	-	136	167038820	-	Teth514_0148	-	transposase IS116/IS110/IS902 family protein
146	 32.91	0	147881..148597	+	238	167038821	-	Teth514_0150	-	hypothetical protein
147	 32.04	0	148584..149123	+	179	167038822	-	Teth514_0151	-	hypothetical protein
148	 36.52	0	150618..151934	+	438	167038823	-	Teth514_0153	-	xylose isomerase
149	 36.66	0	151949..153451	+	500	167038824	-	Teth514_0154	-	xylulokinase
150	 34.24	0	153538..154644	+	368	167038825	-	Teth514_0155	-	D-xylose ABC transporter, periplasmic substrate-binding protein
151	 37.37	0	155103..156515	+	470	167038826	-	Teth514_0156	-	RNA-directed DNA polymerase (Reverse transcriptase)
152	 29.40	-1	156614..158137	+	507	167038827	-	Teth514_0157	-	ABC transporter related
153	 32.90	0	158137..159303	+	388	167038828	-	Teth514_0158	-	monosaccharide-transporting ATPase
154	 32.92	0	159361..160563	+	400	167038829	-	Teth514_0159	-	ROK family protein
155	 30.28	-1	160581..161498	+	305	167038830	-	Teth514_0160	-	oxidoreductase domain-containing protein
156	 33.53	0	161657..162667	+	336	167038831	-	Teth514_0161	-	periplasmic binding protein/LacI transcriptional regulator
157	 34.52	0	162683..163612	+	309	167038832	-	Teth514_0162	-	ribokinase
158	 31.55	0	163609..164001	+	130	167038833	-	Teth514_0163	-	D-ribose pyranase
159	 31.05	0	164025..165515	+	496	167038834	-	Teth514_0164	-	ABC transporter related
160	 34.48	0	165517..166473	+	318	167038835	-	Teth514_0165	-	monosaccharide-transporting ATPase
161	 34.74	0	166556..167479	+	307	167038836	-	Teth514_0166	-	monosaccharide-transporting ATPase
162	 37.15	0	167982..169394	+	470	167038837	-	Teth514_0167	-	RNA-directed DNA polymerase (Reverse transcriptase)
163	 31.79	0	170094..170936	+	280	167038838	-	Teth514_0168	-	RpiR family transcriptional regulator
164	 32.71	0	170950..171432	+	160	167038839	-	Teth514_0169	-	PTS system, glucose subfamily, IIA subunit
165	 35.64	0	171527..172957	+	476	167038840	-	Teth514_0170	-	phosphotransferase system, EIIC
166	 30.02	-1	173006..174091	+	361	167038841	-	Teth514_0171	-	hypothetical protein
167	 33.00	0	174096..175004	+	302	167038842	-	Teth514_0172	-	N-acetylmuramic acid-6-phosphate etherase
168	 31.61	0	175171..176100	+	309	167038843	-	Teth514_0173	-	hypothetical protein
169	 28.00	-1	176193..176567	+	124	167038844	-	Teth514_0174	-	PRD domain-containing protein
170	 38.02	0	176564..176926	+	120	167038845	-	Teth514_0175	-	hypothetical protein
171	 37.31	0	176944..178227	+	427	167038846	-	Teth514_0176	-	hypothetical protein
172	 30.54	0	178282..179391	+	369	167038847	-	Teth514_0177	-	hypothetical protein
173	 27.56	-1	179392..180291	+	299	167038848	-	Teth514_0178	-	aryldialkylphosphatase
174	 35.71	0	180295..181386	+	363	167038849	-	Teth514_0179	-	Cys/Met metabolism pyridoxal-phosphate-dependent enzyme
175	 31.24	0	181398..182594	+	398	167038850	-	Teth514_0180	-	amino acid racemase-like protein
176	 33.83	0	182591..183793	+	400	167038851	-	Teth514_0181	-	putative mutase
177	 33.46	0	184152..185714	+	520	167038852	-	Teth514_0182	-	glycoside hydrolase family 3 protein
178	 34.16	0	185756..186718	+	320	167038853	-	Teth514_0183	-	GCN5-related N-acetyltransferase
179	 34.73	0	186757..187905	+	382	167038854	-	Teth514_0184	-	N-acetylglucosamine-6-phosphate deacetylase
180	 35.56	0	188052..189218	-	388	167038855	-	Teth514_0185	-	aminotransferase, class I and II
181	 39.06	+1	189215..189703	-	162	167038856	-	Teth514_0186	-	AsnC family transcriptional regulator
182	 36.63	0	189913..190155	+	80	167038857	-	Teth514_0187	-	FeoA family protein
183	 34.85	0	190174..192147	+	657	167038858	-	Teth514_0188	-	ferrous iron transport protein B
184	 35.25	0	192242..192970	-	242	167038859	-	Teth514_0189	-	ABC transporter related
185	 29.66	-1	192982..193797	-	271	167038860	-	Teth514_0190	-	cobalt ABC transporter, inner membrane subunit CbiQ
186	 35.85	0	193790..194107	-	105	167038861	-	Teth514_0191	-	hypothetical protein
187	 36.80	0	194104..194796	-	230	167038862	-	Teth514_0192	-	cobalt transport protein CbiM
188	 33.56	0	194810..195241	-	143	167038863	-	Teth514_0193	-	nickel responsive regulator
189	 36.09	0	195623..196093	+	156	167038864	-	Teth514_0194	-	tRNA/rRNA methyltransferase (SpoU)
190	 34.62	0	196112..197281	+	389	167038865	-	Teth514_0195	-	DNA-directed DNA polymerase
191	 39.23	+1	198013..199233	+	406	167038866	-	Teth514_0197	-	transposase IS116/IS110/IS902 family protein
192	 35.76	0	200338..201903	+	521	167038867	-	Teth514_0198	-	RND family efflux transporter MFP subunit
193	 35.06	0	201907..202599	+	230	167038868	-	Teth514_0199	-	ABC transporter related
194	 36.48	0	202596..203771	+	391	167038869	-	Teth514_0200	-	hypothetical protein
195	 39.51	+1	203991..204719	+	242	167038870	-	Teth514_0201	-	5-carboxymethyl-2-hydroxymuconate Delta-isomerase
196	 33.10	0	205069..208518	+	1149	167038871	-	Teth514_0202	-	ATP-dependent nuclease subunit B-like protein
197	 34.76	0	208499..212200	+	1233	167038872	-	Teth514_0203	-	UvrD-like DNA helicase, C terminal
198	 35.80	0	212353..213570	+	405	167038873	-	Teth514_0204	-	nuclease SbcCD, D subunit
199	 31.36	0	213542..217084	+	1180	167038874	-	Teth514_0205	-	SMC domain-containing protein
200	 38.15	0	217106..218143	-	345	167038875	-	Teth514_0206	-	aromatic amino acid beta-eliminating lyase/threonine aldolase
201	 36.27	0	218284..218931	-	215	167038876	-	Teth514_0207	-	putative peroxiredoxin
202	 28.28	-1	218950..219384	-	144	167038877	-	Teth514_0208	-	ferric uptake regulator family protein
203	 32.20	0	219401..219577	-	58	167038878	-	Teth514_0209	-	hypothetical protein
34.39	MEAN

3.95	STD DEV
