IslandPath Analysis: Thermoanaerobacter sp. X514

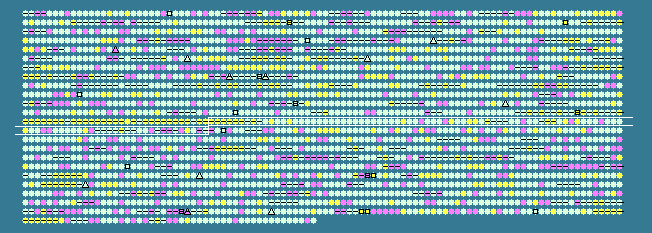

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1232	 39.90	+1	1298910..1301468	+	852	167039907	-	Teth514_1263	-	phage tape measure protein
1233	 40.05	+1	1301482..1302255	+	257	167039908	-	Teth514_1264	-	phage putative tail component
1234	 39.48	+1	1302260..1304782	+	840	167039909	-	Teth514_1265	-	phage minor structural protein
1235	 44.62	+2	1304798..1304992	+	64	167039910	-	Teth514_1266	-	hypothetical protein
1236	 40.78	+1	1304993..1305583	+	196	167039911	-	Teth514_1267	-	hypothetical protein
1237	 41.04	+1	1305625..1308051	+	808	167039912	-	Teth514_1268	-	glycosyl hydrolase-like protein
1238	 36.01	0	1308133..1308543	+	136	167039913	-	Teth514_1269	-	toxin secretion/phage lysis holin
1239	 39.60	+1	1308540..1309241	+	233	167039914	-	Teth514_1270	-	N-acetylmuramoyl-L-alanine amidase
1240	 33.77	0	1309374..1309604	+	76	167039915	-	Teth514_1271	-	hypothetical protein
1241	 35.90	0	1309657..1311216	+	519	167039916	-	Teth514_1272	-	resolvase domain-containing protein
1242	 39.20	+1	1311213..1311638	+	141	167039917	-	Teth514_1273	-	recombinase
1243	 35.43	0	1311640..1313211	+	523	167039918	-	Teth514_1274	-	resolvase domain-containing protein
1244	 33.33	0	1313528..1313902	+	124	167039919	-	Teth514_1275	-	regulatory protein, ArsR
1245	 38.67	+1	1313916..1316276	+	786	167039920	-	Teth514_1276	-	heavy metal translocating P-type ATPase
1246	 32.26	0	1316363..1316827	+	154	167039921	-	Teth514_1277	-	lipoprotein signal peptidase
1247	 33.33	0	1316985..1317470	+	161	167039922	-	Teth514_1278	-	hypothetical protein
1248	 37.53	0	1317821..1318606	+	261	167039923	-	Teth514_1279	-	dipeptidyl aminopeptidase/acylaminoacyl-peptidase-like protein
1249	 32.99	0	1318703..1319290	+	195	167039924	-	Teth514_1280	-	alkylhydroperoxidase
1250	 32.51	0	1319314..1320534	+	406	167039925	-	Teth514_1281	-	patatin
1251	 37.50	0	1320782..1320949	+	55	167039926	-	Teth514_1282	-	hypothetical protein
1252	 32.79	0	1321106..1321471	+	121	167039927	-	Teth514_1283	-	hypothetical protein
1253	 35.96	0	1321485..1322816	+	443	167039928	-	Teth514_1284	-	recombination factor protein RarA
1254	 34.62	0	1323124..1323825	-	233	167039929	-	Teth514_1285	-	phosphoenolpyruvate carboxykinase (ATP)
1255	 31.82	0	1324065..1324262	+	65	167039930	-	Teth514_1286	-	hypothetical protein
1256	 32.26	0	1324251..1324715	-	154	167039931	-	Teth514_1287	-	NUDIX hydrolase
1257	 34.03	0	1324803..1325660	+	285	167039932	-	Teth514_1288	-	RluA family pseudouridine synthase
1258	 33.00	0	1325652..1326548	-	298	167039933	-	Teth514_1289	-	radical SAM domain-containing protein
1259	 33.70	0	1326926..1328569	+	547	167039934	-	Teth514_1290	-	phosphoribulokinase/uridine kinase
1260	 36.79	0	1328614..1329018	+	134	167039935	-	Teth514_1291	-	hypothetical protein
1261	 32.05	0	1329297..1329452	+	51	167039936	-	Teth514_1292	-	hypothetical protein
1262	 35.72	0	1329596..1330936	+	446	167039937	-	Teth514_1293	-	radical SAM domain-containing protein
1263	 31.81	0	1330993..1331649	+	218	167039938	-	Teth514_1294	-	putative transcriptional regulator
1264	 39.15	+1	1331772..1331960	+	62	167039939	-	Teth514_1295	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1265	 32.89	0	1332331..1332558	+	75	167039940	-	Teth514_1296	-	small acid-soluble spore protein, alpha/beta type
1266	 33.59	0	1332666..1335026	+	786	167039941	-	Teth514_1297	-	peptidase S16, lon domain-containing protein
1267	 30.80	0	1335026..1336168	+	380	167039942	-	Teth514_1298	-	hypothetical protein
1268	 33.80	0	1336149..1336790	+	213	167039943	-	Teth514_1299	-	endonuclease III
1269	 31.78	0	1336889..1338364	+	491	167039944	-	Teth514_1300	-	VanW family protein
1270	 33.33	0	1338411..1338911	-	166	167039945	-	Teth514_1301	-	ferric uptake regulator family protein
1271	 29.82	-1	1339012..1339836	+	274	167039946	-	Teth514_1302	-	Cof-like hydrolase
1272	 38.83	+1	1339855..1340127	+	90	167039947	-	Teth514_1303	-	acylphosphatase
1273	 35.09	0	1341739..1342761	+	340	167039948	-	Teth514_1305	-	DeoR family transcriptional regulator
1274	 35.42	0	1342810..1343817	+	335	167039949	-	Teth514_1306	-	glyceraldehyde-3-phosphate dehydrogenase, type I
1275	 38.16	0	1343884..1345065	+	393	167039950	-	Teth514_1307	-	phosphoglycerate kinase
1276	 38.55	+1	1345079..1345825	+	248	167039951	-	Teth514_1308	-	triosephosphate isomerase
1277	 36.25	0	1345838..1347382	+	514	167039952	-	Teth514_1309	-	phosphoglyceromutase
1278	 38.60	+1	1347409..1348698	+	429	167039953	-	Teth514_1310	-	phosphopyruvate hydratase
1279	 36.67	0	1348815..1349054	+	79	167039954	-	Teth514_1311	-	preprotein translocase subunit SecG
1280	 33.93	0	1349142..1350143	+	333	167039955	-	Teth514_1312	-	deoxyguanosinetriphosphate triphosphohydrolase-like protein
1281	 31.15	0	1350292..1352079	+	595	167039956	-	Teth514_1313	-	DNA primase
1282	 37.80	0	1352111..1353184	+	357	167039957	-	Teth514_1314	-	RNA polymerase sigma factor RpoD
1283	 33.54	0	1353641..1355059	-	472	167039958	-	Teth514_1315	-	hypothetical protein
1284	 29.93	-1	1355215..1355919	+	234	167039959	-	Teth514_1316	-	hypothetical protein
1285	 34.59	0	1355879..1356994	+	371	167039960	-	Teth514_1317	-	hypothetical protein
1286	 35.75	0	1357572..1358273	+	233	167039961	-	Teth514_1318	-	purine nucleoside phosphorylase
1287	 32.50	0	1358342..1359298	+	318	167039962	-	Teth514_1319	-	mannose-6-phosphate isomerase, class I
1288	 51.78	+2	1359957..1361105	+	382	167039963	-	Teth514_1320	-	sodium/hydrogen exchanger
1289	 46.07	+2	1361111..1361479	+	122	167039964	-	Teth514_1321	-	hypothetical protein
1290	 31.25	0	1361621..1361860	-	79	167039965	-	Teth514_1322	-	redox-active disulfide protein 2
1291	 38.38	+1	1361963..1363132	-	389	167039966	-	Teth514_1323	-	permease
1292	 30.56	0	1363184..1363507	-	107	167039967	-	Teth514_1324	-	regulatory protein, ArsR
1293	 38.93	+1	1364264..1365175	+	303	167039968	-	Teth514_1325	-	RNA-directed DNA polymerase (Reverse transcriptase)
1294	 34.84	0	1365283..1365879	+	198	167039969	-	Teth514_1326	-	hypothetical protein
1295	 34.08	0	1367359..1368159	+	266	167039970	-	Teth514_1329	-	AAA ATPase
1296	 34.55	0	1368366..1368530	+	54	167039971	-	Teth514_1330	-	hypothetical protein
1297	 26.43	-2	1368514..1368933	+	139	167039972	-	Teth514_1331	-	GtrA family protein
1298	 36.63	0	1368946..1371099	+	717	167039973	-	Teth514_1332	-	glycosyl transferase family protein
1299	 33.85	0	1371300..1372649	+	449	167039974	-	Teth514_1333	-	MiaB-like tRNA modifying enzyme
1300	 34.20	0	1372686..1373030	+	114	167039975	-	Teth514_1334	-	histidine triad (HIT) protein
1301	 38.17	0	1373142..1373327	+	61	167039976	-	Teth514_1335	-	30S ribosomal protein S21
1302	 34.68	0	1373342..1373785	+	147	167039977	-	Teth514_1336	-	GatB/Yqey domain-containing protein
1303	 34.76	0	1373811..1374860	-	349	167039978	-	Teth514_1337	-	asparaginase/glutaminase
1304	 30.37	-1	1374956..1375225	+	89	167039979	-	Teth514_1338	-	hypothetical protein
1305	 28.79	-1	1375237..1376424	+	395	167039980	-	Teth514_1339	-	putative stage IV sporulation YqfD
1306	 35.66	0	1376421..1377407	+	328	167039981	-	Teth514_1340	-	PhoH family protein
1307	 32.27	0	1377421..1379487	+	688	167039982	-	Teth514_1341	-	metal dependent phosphohydrolase
1308	 33.54	0	1379484..1379963	+	159	167039983	-	Teth514_1342	-	putative metalloprotease
1309	 32.47	0	1379968..1380666	+	232	167039984	-	Teth514_1343	-	diacylglycerol kinase
1310	 33.11	0	1380678..1381586	+	302	167039985	-	Teth514_1344	-	GTP-binding protein Era
1311	 38.10	0	1381622..1382293	+	223	167039986	-	Teth514_1345	-	deoxyribose-phosphate aldolase
1312	 30.25	-1	1382299..1383045	+	248	167039987	-	Teth514_1346	-	DNA repair protein RecO
1313	 32.85	0	1383060..1383470	+	136	167039988	-	Teth514_1347	-	ubiquitin-associated domain-containing protein
1314	 34.63	0	1383580..1384968	+	462	167039989	-	Teth514_1348	-	glycyl-tRNA synthetase
1315	 36.60	0	1385160..1385801	+	213	167039990	-	Teth514_1349	-	signal-transduction protein
1316	 31.73	0	1385815..1386627	+	270	167039991	-	Teth514_1350	-	hypothetical protein
1317	 38.04	0	1386624..1389257	+	877	167039992	-	Teth514_1351	-	pyruvate phosphate dikinase
1318	 36.59	0	1389383..1389934	+	183	167039993	-	Teth514_1352	-	metal dependent phosphohydrolase
1319	 33.24	0	1389938..1392106	+	722	167039994	-	Teth514_1353	-	ribonuclease R
1320	 31.42	0	1392216..1392686	+	156	167039995	-	Teth514_1354	-	SsrA-binding protein
1321	 33.82	0	1394518..1396158	+	546	167039996	-	Teth514_1355	-	ABC transporter related
1322	 28.26	-1	1396456..1397421	-	321	167039997	-	Teth514_1356	-	helix-turn-helix domain-containing protein
1323	 32.88	0	1397899..1398342	+	147	167039998	-	Teth514_1357	-	hypothetical protein
1324	 29.01	-1	1398474..1399538	+	354	167039999	-	Teth514_1358	-	hypothetical protein
1325	 29.08	-1	1399522..1400649	+	375	167040000	-	Teth514_1359	-	hypothetical protein
1326	 34.96	0	1400652..1401329	+	225	167040001	-	Teth514_1360	-	ABC transporter related
1327	 29.41	-1	1401555..1401758	+	67	167040002	-	Teth514_1361	-	hypothetical protein
1328	 38.96	+1	1401795..1402043	-	82	167040003	-	Teth514_1362	-	XRE family transcriptional regulator
1329	 37.04	0	1402578..1402712	+	44	167040004	-	Teth514_1363	-	hypothetical protein
1330	 29.50	-1	1403082..1404464	+	460	167040005	-	Teth514_1364	-	radical SAM domain-containing protein
1331	 33.28	0	1404484..1406217	+	577	167040006	-	Teth514_1365	-	ABC transporter related
34.39	MEAN

3.95	STD DEV
