IslandPath Analysis: Thermoanaerobacter sp. X514

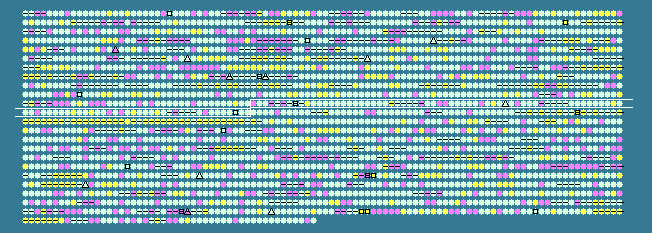

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
No RNA data available A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 34.39 STD DEV: 3.95
Thermoanaerobacter sp. X514, complete genome - 1..2457259
2349 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1039	 30.25	-1	1101800..1101961	+	53	167039714	-	Teth514_1064	-	hypothetical protein
1040	 36.25	0	1102062..1103468	+	468	167039715	-	Teth514_1065	-	hypothetical protein
1041	 32.34	0	1103519..1104520	+	333	167039716	-	Teth514_1066	-	radical SAM domain-containing protein
1042	 25.00	-2	1104659..1104886	+	75	167039717	-	Teth514_1067	-	hypothetical protein
1043	 32.74	0	1104955..1105293	+	112	167039718	-	Teth514_1068	-	hypothetical protein
1044	 27.13	-1	1105435..1105869	+	144	167039719	-	Teth514_1069	-	hypothetical protein
1045	 34.01	0	1106352..1106945	+	197	167039720	-	Teth514_1070	-	resolvase domain-containing protein
1046	 33.40	0	1106926..1108362	+	478	167039721	-	Teth514_1071	-	transposase, putative
1047	 35.75	0	1108512..1109504	+	330	167039722	-	Teth514_1072	-	periplasmic binding protein/LacI transcriptional regulator
1048	 39.30	+1	1109562..1110650	+	362	167039723	-	Teth514_1073	-	oxidoreductase domain-containing protein
1049	 35.71	0	1110665..1111714	+	349	167039724	-	Teth514_1074	-	oxidoreductase domain-containing protein
1050	 32.53	0	1111732..1112481	+	249	167039725	-	Teth514_1075	-	xylose isomerase domain-containing protein
1051	 36.46	0	1112482..1113408	+	308	167039726	-	Teth514_1076	-	xylose isomerase domain-containing protein
1052	 31.05	0	1113516..1114436	+	306	167039727	-	Teth514_1077	-	auxin efflux carrier
1053	 36.63	0	1114459..1115430	+	323	167039728	-	Teth514_1078	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1054	 33.47	0	1115672..1116427	+	251	167039729	-	Teth514_1079	-	DeoR family transcriptional regulator
1055	 36.08	0	1116466..1117047	+	193	167039730	-	Teth514_1080	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
1056	 34.68	0	1117098..1118504	+	468	167039731	-	Teth514_1081	-	6-phosphogluconate dehydrogenase
1057	 35.56	0	1118613..1118792	+	59	167039732	-	Teth514_1082	-	hypothetical protein
1058	 34.71	0	1119177..1120697	+	506	167039733	-	Teth514_1084	-	carbohydrate kinase, FGGY
1059	 31.11	0	1120759..1121118	-	119	167039734	-	Teth514_1085	-	hypothetical protein
1060	 35.36	0	1121428..1123005	+	525	167039735	-	Teth514_1086	-	galactose-1-phosphate uridylyltransferase
1061	 34.71	0	1123002..1124165	+	387	167039736	-	Teth514_1087	-	galactokinase
1062	 40.20	+1	1124179..1125168	+	329	167039737	-	Teth514_1088	-	UDP-glucose 4-epimerase
1063	 35.77	0	1125183..1126373	+	396	167039738	-	Teth514_1089	-	ROK family protein
1064	 35.32	0	1126465..1127370	+	301	167039739	-	Teth514_1090	-	hypothetical protein
1065	 32.95	0	1127810..1129111	+	433	167039740	-	Teth514_1091	-	extracellular solute-binding protein
1066	 31.74	0	1129236..1130111	+	291	167039741	-	Teth514_1092	-	binding-protein-dependent transport systems inner membrane component
1067	 29.52	-1	1130108..1130920	+	270	167039742	-	Teth514_1093	-	binding-protein-dependent transport systems inner membrane component
1068	 34.29	0	1131026..1133227	+	733	167039743	-	Teth514_1094	-	glycoside hydrolase, clan GH-D
1069	 33.42	0	1133220..1135451	+	743	167039744	-	Teth514_1095	-	Beta-galactosidase
1070	 29.28	-1	1135658..1138792	+	1044	167039745	-	Teth514_1096	-	Alpha-mannosidase
1071	 26.50	-1	1138893..1139477	+	194	167039746	-	Teth514_1097	-	hypothetical protein
1072	 31.21	0	1139798..1139938	+	46	167039747	-	Teth514_1098	-	hypothetical protein
1073	 37.70	0	1140141..1141514	+	457	167039748	-	Teth514_1099	-	extracellular solute-binding protein
1074	 32.12	0	1141598..1142500	+	300	167039749	-	Teth514_1100	-	binding-protein-dependent transport systems inner membrane component
1075	 31.08	0	1142525..1143367	+	280	167039750	-	Teth514_1101	-	binding-protein-dependent transport systems inner membrane component
1076	 34.87	0	1143493..1143948	+	151	167039751	-	Teth514_1102	-	Alpha-mannosidase-like protein
1077	 27.65	-1	1144086..1144982	+	298	167039752	-	Teth514_1103	-	helix-turn-helix domain-containing protein
1078	 35.33	0	1145200..1146099	-	299	167039753	-	Teth514_1104	-	acetamidase/formamidase
1079	 39.21	+1	1146694..1148055	+	453	167039754	-	Teth514_1105	-	sodium:neurotransmitter symporter
1080	 34.08	0	1148212..1149012	-	266	167039755	-	Teth514_1106	-	AAA ATPase
1081	 34.77	0	1149030..1150355	-	441	167039756	-	Teth514_1107	-	integrase catalytic subunit
1082	 32.99	0	1150492..1151073	-	193	167039757	-	Teth514_1108	-	hypothetical protein
1083	 29.51	-1	1151639..1152946	+	435	167039758	-	Teth514_1109	-	hypothetical protein
1084	 35.64	0	1153067..1153717	+	216	167039759	-	Teth514_1110	-	putative translaldolase
1085	 31.27	0	1153814..1155121	+	435	167039760	-	Teth514_1111	-	extracellular solute-binding protein
1086	 35.62	0	1155145..1156806	-	553	167039761	-	Teth514_1112	-	peptidoglycan glycosyltransferase
1087	 27.56	-1	1157152..1157463	+	103	167039762	-	Teth514_1113	-	hypothetical protein
1088	 32.39	0	1157447..1157659	+	70	167039763	-	Teth514_1114	-	hypothetical protein
1089	 36.36	0	1157978..1159297	+	439	167039764	-	Teth514_1115	-	extracellular solute-binding protein
1090	 32.32	0	1159372..1160262	+	296	167039765	-	Teth514_1116	-	binding-protein-dependent transport systems inner membrane component
1091	 32.00	0	1160262..1161089	+	275	167039766	-	Teth514_1117	-	binding-protein-dependent transport systems inner membrane component
1092	 31.71	0	1161109..1162584	+	491	167039767	-	Teth514_1118	-	sucrose-6-phosphate hydrolase
1093	 33.23	0	1162651..1163619	+	322	167039768	-	Teth514_1119	-	ribokinase-like domain-containing protein
1094	 32.00	0	1163707..1164681	+	324	167039769	-	Teth514_1120	-	regulatory protein, LacI
1095	 35.10	0	1164825..1165901	+	358	167039770	-	Teth514_1121	-	hypothetical protein
1096	 32.58	0	1166014..1166145	+	43	167039771	-	Teth514_1122	-	hypothetical protein
1097	 35.45	0	1166173..1166598	+	141	167039772	-	Teth514_1123	-	hypothetical protein
1098	 32.38	0	1166615..1167244	-	209	167039773	-	Teth514_1124	-	methyltransferase type 11
1099	 38.89	+1	1167573..1167932	+	119	167039774	-	Teth514_1125	-	hypothetical protein
1100	 37.47	0	1168127..1168489	+	120	167039775	-	Teth514_1126	-	dinitrogenase iron-molybdenum cofactor biosynthesis protein
1101	 36.87	0	1168504..1169352	+	282	167039776	-	Teth514_1127	-	cobyrinic acid a,c-diamide synthase
1102	 37.56	0	1169349..1170224	+	291	167039777	-	Teth514_1128	-	cobyrinic acid a,c-diamide synthase
1103	 30.16	-1	1170308..1171126	+	272	167039778	-	Teth514_1129	-	beta-lactamase domain-containing protein
1104	 32.86	0	1171258..1172316	-	352	167039779	-	Teth514_1130	-	biotin synthase
1105	 35.20	0	1172508..1173848	+	446	167039780	-	Teth514_1131	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1106	 33.42	0	1174020..1175156	+	378	167039781	-	Teth514_1132	-	periplasmic binding protein
1107	 37.09	0	1175218..1176282	+	354	167039782	-	Teth514_1133	-	transport system permease protein
1108	 32.40	0	1176279..1177031	+	250	167039783	-	Teth514_1134	-	ABC transporter related
1109	 37.89	0	1177055..1177471	+	138	167039784	-	Teth514_1135	-	hypothetical protein
1110	 31.34	0	1178070..1178672	+	200	167039785	-	Teth514_1137	-	hypothetical protein
1111	 36.21	0	1179190..1179432	+	80	167039786	-	Teth514_1138	-	FeoA family protein
1112	 38.68	+1	1179434..1179676	+	80	167039787	-	Teth514_1139	-	FeoA family protein
1113	 35.83	0	1179691..1181733	+	680	167039788	-	Teth514_1140	-	ferrous iron transport protein B
1114	 36.36	0	1181978..1182571	+	197	167039789	-	Teth514_1141	-	metal dependent phosphohydrolase
1115	 25.74	-2	1182640..1183113	+	157	167039790	-	Teth514_1142	-	ferric uptake regulator family protein
1116	 35.16	0	1183623..1185701	+	692	167039791	-	Teth514_1144	-	anaerobic ribonucleoside triphosphate reductase
1117	 29.26	-1	1185698..1186384	+	228	167039792	-	Teth514_1145	-	anaerobic ribonucleoside-triphosphate reductase activating protein
1118	 31.83	0	1186577..1189306	+	909	167039793	-	Teth514_1146	-	diguanylate cyclase and metal dependent phosphohydrolase
1119	 38.01	0	1189374..1189715	+	113	167039794	-	Teth514_1147	-	hypothetical protein
1120	 33.18	0	1189832..1190467	+	211	167039795	-	Teth514_1148	-	hypothetical protein
1121	 34.67	0	1190556..1190780	+	74	167039796	-	Teth514_1149	-	copper ion binding protein
1122	 36.63	0	1191317..1192255	+	312	167039797	-	Teth514_1150	-	cysteine synthase A
1123	 43.86	+2	1192287..1192400	+	37	167039798	-	Teth514_1151	-	hypothetical protein
1124	 31.07	0	1192523..1192699	-	58	167039799	-	Teth514_1152	-	hypothetical protein
1125	 32.98	0	1193020..1193304	-	94	167039800	-	Teth514_1153	-	hypothetical protein
1126	 28.24	-1	1193336..1193551	-	71	167039801	-	Teth514_1154	-	hypothetical protein
1127	 33.19	0	1193764..1194459	+	231	167039802	-	Teth514_1155	-	two component transcriptional regulator
1128	 31.05	0	1194452..1195807	+	451	167039803	-	Teth514_1156	-	integral membrane sensor signal transduction histidine kinase
1129	 33.99	0	1196081..1196686	-	201	167039804	-	Teth514_1158	-	thiamine biosynthesis protein ThiF
1130	 33.44	0	1196800..1197702	-	300	167039805	-	Teth514_1159	-	PP-loop domain-containing protein
1131	 28.72	-1	1197722..1197916	-	64	167039806	-	Teth514_1160	-	thiamineS protein
1132	 32.51	0	1198154..1198519	+	121	167039807	-	Teth514_1161	-	regulatory protein, ArsR
1133	 35.56	0	1198539..1200515	+	658	167039808	-	Teth514_1162	-	heavy metal translocating P-type ATPase
1134	 35.11	0	1200553..1200777	+	74	167039809	-	Teth514_1163	-	copper ion binding protein
1135	 35.50	0	1201145..1202299	+	384	167039810	-	Teth514_1164	-	cysteine desulfurase
1136	 36.67	0	1202456..1203715	-	419	167039811	-	Teth514_1165	-	transposase IS116/IS110/IS902 family protein
1137	 37.22	0	1204122..1205150	+	342	167039812	-	Teth514_1166	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1138	 35.00	0	1205293..1205592	+	99	167039813	-	Teth514_1167	-	response regulator receiver protein
34.39	MEAN

3.95	STD DEV
