IslandPath Analysis: Thermotoga petrophila RKU-1

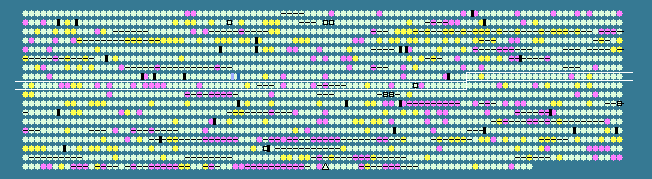

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
775	 46.90	0	798200..798892	+	230	148269920	-	Tpet_0785	-	indole-3-glycerol-phosphate synthase
776	 46.60	0	798880..799497	+	205	148269921	-	Tpet_0786	-	phosphoribosylanthranilate isomerase
777	 51.20	+1	799500..800669	+	389	148269922	-	Tpet_0787	-	tryptophan synthase subunit beta
778	 47.08	0	800666..801385	+	239	148269923	-	Tpet_0788	-	tryptophan synthase, alpha subunit
779	 45.73	0	801408..802343	-	311	148269924	-	Tpet_0789	-	radical SAM domain-containing protein
780	 49.39	+1	802349..802921	-	190	148269925	-	Tpet_0790	-	beta-lactamase domain-containing protein
781	 47.30	0	802918..803712	-	264	148269926	-	Tpet_0791	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
782	 47.18	0	803673..804257	-	194	148269927	-	Tpet_0792	-	isochorismatase hydrolase
783	 46.46	0	804259..805035	-	258	148269928	-	Tpet_0793	-	flagellin domain-containing protein
784	 49.09	0	805252..806406	-	384	148269929	-	Tpet_0794	-	major facilitator transporter
785	 47.45	0	806467..807543	+	358	148269930	-	Tpet_0795	-	peptidase dimerisation domain-containing protein
786	 46.44	0	807533..808921	+	462	148269931	-	Tpet_0796	-	pyruvate carboxylase subunit B
787	 43.47	0	808867..809724	-	285	148269932	-	Tpet_0797	-	integral membrane sensor signal transduction histidine kinase
788	 46.76	0	809721..810383	-	220	148269933	-	Tpet_0798	-	two component transcriptional regulator
789	 48.75	0	810380..811177	-	265	148269934	-	Tpet_0799	-	ABC-3 protein
790	 46.20	0	811174..811896	-	240	148269935	-	Tpet_0800	-	ABC transporter related
791	 47.01	0	811893..812696	-	267	148269936	-	Tpet_0801	-	periplasmic solute binding protein
792	 40.98	-1	812693..813058	-	121	148269937	-	Tpet_0802	-	ferric uptake regulator family protein
793	 45.72	0	813280..814377	+	365	148269938	-	Tpet_0803	-	lysine 2,3-aminomutase YodO family protein
794	 44.32	0	814394..814948	-	184	148269939	-	Tpet_0804	-	nitroreductase
795	 50.35	+1	814951..815808	-	285	148269940	-	Tpet_0805	-	acetamidase/formamidase
796	 47.91	0	815821..818304	-	827	148269941	-	Tpet_0806	-	ribonucleoside-diphosphate reductase, adenosylcobalamin-dependent
797	 44.72	0	818463..819191	+	242	148269942	-	Tpet_0807	-	radical SAM domain-containing protein
798	 48.28	0	819213..820691	-	492	148269943	-	Tpet_0808	-	xylulokinase
799	 44.18	0	820691..822220	-	509	148269944	-	Tpet_0809	-	ABC transporter related
800	 48.97	0	822269..823240	-	323	148269945	-	Tpet_0810	-	periplasmic binding protein/LacI transcriptional regulator
801	 43.89	0	823265..823984	-	239	148269946	-	Tpet_0811	-	polysaccharide deacetylase
802	 50.63	+1	823999..824952	-	317	148269947	-	Tpet_0812	-	monosaccharide-transporting ATPase
803	 47.34	0	824965..826128	-	387	148269948	-	Tpet_0813	-	iron-containing alcohol dehydrogenase
804	 44.74	0	826142..827281	-	379	148269949	-	Tpet_0814	-	ROK family protein
805	 43.41	0	827389..828351	-	320	148269950	-	Tpet_0815	-	radical SAM domain-containing protein
806	 46.92	0	828332..829597	-	421	148269951	-	Tpet_0816	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
807	 42.41	-1	829598..830170	-	190	148269952	-	Tpet_0817	-	putative diguanylate cyclase
808	 41.43	-1	830247..831431	+	394	148269953	-	Tpet_0818	-	RecB family-like nuclease
809	 50.42	+1	831413..832372	-	319	148269954	-	Tpet_0819	-	inner-membrane translocator
810	 49.76	+1	832369..833403	-	344	148269955	-	Tpet_0820	-	inner-membrane translocator
811	 45.87	0	833400..834923	-	507	148269956	-	Tpet_0821	-	ABC transporter related
812	 49.44	+1	834959..836038	-	359	148269957	-	Tpet_0822	-	basic membrane lipoprotein
813	 41.20	-1	836035..837903	-	622	148269958	-	Tpet_0823	-	hypothetical protein
814	 46.44	0	837954..840020	+	688	148269959	-	Tpet_0824	-	DNA ligase, NAD-dependent
815	 42.48	-1	840011..840775	+	254	148269960	-	Tpet_0825	-	hypothetical protein
816	 47.78	0	840772..842079	+	435	148269961	obgE	Tpet_0826	-	GTPase ObgE
817	 43.49	0	842063..842653	+	196	148269962	-	Tpet_0827	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
818	 44.19	0	842643..843563	+	306	148269963	-	Tpet_0828	-	nifR3 family TIM-barrel protein
819	 41.19	-1	843566..844036	+	156	148269964	-	Tpet_0829	-	rubrerythrin
820	 44.25	0	844038..845237	+	399	148269965	-	Tpet_0830	-	type II secretion system protein
821	 39.32	-2	845234..845617	+	127	148269966	-	Tpet_0831	-	hypothetical protein
822	 40.67	-1	845619..846599	+	326	148269967	-	Tpet_0832	-	hypothetical protein
823	 36.61	-2	846571..847119	+	182	148269968	-	Tpet_0833	-	hypothetical protein
824	 41.49	-1	847116..847532	+	138	148269969	-	Tpet_0834	-	hypothetical protein
825	 46.54	0	847529..847990	+	153	148269970	-	Tpet_0835	-	hypothetical protein
826	 42.92	0	848006..851854	+	1282	148269971	-	Tpet_0836	-	type II and III secretion system protein
827	 47.48	0	851851..852684	+	277	148269972	-	Tpet_0837	-	hypothetical protein
828	 45.22	0	852665..854086	-	473	148269973	-	Tpet_0838	-	integral membrane protein MviN
829	 43.37	0	854154..854432	+	92	148269974	-	Tpet_0839	-	anti-sigma-28 factor, FlgM
830	 40.49	-1	854429..854875	+	148	148269975	-	Tpet_0840	-	hypothetical protein
831	 48.27	0	854878..857454	+	858	148269976	-	Tpet_0841	-	flagellar hook-associated protein FlgK
832	 47.65	0	857460..858374	+	304	148269977	-	Tpet_0842	-	flagellar hook-associated protein 3
833	 46.22	0	858379..858828	+	149	148269978	-	Tpet_0843	-	flagellar assembly protein FliW
834	 47.89	0	859071..859970	+	299	148269979	-	Tpet_0844	-	periplasmic binding protein
835	 47.06	0	859967..860935	+	322	148269980	-	Tpet_0845	-	transport system permease protein
836	 46.56	0	860937..861707	+	256	148269981	-	Tpet_0846	-	ABC transporter related
837	 49.49	+1	861690..862667	-	325	148269982	-	Tpet_0847	-	Acetyl xylan esterase
838	 49.59	+1	862674..865010	-	778	148269983	-	Tpet_0848	-	glycoside hydrolase family 3 protein
839	 47.87	0	865052..866014	-	320	148269984	-	Tpet_0849	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
840	 46.73	0	866001..867008	-	335	148269985	-	Tpet_0850	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
841	 46.20	0	867010..867864	-	284	148269986	-	Tpet_0851	-	binding-protein-dependent transport systems inner membrane component
842	 42.66	-1	867881..868888	-	335	148269987	-	Tpet_0852	-	binding-protein-dependent transport systems inner membrane component
843	 46.54	0	868962..870839	-	625	148269988	-	Tpet_0853	-	extracellular solute-binding protein
844	 42.53	-1	871060..872103	+	347	148269989	-	Tpet_0854	-	endo-1,4-beta-xylanase
845	 46.17	0	872125..873207	-	360	148269990	-	Tpet_0855	-	mannonate dehydratase
846	 44.69	0	873204..874823	-	539	148269991	-	Tpet_0856	-	mannitol dehydrogenase domain-containing protein
847	 46.96	0	874836..875855	-	339	148269992	-	Tpet_0857	-	ribokinase-like domain-containing protein
848	 47.71	0	875852..876463	-	203	148269993	-	Tpet_0858	-	2-dehydro-3-deoxyphosphogluconate aldolase/4-hydroxy-2-oxoglutarate aldolase
849	 41.43	-1	876533..877273	-	246	148269994	-	Tpet_0859	-	transcriptional regulator IclR-like protein
850	 48.67	0	877375..878730	+	451	148269995	-	Tpet_0860	-	glucuronate isomerase
851	 40.72	-1	878742..879188	+	148	148269996	-	Tpet_0861	-	hypothetical protein
852	 46.07	0	879238..879771	-	177	148269997	-	Tpet_0862	-	carbohydrate-binding CenC domain-containing protein
853	 48.93	0	879825..883004	-	1059	148269998	-	Tpet_0863	-	endo-1,4-beta-xylanase
854	 46.20	0	883324..884310	+	328	148269999	-	Tpet_0864	-	binding-protein-dependent transport systems inner membrane component
855	 45.71	0	884321..885427	+	368	148270000	-	Tpet_0865	-	binding-protein-dependent transport systems inner membrane component
856	 44.28	0	885441..886436	+	331	148270001	-	Tpet_0866	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
857	 45.33	0	886433..887449	+	338	148270002	-	Tpet_0867	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
858	 49.95	+1	887463..889436	+	657	148270003	-	Tpet_0868	-	extracellular solute-binding protein
859	 44.89	0	889492..891516	+	674	148270004	-	Tpet_0869	-	Alpha-glucuronidase
860	 44.84	0	891517..892107	-	196	148270005	-	Tpet_0870	-	hypothetical protein
861	 43.93	0	892104..893198	-	364	148270006	-	Tpet_0871	-	hypothetical protein
862	 41.14	-1	893195..893527	-	110	148270007	-	Tpet_0872	-	hypothetical protein
863	 45.96	0	893524..895527	-	667	148270008	-	Tpet_0873	-	ferrous iron transport protein B
864	 44.52	0	895502..895966	-	154	148270009	-	Tpet_0874	-	FeoA family protein
865	 46.06	0	896067..896852	-	261	148270010	-	Tpet_0875	-	hypothetical protein
866	 47.87	0	897141..898358	+	405	148270011	-	Tpet_0877	-	IS605 family transposase OrfB
867	 42.17	-1	898496..898744	-	82	148270012	-	Tpet_0878	-	hypothetical protein
868	 45.36	0	898772..899320	-	182	148270013	-	Tpet_0879	-	hypothetical protein
869	 43.79	0	899405..901144	+	579	148270014	-	Tpet_0880	-	ABC transporter related
870	 44.54	0	901157..902236	+	359	148270015	-	Tpet_0881	-	peptidase M24
871	 45.64	0	902220..902609	-	129	148270016	-	Tpet_0882	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
872	 46.12	0	902669..903505	-	278	148270017	-	Tpet_0883	-	dihydropteroate synthase
873	 45.00	0	903509..904288	-	259	148270018	-	Tpet_0884	-	putative GTP cyclohydrolase
874	 46.56	0	904285..904647	-	120	148270019	-	Tpet_0885	-	putative 6-pyruvoyl tetrahydropterin synthase
46.02	MEAN

3.27	STD DEV
