IslandPath Analysis: Thermotoga petrophila RKU-1

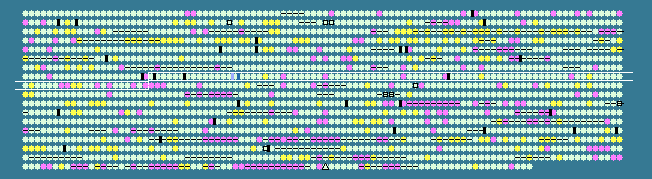

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
722	 46.64	0	736171..736959	+	262	148269867	-	Tpet_0731	-	hypothetical protein
723	 48.48	0	737450..737713	+	87	148269868	-	Tpet_0732	-	stage V sporulation protein S
724	 46.46	0	737768..738544	-	258	148269869	-	Tpet_0733	-	ABC transporter related
725	 47.44	0	738550..739584	-	344	148269870	-	Tpet_0734	-	transport system permease protein
726	 46.98	0	739578..740654	-	358	148269871	-	Tpet_0735	-	periplasmic binding protein
727	 46.76	0	740659..741090	-	143	148269872	-	Tpet_0736	-	hypothetical protein
728	 46.52	0	742904..744010	+	368	148269873	-	Tpet_0738	-	response regulator receiver modulated metal dependent phosphohydrolase
729	 47.98	0	743991..744386	+	131	148269874	-	Tpet_0739	-	activator of Hsp90 ATPase 1 family protein
730	 49.22	0	744366..745655	-	429	148269875	-	Tpet_0740	-	phosphoglucosamine mutase
731	 45.40	0	745652..746455	-	267	148269876	-	Tpet_0741	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
732	 47.74	0	746415..747608	-	397	148269877	-	Tpet_0742	-	radical SAM domain-containing protein
733	 44.92	0	747577..748551	-	324	148269878	-	Tpet_0743	-	DNA polymerase III, delta subunit
734	 48.25	0	748634..749203	+	189	148269879	-	Tpet_0744	-	hypothetical protein
735	 44.80	0	749231..749509	-	92	148269880	-	Tpet_0745	-	hypothetical protein
736	 44.18	0	750701..751198	-	165	148269881	-	Tpet_0746	-	homing endonuclease, LAGLIDADG/HNH
737	 44.87	0	755472..757682	-	736	148269882	-	Tpet_0747	-	primosomal protein N'
738	 45.54	0	757684..758535	-	283	148269883	-	Tpet_0748	-	hypothetical protein
739	 45.92	0	758560..759441	-	293	148269884	-	Tpet_0749	-	hypothetical protein
740	 43.62	0	759422..759703	-	93	148269885	-	Tpet_0750	-	phosphopantetheine-binding
741	 49.82	+1	759747..761918	-	723	148269886	hppA	Tpet_0751	-	membrane-bound proton-translocating pyrophosphatase
742	 43.77	0	761922..765236	-	1104	148269887	-	Tpet_0752	-	reverse gyrase
743	 48.15	0	765227..766441	-	404	148269888	-	Tpet_0753	-	S-adenosyl-L-homocysteine hydrolase
744	 39.91	-1	766438..766893	-	151	148269889	-	Tpet_0754	-	HAD superfamily hydrolase
745	 42.79	0	766890..767111	-	73	148269890	-	Tpet_0755	-	hypothetical protein
746	 47.85	0	767113..767739	-	208	148269891	-	Tpet_0756	-	redox-sensing transcriptional repressor Rex
747	 48.61	0	767749..770223	-	824	148269892	-	Tpet_0757	-	leucyl-tRNA synthetase
748	 48.59	0	770315..771487	+	390	148269893	-	Tpet_0758	-	phosphopentomutase
749	 45.51	0	771478..772791	+	437	148269894	-	Tpet_0759	-	FolC bifunctional protein
750	 44.80	0	772788..773354	+	188	148269895	-	Tpet_0760	-	Holliday junction DNA helicase RuvA
751	 41.34	-1	773331..774092	-	253	148269896	-	Tpet_0761	-	hypothetical protein
752	 44.09	0	774122..774958	-	278	148269897	-	Tpet_0762	-	TPR repeat-containing protein
753	 44.39	0	774937..777252	-	771	148269898	-	Tpet_0763	-	hypothetical protein
754	 45.67	0	777249..778067	-	272	148269899	-	Tpet_0764	-	polyprenyl synthetase
755	 46.89	0	778048..778593	-	181	148269900	-	Tpet_0765	-	hypothetical protein
756	 45.69	0	778711..779301	+	196	148269901	-	Tpet_0766	-	RdgB/HAM1 family non-canonical purine NTP pyrophosphatase
757	 43.54	0	779249..780130	-	293	148269902	-	Tpet_0767	-	prolipoprotein diacylglyceryl transferase
758	 42.91	0	780127..780387	-	86	148269903	-	Tpet_0768	-	hypothetical protein
759	 47.11	0	780424..780873	+	149	148269904	-	Tpet_0769	-	flavin reductase domain-containing protein
760	 47.97	0	780966..782270	+	434	148269905	-	Tpet_0770	-	alkaline phosphatase
761	 44.42	0	782287..783945	-	552	148269906	-	Tpet_0771	-	prephenate dehydratase
762	 48.29	0	784143..786014	+	623	148269907	-	Tpet_0772	-	hypothetical protein
763	 47.84	0	786038..786685	-	215	148269908	-	Tpet_0773	-	hypothetical protein
764	 41.89	-1	787243..787791	+	182	148269909	-	Tpet_0774	-	hypothetical protein
765	 45.36	0	787795..787977	+	60	148269910	-	Tpet_0775	-	ribosomal protein L32
766	 47.66	0	787961..788965	+	334	148269911	-	Tpet_0776	-	putative glycerol-3-phosphate acyltransferase PlsX
767	 46.07	0	788937..790757	+	606	148269912	-	Tpet_0777	-	glucosamine--fructose-6-phosphate aminotransferase, isomerizing
768	 43.24	0	790775..791107	+	110	148269913	-	Tpet_0778	-	iojap-like protein
769	 45.95	0	791121..792341	+	406	148269914	clpX	Tpet_0779	-	ATP-dependent protease ATP-binding subunit
770	 48.17	0	792338..793321	+	327	148269915	-	Tpet_0780	-	metalloendopeptidase glycoprotease family
771	 40.79	-1	793318..793545	-	75	148269916	-	Tpet_0781	-	FmdB family regulatory protein
772	 42.65	-1	793768..795120	+	450	148269917	-	Tpet_0782	-	response regulator receiver modulated diguanylate cyclase
773	 47.67	0	795149..796522	+	457	148269918	-	Tpet_0783	-	anthranilate synthase component I
774	 48.99	0	796519..798159	+	546	148269919	-	Tpet_0784	-	anthranilate phosphoribosyltransferase
775	 46.90	0	798200..798892	+	230	148269920	-	Tpet_0785	-	indole-3-glycerol-phosphate synthase
776	 46.60	0	798880..799497	+	205	148269921	-	Tpet_0786	-	phosphoribosylanthranilate isomerase
777	 51.20	+1	799500..800669	+	389	148269922	-	Tpet_0787	-	tryptophan synthase subunit beta
778	 47.08	0	800666..801385	+	239	148269923	-	Tpet_0788	-	tryptophan synthase, alpha subunit
779	 45.73	0	801408..802343	-	311	148269924	-	Tpet_0789	-	radical SAM domain-containing protein
780	 49.39	+1	802349..802921	-	190	148269925	-	Tpet_0790	-	beta-lactamase domain-containing protein
781	 47.30	0	802918..803712	-	264	148269926	-	Tpet_0791	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
782	 47.18	0	803673..804257	-	194	148269927	-	Tpet_0792	-	isochorismatase hydrolase
783	 46.46	0	804259..805035	-	258	148269928	-	Tpet_0793	-	flagellin domain-containing protein
784	 49.09	0	805252..806406	-	384	148269929	-	Tpet_0794	-	major facilitator transporter
785	 47.45	0	806467..807543	+	358	148269930	-	Tpet_0795	-	peptidase dimerisation domain-containing protein
786	 46.44	0	807533..808921	+	462	148269931	-	Tpet_0796	-	pyruvate carboxylase subunit B
787	 43.47	0	808867..809724	-	285	148269932	-	Tpet_0797	-	integral membrane sensor signal transduction histidine kinase
788	 46.76	0	809721..810383	-	220	148269933	-	Tpet_0798	-	two component transcriptional regulator
789	 48.75	0	810380..811177	-	265	148269934	-	Tpet_0799	-	ABC-3 protein
790	 46.20	0	811174..811896	-	240	148269935	-	Tpet_0800	-	ABC transporter related
791	 47.01	0	811893..812696	-	267	148269936	-	Tpet_0801	-	periplasmic solute binding protein
792	 40.98	-1	812693..813058	-	121	148269937	-	Tpet_0802	-	ferric uptake regulator family protein
793	 45.72	0	813280..814377	+	365	148269938	-	Tpet_0803	-	lysine 2,3-aminomutase YodO family protein
794	 44.32	0	814394..814948	-	184	148269939	-	Tpet_0804	-	nitroreductase
795	 50.35	+1	814951..815808	-	285	148269940	-	Tpet_0805	-	acetamidase/formamidase
796	 47.91	0	815821..818304	-	827	148269941	-	Tpet_0806	-	ribonucleoside-diphosphate reductase, adenosylcobalamin-dependent
797	 44.72	0	818463..819191	+	242	148269942	-	Tpet_0807	-	radical SAM domain-containing protein
798	 48.28	0	819213..820691	-	492	148269943	-	Tpet_0808	-	xylulokinase
799	 44.18	0	820691..822220	-	509	148269944	-	Tpet_0809	-	ABC transporter related
800	 48.97	0	822269..823240	-	323	148269945	-	Tpet_0810	-	periplasmic binding protein/LacI transcriptional regulator
801	 43.89	0	823265..823984	-	239	148269946	-	Tpet_0811	-	polysaccharide deacetylase
802	 50.63	+1	823999..824952	-	317	148269947	-	Tpet_0812	-	monosaccharide-transporting ATPase
803	 47.34	0	824965..826128	-	387	148269948	-	Tpet_0813	-	iron-containing alcohol dehydrogenase
804	 44.74	0	826142..827281	-	379	148269949	-	Tpet_0814	-	ROK family protein
805	 43.41	0	827389..828351	-	320	148269950	-	Tpet_0815	-	radical SAM domain-containing protein
806	 46.92	0	828332..829597	-	421	148269951	-	Tpet_0816	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
807	 42.41	-1	829598..830170	-	190	148269952	-	Tpet_0817	-	putative diguanylate cyclase
808	 41.43	-1	830247..831431	+	394	148269953	-	Tpet_0818	-	RecB family-like nuclease
809	 50.42	+1	831413..832372	-	319	148269954	-	Tpet_0819	-	inner-membrane translocator
810	 49.76	+1	832369..833403	-	344	148269955	-	Tpet_0820	-	inner-membrane translocator
811	 45.87	0	833400..834923	-	507	148269956	-	Tpet_0821	-	ABC transporter related
812	 49.44	+1	834959..836038	-	359	148269957	-	Tpet_0822	-	basic membrane lipoprotein
813	 41.20	-1	836035..837903	-	622	148269958	-	Tpet_0823	-	hypothetical protein
814	 46.44	0	837954..840020	+	688	148269959	-	Tpet_0824	-	DNA ligase, NAD-dependent
815	 42.48	-1	840011..840775	+	254	148269960	-	Tpet_0825	-	hypothetical protein
816	 47.78	0	840772..842079	+	435	148269961	obgE	Tpet_0826	-	GTPase ObgE
817	 43.49	0	842063..842653	+	196	148269962	-	Tpet_0827	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
818	 44.19	0	842643..843563	+	306	148269963	-	Tpet_0828	-	nifR3 family TIM-barrel protein
819	 41.19	-1	843566..844036	+	156	148269964	-	Tpet_0829	-	rubrerythrin
820	 44.25	0	844038..845237	+	399	148269965	-	Tpet_0830	-	type II secretion system protein
821	 39.32	-2	845234..845617	+	127	148269966	-	Tpet_0831	-	hypothetical protein
46.02	MEAN

3.27	STD DEV
