IslandPath Analysis: Thermotoga petrophila RKU-1

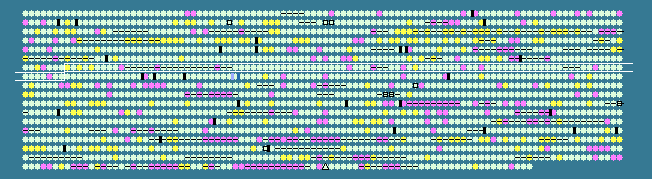

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
608	 50.99	+1	615905..616561	+	218	148269753	-	Tpet_0617	-	putative translaldolase
609	 48.11	0	616587..617642	-	351	148269754	-	Tpet_0618	-	gamma-glutamyl kinase
610	 49.60	+1	617645..618892	-	415	148269755	-	Tpet_0619	-	gamma-glutamyl phosphate reductase
611	 46.11	0	618905..619405	-	166	148269756	leuD	Tpet_0620	-	3-isopropylmalate dehydratase small subunit
612	 49.96	+1	619419..620675	-	418	148269757	-	Tpet_0621	-	3-isopropylmalate dehydratase large subunit
613	 45.29	0	620668..621771	-	367	148269758	-	Tpet_0622	-	2-methylcitrate synthase/citrate synthase II
614	 48.65	0	621989..623248	+	419	148269759	-	Tpet_0623	-	6-phosphofructokinase
615	 45.76	0	623278..625071	-	597	148269760	-	Tpet_0624	-	ABC transporter, transmembrane region
616	 47.17	0	625064..626797	-	577	148269761	-	Tpet_0625	-	ABC transporter related
617	 42.16	-1	626794..627246	-	150	148269762	-	Tpet_0626	-	PadR-like family transcriptional regulator
618	 43.32	0	627314..628525	-	403	148269763	-	Tpet_0627	-	glycerol-1-phosphate dehydrogenase (NAD(P)(+))
619	 48.13	0	628529..630049	-	506	148269764	-	Tpet_0628	-	carbohydrate kinase, FGGY
620	 48.51	0	630062..630700	-	212	148269765	-	Tpet_0629	-	L-ribulose-5-phosphate 4-epimerase
621	 46.03	0	630777..631847	-	356	148269766	-	Tpet_0630	-	aldose 1-epimerase
622	 45.91	0	631876..633330	-	484	148269767	-	Tpet_0631	-	Alpha-N-arabinofuranosidase
623	 41.85	-1	633345..635774	-	809	148269768	-	Tpet_0632	-	hypothetical protein
624	 44.75	0	635786..637720	-	644	148269769	-	Tpet_0633	-	Alpha-N-arabinofuranosidase
625	 43.27	0	637707..638561	-	284	148269770	-	Tpet_0634	-	binding-protein-dependent transport systems inner membrane component
626	 44.87	0	638563..639507	-	314	148269771	-	Tpet_0635	-	binding-protein-dependent transport systems inner membrane component
627	 43.43	0	639529..640776	-	415	148269772	-	Tpet_0636	-	extracellular solute-binding protein
628	 42.66	-1	641028..642443	+	471	148269773	-	Tpet_0637	-	glycoside hydrolase family protein
629	 45.02	0	642474..643226	+	250	148269774	-	Tpet_0638	-	hypothetical protein
630	 46.57	0	643236..644663	+	475	148269775	-	Tpet_0639	-	glycoside hydrolase family protein
631	 49.40	+1	644680..645432	+	250	148269776	-	Tpet_0640	-	hypothetical protein
632	 46.46	0	645448..646224	+	258	148269777	-	Tpet_0641	-	hypothetical protein
633	 42.47	-1	646230..646973	+	247	148269778	-	Tpet_0642	-	LamG domain-containing protein
634	 47.24	0	646998..648860	-	620	148269779	-	Tpet_0643	-	hypothetical protein
635	 48.47	0	648981..649832	-	283	148269780	-	Tpet_0644	-	binding-protein-dependent transport systems inner membrane component
636	 46.99	0	649832..650761	-	309	148269781	-	Tpet_0645	-	binding-protein-dependent transport systems inner membrane component
637	 47.09	0	650751..651731	-	326	148269782	-	Tpet_0646	-	ABC-type sugar transport system periplasmic component-like protein
638	 45.57	0	651728..652054	-	108	148269783	-	Tpet_0647	-	hypothetical protein
639	 48.49	0	652247..653737	+	496	148269784	-	Tpet_0648	-	L-arabinose isomerase
640	 44.10	0	653756..654712	-	318	148269785	-	Tpet_0649	-	periplasmic binding protein/LacI transcriptional regulator
641	 46.45	0	654829..656040	-	403	148269786	-	Tpet_0650	-	acetate kinase
642	 46.60	0	656053..656994	-	313	148269787	-	Tpet_0651	-	fructose-1,6-bisphosphate aldolase, class II
643	 48.90	0	657042..659687	-	881	148269788	-	Tpet_0652	-	pyruvate phosphate dikinase
644	 45.26	0	659762..660994	-	410	148269789	-	Tpet_0653	-	hypothetical protein
645	 45.15	0	661059..661904	+	281	148269790	-	Tpet_0654	-	methylenetetrahydrofolate reductase
646	 44.01	0	661891..662499	+	202	148269791	-	Tpet_0655	-	vitamin B12 dependent methionine synthase, activation region
647	 46.47	0	662483..664789	+	768	148269792	-	Tpet_0656	-	homocysteine S-methyltransferase
648	 45.53	0	664794..666146	+	450	148269793	trmE	Tpet_0657	-	tRNA modification GTPase TrmE
649	 46.52	0	666175..666447	-	90	148269794	-	Tpet_0658	-	histone family protein DNA-binding protein
650	 44.03	0	666628..668301	-	557	148269795	-	Tpet_0659	-	excinuclease ABC, C subunit
651	 44.44	0	668261..668980	-	239	148269796	-	Tpet_0660	-	pseudouridine synthase
652	 47.79	0	668977..670857	-	626	148269797	-	Tpet_0661	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
653	 44.60	0	670868..671968	-	366	148269798	-	Tpet_0662	-	DNA polymerase III, beta subunit
654	 45.99	0	671982..673190	-	402	148269799	-	Tpet_0663	-	phosphate transporter
655	 42.15	-1	673203..673871	-	222	148269800	-	Tpet_0664	-	hypothetical protein
656	 43.75	0	673868..674779	-	303	148269801	-	Tpet_0665	-	D-alanine--D-alanine ligase
657	 43.64	0	674694..676595	-	633	148269802	-	Tpet_0666	-	DNA topoisomerase I
658	 43.82	0	676588..677598	-	336	148269803	-	Tpet_0667	-	metal dependent phosphohydrolase
659	 38.68	-2	677585..677977	-	130	148269804	-	Tpet_0668	-	hypothetical protein
660	 45.59	0	678002..678262	-	86	148269805	-	Tpet_0669	-	ribosomal protein L28
661	 44.59	0	678265..678717	-	150	148269806	smpB	Tpet_0670	-	SsrA-binding protein
662	 43.43	0	678719..679045	-	108	148269807	-	Tpet_0671	-	hypothetical protein
663	 46.39	0	679042..679332	-	96	148269808	-	Tpet_0672	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
664	 39.68	-1	679295..679546	-	83	148269809	-	Tpet_0673	-	carbon storage regulator, CsrA
665	 47.83	0	679551..680564	-	337	148269810	-	Tpet_0674	-	DNA protecting protein DprA
666	 51.16	+1	680551..680853	-	100	148269811	-	Tpet_0675	-	Fe-S cluster domain-containing protein
667	 48.96	0	680858..681433	-	191	148269812	-	Tpet_0676	-	electron transport complex, RnfABCDGE type, A subunit
668	 47.10	0	681430..682032	-	200	148269813	-	Tpet_0677	-	SoxR-reducing system protein RsxE
669	 47.26	0	682029..682703	-	224	148269814	-	Tpet_0678	-	electron transport complex, RnfABCDGE type, G subunit
670	 48.90	0	682700..683656	-	318	148269815	-	Tpet_0679	-	electron transport complex, RnfABCDGE type, D subunit
671	 48.55	0	683653..684960	-	435	148269816	-	Tpet_0680	-	electron transport complex, RnfABCDGE type, C subunit
672	 44.72	0	684965..685816	-	283	148269817	-	Tpet_0681	-	radical SAM domain-containing protein
673	 46.67	0	685813..686037	-	74	148269818	-	Tpet_0682	-	hypothetical protein
674	 42.40	-1	686082..687107	-	341	148269819	-	Tpet_0683	-	hypothetical protein
675	 46.86	0	687111..688382	-	423	148269820	glgC	Tpet_0684	-	glucose-1-phosphate adenylyltransferase
676	 45.18	0	688394..689533	-	379	148269821	-	Tpet_0685	-	glucose-1-phosphate adenylyltransferase, GlgD subunit
677	 41.80	-1	689546..690088	-	180	148269822	-	Tpet_0686	-	hypothetical protein
678	 46.64	0	690156..691628	+	490	148269823	-	Tpet_0687	-	UDP-N-acetylmuramyl-tripeptide synthetase
679	 46.29	0	691625..692905	+	426	148269824	-	Tpet_0688	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
680	 46.53	0	692902..693810	+	302	148269825	-	Tpet_0689	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
681	 44.93	0	693807..695099	+	430	148269826	-	Tpet_0690	-	UDP-N-acetylmuramoylalanine--D-glutamate ligase
682	 44.66	0	695096..696190	+	364	148269827	-	Tpet_0691	-	cell cycle protein
683	 46.37	0	696187..697206	+	339	148269828	-	Tpet_0692	-	UDP-N-acetylglucosamine--N-acetylmuramyl-(pentapeptide) pyrophosphoryl-undecaprenol N-acetylglucosamine transferase
684	 47.16	0	697203..698576	+	457	148269829	-	Tpet_0693	-	UDP-N-acetylmuramate--alanine ligase
685	 44.86	0	698528..699004	-	158	148269830	-	Tpet_0694	-	phosphodiesterase
686	 45.57	0	699010..699867	-	285	148269831	-	Tpet_0695	-	auxin efflux carrier
687	 48.23	0	699927..701564	-	545	148269832	-	Tpet_0696	-	NADH dehydrogenase (quinone)
688	 47.89	0	701561..702034	-	157	148269833	-	Tpet_0697	-	NADH-quinone oxidoreductase, E subunit
689	 45.63	0	702102..702776	-	224	148269834	-	Tpet_0698	-	hypothetical protein
690	 46.01	0	702776..703714	-	312	148269835	-	Tpet_0699	-	D-cysteine desulfhydrase
691	 44.11	0	703767..704462	+	231	148269836	-	Tpet_0700	-	biotin--acetyl-CoA-carboxylase ligase
692	 49.15	0	704431..704664	-	77	148269837	-	Tpet_0701	-	RNA-binding S4 domain-containing protein
693	 46.57	0	704661..705461	-	266	148269838	-	Tpet_0702	-	ABC transporter related
694	 47.78	0	705511..707109	+	532	148269839	-	Tpet_0703	-	flagellar M-ring protein FliF
695	 48.31	0	707114..708121	+	335	148269840	fliG	Tpet_0704	-	flagellar motor switch protein G
696	 39.52	-1	708123..708833	+	236	148269841	-	Tpet_0705	-	flagellar biosynthesis/type III secretory pathway protein-like protein
697	 48.91	0	708826..710109	+	427	148269842	-	Tpet_0706	-	flagellar protein export ATPase FliI
698	 46.26	0	710086..712104	-	672	148269843	-	Tpet_0707	-	glycine--tRNA ligase
699	 46.81	0	712085..712945	-	286	148269844	glyQ	Tpet_0708	-	glycyl-tRNA synthetase subunit alpha
700	 48.58	0	712949..713335	-	128	148269845	-	Tpet_0709	-	putative endoribonuclease L-PSP
701	 48.14	0	713337..714761	-	474	148269846	-	Tpet_0710	-	glycine dehydrogenase subunit 2
702	 49.09	0	714758..716071	-	437	148269847	-	Tpet_0711	-	glycine dehydrogenase subunit 1
703	 49.05	0	716100..716468	-	122	148269848	-	Tpet_0712	-	glycine cleavage system protein H
704	 46.39	0	716471..717565	-	364	148269849	-	Tpet_0713	-	glycine cleavage system aminomethyltransferase T
705	 39.52	-1	717562..717771	-	69	148269850	-	Tpet_0714	-	hypothetical protein
706	 49.48	+1	717927..718886	+	319	148269851	-	Tpet_0715	-	6-phosphofructokinase
707	 45.61	0	718900..720300	+	466	148269852	-	Tpet_0716	-	pyruvate kinase
46.02	MEAN

3.27	STD DEV
