IslandPathversion 1.0

IslandPath Analysis: Thermotoga petrophila RKU-1

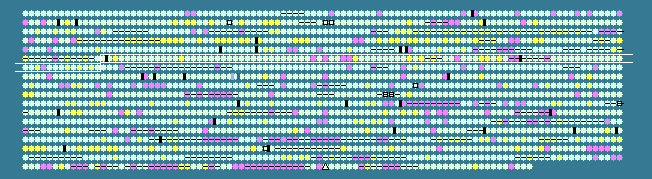

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
514	 44.49	0	514734..515405	-	223	148269659	-	Tpet_0521	-	two component transcriptional regulator
515	 47.73	0	515758..516945	+	395	148269660	-	Tpet_0522	-	glutamine amidotransferase, class-II
516	 50.85	+1	516938..518461	+	507	148269661	-	Tpet_0523	-	glutamate synthase (NADPH)
517	 49.24	0	518455..518913	+	152	148269662	-	Tpet_0524	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
518	 46.79	0	518910..520187	+	425	148269663	-	Tpet_0525	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
519	 46.21	0	520175..520912	+	245	148269664	-	Tpet_0526	-	glutamate synthase alpha subunit
520	 45.61	0	520939..522054	-	371	148269665	-	Tpet_0527	-	ROK family protein
521	 46.03	0	522059..523279	-	406	148269666	-	Tpet_0528	-	glycosyl transferase, group 1
522	 45.62	0	524293..525309	+	338	148269667	-	Tpet_0529	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
523	 47.37	0	525416..526747	+	443	148269668	-	Tpet_0530	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
524	 49.40	+1	526772..527107	+	111	148269669	-	Tpet_0531	-	alkylhydroperoxidase
525	 48.15	0	527153..528502	+	449	148269670	-	Tpet_0532	-	dihydrolipoamide dehydrogenase
526	 44.49	0	528479..529141	-	220	148269671	-	Tpet_0533	-	HhH-GPD family protein
527	 50.10	+1	529170..529670	+	166	148269672	-	Tpet_0534	-	nitroreductase
528	 46.34	0	529802..530347	+	181	148269673	-	Tpet_0535	-	anaerobic ribonucleoside-triphosphate reductase activator
529	 48.57	0	530313..532268	+	651	148269674	-	Tpet_0536	-	anaerobic ribonucleoside triphosphate reductase
530	 46.69	0	532350..533315	+	321	148269675	-	Tpet_0537	-	nitroreductase
531	 44.66	0	534305..535390	-	361	148269676	-	Tpet_0539	-	ABC-2 type transporter
532	 45.81	0	535387..536292	-	301	148269677	-	Tpet_0540	-	ABC transporter related
533	 43.66	0	537842..538567	+	241	148269678	-	Tpet_0541	-	hypothetical protein
534	 48.30	0	538646..539233	+	195	148269679	-	Tpet_0542	-	propanediol utilization protein
535	 45.72	0	539263..539706	-	147	148269680	-	Tpet_0543	-	heat shock protein Hsp20
536	 47.85	0	539722..541512	-	596	148269681	-	Tpet_0544	-	chaperone protein DnaK
537	 45.59	0	541722..544748	+	1008	148269682	-	Tpet_0545	-	acriflavin resistance protein
538	 43.14	0	544738..545196	-	152	148269683	-	Tpet_0546	-	arginine repressor, ArgR
539	 48.15	0	545368..546096	+	242	148269684	-	Tpet_0547	-	hypothetical protein
540	 47.87	0	546093..546539	+	148	148269685	-	Tpet_0548	-	transcriptional regulators-like protein
541	 43.78	0	546549..547658	-	369	148269686	-	Tpet_0549	-	major facilitator transporter
542	 43.92	0	547798..549780	-	660	148269687	-	Tpet_0550	-	methyl-accepting chemotaxis sensory transducer
543	 47.64	0	549828..550505	-	225	148269688	-	Tpet_0551	-	hypothetical protein
544	 48.91	0	550477..551118	-	213	148269689	-	Tpet_0552	-	endonuclease III
545	 48.23	0	551128..552483	-	451	148269690	-	Tpet_0553	-	putative aminopeptidase 1
546	 46.76	0	552483..553808	-	441	148269691	-	Tpet_0554	-	alpha amylase, catalytic region
547	 43.33	0	553805..555454	-	549	148269692	-	Tpet_0555	-	fibronectin-binding A domain-containing protein
548	 44.44	0	555456..556319	-	287	148269693	-	Tpet_0556	-	apurinic endonuclease Apn1
549	 41.05	-1	556375..556698	+	107	148269694	-	Tpet_0557	-	hypothetical protein
550	 43.59	0	556695..557045	-	116	148269695	-	Tpet_0558	-	MazG nucleotide pyrophosphohydrolase
551	 40.44	-1	557039..557938	-	299	148269696	-	Tpet_0559	-	biotin synthase
552	 46.59	0	558018..559088	+	356	148269697	-	Tpet_0560	-	glycosyl transferase, group 1
553	 47.96	0	559102..560010	-	302	148269698	-	Tpet_0561	-	diacylglycerol kinase, catalytic region
554	 40.10	-1	560013..560219	-	68	148269699	-	Tpet_0562	-	hypothetical protein
555	 38.90	-2	560301..561377	-	358	148269700	-	Tpet_0563	-	iron-containing alcohol dehydrogenase
556	 49.75	+1	561591..562796	-	401	148269701	-	Tpet_0564	-	threonine dehydratase
557	 43.57	0	562964..563950	+	328	148269702	-	Tpet_0565	-	Outer membrane protein-like protein
558	 42.80	0	563966..565264	+	432	148269703	-	Tpet_0566	-	Outer membrane protein-like protein
559	 46.53	0	565261..566268	+	335	148269704	-	Tpet_0567	-	RND family efflux transporter MFP subunit
560	 48.51	0	566265..566969	+	234	148269705	-	Tpet_0568	-	ABC transporter related
561	 46.01	0	566956..568170	+	404	148269706	-	Tpet_0569	-	hypothetical protein
562	 46.93	0	569357..569959	+	200	148269707	-	Tpet_0570	-	lysine exporter protein LysE/YggA
563	 47.59	0	569952..570386	-	144	148269708	-	Tpet_0571	-	3-dehydroquinate dehydratase
564	 48.61	0	570383..571861	-	492	148269709	-	Tpet_0572	-	shikimate kinase., 3-dehydroquinate synthase
565	 51.72	+1	571809..572939	-	376	148269710	-	Tpet_0573	-	chorismate synthase
566	 47.64	0	572936..573697	-	253	148269711	-	Tpet_0574	-	shikimate dehydrogenase substrate binding subunit
567	 50.79	+1	573694..574959	-	421	148269712	-	Tpet_0575	-	3-phosphoshikimate 1-carboxyvinyltransferase
568	 45.01	0	574956..575717	-	253	148269713	-	Tpet_0576	-	prephenate dehydrogenase
569	 49.85	+1	575714..576730	-	338	148269714	-	Tpet_0577	-	3-deoxy-7-phosphoheptulonate synthase
570	 47.26	0	576987..578228	-	413	148269715	-	Tpet_0578	-	major facilitator transporter
571	 46.71	0	578424..578924	-	166	148269716	-	Tpet_0579	-	hypothetical protein
572	 47.92	0	578917..579300	-	127	148269717	-	Tpet_0580	-	hypothetical protein
573	 34.26	-2	579483..579590	+	35	148269718	-	Tpet_0581	-	hypothetical protein
574	 48.42	0	579672..581375	+	567	148269719	-	Tpet_0582	-	radical SAM domain-containing protein
575	 47.46	0	581372..582610	+	412	148269720	-	Tpet_0583	-	dipeptidyl aminopeptidase/acylaminoacyl-peptidase-like protein
576	 47.13	0	582637..583767	+	376	148269721	pyrC	Tpet_0584	-	dihydroorotase
577	 49.69	+1	583730..584383	+	217	148269722	-	Tpet_0585	-	2-polyprenylphenol hydroxylase and related flavodoxin oxidoreductase-like protein
578	 49.82	+1	584371..585183	+	270	148269723	-	Tpet_0586	-	dihydroorotate dehydrogenase family protein
579	 46.86	0	585180..585785	+	201	148269724	-	Tpet_0587	-	orotidine 5'-phosphate decarboxylase
580	 51.24	+1	585782..586345	+	187	148269725	pyrE	Tpet_0588	-	orotate phosphoribosyltransferase
581	 46.13	0	586342..587646	+	434	148269726	-	Tpet_0589	-	amidohydrolase 3
582	 34.67	-2	587621..588295	+	224	148269727	-	Tpet_0590	-	hypothetical protein
583	 41.42	-1	588286..589212	-	308	148269728	-	Tpet_0591	-	DNA methylase N-4/N-6 domain-containing protein
584	 43.70	0	589362..590345	-	327	148269729	-	Tpet_0592	-	D-isomer specific 2-hydroxyacid dehydrogenase, NAD-binding
585	 44.48	0	590363..591205	-	280	148269730	-	Tpet_0593	-	RpiR family transcriptional regulator
586	 48.28	0	591218..591973	-	251	148269731	-	Tpet_0594	-	short-chain dehydrogenase/reductase SDR
587	 46.50	0	591989..593272	-	427	148269732	-	Tpet_0595	-	TRAP dicarboxylate transporter, DctM subunit
588	 41.25	-1	593274..593753	-	159	148269733	-	Tpet_0596	-	tripartite ATP-independent periplasmic transporter DctQ
589	 46.59	0	593816..594826	-	336	148269734	-	Tpet_0597	-	TRAP dicarboxylate transporter, DctP subunit
590	 45.13	0	594979..595563	+	194	148269735	-	Tpet_0598	-	hypothetical protein
591	 45.59	0	595548..595751	-	67	148269736	-	Tpet_0599	-	heavy metal transport/detoxification protein
592	 48.82	0	595779..597941	-	720	148269737	-	Tpet_0600	-	heavy metal translocating P-type ATPase
593	 49.24	0	597916..598242	-	108	148269738	-	Tpet_0601	-	alkylhydroperoxidase
594	 44.18	0	598235..598483	-	82	148269739	-	Tpet_0602	-	membrane protein-like protein
595	 44.44	0	598578..598757	+	59	148269740	-	Tpet_0603	-	YHS domain-containing protein
596	 48.96	0	598783..599742	-	319	148269741	-	Tpet_0604	-	aldo/keto reductase
597	 47.03	0	599756..600733	-	325	148269742	-	Tpet_0605	-	oxidoreductase domain-containing protein
598	 43.35	0	600793..601281	-	162	148269743	-	Tpet_0606	-	hypothetical protein
599	 46.26	0	601377..603395	-	672	148269744	-	Tpet_0607	-	Beta-galactosidase
600	 48.20	0	603439..605415	-	658	148269745	-	Tpet_0608	-	extracellular solute-binding protein
601	 48.63	0	605735..608029	+	764	148269746	-	Tpet_0609	-	alpha-xylosidase YicI
602	 48.87	0	608046..609467	-	473	148269747	-	Tpet_0610	-	L-fucose isomerase N-terminal_2 domain-containing protein
603	 49.74	+1	609464..610804	-	446	148269748	-	Tpet_0611	-	Alpha-L-fucosidase
604	 42.53	-1	611549..612994	-	481	148269749	-	Tpet_0613	-	carbohydrate kinase, FGGY
605	 46.60	0	613008..613964	-	318	148269750	-	Tpet_0614	-	alcohol dehydrogenase
606	 49.48	+1	613977..614750	-	257	148269751	-	Tpet_0615	-	short-chain dehydrogenase/reductase SDR
607	 46.20	0	614859..615806	+	315	148269752	-	Tpet_0616	-	ribokinase-like domain-containing protein
608	 50.99	+1	615905..616561	+	218	148269753	-	Tpet_0617	-	putative translaldolase
609	 48.11	0	616587..617642	-	351	148269754	-	Tpet_0618	-	gamma-glutamyl kinase
610	 49.60	+1	617645..618892	-	415	148269755	-	Tpet_0619	-	gamma-glutamyl phosphate reductase
611	 46.11	0	618905..619405	-	166	148269756	leuD	Tpet_0620	-	3-isopropylmalate dehydratase small subunit
612	 49.96	+1	619419..620675	-	418	148269757	-	Tpet_0621	-	3-isopropylmalate dehydratase large subunit
613	 45.29	0	620668..621771	-	367	148269758	-	Tpet_0622	-	2-methylcitrate synthase/citrate synthase II
46.02	MEAN

3.27	STD DEV



Last Updated: Dec 04, 2008

Funding for this work was provided by the Peter Wall Institute for Advanced Studies. This service is hosted by the Brinkman Laboratory of the Department of Molecular Biology and Biochemistry at Simon Fraser University.
