IslandPath Analysis: Thermotoga petrophila RKU-1

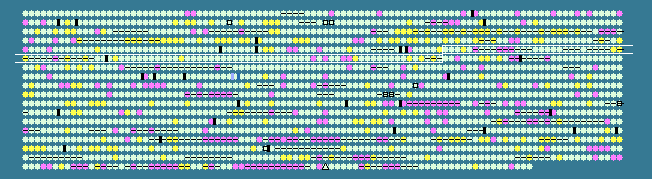

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
471	 47.42	0	467673..469049	+	458	148269616	aspA	Tpet_0476	-	aspartate ammonia-lyase
472	 48.57	0	469037..470467	-	476	148269617	-	Tpet_0477	-	carbohydrate kinase, FGGY
473	 46.57	0	470464..471747	-	427	148269618	-	Tpet_0478	-	hypothetical protein
474	 49.93	+1	471761..472519	-	252	148269619	-	Tpet_0479	-	short-chain dehydrogenase/reductase SDR
475	 46.40	0	472525..473970	-	481	148269620	-	Tpet_0480	-	hypothetical protein
476	 40.93	-1	473977..474621	-	214	148269621	-	Tpet_0481	-	GntR family transcriptional regulator
477	 44.96	0	474618..476027	-	469	148269622	-	Tpet_0482	-	6-phosphogluconate dehydrogenase
478	 44.74	0	476045..477385	-	446	148269623	-	Tpet_0483	-	glycoside hydrolase family protein
479	 46.74	0	477388..478491	-	367	148269624	-	Tpet_0484	-	alcohol dehydrogenase
480	 39.84	-1	478691..480550	+	619	148269625	-	Tpet_0485	-	extracellular solute-binding protein
481	 34.62	-2	480614..481621	+	335	148269626	-	Tpet_0486	-	binding-protein-dependent transport systems inner membrane component
482	 38.60	-2	481632..482486	+	284	148269627	-	Tpet_0487	-	binding-protein-dependent transport systems inner membrane component
483	 46.73	0	482488..483495	+	335	148269628	-	Tpet_0488	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
484	 47.25	0	483482..484444	+	320	148269629	-	Tpet_0489	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
485	 47.85	0	484470..486164	+	564	148269630	-	Tpet_0490	-	Beta-glucuronidase
486	 45.68	0	487102..488373	+	423	148269631	-	Tpet_0492	-	NADH:flavin oxidoreductase/NADH oxidase
487	 45.21	0	488370..490364	+	664	148269632	-	Tpet_0493	-	fumarate reductase/succinate dehydrogenase flavoprotein domain-containing protein
488	 43.58	0	490361..491599	+	412	148269633	-	Tpet_0494	-	oxidoreductase domain-containing protein
489	 44.38	0	491593..492579	+	328	148269634	-	Tpet_0495	-	oxidoreductase domain-containing protein
490	 44.11	0	492592..493482	+	296	148269635	-	Tpet_0496	-	auxin efflux carrier
491	 45.48	0	493769..494863	+	364	148269636	gldA	Tpet_0498	-	glycerol dehydrogenase
492	 43.50	0	494856..495770	-	304	148269637	-	Tpet_0499	-	xylose isomerase domain-containing protein
493	 48.15	0	495789..496868	-	359	148269638	-	Tpet_0500	-	ABC transporter related
494	 47.82	0	496868..497716	-	282	148269639	-	Tpet_0501	-	binding-protein-dependent transport systems inner membrane component
495	 47.23	0	497716..498600	-	294	148269640	-	Tpet_0502	-	binding-protein-dependent transport systems inner membrane component
496	 48.35	0	498637..499968	-	443	148269641	-	Tpet_0503	-	extracellular solute-binding protein
497	 46.49	0	500178..500990	-	270	148269642	-	Tpet_0504	-	xylose isomerase domain-containing protein
498	 47.67	0	500956..501813	-	285	148269643	-	Tpet_0505	-	ribokinase-like domain-containing protein
499	 49.85	+1	501810..502814	-	334	148269644	-	Tpet_0506	-	oxidoreductase domain-containing protein
500	 51.60	+1	502819..503754	-	311	148269645	-	Tpet_0507	-	creatininase
501	 52.49	+1	503801..504985	-	394	148269646	-	Tpet_0508	-	alcohol dehydrogenase
502	 45.24	0	504999..506090	-	363	148269647	-	Tpet_0509	-	ROK family protein
503	 48.27	0	506233..506694	-	153	148269648	-	Tpet_0510	-	hypothetical protein
504	 45.34	0	506691..507506	-	271	148269649	-	Tpet_0511	-	peptidase M23B
505	 48.21	0	507520..508554	-	344	148269650	-	Tpet_0512	-	chemotaxis-specific methylesterase
506	 39.96	-1	508517..508999	-	160	148269651	-	Tpet_0513	-	diacylglycerol kinase
507	 45.27	0	508980..509582	-	200	148269652	-	Tpet_0514	-	pyruvate ferredoxin/flavodoxin oxidoreductase
508	 49.56	+1	509579..510379	-	266	148269653	-	Tpet_0515	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
509	 46.86	0	510376..510885	-	169	148269654	-	Tpet_0516	-	CMP/dCMP deaminase, zinc-binding
510	 42.98	0	511029..511370	-	113	148269655	-	Tpet_0517	-	nitrogen regulatory protein P-II
511	 51.15	+1	511384..512691	-	435	148269656	-	Tpet_0518	-	ammonium transporter
512	 44.86	0	512998..513552	+	184	148269657	-	Tpet_0519	-	thymidine kinase
513	 44.99	0	513536..514753	-	405	148269658	-	Tpet_0520	-	integral membrane sensor signal transduction histidine kinase
514	 44.49	0	514734..515405	-	223	148269659	-	Tpet_0521	-	two component transcriptional regulator
515	 47.73	0	515758..516945	+	395	148269660	-	Tpet_0522	-	glutamine amidotransferase, class-II
516	 50.85	+1	516938..518461	+	507	148269661	-	Tpet_0523	-	glutamate synthase (NADPH)
517	 49.24	0	518455..518913	+	152	148269662	-	Tpet_0524	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
518	 46.79	0	518910..520187	+	425	148269663	-	Tpet_0525	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
519	 46.21	0	520175..520912	+	245	148269664	-	Tpet_0526	-	glutamate synthase alpha subunit
520	 45.61	0	520939..522054	-	371	148269665	-	Tpet_0527	-	ROK family protein
521	 46.03	0	522059..523279	-	406	148269666	-	Tpet_0528	-	glycosyl transferase, group 1
522	 45.62	0	524293..525309	+	338	148269667	-	Tpet_0529	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
523	 47.37	0	525416..526747	+	443	148269668	-	Tpet_0530	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
524	 49.40	+1	526772..527107	+	111	148269669	-	Tpet_0531	-	alkylhydroperoxidase
525	 48.15	0	527153..528502	+	449	148269670	-	Tpet_0532	-	dihydrolipoamide dehydrogenase
526	 44.49	0	528479..529141	-	220	148269671	-	Tpet_0533	-	HhH-GPD family protein
527	 50.10	+1	529170..529670	+	166	148269672	-	Tpet_0534	-	nitroreductase
528	 46.34	0	529802..530347	+	181	148269673	-	Tpet_0535	-	anaerobic ribonucleoside-triphosphate reductase activator
529	 48.57	0	530313..532268	+	651	148269674	-	Tpet_0536	-	anaerobic ribonucleoside triphosphate reductase
530	 46.69	0	532350..533315	+	321	148269675	-	Tpet_0537	-	nitroreductase
531	 44.66	0	534305..535390	-	361	148269676	-	Tpet_0539	-	ABC-2 type transporter
532	 45.81	0	535387..536292	-	301	148269677	-	Tpet_0540	-	ABC transporter related
533	 43.66	0	537842..538567	+	241	148269678	-	Tpet_0541	-	hypothetical protein
534	 48.30	0	538646..539233	+	195	148269679	-	Tpet_0542	-	propanediol utilization protein
535	 45.72	0	539263..539706	-	147	148269680	-	Tpet_0543	-	heat shock protein Hsp20
536	 47.85	0	539722..541512	-	596	148269681	-	Tpet_0544	-	chaperone protein DnaK
537	 45.59	0	541722..544748	+	1008	148269682	-	Tpet_0545	-	acriflavin resistance protein
538	 43.14	0	544738..545196	-	152	148269683	-	Tpet_0546	-	arginine repressor, ArgR
539	 48.15	0	545368..546096	+	242	148269684	-	Tpet_0547	-	hypothetical protein
540	 47.87	0	546093..546539	+	148	148269685	-	Tpet_0548	-	transcriptional regulators-like protein
541	 43.78	0	546549..547658	-	369	148269686	-	Tpet_0549	-	major facilitator transporter
542	 43.92	0	547798..549780	-	660	148269687	-	Tpet_0550	-	methyl-accepting chemotaxis sensory transducer
543	 47.64	0	549828..550505	-	225	148269688	-	Tpet_0551	-	hypothetical protein
544	 48.91	0	550477..551118	-	213	148269689	-	Tpet_0552	-	endonuclease III
545	 48.23	0	551128..552483	-	451	148269690	-	Tpet_0553	-	putative aminopeptidase 1
546	 46.76	0	552483..553808	-	441	148269691	-	Tpet_0554	-	alpha amylase, catalytic region
547	 43.33	0	553805..555454	-	549	148269692	-	Tpet_0555	-	fibronectin-binding A domain-containing protein
548	 44.44	0	555456..556319	-	287	148269693	-	Tpet_0556	-	apurinic endonuclease Apn1
549	 41.05	-1	556375..556698	+	107	148269694	-	Tpet_0557	-	hypothetical protein
550	 43.59	0	556695..557045	-	116	148269695	-	Tpet_0558	-	MazG nucleotide pyrophosphohydrolase
551	 40.44	-1	557039..557938	-	299	148269696	-	Tpet_0559	-	biotin synthase
552	 46.59	0	558018..559088	+	356	148269697	-	Tpet_0560	-	glycosyl transferase, group 1
553	 47.96	0	559102..560010	-	302	148269698	-	Tpet_0561	-	diacylglycerol kinase, catalytic region
554	 40.10	-1	560013..560219	-	68	148269699	-	Tpet_0562	-	hypothetical protein
555	 38.90	-2	560301..561377	-	358	148269700	-	Tpet_0563	-	iron-containing alcohol dehydrogenase
556	 49.75	+1	561591..562796	-	401	148269701	-	Tpet_0564	-	threonine dehydratase
557	 43.57	0	562964..563950	+	328	148269702	-	Tpet_0565	-	Outer membrane protein-like protein
558	 42.80	0	563966..565264	+	432	148269703	-	Tpet_0566	-	Outer membrane protein-like protein
559	 46.53	0	565261..566268	+	335	148269704	-	Tpet_0567	-	RND family efflux transporter MFP subunit
560	 48.51	0	566265..566969	+	234	148269705	-	Tpet_0568	-	ABC transporter related
561	 46.01	0	566956..568170	+	404	148269706	-	Tpet_0569	-	hypothetical protein
562	 46.93	0	569357..569959	+	200	148269707	-	Tpet_0570	-	lysine exporter protein LysE/YggA
563	 47.59	0	569952..570386	-	144	148269708	-	Tpet_0571	-	3-dehydroquinate dehydratase
564	 48.61	0	570383..571861	-	492	148269709	-	Tpet_0572	-	shikimate kinase., 3-dehydroquinate synthase
565	 51.72	+1	571809..572939	-	376	148269710	-	Tpet_0573	-	chorismate synthase
566	 47.64	0	572936..573697	-	253	148269711	-	Tpet_0574	-	shikimate dehydrogenase substrate binding subunit
567	 50.79	+1	573694..574959	-	421	148269712	-	Tpet_0575	-	3-phosphoshikimate 1-carboxyvinyltransferase
568	 45.01	0	574956..575717	-	253	148269713	-	Tpet_0576	-	prephenate dehydrogenase
569	 49.85	+1	575714..576730	-	338	148269714	-	Tpet_0577	-	3-deoxy-7-phosphoheptulonate synthase
570	 47.26	0	576987..578228	-	413	148269715	-	Tpet_0578	-	major facilitator transporter
46.02	MEAN

3.27	STD DEV
