IslandPath Analysis: Thermotoga petrophila RKU-1

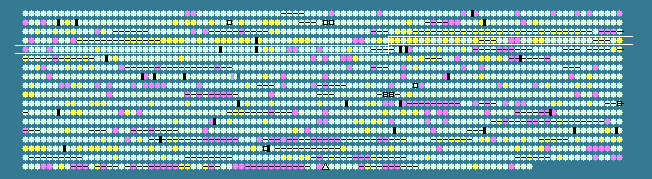

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
362	 51.39	+1	346665..349964	+	1099	148269507	-	Tpet_0363	-	carbamoyl-phosphate synthase, large subunit
363	 49.67	+1	349983..351047	-	354	148269508	-	Tpet_0364	-	3-isopropylmalate dehydrogenase
364	 49.30	+1	351051..351551	-	166	148269509	-	Tpet_0365	-	3-isopropylmalate dehydratase small subunit
365	 52.15	+1	351556..352809	-	417	148269510	-	Tpet_0366	-	3-isopropylmalate dehydratase, large subunit
366	 50.65	+1	352811..354352	-	513	148269511	-	Tpet_0367	-	2-isopropylmalate synthase
367	 49.35	+1	354339..355955	-	538	148269512	-	Tpet_0368	-	alpha-isopropylmalate/homocitrate synthase family transferase
368	 52.67	+2	355968..357632	-	554	148269513	-	Tpet_0369	-	dihydroxy-acid dehydratase
369	 49.26	0	357622..358632	-	336	148269514	-	Tpet_0370	-	ketol-acid reductoisomerase
370	 48.45	0	358632..359147	-	171	148269515	-	Tpet_0371	-	acetolactate synthase 3 regulatory subunit
371	 49.94	+1	359144..360889	-	581	148269516	-	Tpet_0372	-	acetolactate synthase, large subunit, biosynthetic type
372	 48.96	0	361061..363280	+	739	148269517	-	Tpet_0373	-	aspartate kinase
373	 52.63	+2	363280..364326	+	348	148269518	-	Tpet_0374	-	threonine synthase
374	 46.57	0	364323..365168	+	281	148269519	-	Tpet_0375	-	homoserine kinase
375	 48.71	0	365180..365914	+	244	148269520	-	Tpet_0376	-	ABC transporter related
376	 50.31	+1	367126..368256	-	376	148269521	-	Tpet_0379	-	malate dehydrogenase
377	 51.52	+1	368262..368756	-	164	148269522	-	Tpet_0380	-	tartrate/fumarate subfamily Fe-S type hydro-lyase beta subunit
378	 46.28	0	368746..369564	-	272	148269523	-	Tpet_0381	-	tartrate/fumarate subfamily Fe-S type hydro-lyase alpha subunit
379	 51.06	+1	369610..370878	+	422	148269524	-	Tpet_0382	-	tryptophan synthase subunit beta
380	 46.67	0	370892..371746	+	284	148269525	-	Tpet_0383	-	cation diffusion facilitator family transporter
381	 43.96	0	371743..374019	-	758	148269526	-	Tpet_0384	-	hypothetical protein
382	 40.85	-1	374016..374600	-	194	148269527	-	Tpet_0385	-	hypothetical protein
383	 42.39	-1	374784..375401	-	205	148269528	-	Tpet_0386	-	hypothetical protein
384	 42.96	0	375408..375989	-	193	148269529	-	Tpet_0387	-	RNA polymerase factor sigma-70
385	 48.94	0	375991..377541	-	516	148269530	-	Tpet_0388	-	binding-protein-dependent transport systems inner membrane component
386	 49.90	+1	377555..378520	-	321	148269531	-	Tpet_0389	-	binding-protein-dependent transport systems inner membrane component
387	 49.94	+1	378579..380318	-	579	148269532	-	Tpet_0390	-	extracellular solute-binding protein
388	 49.06	0	380334..381503	-	389	148269533	-	Tpet_0391	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
389	 42.72	-1	381520..381732	-	70	148269534	-	Tpet_0392	-	hypothetical protein
390	 45.75	0	381729..382670	-	313	148269535	-	Tpet_0393	-	methionyl-tRNA formyltransferase
391	 45.95	0	382667..383887	-	406	148269536	-	Tpet_0394	-	small GTP-binding protein
392	 46.15	0	383901..384173	-	90	148269537	-	Tpet_0395	-	RNA chaperone Hfq
393	 43.25	0	384210..385127	-	305	148269538	-	Tpet_0396	-	tRNA delta(2)-isopentenylpyrophosphate transferase
394	 45.75	0	385124..385888	-	254	148269539	-	Tpet_0397	-	hypothetical protein
395	 48.57	0	386098..386727	-	209	148269540	-	Tpet_0398	-	hypothetical protein
396	 48.92	0	386738..388129	-	463	148269541	hslU	Tpet_0399	-	ATP-dependent protease ATP-binding subunit
397	 52.35	+1	388141..388671	-	176	148269542	-	Tpet_0400	-	ATP-dependent protease peptidase subunit
398	 47.08	0	388753..389829	+	358	148269543	-	Tpet_0401	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
399	 46.34	0	389826..390755	+	309	148269544	-	Tpet_0402	-	putative GAF sensor protein
400	 51.28	+1	390765..390959	-	64	148269545	-	Tpet_0403	-	hypothetical protein
401	 42.44	-1	390956..391570	-	204	148269546	-	Tpet_0404	-	hypothetical protein
402	 48.46	0	392602..393513	-	303	148269547	-	Tpet_0407	-	putative radical SAM protein
403	 49.08	0	393585..395318	+	577	148269548	-	Tpet_0408	-	prolyl-tRNA synthetase
404	 48.74	0	395315..396820	+	501	148269549	-	Tpet_0409	-	Mg chelatase, subunit ChlI
405	 34.48	-2	396817..397251	-	144	148269550	-	Tpet_0410	-	flagellar export protein FliJ
406	 44.85	0	397361..397942	+	193	148269551	-	Tpet_0411	-	phage SPO1 DNA polymerase-related protein
407	 47.01	0	397944..398462	+	172	148269552	-	Tpet_0412	-	iron dependent repressor
408	 49.14	0	398459..399388	+	309	148269553	-	Tpet_0413	-	NAD-dependent epimerase/dehydratase
409	 47.06	0	399360..401159	+	599	148269554	-	Tpet_0414	-	fused recombination factor protein RarA/unknown domain-containing protein
410	 48.86	0	401348..402964	-	538	148269555	-	Tpet_0415	-	chaperonin GroEL
411	 42.65	-1	402979..403257	-	92	148269556	-	Tpet_0416	-	chaperonin Cpn10
412	 47.98	0	403945..404982	+	345	148269557	-	Tpet_0417	-	binding-protein-dependent transport systems inner membrane component
413	 49.68	+1	404996..405937	+	313	148269558	-	Tpet_0418	-	binding-protein-dependent transport systems inner membrane component
414	 47.86	0	405950..406954	+	334	148269559	-	Tpet_0419	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
415	 48.23	0	406958..408112	+	384	148269560	-	Tpet_0420	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
416	 43.15	0	408109..408597	+	162	148269561	-	Tpet_0421	-	hypothetical protein
417	 47.63	0	408610..409602	+	330	148269562	-	Tpet_0422	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
418	 44.80	0	409586..410440	+	284	148269563	-	Tpet_0423	-	hypothetical protein
419	 46.52	0	410453..411013	+	186	148269564	-	Tpet_0424	-	DNA polymerase III, epsilon subunit
420	 47.57	0	411018..412274	+	418	148269565	-	Tpet_0425	-	PhoH family protein
421	 45.04	0	412239..412742	-	167	148269566	-	Tpet_0426	-	putative transcriptional regulator
422	 43.19	0	412720..413409	-	229	148269567	-	Tpet_0427	-	chromosome segregation and condensation protein ScpA
423	 46.10	0	413419..414405	-	328	148269568	-	Tpet_0428	-	tryptophanyl-tRNA synthetase
424	 43.40	0	414472..415077	+	201	148269569	-	Tpet_0429	-	hypothetical protein
425	 47.07	0	415049..415783	+	244	148269570	-	Tpet_0430	-	silent information regulator protein Sir2
426	 45.71	0	415780..416304	+	174	148269571	-	Tpet_0431	-	hypothetical protein
427	 47.11	0	416285..417133	-	282	148269572	-	Tpet_0432	-	HemK family modification methylase
428	 47.90	0	417082..417390	-	102	148269573	-	Tpet_0433	-	hypothetical protein
429	 48.07	0	417463..417747	+	94	148269574	-	Tpet_0434	-	hypothetical protein
430	 48.74	0	417719..418471	+	250	148269575	-	Tpet_0435	-	binding-protein-dependent transport systems inner membrane component
431	 48.58	0	418468..419418	+	316	148269576	-	Tpet_0436	-	NMT1/THI5 like protein
432	 49.01	0	419415..420122	+	235	148269577	-	Tpet_0437	-	ABC transporter related
433	 48.99	0	420106..424353	-	1415	148269578	-	Tpet_0438	-	putative CoA-substrate-specific enzyme activase
434	 48.24	0	424782..425915	+	377	148269579	-	Tpet_0439	-	hypothetical protein
435	 49.25	0	425912..428662	+	916	148269580	-	Tpet_0440	-	excinuclease ABC, A subunit
436	 49.35	+1	428682..428912	+	76	148269581	-	Tpet_0441	-	preprotein translocase, SecG subunit
437	 47.60	0	428917..430122	+	401	148269582	-	Tpet_0442	-	tyrosyl-tRNA synthetase
438	 46.55	0	430205..431407	+	400	148269583	-	Tpet_0443	-	S-layer domain-containing protein
439	 47.29	0	431442..432695	+	417	148269584	-	Tpet_0444	-	hypothetical protein
440	 45.14	0	432889..433413	+	174	148269585	-	Tpet_0445	-	isochorismatase hydrolase
441	 50.46	+1	433424..434719	+	431	148269586	-	Tpet_0446	-	nicotinic acid phosphoribosyltransferase-like protein
442	 51.47	+1	434733..435614	+	293	148269587	-	Tpet_0447	-	pyridoxine biosynthesis protein
443	 45.68	0	435618..436184	+	188	148269588	-	Tpet_0448	-	glutamine amidotransferase subunit PdxT
444	 43.49	0	436181..436810	+	209	148269589	-	Tpet_0449	-	putative diguanylate cyclase
445	 40.36	-1	436944..437840	+	298	148269590	-	Tpet_0450	-	integral membrane protein-like protein
446	 41.75	-1	437837..438430	+	197	148269591	-	Tpet_0451	-	hypothetical protein
447	 43.63	0	438423..438791	+	122	148269592	-	Tpet_0452	-	response regulator receiver protein
448	 43.80	0	438784..440121	+	445	148269593	-	Tpet_0453	-	stage II sporulation E family protein
449	 46.19	0	440121..440882	+	253	148269594	-	Tpet_0454	-	hypothetical protein
450	 42.54	-1	440891..441607	+	238	148269595	-	Tpet_0455	-	hypothetical protein
451	 43.16	0	441645..442397	+	250	148269596	-	Tpet_0456	-	protein-glutamate O-methyltransferase
452	 44.03	0	442398..442958	+	186	148269597	-	Tpet_0457	-	lipoprotein signal peptidase
453	 47.65	0	442816..443751	+	311	148269598	-	Tpet_0458	-	RluA family pseudouridine synthase
454	 45.83	0	443748..446276	+	842	148269599	-	Tpet_0459	-	DNA polymerase III, alpha subunit
455	 50.49	+1	446337..448184	+	615	148269600	-	Tpet_0460	-	4-phytase
456	 47.86	0	448235..453307	-	1690	148269601	-	Tpet_0461	-	DNA-directed RNA polymerase, beta' subunit
457	 46.02	0	453324..457115	-	1263	148269602	-	Tpet_0462	-	DNA-directed RNA polymerase, beta subunit
458	 49.10	0	457306..457692	-	128	148269603	-	Tpet_0463	-	ribosomal protein L7/L12
459	 42.96	0	457708..458247	-	179	148269604	-	Tpet_0464	-	ribosomal protein L10
460	 44.16	0	458389..459090	-	233	148269605	rplA	Tpet_0465	-	50S ribosomal protein L1
461	 46.95	0	459114..459539	-	141	148269606	-	Tpet_0466	-	ribosomal protein L11
46.02	MEAN

3.27	STD DEV
