IslandPath Analysis: Thermotoga petrophila RKU-1

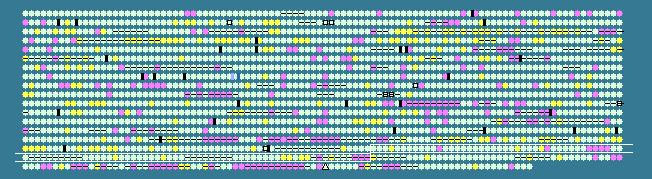

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1559	 42.58	-1	1583279..1583851	-	190	148270704	-	Tpet_1582	-	hypothetical protein
1560	 43.29	0	1583848..1584972	-	374	148270705	-	Tpet_1583	-	putative oxygen-independent coproporphyrinogen III oxidase
1561	 48.88	0	1584969..1585817	-	282	148270706	-	Tpet_1584	-	2-oxoacid ferredoxin oxidoreductase subunit beta
1562	 50.27	+1	1585818..1587494	-	558	148270707	-	Tpet_1585	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
1563	 43.63	0	1587491..1588966	-	491	148270708	-	Tpet_1586	-	diguanylate cyclase
1564	 46.99	0	1588979..1589659	-	226	148270709	-	Tpet_1587	-	beta-lactamase domain-containing protein
1565	 45.56	0	1589867..1591207	+	446	148270710	-	Tpet_1588	-	response regulator receiver protein
1566	 44.52	0	1591220..1592140	+	306	148270711	-	Tpet_1589	-	esterase/lipase-like protein
1567	 47.95	0	1592145..1593095	+	316	148270712	-	Tpet_1590	-	hypothetical protein
1568	 47.16	0	1593009..1593731	-	240	148270713	-	Tpet_1591	-	hypothetical protein
1569	 45.32	0	1593744..1594427	-	227	148270714	-	Tpet_1592	-	glutamine amidotransferase class-I
1570	 41.60	-1	1594429..1595226	-	265	148270715	-	Tpet_1593	-	hypothetical protein
1571	 47.14	0	1595223..1595606	-	127	148270716	-	Tpet_1594	-	phage shock protein C, PspC
1572	 45.54	0	1595695..1597185	+	496	148270717	-	Tpet_1595	-	glucose-6-phosphate 1-dehydrogenase
1573	 45.55	0	1597170..1597832	+	220	148270718	-	Tpet_1596	-	6-phosphogluconolactonase
1574	 48.61	0	1597900..1598763	+	287	148270719	-	Tpet_1597	-	binding-protein-dependent transport systems inner membrane component
1575	 48.15	0	1598760..1599731	+	323	148270720	-	Tpet_1598	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1576	 47.55	0	1599718..1600695	+	325	148270721	-	Tpet_1599	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
1577	 47.34	0	1600711..1602216	+	501	148270722	-	Tpet_1600	-	extracellular solute-binding protein
1578	 49.21	0	1602259..1603266	+	335	148270723	-	Tpet_1601	-	binding-protein-dependent transport systems inner membrane component
1579	 48.92	0	1603287..1604486	-	399	148270724	-	Tpet_1602	-	isocitrate dehydrogenase
1580	 44.39	0	1604646..1605305	-	219	148270725	-	Tpet_1603	-	thioredoxin-related protein-like protein
1581	 46.54	0	1605321..1605971	-	216	148270726	-	Tpet_1604	-	cytochrome c biogenesis protein, transmembrane region
1582	 45.37	0	1606061..1606708	-	215	148270727	-	Tpet_1605	-	CBS domain-containing protein
1583	 50.28	+1	1606721..1607440	-	239	148270728	-	Tpet_1606	-	ABC transporter related
1584	 48.42	0	1607433..1608287	-	284	148270729	-	Tpet_1607	-	ABC transporter related
1585	 49.21	0	1608284..1609354	-	356	148270730	-	Tpet_1608	-	inner-membrane translocator
1586	 47.67	0	1609360..1610259	-	299	148270731	-	Tpet_1609	-	inner-membrane translocator
1587	 49.96	+1	1610336..1611448	-	370	148270732	-	Tpet_1610	-	extracellular ligand-binding receptor
1588	 42.40	-1	1611532..1612788	-	418	148270733	-	Tpet_1611	-	hypothetical protein
1589	 46.49	0	1612778..1614016	-	412	148270734	-	Tpet_1612	-	hypothetical protein
1590	 47.17	0	1614013..1614930	-	305	148270735	-	Tpet_1613	-	ATPase
1591	 48.22	0	1615058..1616293	+	411	148270736	-	Tpet_1614	-	GntR family transcriptional regulator
1592	 47.57	0	1616305..1617189	+	294	148270737	-	Tpet_1615	-	phosphate acetyltransferase
1593	 46.48	0	1617186..1617839	-	217	148270738	-	Tpet_1616	-	adenosylhomocysteine nucleosidase
1594	 44.92	0	1617880..1618371	-	163	148270739	-	Tpet_1617	-	ferroxidase
1595	 41.09	-1	1618470..1619114	+	214	148270740	-	Tpet_1618	-	hypothetical protein
1596	 38.67	-2	1619127..1619426	+	99	148270741	-	Tpet_1619	-	hypothetical protein
1597	 40.37	-1	1619437..1620744	+	435	148270742	-	Tpet_1620	-	hypothetical protein
1598	 41.77	-1	1620744..1621241	+	165	148270743	-	Tpet_1621	-	hypothetical protein
1599	 46.61	0	1621285..1621653	+	122	148270744	-	Tpet_1622	-	flagellar protein FlaG protein
1600	 47.20	0	1621658..1623481	+	607	148270745	-	Tpet_1623	-	flagellar hook-associated 2 domain-containing protein
1601	 42.57	-1	1623646..1624695	+	349	148270746	-	Tpet_1624	-	SARP family transcriptional regulator
1602	 43.51	0	1624799..1625899	-	366	148270747	-	Tpet_1625	-	hypothetical protein
1603	 46.65	0	1625902..1627065	-	387	148270748	-	Tpet_1626	-	type II and III secretion system protein
1604	 47.12	0	1627062..1628693	-	543	148270749	-	Tpet_1627	-	hypothetical protein
1605	 45.99	0	1628757..1629404	-	215	148270750	-	Tpet_1628	-	hypothetical protein
1606	 47.79	0	1629460..1630137	-	225	148270751	-	Tpet_1629	-	hypothetical protein
1607	 47.77	0	1630157..1631098	-	313	148270752	-	Tpet_1630	-	hypothetical protein
1608	 47.35	0	1631234..1631497	+	87	148270753	-	Tpet_1631	-	protein of unknown function DUF861, cupin_3
1609	 44.53	0	1631848..1632249	+	133	148270754	-	Tpet_1632	-	hypothetical protein
1610	 49.42	+1	1632241..1632843	-	200	148270755	-	Tpet_1633	-	putative monovalent cation/H+ antiporter subunit B
1611	 46.94	0	1632840..1633508	-	222	148270756	-	Tpet_1634	-	subunit of the multisubunit Na+/H+ antiporter-like protein
1612	 44.73	0	1633505..1633741	-	78	148270757	-	Tpet_1635	-	hypothetical protein
1613	 49.38	+1	1633738..1633980	-	80	148270758	-	Tpet_1636	-	hypothetical protein
1614	 43.82	0	1633977..1634348	-	123	148270759	-	Tpet_1637	-	hypothetical protein
1615	 45.62	0	1634327..1635685	-	452	148270760	-	Tpet_1638	-	putative monovalent cation/H+ antiporter subunit D
1616	 50.15	+1	1635682..1636014	-	110	148270761	-	Tpet_1639	-	NADH-ubiquinone oxidoreductase, chain 4L
1617	 45.70	0	1635999..1636952	-	317	148270762	-	Tpet_1640	-	radical SAM domain-containing protein
1618	 48.55	0	1636949..1637671	-	240	148270763	-	Tpet_1641	-	ribonuclease III
1619	 48.76	0	1637658..1638221	-	187	148270764	-	Tpet_1642	-	phosphodiesterase
1620	 45.78	0	1638224..1639324	-	366	148270765	-	Tpet_1643	-	ABC-2 type transporter
1621	 47.98	0	1639317..1639910	-	197	148270766	-	Tpet_1644	-	dTMP kinase
1622	 49.47	+1	1640494..1641435	-	313	148270767	-	Tpet_1646	-	ornithine carbamoyltransferase
1623	 48.58	0	1641439..1642632	-	397	148270768	-	Tpet_1647	-	adenylosuccinate synthetase
1624	 50.15	+1	1642638..1643933	-	431	148270769	-	Tpet_1648	-	adenylosuccinate lyase
1625	 47.58	0	1644348..1645667	-	439	148270770	-	Tpet_1649	-	RNA methyltransferase
1626	 45.83	0	1645671..1647311	-	546	148270771	-	Tpet_1650	-	arginyl-tRNA synthetase
1627	 43.56	0	1647355..1648185	-	276	148270772	-	Tpet_1651	-	hypothetical protein
1628	 44.44	0	1648178..1648699	-	173	148270773	-	Tpet_1652	-	hypothetical protein
1629	 46.48	0	1648727..1649989	-	420	148270774	-	Tpet_1653	-	histidyl-tRNA synthetase
1630	 47.53	0	1649986..1651485	-	499	148270775	-	Tpet_1654	-	TrkH family potassium uptake protein
1631	 46.27	0	1651492..1652148	-	218	148270776	-	Tpet_1655	-	TrkA domain-containing protein
1632	 46.06	0	1652145..1652576	-	143	148270777	-	Tpet_1656	-	TrkA domain-containing protein
1633	 45.14	0	1652596..1653264	-	222	148270778	-	Tpet_1657	-	rhomboid family protein
1634	 48.29	0	1653269..1654117	-	282	148270779	-	Tpet_1658	-	hypothetical protein
1635	 48.10	0	1654178..1656067	+	629	148270780	-	Tpet_1659	-	methionyl-tRNA synthetase
1636	 48.07	0	1656081..1658495	+	804	148270781	-	Tpet_1660	-	DNA gyrase, A subunit
1637	 45.07	0	1658492..1658866	+	124	148270782	-	Tpet_1661	-	hypothetical protein
1638	 46.80	0	1658863..1659456	+	197	148270783	-	Tpet_1662	-	SOS-response transcriptional repressor, LexA
1639	 43.27	0	1659468..1659809	+	113	148270784	-	Tpet_1663	-	anti-sigma-factor antagonist
1640	 49.07	0	1659806..1660237	+	143	148270785	-	Tpet_1664	-	ribose 5-phosphate isomerase B
1641	 46.79	0	1660227..1661021	+	264	148270786	-	Tpet_1665	-	ribosomal L11 methyltransferase
1642	 47.17	0	1660991..1661503	+	170	148270787	-	Tpet_1666	-	hypothetical protein
1643	 48.75	0	1661500..1662342	+	280	148270788	-	Tpet_1667	-	pantoate--beta-alanine ligase
1644	 50.84	+1	1662347..1662820	+	157	148270789	-	Tpet_1668	-	phosphodiesterase
1645	 52.41	+1	1662850..1663761	+	303	148270790	-	Tpet_1669	-	ExsB family protein
1646	 48.56	0	1663833..1666793	-	986	148270791	-	Tpet_1670	-	glycoside hydrolase family protein
1647	 49.90	+1	1666790..1668220	-	476	148270792	-	Tpet_1671	-	carbohydrate kinase, FGGY
1648	 49.93	+1	1668211..1668921	-	236	148270793	-	Tpet_1672	-	rhamnulose-1-phosphate aldolase
1649	 49.26	0	1668918..1670066	-	382	148270794	-	Tpet_1673	-	L-rhamnose isomerase
1650	 42.03	-1	1670066..1670410	-	114	148270795	-	Tpet_1674	-	hypothetical protein
1651	 42.57	-1	1670476..1671276	+	266	148270796	-	Tpet_1675	-	DeoR family transcriptional regulator
1652	 49.82	+1	1671301..1672701	+	466	148270797	-	Tpet_1676	-	glycoside hydrolase family protein
1653	 45.27	0	1672949..1674916	+	655	148270798	-	Tpet_1677	-	extracellular solute-binding protein
1654	 48.14	0	1675035..1676891	+	618	148270799	-	Tpet_1678	-	FG-GAP repeat-containing protein
1655	 46.45	0	1676917..1678197	+	426	148270800	-	Tpet_1679	-	extracellular solute-binding protein
1656	 42.02	-1	1678238..1679089	+	283	148270801	-	Tpet_1680	-	binding-protein-dependent transport systems inner membrane component
1657	 41.17	-1	1679093..1679896	+	267	148270802	-	Tpet_1681	-	binding-protein-dependent transport systems inner membrane component
1658	 42.42	-1	1680090..1682720	+	876	148270803	-	Tpet_1682	-	alpha-L-rhamnosidase
46.02	MEAN

3.27	STD DEV
