IslandPath Analysis: Thermotoga petrophila RKU-1

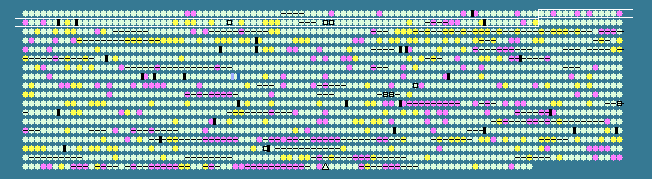

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 46.02 STD DEV: 3.27
Thermotoga petrophila RKU-1, complete genome - 1..1823511
1785 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
87	 42.59	-1	78799..79446	-	215	148269232	-	Tpet_0087	-	hypothetical protein
88	 45.30	0	79495..80505	-	336	148269233	-	Tpet_0088	-	cell cycle protein
89	 40.46	-1	80572..81777	-	401	148269234	-	Tpet_0089	-	S-layer-like domain-containing protein
90	 45.25	0	81774..83477	-	567	148269235	-	Tpet_0090	-	type II secretion system protein E
91	 47.54	0	83477..84532	-	351	148269236	-	Tpet_0091	-	cell division protein FtsZ
92	 43.49	0	84549..85799	-	416	148269237	-	Tpet_0092	-	cell division protein FtsA
93	 36.94	-2	85801..86355	-	184	148269238	-	Tpet_0093	-	hypothetical protein
94	 45.16	0	86358..88268	-	636	148269239	-	Tpet_0094	-	DNA gyrase, B subunit
95	 40.20	-1	88249..88554	-	101	148269240	-	Tpet_0095	-	Zn-ribbon-containing protein
96	 44.16	0	88551..89372	-	273	148269241	-	Tpet_0096	-	aminotransferase, class IV
97	 43.98	0	89332..90636	-	434	148269242	-	Tpet_0097	-	MiaB-like tRNA modifying enzyme
98	 43.71	0	90633..91085	-	150	148269243	-	Tpet_0098	-	CBS domain-containing protein
99	 44.38	0	91086..92045	-	319	148269244	-	Tpet_0099	-	ribokinase-like domain-containing protein
100	 39.43	-2	92075..92779	-	234	148269245	-	Tpet_0100	-	ABC-type cobalamin/Fe3+-siderophores transport systems ATPase components-like protein
101	 40.94	-1	92748..92918	-	56	148269246	-	Tpet_0101	-	hypothetical protein
102	 45.16	0	93046..94017	+	323	148269247	-	Tpet_0102	-	radical SAM domain-containing protein
103	 48.03	0	94100..95548	+	482	148269248	-	Tpet_0103	-	radical SAM domain-containing protein
104	 42.41	-1	95564..96136	+	190	148269249	-	Tpet_0104	-	TetR family transcriptional regulator
105	 47.36	0	96155..98521	-	788	148269250	-	Tpet_0105	-	phenylalanyl-tRNA synthetase, beta subunit
106	 47.34	0	98537..99514	-	325	148269251	-	Tpet_0106	-	phenylalanyl-tRNA synthetase, alpha subunit
107	 46.21	0	99663..100850	-	395	148269252	-	Tpet_0107	-	iron-containing alcohol dehydrogenase
108	 52.42	+1	100889..102088	-	399	148269253	-	Tpet_0108	-	uracil-xanthine permease
109	 45.90	0	102140..102871	-	243	148269254	-	Tpet_0109	-	WecB/TagA/CpsF family glycosyl transferase
110	 46.02	0	103049..105073	-	674	148269255	-	Tpet_0110	-	RND efflux transporter
111	 45.69	0	105075..105503	-	142	148269256	-	Tpet_0111	-	MarR family transcriptional regulator
112	 44.26	0	105725..106429	+	234	148269257	-	Tpet_0112	-	hypothetical protein
113	 49.32	+1	106638..108032	+	464	148269258	-	Tpet_0113	-	MATE efflux family protein
114	 48.58	0	108038..109132	-	364	148269259	-	Tpet_0114	-	N-acetylglucosamine-6-phosphate deacetylase
115	 46.12	0	109143..110135	-	330	148269260	-	Tpet_0115	-	glutamine--fructose-6-phosphate transaminase (isomerizing)
116	 46.32	0	110149..110964	-	271	148269261	-	Tpet_0116	-	binding-protein-dependent transport systems inner membrane component
117	 44.96	0	110957..111859	-	300	148269262	-	Tpet_0117	-	binding-protein-dependent transport systems inner membrane component
118	 46.87	0	111909..113171	-	420	148269263	-	Tpet_0118	-	extracellular solute-binding protein
119	 46.44	0	113168..114571	-	467	148269264	-	Tpet_0119	-	glycoside hydrolase family 3 protein
120	 45.01	0	114579..115631	-	350	148269265	-	Tpet_0120	-	ROK family protein
121	 46.91	0	115813..116460	-	215	148269266	-	Tpet_0121	-	peroxiredoxin
122	 44.15	0	116621..119818	-	1065	148269267	-	Tpet_0122	-	O-antigen polymerase
123	 47.19	0	119835..120758	-	307	148269268	-	Tpet_0123	-	glycosyl transferase family protein
124	 47.86	0	120763..121464	-	233	148269269	-	Tpet_0124	-	HisJ family histidinol phosphate phosphatase
125	 48.13	0	121461..123035	-	524	148269270	-	Tpet_0125	-	CTP synthetase
126	 51.57	+1	123177..124415	+	412	148269271	-	Tpet_0126	-	Beta-ketoacyl synthase-like protein
127	 49.03	0	124412..124825	+	137	148269272	-	Tpet_0127	-	beta-hydroxyacyl-(acyl-carrier-protein) dehydratase FabZ
128	 53.76	+2	124822..125766	+	314	148269273	-	Tpet_0128	-	2-nitropropane dioxygenase, NPD
129	 52.16	+1	125763..126272	+	169	148269274	-	Tpet_0129	-	BioY protein
130	 47.73	0	126269..127150	+	293	148269275	-	Tpet_0130	-	malonyl CoA-acyl carrier protein transacylase
131	 47.22	0	127128..127811	-	227	148269276	-	Tpet_0131	-	2-phosphosulfolactate phosphatase
132	 50.05	+1	127805..128821	-	338	148269277	-	Tpet_0132	-	hypothetical protein
133	 47.48	0	128871..129683	+	270	148269278	-	Tpet_0133	-	ribokinase-like domain-containing protein
134	 46.28	0	129600..131066	-	488	148269279	-	Tpet_0134	-	hypothetical protein
135	 45.04	0	131121..132350	+	409	148269280	-	Tpet_0135	-	transposase, putative
136	 49.40	+1	132391..133143	-	250	148269281	-	Tpet_0136	-	ABC transporter related
137	 49.92	+1	133149..133787	-	212	148269282	-	Tpet_0137	-	hypothetical protein
138	 46.86	0	133771..134184	-	137	148269283	-	Tpet_0138	-	7-cyano-7-deazaguanine reductase
139	 48.71	0	134189..135385	-	398	148269284	-	Tpet_0139	-	phosphomethylpyrimidine kinase type-1
140	 44.98	0	135385..136131	-	248	148269285	-	Tpet_0140	-	xylose isomerase domain-containing protein
141	 52.16	+1	136128..137402	-	424	148269286	-	Tpet_0141	-	thiamine biosynthesis protein ThiC
142	 52.21	+1	137407..138153	-	248	148269287	-	Tpet_0142	-	ribulose-1,5-biphosphate synthetase
143	 52.17	+1	138417..138761	+	114	148269288	-	Tpet_0143	-	hypothetical protein
144	 49.37	+1	138776..139573	+	265	148269289	-	Tpet_0144	-	Linocin_M18 bacteriocin protein
145	 47.09	0	139605..140120	-	171	148269290	-	Tpet_0145	-	hypothetical protein
146	 46.27	0	140333..141337	-	334	148269291	-	Tpet_0146	-	glycosidase, PH1107-related
147	 49.07	0	141378..141593	-	71	148269292	-	Tpet_0147	-	hypothetical protein
148	 49.16	0	141636..142109	-	157	148269293	-	Tpet_0148	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
149	 44.49	0	142173..142916	+	247	148269294	-	Tpet_0149	-	hypothetical protein
150	 47.64	0	142922..143515	+	197	148269295	-	Tpet_0150	-	hypothetical protein
151	 44.10	0	143539..143928	+	129	148269296	-	Tpet_0151	-	transposase IS200-family protein
152	 48.64	0	143913..145121	+	402	148269297	-	Tpet_0152	-	IS605 family transposase OrfB
153	 48.51	0	145215..147296	-	693	148269298	infB	Tpet_0153	-	translation initiation factor IF-2
154	 43.81	0	147307..147621	-	104	148269299	-	Tpet_0154	-	ribosomal protein L7Ae/L30e/S12e/Gadd45
155	 44.14	0	147626..147847	-	73	148269300	-	Tpet_0155	-	hypothetical protein
156	 47.67	0	147851..148666	-	271	148269301	-	Tpet_0156	-	PSP1 domain-containing protein
157	 44.62	0	148657..149595	-	312	148269302	-	Tpet_0157	-	DNA polymerase III gamma/tau subunits-like protein
158	 46.39	0	149656..151455	+	599	148269303	-	Tpet_0158	-	radical SAM domain-containing protein
159	 48.66	0	151452..152867	+	471	148269304	-	Tpet_0159	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
160	 48.67	0	152864..153652	+	262	148269305	-	Tpet_0160	-	GTP-binding protein, HSR1-related
161	 47.86	0	153615..155528	-	637	148269306	-	Tpet_0161	-	alpha amylase, catalytic region
162	 44.26	0	155651..156016	+	121	148269307	-	Tpet_0162	-	regulatory protein GntR, HTH
163	 46.29	0	156016..156810	+	264	148269308	-	Tpet_0163	-	ABC transporter related
164	 44.31	0	156800..157546	+	248	148269309	-	Tpet_0164	-	hypothetical protein
165	 49.84	+1	157561..157881	+	106	148269310	-	Tpet_0165	-	hypothetical protein
166	 47.77	0	157903..158685	-	260	148269311	rpsB	Tpet_0166	-	30S ribosomal protein S2
167	 48.96	0	158825..160072	-	415	148269312	-	Tpet_0167	-	major facilitator transporter
168	 46.12	0	160132..161328	-	398	148269313	-	Tpet_0168	-	glycosyl transferase, group 1
169	 41.31	-1	161325..162089	-	254	148269314	-	Tpet_0169	-	hexapaptide repeat-containing transferase
170	 47.42	0	162249..163412	+	387	148269315	-	Tpet_0170	-	flagellin domain-containing protein
171	 39.88	-1	163520..166102	+	860	148269316	-	Tpet_0171	-	glycosyl transferase family protein
172	 36.86	-2	166105..169080	+	991	148269317	-	Tpet_0172	-	glycosyl transferase family protein
173	 34.59	-2	169080..169238	+	52	148269318	-	Tpet_0173	-	hypothetical protein
174	 47.45	0	169350..170546	+	398	148269319	-	Tpet_0174	-	flavodoxin/nitric oxide synthase
175	 49.12	0	170553..171629	+	358	148269320	-	Tpet_0175	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
176	 44.49	0	171626..172288	+	220	148269321	-	Tpet_0176	-	ubiquinone/menaquinone biosynthesis methyltransferase
177	 49.58	+1	172378..173793	+	471	148269322	-	Tpet_0177	-	glycoside hydrolase family protein
178	 47.00	0	173962..175629	+	555	148269323	-	Tpet_0178	-	phosphoribulokinase/uridine kinase
179	 46.76	0	175626..176504	+	292	148269324	-	Tpet_0179	-	hypothetical protein
180	 44.30	0	176501..176947	+	148	148269325	-	Tpet_0180	-	hypothetical protein
181	 47.66	0	176932..177720	+	262	148269326	-	Tpet_0181	-	tRNA methyltransferase complex GCD14 subunit
182	 48.39	0	177717..178925	+	402	148269327	-	Tpet_0182	-	carboxyl-terminal protease
183	 43.93	0	178922..179308	+	128	148269328	-	Tpet_0183	-	hypothetical protein
184	 40.85	-1	179308..179733	+	141	148269329	-	Tpet_0184	-	hypothetical protein
185	 45.21	0	179740..180960	+	406	148269330	-	Tpet_0185	-	glycosyl transferase, group 1
186	 49.77	+1	180966..181610	+	214	148269331	-	Tpet_0186	-	hypothetical protein
46.02	MEAN

3.27	STD DEV
