IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

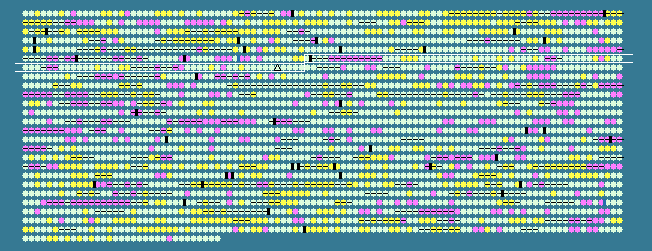

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
548	 62.06	0	552580..554034	+	484	148238884	-	SynWH7803_0548	-	alpha-glucosidase
549	 59.46	0	554257..554700	+	147	148238885	aroQ	SynWH7803_0549	-	3-dehydroquinate dehydratase
550	 58.06	0	554697..555347	+	216	148238886	miaE	SynWH7803_0550	-	tRNA-(MS[2]IO[6]A)-hydroxylase
551	 61.18	0	555917..556153	+	78	148238887	-	SynWH7803_0551	-	hypothetical protein
552	 43.20	-2	556259..556714	-	151	148238888	-	SynWH7803_0552	-	hypothetical protein
553	 48.83	-2	556748..557089	-	113	148238889	-	SynWH7803_0553	-	hypothetical protein
554	 45.69	-2	557139..557567	-	142	148238890	-	SynWH7803_0554	-	hypothetical protein
555	 42.67	-2	557664..558980	-	438	148238891	-	SynWH7803_0555	-	multidrug resistance efflux pump
556	 41.09	-2	558980..561247	-	755	148238892	-	SynWH7803_0556	-	ABC-type multidrug transport system, ATPase and permease components
557	 40.85	-2	561244..563478	-	744	148238893	-	SynWH7803_0557	-	ABC-type multidrug transport system, ATPase and permease components
558	 49.27	-2	563484..565202	-	572	148238894	-	SynWH7803_0558	-	hypothetical protein
559	 48.16	-2	565384..566496	+	370	148238895	-	SynWH7803_0559	-	hypothetical protein
560	 56.35	0	566523..567065	-	180	148238896	-	SynWH7803_0560	-	ARD/ARD' family protein (methionine salvage pathway)
561	 61.71	0	567185..567910	+	241	148238897	cobI	SynWH7803_0561	-	precorrin-2 C20-methyltransferase
562	 63.32	0	567937..568533	+	198	148238898	-	SynWH7803_0562	-	hypothetical protein
563	 63.54	0	568543..570558	-	671	148238899	-	SynWH7803_0563	-	glycosyl transferase family protein
564	 64.31	0	570555..571571	-	338	148238900	dus	SynWH7803_0564	-	tRNA-dihydrouridine synthase
565	 64.09	0	571623..572204	-	193	148238901	-	SynWH7803_0565	-	hypothetical protein
566	 65.81	+1	572284..572751	+	155	148238902	-	SynWH7803_0566	-	hypothetical protein
567	 62.32	0	572755..573168	-	137	148238903	-	SynWH7803_0567	-	hypothetical protein
568	 61.92	0	573290..574657	+	455	148238904	engA	SynWH7803_0568	-	GTP-binding protein EngA
569	 61.76	0	574663..575580	+	305	148238905	cbiQ	SynWH7803_0569	-	cobalt ABC transporter permease
570	 59.55	0	575598..575864	+	88	148238906	-	SynWH7803_0570	-	hypothetical protein
571	 61.29	0	575887..576537	+	216	148238907	-	SynWH7803_0571	-	TIM-barrel fold family protein
572	 61.43	0	576614..577186	+	190	148238908	-	SynWH7803_0572	-	hypothetical protein
573	 62.52	0	577196..578014	+	272	148238909	proC	SynWH7803_0573	-	pyrroline-5-carboxylate reductase
574	 63.17	0	578011..579183	-	390	148238910	-	SynWH7803_0574	-	glycosyl transferase family protein
575	 63.41	0	579211..580593	-	460	148238911	-	SynWH7803_0575	-	major facilitator superfamily permease
576	 69.86	+1	580603..581415	-	270	148238912	recO	SynWH7803_0576	-	DNA repair protein RecO
577	 63.29	0	581412..582092	-	226	148238913	deoC	SynWH7803_0577	-	deoxyribose-phosphate aldolase
578	 61.39	0	582127..582714	-	195	148238914	lrtA	SynWH7803_0578	-	light repressed protein A-like protein
579	 63.43	0	582727..583467	+	246	148238915	lipB	SynWH7803_0579	-	lipoyltransferase
580	 64.56	0	583496..585439	+	647	148238916	fadD	SynWH7803_0580	-	long-chain acyl-CoA synthetase
581	 62.39	0	585511..585954	+	147	148238917	-	SynWH7803_0581	-	hypothetical protein
582	 65.33	+1	586023..587372	+	449	148238918	pdhC	SynWH7803_0582	-	branched-chain alpha-keto acid dehydrogenase subunit E2
583	 61.90	0	587443..589329	+	628	148238919	-	SynWH7803_0583	-	amino acid permease
584	 63.25	0	589366..590478	+	370	148238920	queA	SynWH7803_0584	-	S-adenosylmethionine:tRNA-ribosyltransferase-isom erase
585	 62.01	0	590488..591474	-	328	148238921	cysK	SynWH7803_0585	-	cysteine synthase
586	 63.84	0	591554..593038	-	494	148238922	metB	SynWH7803_0586	-	hypothetical protein
587	 62.44	0	593035..594216	-	393	148238923	-	SynWH7803_0587	-	metC/metB cystathionine beta-lyase/cystathioninegamma-synthase
588	 49.43	-2	594269..594529	+	86	148238924	-	SynWH7803_0588	-	hypothetical protein
589	 46.10	-2	594539..595603	-	354	148238925	-	SynWH7803_0589	-	Fatty acid desaturase
590	 61.46	0	595839..596030	+	63	148238926	-	SynWH7803_0590	-	hypothetical protein
591	 62.40	0	596133..596741	-	202	148238927	rpsD	SynWH7803_0591	-	30S ribosomal protein S4
592	 60.75	0	596772..597092	+	106	148238928	-	SynWH7803_0592	-	hypothetical protein
593	 61.51	0	597114..597404	+	96	148238929	-	SynWH7803_0593	-	thioredoxin family protein
594	 63.27	0	597431..598930	+	499	148238930	murE	SynWH7803_0594	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
595	 61.87	0	598940..599773	-	277	148238931	-	SynWH7803_0595	-	hypothetical protein
596	 63.86	0	599828..601072	-	414	148238932	-	SynWH7803_0596	-	L-cysteine/cystine lyase
597	 54.60	-1	601106..601279	-	57	148238933	-	SynWH7803_0597	-	hypothetical protein
598	 64.46	0	601407..602132	+	241	148238934	-	SynWH7803_0598	-	hypothetical protein
599	 60.39	0	602122..603396	-	424	148238935	-	SynWH7803_0599	-	ABC transporter substrate-binding protein
600	 57.74	0	603393..604535	-	380	148238936	-	SynWH7803_0600	-	hypothetical protein
601	 63.41	0	604581..604826	-	81	148238937	-	SynWH7803_0601	-	NifU-like protein
602	 62.42	0	604912..606393	+	493	148238938	mqoA	SynWH7803_0602	-	malate:quinone oxidoreductase
603	 61.93	0	606382..607035	-	217	148238939	-	SynWH7803_0603	-	hypothetical protein
604	 60.82	0	607120..607461	-	113	148238940	-	SynWH7803_0604	-	small multidrug resistance protein
605	 52.89	-1	607535..608122	+	195	148238941	ppa	SynWH7803_0605	-	inorganic pyrophosphatase
606	 55.62	0	608214..609191	-	325	148238942	-	SynWH7803_0606	-	hypothetical protein
607	 59.61	0	609351..609860	+	169	148238943	-	SynWH7803_0607	-	hypothetical protein
608	 58.61	0	609850..610482	-	210	148238944	-	SynWH7803_0608	-	hypothetical protein
609	 61.77	0	610485..611444	-	319	148238945	hemC	SynWH7803_0609	-	porphobilinogen deaminase
610	 57.84	0	611632..612084	+	150	148238946	-	SynWH7803_0610	-	hypothetical protein
611	 57.13	0	612192..613544	-	450	148238947	rpoD	SynWH7803_0611	-	RNA polymerase sigma factor RpoD
612	 63.78	0	613843..616131	+	762	148238948	priA	SynWH7803_0612	-	primosomal protein N' (replication factor Y)
613	 63.83	0	616134..617225	-	363	148238949	-	SynWH7803_0613	-	hypothetical protein
614	 63.27	0	617229..618110	-	293	148238950	argB	SynWH7803_0614	-	acetylglutamate kinase
615	 61.73	0	618097..618663	-	188	148238951	-	SynWH7803_0615	-	hypothetical protein
616	 60.49	0	618793..618954	+	53	148238952	-	SynWH7803_0616	-	hypothetical protein
617	 64.09	0	618955..619419	-	154	148238953	-	SynWH7803_0617	-	single-stranded DNA-binding protein
618	 64.44	0	619434..620243	+	269	148238954	cobK	SynWH7803_0618	-	precorrin-6x reductase
619	 61.44	0	620240..621253	-	337	148238955	-	SynWH7803_0619	-	ribokinase family sugar kinase
620	 61.04	0	621324..622637	-	437	148238956	purA	SynWH7803_0620	-	adenylosuccinate synthetase
621	 58.69	0	622750..623175	-	141	148238957	psb27	SynWH7803_0621	-	photosystem II protein Psb27
622	 57.93	0	623220..625004	-	594	148238958	proS	SynWH7803_0622	-	prolyl-tRNA synthetase
623	 52.47	-1	625151..625615	+	154	148238959	-	SynWH7803_0623	-	hypothetical protein
624	 57.12	0	625903..626415	+	170	148238960	ppa	SynWH7803_0624	-	inorganic pyrophosphatase
625	 58.33	0	626509..626868	+	119	148238961	-	SynWH7803_0625	-	ferredoxin
626	 56.21	0	626930..627235	+	101	148238962	-	SynWH7803_0626	-	arsenate reductase C
627	 56.57	0	627198..628703	-	501	148238963	-	SynWH7803_0627	-	hypothetical protein
628	 61.11	0	628782..629483	+	233	148238964	lepB	SynWH7803_0628	-	Signal peptidase I
629	 63.59	0	629455..630723	-	422	148238965	pyrC	SynWH7803_0629	-	dihydroorotase
630	 60.72	0	630742..632070	-	442	148238966	gmpB	SynWH7803_0630	-	phosphoglycerate mutase
631	 63.26	0	632229..633548	+	439	148238967	-	SynWH7803_0631	-	metal-dependent membrane protease
632	 64.69	0	633632..634087	+	151	148238968	-	SynWH7803_0632	-	hypothetical protein
633	 61.57	0	634091..635896	+	601	148238969	ftsI	SynWH7803_0633	-	peptidoglycan synthetase
634	 56.44	0	635988..637160	+	390	148238970	tal	SynWH7803_0634	-	transaldolase/EF-hand domain-containing protein
635	 57.11	0	637228..637614	+	128	148238971	-	SynWH7803_0635	-	cAMP-binding protein
636	 61.44	0	637663..639135	+	490	148238972	phr	SynWH7803_0636	-	deoxyribodipyrimidine photolyase
637	 64.75	0	639132..640277	-	381	148238973	-	SynWH7803_0637	-	dehydrogenase
638	 57.38	0	640274..640822	-	182	148238974	frr	SynWH7803_0638	-	ribosome recycling factor
639	 59.60	0	640831..641538	-	235	148238975	pyrH	SynWH7803_0639	-	uridylate kinase
640	 61.83	0	641641..641826	+	61	148238976	-	SynWH7803_0640	-	hypothetical protein
641	 59.76	0	641830..642495	-	221	148238977	cobO	SynWH7803_0641	-	Cob(I)alamin adenosyltransferase
642	 62.81	0	642492..643139	-	215	148238978	-	SynWH7803_0642	-	SAM-dependent methyltransferase
643	 63.20	0	643154..644308	-	384	148238979	-	SynWH7803_0643	-	Phage integrase family protein
644	 57.99	0	644381..645556	+	391	148238980	hemH	SynWH7803_0644	-	ferrochelatase
645	 61.49	0	645639..647492	+	617	148238981	ilvB	SynWH7803_0645	-	acetolactate synthase 3 catalytic subunit
646	 61.62	0	647492..647848	+	118	148238982	-	SynWH7803_0646	-	nuclease
647	 61.40	0	647850..648077	+	75	148238983	-	SynWH7803_0647	-	hypothetical protein
60.32	MEAN

4.87	STD DEV
