IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

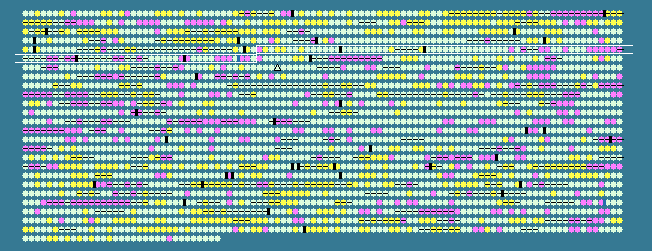

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
440	 55.65	0	453161..453505	-	114	148238776	-	SynWH7803_0440	-	hypothetical protein
441	 65.83	+1	453580..453819	-	79	148238777	-	SynWH7803_0441	-	hypothetical protein
442	 63.15	0	453857..455305	-	482	148238778	-	SynWH7803_0442	-	ATP-dependent DNA helicase
443	 65.34	+1	455405..456310	+	301	148238779	tyrA	SynWH7803_0443	-	arogenate dehydrogenase
444	 64.49	0	456294..457808	-	504	148238780	-	SynWH7803_0444	-	phytoene dehydrogenase
445	 59.43	0	457815..458726	+	303	148238781	-	SynWH7803_0445	-	fructosamine kinase
446	 58.13	0	458764..459138	-	124	148238782	-	SynWH7803_0446	-	hypothetical protein
447	 66.15	+1	459192..459770	+	192	148238783	-	SynWH7803_0447	-	PAD1/JAB1 superfamily metal-dependent protease
448	 61.43	0	459763..460908	+	381	148238784	moeB	SynWH7803_0448	-	molybdopterin biosynthesis protein
449	 61.74	0	460912..462108	-	398	148238785	-	SynWH7803_0449	-	hypothetical protein
450	 62.21	0	462169..463020	+	283	148238786	-	SynWH7803_0450	-	PP family ATPase
451	 57.88	0	463058..463444	-	128	148238787	speH	SynWH7803_0451	-	S-adenosylmethionine decarboxylase proenzyme
452	 61.93	0	463570..464667	-	365	148238788	recF	SynWH7803_0452	-	DNA replication and repair protein RecF
453	 60.04	0	464762..465304	-	180	148238789	-	SynWH7803_0453	-	hypothetical protein
454	 60.69	0	465305..468316	-	1003	148238790	-	SynWH7803_0454	-	phosphoenolpyruvate carboxylase
455	 60.40	0	468313..469461	-	382	148238791	-	SynWH7803_0455	-	glutamate-cysteine ligase family 2 protein
456	 61.19	0	469458..470990	-	510	148238792	trpE	SynWH7803_0456	-	anthranilate synthase component I
457	 59.49	0	471070..471501	-	143	148238793	psaD	SynWH7803_0457	-	photosystem I reaction center subunit II
458	 63.30	0	471596..472993	-	465	148238794	-	SynWH7803_0458	-	two component system sensor histidine kinase
459	 61.73	0	472990..474264	-	424	148238795	rodA	SynWH7803_0459	-	rod shape-determining protein
460	 63.05	0	474267..475343	-	358	148238796	mrp	SynWH7803_0460	-	ATPases involved in chromosome partitioning
461	 61.70	0	475495..476562	+	355	148238797	hemF	SynWH7803_0461	-	coproporphyrinogen III oxidase
462	 64.23	0	476489..477310	-	273	148238798	-	SynWH7803_0462	-	dehydrogenase
463	 62.88	0	477328..477882	-	184	148238799	-	SynWH7803_0463	-	hypothetical protein
464	 60.70	0	477913..478314	-	133	148238800	pex	SynWH7803_0464	-	period-extender protein
465	 59.53	0	478418..479062	+	214	148238801	rnd	SynWH7803_0465	-	ribonuclease D
466	 60.78	0	479077..479331	-	84	148238802	-	SynWH7803_0466	-	hypothetical protein
467	 64.70	0	479376..480596	-	406	148238803	-	SynWH7803_0467	-	hypothetical protein
468	 60.91	0	480751..481254	-	167	148238804	-	SynWH7803_0468	-	hypothetical protein
469	 58.93	0	481282..481449	-	55	148238805	-	SynWH7803_0469	-	hypothetical protein
470	 61.25	0	481500..482459	+	319	148238806	-	SynWH7803_0470	-	oxidoreductase
471	 60.68	0	482447..483064	-	205	148238807	-	SynWH7803_0471	-	hypothetical protein
472	 63.01	0	483194..484231	-	345	148238808	purM	SynWH7803_0472	-	phosphoribosylaminoimidazole synthetase
473	 62.32	0	484575..485126	+	183	148238809	rlpA	SynWH7803_0473	-	rare lipoprotein A
474	 62.46	0	485207..486679	+	490	148238810	-	SynWH7803_0474	-	bifunctional pantoate ligase/cytidylate kinase
475	 61.04	0	486663..487142	-	159	148238811	-	SynWH7803_0475	-	low molecular weight protein-tyrosine-phosphatase
476	 60.82	0	487139..487771	-	210	148238812	rpcF	SynWH7803_0476	-	phycobilin lyase beta subunit
477	 62.00	0	487771..488541	-	256	148238813	rpcE	SynWH7803_0477	-	phycobilin lyase alpha subunit
478	 58.08	0	488541..489134	-	197	148238814	-	SynWH7803_0478	-	hypothetical protein
479	 57.26	0	489215..489703	-	162	148238815	rpcA	SynWH7803_0479	-	R-phycocyanin II alpha chain
480	 59.34	0	489748..490266	-	172	148238816	rpcB	SynWH7803_0480	-	R-phycocyanin II beta chain
481	 58.33	0	490417..491220	-	267	148238817	pebB	SynWH7803_0481	-	phycoerythrobilin:ferredoxin oxidoreductase
482	 55.65	0	491217..491942	-	241	148238818	pebA	SynWH7803_0482	-	dihydrobiliverdin:ferredoxin oxidoreductase
483	 58.75	0	491942..492547	-	201	148238819	-	SynWH7803_0483	-	hypothetical protein
484	 56.02	0	492557..492772	-	71	148238820	-	SynWH7803_0484	-	hypothetical protein
485	 60.90	0	493139..493693	+	184	148238821	cpeB	SynWH7803_0485	-	C-phycoerythrin class I beta chain
486	 59.60	0	493750..494244	+	164	148238822	cpeA	SynWH7803_0486	-	C-phycoerythrin class I alpha chain
487	 51.10	-1	494531..495391	+	286	148238823	mpeE	SynWH7803_0487	-	phycobilisome linker polypeptide, C-phycoerythrin class II-associated
488	 56.80	0	495622..496239	+	205	148238824	cpeZ	SynWH7803_0488	-	bilin biosynthesis protein CpeZ
489	 57.64	0	496347..497243	-	298	148238825	mpeU	SynWH7803_0489	-	putative bilin biosynthesis protein, MpeV-like protein
490	 60.00	0	497315..497749	+	144	148238826	-	SynWH7803_0490	-	hypothetical protein
491	 53.60	-1	498182..499474	+	430	148238827	cpeY	SynWH7803_0491	-	bilin biosynthesis protein CpeY
492	 61.65	0	499571..500068	-	165	148238828	mpeA	SynWH7803_0492	-	C-phycoerythrin class II alpha chain
493	 59.89	0	500108..500653	-	181	148238829	mpeB	SynWH7803_0493	-	C-phycoerythrin class II beta chain
494	 58.29	0	500805..501998	-	397	148238830	-	SynWH7803_0494	-	bilin biosynthesis protein CpeY
495	 50.52	-2	502092..502382	+	96	148238831	-	SynWH7803_0495	-	hypothetical protein
496	 51.10	-1	502385..502975	+	196	148238832	-	SynWH7803_0496	-	hypothetical protein
497	 47.57	-2	502980..503288	-	102	148238833	cpeR	SynWH7803_0497	-	C-phycoerythrin operon regulator
498	 54.63	-1	503315..503929	-	204	148238834	cpeT	SynWH7803_0498	-	phycoerythrin linker gene region
499	 52.89	-1	503944..504480	-	178	148238835	cpeS	SynWH7803_0499	-	phycoerythrin linker gene region
500	 52.63	-1	504477..504647	-	56	148238836	-	SynWH7803_0500	-	hypothetical protein
501	 59.21	0	504765..505502	-	245	148238837	cpeE	SynWH7803_0501	-	phycobilisome linker polypeptide, C-phycoerythrin class I-associated
502	 59.84	0	505601..507241	-	546	148238838	mpeD	SynWH7803_0502	-	phycobilisome linker polypeptide, C-phycoerythrin-associated
503	 59.89	0	507353..508237	-	294	148238839	cpeC	SynWH7803_0503	-	phycobilisome linker polypeptide, C-phycoerythrin class I-associated
504	 58.81	0	508382..509056	-	224	148238840	-	SynWH7803_0504	-	hypothetical protein
505	 53.28	-1	509082..509813	-	243	148238841	cpcG2	SynWH7803_0505	-	phycobilisome rod-core linker polypeptide cpcG (L-RC 28.5)
506	 55.89	0	509860..510462	-	200	148238842	-	SynWH7803_0506	-	phycobilisome polypeptide
507	 57.43	0	510459..510902	-	147	148238843	-	SynWH7803_0507	-	hypothetical protein
508	 56.64	0	511066..511524	+	152	148238844	-	SynWH7803_0508	-	hypothetical protein
509	 50.00	-2	511543..511782	-	79	148238845	-	SynWH7803_0509	-	hypothetical protein
510	 62.44	0	511902..512564	-	220	148238846	-	SynWH7803_0510	-	amidophosphoribosyltransferase
511	 63.19	0	512586..512873	-	95	148238847	-	SynWH7803_0511	-	hypothetical protein
512	 63.04	0	513038..514306	-	422	148238848	-	SynWH7803_0512	-	sugar kinase
513	 59.29	0	514324..515583	-	419	148238849	metK	SynWH7803_0513	-	S-adenosylmethionine synthetase
514	 60.13	0	515630..516424	-	264	148238850	-	SynWH7803_0514	-	HAD superfamily phosphatase
515	 58.24	0	516439..517542	-	367	148238851	rpsA	SynWH7803_0515	-	30S ribosomal protein S1
516	 55.56	0	517647..518087	-	146	148238852	-	SynWH7803_0516	-	transcriptional regulator
517	 55.21	-1	518240..518335	-	31	148238853	psbT	SynWH7803_0517	-	photosystem II reaction center protein T
518	 58.85	0	518357..519916	-	519	148238854	psbB	SynWH7803_0518	-	photosystem II P680 chlorophyll A apoprotein (CP-47 protein)
519	 60.29	0	520178..520663	+	161	148238855	-	SynWH7803_0519	-	ferredoxin
520	 49.52	-2	520722..520826	+	34	148238856	psbM	SynWH7803_0520	-	photosystem II reaction center M protein
521	 60.31	0	520849..521697	-	282	148238857	uspA	SynWH7803_0521	-	universal stress protein
522	 63.09	0	521750..522196	+	148	148238858	-	SynWH7803_0522	-	thioesterase
523	 62.06	0	522208..523314	+	368	148238859	smf	SynWH7803_0523	-	Rossmann fold nucleotide-binding protein involved in DNA uptake
524	 62.67	0	523324..524223	+	299	148238860	hemK	SynWH7803_0524	-	protoporphyrinogen oxidase
525	 62.83	0	524244..524843	+	199	148238861	-	SynWH7803_0525	-	translation factor
526	 60.00	0	524848..525012	+	54	148238862	-	SynWH7803_0526	-	hypothetical protein
527	 54.88	-1	525093..525338	-	81	148238863	-	SynWH7803_0527	-	LuxR family transcriptional regulator
528	 56.38	0	525374..525655	-	93	148238864	minE	SynWH7803_0528	-	cell division topological specificity factor
529	 60.42	0	525661..526476	-	271	148238865	minD	SynWH7803_0529	-	septum site-determining protein MinD
530	 61.54	0	526510..527211	-	233	148238866	minC	SynWH7803_0530	-	septum site-determining protein MinC
531	 60.89	0	527221..528483	-	420	148238867	-	SynWH7803_0531	-	HD superfamily phosphohydrolase
532	 61.52	0	528483..529745	-	420	148238868	ctp	SynWH7803_0532	-	carboxyl-terminal processing protease
533	 54.49	-1	529846..530502	+	218	148238869	petB	SynWH7803_0533	-	cytochrome b6
534	 54.95	-1	530616..531059	+	147	148238870	petD	SynWH7803_0534	-	cytochrome b6-f complex subunit IV
535	 55.73	0	531241..532392	+	383	148238871	arsB	SynWH7803_0535	-	arsenical pump membrane protein
536	 57.18	0	532371..533867	-	498	148238872	-	SynWH7803_0536	-	neutral invertase-like protein
537	 48.70	-2	539990..540718	-	242	148238873	masA	SynWH7803_0537	-	putative enolase-phosphatase E-1
538	 50.65	-1	540715..541332	-	205	148238874	-	SynWH7803_0538	-	sugar aldolase
539	 58.45	0	541336..542187	-	283	148238875	mutM	SynWH7803_0539	-	formamidopyrimidine-DNA glycosylase
60.32	MEAN

4.87	STD DEV
