IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

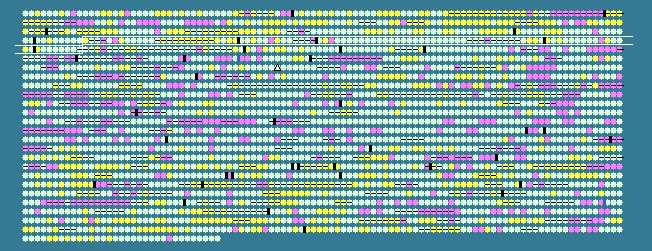

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
311	 65.41	+1	337451..340477	+	1008	148238647	-	SynWH7803_0311	-	alpha-glucosidase
312	 58.16	0	340465..340605	-	46	148238648	psbN	SynWH7803_0312	-	photosystem II reaction center protein N
313	 57.71	0	340691..340891	+	66	148238649	psbH	SynWH7803_0313	-	photosystem II reaction center protein H
314	 55.02	-1	340927..341175	+	82	148238650	-	SynWH7803_0314	-	Sec-independent protein translocase protein TatA
315	 62.54	0	341178..341807	+	209	148238651	pth	SynWH7803_0315	-	peptidyl-tRNA hydrolase
316	 56.59	0	341807..342064	+	85	148238652	-	SynWH7803_0316	-	hypothetical protein
317	 65.07	0	342042..342479	-	145	148238653	-	SynWH7803_0317	-	polynucleotidyl transferase
318	 62.69	0	342476..343681	-	401	148238654	-	SynWH7803_0318	-	hypothetical protein
319	 59.86	0	343739..344473	-	244	148238655	ntcA	SynWH7803_0319	-	global nitrogen regulator
320	 63.64	0	344549..345274	-	241	148238656	rph	SynWH7803_0320	-	ribonuclease PH
321	 63.71	0	345434..346042	+	202	148238657	cobA	SynWH7803_0321	-	cob(I)alamin adenosyltransferase
322	 57.24	0	346042..346635	+	197	148238658	dcd	SynWH7803_0322	-	deoxycytidine triphosphate deaminase
323	 61.02	0	346657..347382	-	241	148238659	thyX	SynWH7803_0323	-	alternative thymidylate synthase
324	 63.93	0	347451..347999	-	182	148238660	-	SynWH7803_0324	-	thioredoxin
325	 60.08	0	348118..348588	+	156	148238661	-	SynWH7803_0325	-	hypothetical protein
326	 66.33	+1	348545..350602	-	685	148238662	-	SynWH7803_0326	-	soluble lytic transglycosylase
327	 66.67	+1	350651..350854	+	67	148238663	-	SynWH7803_0327	-	hypothetical protein
328	 65.87	+1	350943..352331	+	462	148238664	-	SynWH7803_0328	-	phosphoglucomutase/phosphomannomutase family protein
329	 66.77	+1	352318..353286	-	322	148238665	-	SynWH7803_0329	-	N-acetylglucosamine kinase
330	 65.36	+1	353283..354581	-	432	148238666	ictB	SynWH7803_0330	-	bicarbonate transporter
331	 64.99	0	354574..355287	-	237	148238667	trmB	SynWH7803_0331	-	tRNA (guanine-N(7))-methyltransferase
332	 64.03	0	355287..356612	-	441	148238668	-	SynWH7803_0332	-	hypothetical protein
333	 64.54	0	356683..357294	+	203	148238669	-	SynWH7803_0333	-	hypothetical protein
334	 60.38	0	357294..357611	+	105	148238670	-	SynWH7803_0334	-	hypothetical protein
335	 64.33	0	357589..360495	-	968	148238671	ileS	SynWH7803_0335	-	isoleucyl-tRNA synthetase
336	 65.04	0	360518..361132	-	204	148238672	-	SynWH7803_0336	-	hypothetical protein
337	 58.78	0	361336..362337	+	333	148238673	crtR	SynWH7803_0337	-	Beta-carotene hydroxylase
338	 61.90	0	362339..362632	-	97	148238674	gatC	SynWH7803_0338	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
339	 66.67	+1	362629..363417	-	262	148238675	-	SynWH7803_0339	-	amidase
340	 60.42	0	363450..363593	-	47	148238676	-	SynWH7803_0340	-	hypothetical protein
341	 62.10	0	363599..364387	-	262	148238677	-	SynWH7803_0341	-	hypothetical protein
342	 47.84	-2	364679..365002	-	107	148238678	-	SynWH7803_0342	-	hypothetical protein
343	 64.09	0	365229..365810	+	193	148238679	-	SynWH7803_0343	-	putative 3-methyladenine DNA glycosylase
344	 63.75	0	365807..366835	+	342	148238680	pyrB	SynWH7803_0344	-	aspartate carbamoyltransferase catalytic subunit
345	 62.18	0	366796..368289	-	497	148238681	-	SynWH7803_0345	-	NADH dehydrogenase
346	 59.06	0	368385..368726	-	113	148238682	-	SynWH7803_0346	-	hypothetical protein
347	 57.71	0	368950..369150	-	66	148238683	-	SynWH7803_0347	-	hypothetical protein
348	 62.00	0	369216..369365	-	49	148238684	-	SynWH7803_0348	-	hypothetical protein
349	 54.17	-1	369362..369529	-	55	148238685	-	SynWH7803_0349	-	hypothetical protein
350	 63.73	0	369694..369897	+	67	148238686	-	SynWH7803_0350	-	hypothetical protein
351	 64.76	0	369901..371157	+	418	148238687	dfp	SynWH7803_0351	-	coenzyme A biosynthesis bifunctional protein CoaBC (DNA/pantothenate metabolism flavoprotein)
352	 56.54	0	371154..371459	-	101	148238688	-	SynWH7803_0352	-	hypothetical protein
353	 57.06	0	371577..372398	+	273	148238689	psbO	SynWH7803_0353	-	photosystem II manganese-stabilizing protein PsbO
354	 59.83	0	372504..373673	+	389	148238690	cysD	SynWH7803_0354	-	Sulfate adenylyltransferase
355	 58.47	0	373719..375572	+	617	148238691	ftsH	SynWH7803_0355	-	cell division protein FtsH
356	 60.70	0	375598..376200	+	200	148238692	kdgA	SynWH7803_0356	-	KHG/KDPG aldolase (4-hydroxy-2-oxoglutarate aldolase/2-dehydro-3-deoxyphosphogluconate aldolase
357	 58.88	0	376300..376851	-	183	148238693	-	SynWH7803_0357	-	hypothetical protein
358	 61.43	0	376890..377978	-	362	148238694	aroC	SynWH7803_0358	-	chorismate synthase
359	 61.71	0	378009..378512	-	167	148238695	-	SynWH7803_0359	-	hypothetical protein
360	 62.72	0	378512..379372	-	286	148238696	-	SynWH7803_0360	-	sarcosine-dimethylglycine methyltransferase
361	 58.75	0	379378..380286	-	302	148238697	-	SynWH7803_0361	-	glycine-sarcosine methyltransferase
362	 60.04	0	380534..381664	+	376	148238698	proV	SynWH7803_0362	-	ABC-type glycine betaine/L-proline transport ATP-binding protein ProV
363	 59.87	0	381664..382560	+	298	148238699	proW	SynWH7803_0363	-	ABC-type glycine betaine/L-proline transport system permease protein ProW
364	 58.31	0	382557..383525	+	322	148238700	proX	SynWH7803_0364	-	ABC-type proline/glycine betaine transport systems, periplasmic components
365	 57.42	0	383535..384410	-	291	148238701	nctP	SynWH7803_0365	-	Sodium dependent transporter
366	 60.65	0	384540..385619	-	359	148238702	psbA	SynWH7803_0366	-	photosystem II protein D1
367	 57.88	0	385792..387408	+	538	148238703	-	SynWH7803_0367	-	Fe-S oxidoreductase
368	 62.88	0	387372..388163	-	263	148238704	-	SynWH7803_0368	-	CAAX amino protease
369	 62.93	0	388232..388552	-	106	148238705	clpS	SynWH7803_0369	-	ATP-dependent Clp protease adaptor protein ClpS
370	 58.99	0	388598..389848	-	416	148238706	-	SynWH7803_0370	-	L,L-diaminopimelate aminotransferase
371	 62.22	0	389920..392751	+	943	148238707	-	SynWH7803_0371	-	Fe-S oxidoreductase
372	 62.29	0	392773..394713	+	646	148238708	cafA	SynWH7803_0372	-	ribonucleases G and E
373	 63.59	0	394710..395294	+	194	148238709	rnhB	SynWH7803_0373	-	ribonuclease HII
374	 57.19	0	395256..395825	-	189	148238710	-	SynWH7803_0374	-	hypothetical protein
375	 61.63	0	395883..396716	+	277	148238711	pheA	SynWH7803_0375	-	prephenate dehydratase
376	 60.35	0	396692..397657	-	321	148238712	-	SynWH7803_0376	-	sterol-C-methyltransferase
377	 57.62	0	397657..398319	-	220	148238713	-	SynWH7803_0377	-	Lon protease domain-containing protein
378	 56.07	0	398376..398696	-	106	148238714	rpsJ	SynWH7803_0378	-	30S ribosomal protein S10
379	 59.92	0	398845..400044	-	399	148238715	tuf	SynWH7803_0379	-	elongation factor Tu
380	 57.23	0	400087..402162	-	691	148238716	fusA	SynWH7803_0380	-	elongation factor G
381	 62.63	0	402249..402719	-	156	148238717	rpsG	SynWH7803_0381	-	30S ribosomal protein S7
382	 59.47	0	402801..403175	-	124	148238718	rpsL	SynWH7803_0382	-	30S ribosomal protein S12
383	 60.86	0	403253..403579	-	108	148238719	-	SynWH7803_0383	-	hypothetical protein
384	 63.60	0	403623..405320	-	565	148238720	-	SynWH7803_0384	-	hypothetical protein
385	 65.04	0	405422..410020	+	1532	148238721	gltS	SynWH7803_0385	-	ferredoxin-dependent glutamate synthase
386	 65.70	+1	410035..410343	+	102	148238722	-	SynWH7803_0386	-	hypothetical protein
387	 63.59	0	410321..411199	-	292	148238723	lipA	SynWH7803_0387	-	lipoyl synthase
388	 65.41	+1	411307..413055	-	582	148238724	-	SynWH7803_0388	-	bifunctional cobalamin biosynthesis protein/precorrin-3B C17-methyltransferase CbiG/CobJ
389	 63.75	0	413176..414510	-	444	148238725	-	SynWH7803_0389	-	hypothetical protein
390	 65.91	+1	414711..414974	+	87	148238726	-	SynWH7803_0390	-	hypothetical protein
391	 59.46	0	414925..417228	+	767	148238727	psaA	SynWH7803_0391	-	photosystem I P700 chlorophyll a apoprotein A1
392	 59.95	0	417251..419467	+	738	148238728	psaB	SynWH7803_0392	-	photosystem I P700 chlorophyll a apoprotein A2
393	 62.24	0	419557..420483	-	308	148238729	-	SynWH7803_0393	-	hypothetical protein
394	 60.78	0	420639..420944	+	101	148238730	-	SynWH7803_0394	-	hypothetical protein
395	 61.31	0	420941..424078	-	1045	148238731	-	SynWH7803_0395	-	RND family multidrug efflux protein
396	 61.38	0	424189..424680	-	163	148238732	psaL	SynWH7803_0396	-	photosystem I reaction centre subunit XI
397	 56.41	0	424739..424855	-	38	148238733	psaI	SynWH7803_0397	-	photosystem I reaction center subunit VIII
398	 65.87	+1	424970..425470	+	166	148238734	-	SynWH7803_0398	-	hypothetical protein
399	 61.77	0	425428..426387	-	319	148238735	-	SynWH7803_0399	-	glycosyl transferase family protein
400	 59.63	0	426460..427113	-	217	148238736	-	SynWH7803_0400	-	hypothetical protein
401	 64.51	0	427165..427905	-	246	148238737	-	SynWH7803_0401	-	cell wall-associated hydrolase
402	 61.78	0	427923..428822	+	299	148238738	-	SynWH7803_0402	-	hypothetical protein
403	 64.13	0	428961..430142	-	393	148238739	alr	SynWH7803_0403	-	alanine racemase
404	 58.23	0	430215..430712	+	165	148238740	-	SynWH7803_0404	-	McrA/HNH family nuclease
405	 61.11	0	430714..431811	-	365	148238741	prfA	SynWH7803_0405	-	peptide chain release factor 1
406	 56.98	0	431925..432182	-	85	148238742	rpmE	SynWH7803_0406	-	50S ribosomal protein L31
407	 59.51	0	432191..432595	-	134	148238743	rpsI	SynWH7803_0407	-	30S ribosomal protein S9
408	 60.04	0	432592..433044	-	150	148238744	rplM	SynWH7803_0408	-	50S ribosomal protein L13
409	 63.31	0	433212..434105	-	297	148238745	truA	SynWH7803_0409	-	tRNA pseudouridine synthase A
410	 60.11	0	434102..434452	-	116	148238746	rplQ	SynWH7803_0410	-	50S ribosomal protein L17
60.32	MEAN

4.87	STD DEV
