IslandPathversion 1.0

IslandPath Analysis: Synechococcus sp. WH 7803

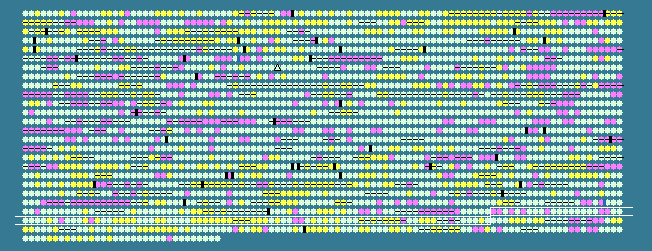

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2279	 53.68	-1	2103144..2103551	+	135	148240615	-	SynWH7803_2279	-	hypothetical protein
2280	 56.82	0	2103892..2105547	+	551	148240616	ndhD	SynWH7803_2280	-	NAD(P)H-quinone oxidoreductase subunit 4
2281	 61.02	0	2105601..2106503	+	300	148240617	-	SynWH7803_2281	-	hypothetical protein
2282	 56.83	0	2106550..2107728	+	392	148240618	-	SynWH7803_2282	-	nucleoside-diphosphate-sugar transferase
2283	 61.30	0	2107709..2108602	-	297	148240619	metF	SynWH7803_2283	-	5-10-methylenetetrahydrofolate reductase
2284	 54.12	-1	2108691..2108969	+	92	148240620	-	SynWH7803_2284	-	LuxR family transcriptional regulator
2285	 56.99	0	2108926..2109111	-	61	148240621	-	SynWH7803_2285	-	hypothetical protein
2286	 62.55	0	2109178..2109687	-	169	148240622	-	SynWH7803_2286	-	hypothetical protein
2287	 59.98	0	2109695..2110636	-	313	148240623	ppnK	SynWH7803_2287	-	inorganic polyphosphate/ATP-NAD kinase
2288	 53.45	-1	2110652..2110984	-	110	148240624	ndhE	SynWH7803_2288	-	NADH dehydrogenase subunit K
2289	 59.50	0	2111006..2111605	-	199	148240625	ndhG	SynWH7803_2289	-	NADH dehydrogenase subunit J
2290	 58.90	0	2111602..2112258	-	218	148240626	-	SynWH7803_2290	-	NADH dehydrogenase subunit I
2291	 59.05	0	2112340..2113494	-	384	148240627	ndhA	SynWH7803_2291	-	NADH dehydrogenase subunit H
2292	 59.78	0	2113519..2114709	-	396	148240628	gltA	SynWH7803_2292	-	methylcitrate synthase
2293	 62.67	0	2114735..2115235	-	166	148240629	sixA	SynWH7803_2293	-	putative phosphohistidine phosphatase
2294	 63.27	0	2115213..2116922	-	569	148240630	-	SynWH7803_2294	-	hypothetical protein
2295	 61.82	0	2116921..2117271	+	116	148240631	pspE	SynWH7803_2295	-	putative rhodanese-related sulfurtransferase
2296	 59.64	0	2117366..2118361	+	331	148240632	hcrA	SynWH7803_2296	-	heat-inducible transcription repressor HrcA
2297	 55.65	0	2118554..2119588	+	344	148240633	-	SynWH7803_2297	-	branched-chain amino acid ABC transporter periplasmic protein
2298	 48.20	-2	2119606..2120829	-	407	148240634	-	SynWH7803_2298	-	hypothetical protein
2299	 62.43	0	2120886..2122136	-	416	148240635	trpB	SynWH7803_2299	-	tryptophan synthase subunit beta
2300	 63.33	0	2122175..2123134	-	319	148240636	-	SynWH7803_2300	-	SAM-dependent methyltransferase
2301	 61.47	0	2123174..2123500	+	108	148240637	-	SynWH7803_2301	-	translation initiation factor SUI1
2302	 59.78	0	2123539..2124162	+	207	148240638	cysC	SynWH7803_2302	-	adenylylsulfate kinase
2303	 59.44	0	2124143..2125222	-	359	148240639	-	SynWH7803_2303	-	permease
2304	 63.79	0	2125219..2125740	-	173	148240640	purE	SynWH7803_2304	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
2305	 64.42	0	2125856..2127010	+	384	148240641	nagA	SynWH7803_2305	-	N-acetylglucosamine-6-phosphate deacetylase
2306	 58.16	0	2127037..2127753	+	238	148240642	chlM	SynWH7803_2306	-	Mg-protoporphyrin IX methyl transferase
2307	 49.74	-2	2127754..2128326	-	190	148240643	-	SynWH7803_2307	-	hypothetical protein
2308	 62.43	0	2128368..2129312	-	314	148240644	-	SynWH7803_2308	-	pseudouridylate synthase
2309	 60.64	0	2129309..2130022	-	237	148240645	-	SynWH7803_2309	-	two-component system response regulator
2310	 58.91	0	2130056..2130571	-	171	148240646	-	SynWH7803_2310	-	hypothetical protein
2311	 64.46	0	2130595..2131773	+	392	148240647	-	SynWH7803_2311	-	cysteine desulfurase
2312	 45.27	-2	2131861..2132631	+	256	148240648	-	SynWH7803_2312	-	hypothetical protein
2313	 63.83	0	2132888..2133805	-	305	148240649	mraW	SynWH7803_2313	-	S-adenosyl-methyltransferase MraW
2314	 59.16	0	2133850..2135034	+	394	148240650	ndhH	SynWH7803_2314	-	NAD(P)H-quinone oxidoreductase subunit H
2315	 59.96	0	2135024..2135485	+	153	148240651	-	SynWH7803_2315	-	thioesterase
2316	 65.62	+1	2135509..2136747	-	412	148240652	menE	SynWH7803_2316	-	O-succinylbenzoate-CoA ligase
2317	 67.66	+1	2136744..2137754	-	336	148240653	menC	SynWH7803_2317	-	O-succinylbenzoate synthase
2318	 65.75	+1	2137759..2138739	-	326	148240654	menA	SynWH7803_2318	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2319	 66.94	+1	2138810..2140249	+	479	148240655	menF	SynWH7803_2319	-	isochorismate synthase
2320	 61.82	0	2140202..2142223	-	673	148240656	-	SynWH7803_2320	-	dipeptidyl aminopeptidase/acylaminoacyl-peptidase
2321	 63.42	0	2142259..2143182	-	307	148240657	gshB	SynWH7803_2321	-	glutathione synthetase
2322	 61.18	0	2143206..2143460	-	84	148240658	-	SynWH7803_2322	-	glutaredoxin
2323	 63.90	0	2143513..2144307	+	264	148240659	-	SynWH7803_2323	-	hypothetical protein
2324	 64.92	0	2144304..2145335	+	343	148240660	-	SynWH7803_2324	-	hypothetical protein
2325	 59.85	0	2145427..2146497	+	356	148240661	prfB	SynWH7803_2325	-	peptide chain release factor 2
2326	 60.92	0	2146500..2146673	+	57	148240662	-	SynWH7803_2326	-	hypothetical protein
2327	 61.19	0	2146670..2147272	+	200	148240663	-	SynWH7803_2327	-	metal-dependent hydrolase
2328	 62.66	0	2147250..2147723	+	157	148240664	dgkA	SynWH7803_2328	-	diacylglycerol kinase
2329	 64.37	0	2147727..2148335	+	202	148240665	pabA	SynWH7803_2329	-	Para-aminobenzoate synthase component II
2330	 66.40	+1	2148362..2149105	+	247	148240666	-	SynWH7803_2330	-	Zn-dependent hydrolase
2331	 64.69	0	2149119..2150231	-	370	148240667	hisC	SynWH7803_2331	-	histidinol-phosphate aminotransferase
2332	 65.04	0	2150247..2151725	-	492	148240668	-	SynWH7803_2332	-	hypothetical protein
2333	 64.44	0	2151795..2153504	+	569	148240669	-	SynWH7803_2333	-	hypothetical protein
2334	 65.17	0	2153496..2154494	-	332	148240670	yccC	SynWH7803_2334	-	putative L-asparaginase
2335	 64.68	0	2154494..2156002	-	502	148240671	-	SynWH7803_2335	-	hypothetical protein
2336	 65.11	0	2156002..2157795	-	597	148240672	argS	SynWH7803_2336	-	arginyl-tRNA synthetase
2337	 65.87	+1	2157826..2158701	-	291	148240673	nadC	SynWH7803_2337	-	nicotinate-nucleotide pyrophosphorylase
2338	 65.48	+1	2158701..2159207	-	168	148240674	-	SynWH7803_2338	-	hypothetical protein
2339	 66.10	+1	2159295..2159828	+	177	148240675	def	SynWH7803_2339	-	peptide deformylase
2340	 65.80	+1	2159833..2161215	-	460	148240676	trmE	SynWH7803_2340	-	tRNA modification GTPase TrmE
2341	 66.00	+1	2161293..2161742	+	149	148240677	-	SynWH7803_2341	-	hypothetical protein
2342	 60.65	0	2161856..2164249	-	797	148240678	spoT	SynWH7803_2342	-	guanosine-3',5'-bis(diphosphate) 3'-pyrophosphohydrolase
2343	 65.92	+1	2164248..2165852	+	534	148240679	-	SynWH7803_2343	-	ABC transporter ATP-binding protein
2344	 58.87	0	2165857..2166549	+	230	148240680	-	SynWH7803_2344	-	two-component system response regulator
2345	 62.14	0	2166741..2168330	+	529	148240681	-	SynWH7803_2345	-	carbohydrate-binding protein; modular; contains two CBM2 modules
2346	 52.53	-1	2168406..2169197	+	263	148240682	-	SynWH7803_2346	-	periplasmic substrate-binding protein
2347	 54.11	-1	2169303..2169509	+	68	148240683	-	SynWH7803_2347	-	hypothetical protein
2348	 62.67	0	2169555..2170556	-	333	148240684	-	SynWH7803_2348	-	pseudouridylate synthase, 23S RNA-specific
2349	 65.28	+1	2170553..2171419	-	288	148240685	rbgA	SynWH7803_2349	-	ribosomal biogenesis GTPase
2350	 61.72	0	2171416..2171799	-	127	148240686	usp	SynWH7803_2350	-	universal stress protein family protein
2351	 64.85	0	2171900..2173108	+	402	148240687	pgk	SynWH7803_2351	-	phosphoglycerate kinase
2352	 62.86	0	2173202..2173726	-	174	148240688	-	SynWH7803_2352	-	hypothetical protein
2353	 65.31	+1	2173750..2174340	-	196	148240689	hupE	SynWH7803_2353	-	hydrogenase/urease accessory protein
2354	 60.95	0	2174342..2175355	-	337	148240690	-	SynWH7803_2354	-	hypothetical protein
2355	 61.75	0	2175361..2176215	-	284	148240691	-	SynWH7803_2355	-	hypothetical protein
2356	 60.22	0	2176215..2178122	-	635	148240692	-	SynWH7803_2356	-	hypothetical protein
2357	 66.67	+1	2178399..2178626	+	75	148240693	-	SynWH7803_2357	-	hypothetical protein
2358	 63.78	0	2178640..2179089	-	149	148240694	-	SynWH7803_2358	-	hypothetical protein
2359	 66.01	+1	2179167..2180075	+	302	148240695	-	SynWH7803_2359	-	hydroxyacid dehydrogenase/reductase family protein
2360	 62.22	0	2180078..2180797	-	239	148240696	-	SynWH7803_2360	-	hypothetical protein
2361	 67.60	+1	2180877..2181953	+	358	148240697	-	SynWH7803_2361	-	glycosyltransferase family  undecaprenyl-PP-MurNAc-pentapeptide-UDPGlcNAc GlcNAc transferase
2362	 66.84	+1	2181955..2183088	-	377	148240698	-	SynWH7803_2362	-	histidinol-phosphate/aromatic aminotransferase related enzyme
2363	 64.85	0	2183162..2183986	+	274	148240699	-	SynWH7803_2363	-	pentapeptide/TPR repeat-containing protein
2364	 55.17	-1	2183996..2186317	-	773	148240700	gspD	SynWH7803_2364	-	general secretory pathway protein D
2365	 62.65	0	2186408..2187154	-	248	148240701	-	SynWH7803_2365	-	hypothetical protein
2366	 63.35	0	2187151..2187843	-	230	148240702	-	SynWH7803_2366	-	hypothetical protein
2367	 68.19	+1	2187840..2188757	-	305	148240703	-	SynWH7803_2367	-	hypothetical protein
2368	 66.41	+1	2188803..2189981	-	392	148240704	pyrD	SynWH7803_2368	-	dihydroorotate dehydrogenase 2
2369	 64.45	0	2189996..2190718	-	240	148240705	rnhA	SynWH7803_2369	-	ribonuclease H
2370	 62.53	0	2190734..2191483	+	249	148240706	-	SynWH7803_2370	-	hypothetical protein
2371	 58.02	0	2191741..2192133	-	130	148240707	rplL	SynWH7803_2371	-	50S ribosomal protein L7/L12
2372	 56.63	0	2192181..2192708	-	175	148240708	rplJ	SynWH7803_2372	-	50S ribosomal protein L10
2373	 60.17	0	2192950..2193657	-	235	148240709	rplA	SynWH7803_2373	-	50S ribosomal protein L1
2374	 59.86	0	2193738..2194163	-	141	148240710	rplK	SynWH7803_2374	-	50S ribosomal protein L11
2375	 59.34	0	2194274..2194942	-	222	148240711	nusG	SynWH7803_2375	-	transcription antitermination protein NusG
2376	 59.44	0	2195006..2195254	-	82	148240712	secE	SynWH7803_2376	-	preprotein translocase subunit SecE
2377	 64.06	0	2195348..2198113	-	921	148240713	clpB	SynWH7803_2377	-	chaperone ClpB
2378	 60.69	0	2198125..2198643	-	172	148240714	gloA	SynWH7803_2378	-	lactoylglutathione lyase
60.32	MEAN

4.87	STD DEV
