IslandPath Analysis: Synechococcus sp. WH 7803

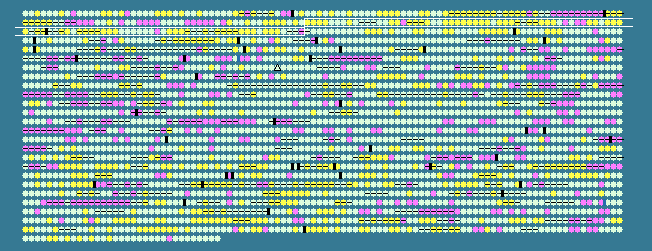

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 60.32 STD DEV: 4.87
Synechococcus sp. WH 7803, complete genome - 1..2366980
2533 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
148	 70.50	+2	166805..167143	+	112	148238484	-	SynWH7803_0148	-	hypothetical protein
149	 64.68	0	167136..167537	+	133	148238485	-	SynWH7803_0149	-	hypothetical protein
150	 66.43	+1	167530..167946	+	138	148238486	crcB	SynWH7803_0150	-	hypothetical protein
151	 64.38	0	167912..168391	-	159	148238487	-	SynWH7803_0151	-	glutathione peroxidase
152	 63.79	0	168466..169890	+	474	148238488	mgtE	SynWH7803_0152	-	Mg/Co/Ni transporter MgtE
153	 63.67	0	169943..171010	+	355	148238489	rpoD	SynWH7803_0153	-	RNA polymerase sigma factor, sigma-70 family
154	 60.87	0	171026..172009	-	327	148238490	-	SynWH7803_0154	-	hypothetical protein
155	 67.40	+1	172006..172956	-	316	148238491	-	SynWH7803_0155	-	alpha/beta fold family hydrolase
156	 61.05	0	172946..176236	-	1096	148238492	-	SynWH7803_0156	-	RND family multidrug efflux protein
157	 58.80	0	176244..177362	-	372	148238493	-	SynWH7803_0157	-	hypothetical protein
158	 57.14	0	177480..177794	-	104	148238494	-	SynWH7803_0158	-	hypothetical protein
159	 61.84	0	177810..178037	+	75	148238495	-	SynWH7803_0159	-	hypothetical protein
160	 60.57	0	178044..178568	-	174	148238496	-	SynWH7803_0160	-	hypothetical protein
161	 59.55	0	178784..179317	-	177	148238497	-	SynWH7803_0161	-	hypothetical protein
162	 65.86	+1	179378..180496	+	372	148238498	-	SynWH7803_0162	-	hypothetical protein
163	 64.89	0	180496..181623	+	375	148238499	mutY	SynWH7803_0163	-	A/G-specific DNA glycosylase MutY
164	 54.99	-1	181607..183190	-	527	148238500	-	SynWH7803_0164	-	hypothetical protein
165	 68.32	+1	183384..184412	+	342	148238501	csck	SynWH7803_0165	-	fructokinase
166	 67.66	+1	184415..185920	+	501	148238502	xylB	SynWH7803_0166	-	xylulose kinase
167	 66.98	+1	185901..186848	-	315	148238503	rbsK	SynWH7803_0167	-	ribokinase family sugar kinase
168	 66.67	+1	186861..187322	-	153	148238504	-	SynWH7803_0168	-	hypothetical protein
169	 61.84	0	187422..188852	+	476	148238505	ahcY	SynWH7803_0169	-	S-adenosyl-L-homocysteine hydrolase
170	 63.64	0	188913..189572	+	219	148238506	-	SynWH7803_0170	-	hypothetical protein
171	 63.91	0	189581..189979	-	132	148238507	ssb	SynWH7803_0171	-	single-strand DNA-binding protein
172	 64.86	0	190132..191184	+	350	148238508	mreB	SynWH7803_0172	-	rod shape-determining protein MreB
173	 66.93	+1	191190..191939	+	249	148238509	mreC	SynWH7803_0173	-	rod shape-determining protein
174	 66.46	+1	191973..192446	+	157	148238510	-	SynWH7803_0174	-	hypothetical protein
175	 66.06	+1	192443..193756	+	437	148238511	-	SynWH7803_0175	-	ABC-type sugar transport system, periplasmic component
176	 64.32	0	193868..194677	+	269	148238512	-	SynWH7803_0176	-	two-component system response regulator
177	 64.97	0	194732..196201	+	489	148238513	lysS	SynWH7803_0177	-	lysyl-tRNA synthetase
178	 66.67	+1	196281..196544	+	87	148238514	-	SynWH7803_0178	-	hypothetical protein
179	 63.17	0	196577..197062	-	161	148238515	-	SynWH7803_0179	-	hypothetical protein
180	 67.47	+1	197062..197310	-	82	148238516	-	SynWH7803_0180	-	hypothetical protein
181	 67.70	+1	197337..198308	-	323	148238517	-	SynWH7803_0181	-	hypothetical protein
182	 67.74	+1	198305..199516	-	403	148238518	-	SynWH7803_0182	-	hypothetical protein
183	 70.21	+2	199547..201634	+	695	148238519	-	SynWH7803_0183	-	serine/threonine protein kinase
184	 63.25	0	201653..202150	-	165	148238520	smpB	SynWH7803_0184	-	SsrA-binding protein
185	 69.49	+1	202215..203312	+	365	148238521	ruvB	SynWH7803_0185	-	Holliday junction DNA helicase B
186	 66.04	+1	203309..204109	+	266	148238522	-	SynWH7803_0186	-	TPR repeat-containing protein
187	 68.97	+1	204106..205278	+	390	148238523	-	SynWH7803_0187	-	zinc metallopeptidase
188	 67.10	+1	205275..205505	+	76	148238524	-	SynWH7803_0188	-	hypothetical protein
189	 67.78	+1	205510..206136	+	208	148238525	nblB	SynWH7803_0189	-	HEAT repeat-containing PBS lyase
190	 61.97	0	206326..207729	+	467	148238526	thiC	SynWH7803_0190	-	thiamine biosynthesis protein ThiC
191	 51.15	-1	207756..209747	-	663	148238527	-	SynWH7803_0191	-	hypothetical protein
192	 57.54	0	209752..210693	-	313	148238528	rfbB	SynWH7803_0192	-	dTDP-glucose 4,6-dehydratase (nucleoside-diphosphate-sugar epimerases)
193	 52.09	-1	210700..211392	-	230	148238529	-	SynWH7803_0193	-	glycosyl transferase family protein
194	 53.70	-1	211392..211715	-	107	148238530	-	SynWH7803_0194	-	hypothetical protein
195	 63.83	0	211894..213903	-	669	148238531	-	SynWH7803_0195	-	transketolase
196	 65.14	0	213954..215201	-	415	148238532	fabF	SynWH7803_0196	-	3-oxoacyl-[acyl-carrier-protein] synthase II
197	 57.61	0	215213..215455	-	80	148238533	acpP	SynWH7803_0197	-	acyl carrier protein
198	 64.23	0	215607..215852	+	81	148238534	psaC	SynWH7803_0198	-	photosystem I subunit VII
199	 67.30	+1	215935..217821	+	628	148238535	glmS	SynWH7803_0199	-	D-fructose-6-phosphate amidotransferase
200	 66.73	+1	217808..219274	-	488	148238536	manC	SynWH7803_0200	-	mannose-1-phosphate guanylyltransferase
201	 67.23	+1	219353..219880	-	175	148238537	rimM	SynWH7803_0201	-	16S rRNA-processing protein
202	 63.39	0	219949..220131	+	60	148238538	-	SynWH7803_0202	-	hypothetical protein
203	 64.23	0	220137..220958	+	273	148238539	-	SynWH7803_0203	-	ion transport protein
204	 65.01	0	220955..221677	-	240	148238540	rnc	SynWH7803_0204	-	ribonuclease III
205	 61.86	0	222294..222647	+	117	148238541	-	SynWH7803_0205	-	hypothetical protein
206	 62.94	0	222685..223140	+	151	148238542	-	SynWH7803_0206	-	hypothetical protein
207	 68.18	+1	223123..224181	-	352	148238543	ackA	SynWH7803_0207	-	acetate kinase
208	 64.72	0	224192..226714	-	840	148238544	-	SynWH7803_0208	-	glycosyltransferase of family glycogen phosphorylase
209	 62.60	0	226771..229206	-	811	148238545	-	SynWH7803_0209	-	putative phosphoketolase
210	 64.23	0	229381..230775	+	464	148238546	-	SynWH7803_0210	-	Na+/H+ antiporter
211	 64.38	0	230772..231077	-	101	148238547	-	SynWH7803_0211	-	hypothetical protein
212	 66.67	+1	231148..232080	+	310	148238548	-	SynWH7803_0212	-	alpha/beta fold family hydrolase
213	 65.39	+1	232111..232974	+	287	148238549	-	SynWH7803_0213	-	galactose mutarotase-like protein
214	 69.24	+1	232982..234187	-	401	148238550	glcE	SynWH7803_0214	-	glycolate oxidase subunit GlcE
215	 68.15	+1	234237..235655	+	472	148238551	-	SynWH7803_0215	-	hypothetical protein
216	 67.93	+1	235638..236978	-	446	148238552	glcF	SynWH7803_0216	-	glycolate oxidase iron-sulfur subunit
217	 63.58	0	237012..238436	-	474	148238553	icd	SynWH7803_0217	-	isocitrate dehydrogenase
218	 61.65	0	238528..239484	+	318	148238554	-	SynWH7803_0218	-	glycosyl transferase family protein
219	 63.60	0	239453..240757	-	434	148238555	-	SynWH7803_0219	-	hypothetical protein
220	 61.69	0	240820..241281	+	153	148238556	-	SynWH7803_0220	-	hypothetical protein
221	 59.24	0	241357..242070	+	237	148238557	ho1	SynWH7803_0221	-	Heme oxygenase
222	 62.83	0	242067..243134	+	355	148238558	-	SynWH7803_0222	-	glycosyl transferase family protein
223	 54.11	-1	243214..245037	+	607	148238559	-	SynWH7803_0223	-	multidrug ABC transporter ATPase/permease
224	 62.80	0	245030..247255	+	741	148238560	-	SynWH7803_0224	-	glycosyl transferase family protein
225	 65.71	+1	247255..248403	+	382	148238561	-	SynWH7803_0225	-	glycosyl transferase family protein
226	 66.74	+1	248396..249679	+	427	148238562	-	SynWH7803_0226	-	glycosyl transferase family protein
227	 64.93	0	249676..250824	+	382	148238563	-	SynWH7803_0227	-	glycosyl transferase family protein
228	 65.63	+1	250821..251687	+	288	148238564	-	SynWH7803_0228	-	sulfotransferase
229	 61.35	0	251654..253495	-	613	148238565	-	SynWH7803_0229	-	hypothetical protein
230	 63.00	0	253508..255118	-	536	148238566	-	SynWH7803_0230	-	hypothetical protein
231	 64.44	0	255118..255969	-	283	148238567	kdsA	SynWH7803_0231	-	2-dehydro-3-deoxyphosphooctonate aldolase
232	 63.32	0	256046..256762	+	238	148238568	-	SynWH7803_0232	-	hypothetical protein
233	 66.42	+1	256768..257580	+	270	148238569	kdsB	SynWH7803_0233	-	3-deoxy-manno-octulosonate cytidylyltransferase
234	 68.83	+1	257583..258830	+	415	148238570	pcnB	SynWH7803_0234	-	tRNA nucleotidyltransferase/poly(A) polymerase
235	 65.46	+1	258827..260320	+	497	148238571	-	SynWH7803_0235	-	hypothetical protein
236	 64.33	0	260244..261098	-	284	148238572	-	SynWH7803_0236	-	hypothetical protein
237	 67.20	+1	261091..261654	-	187	148238573	-	SynWH7803_0237	-	HAD superfamily low specificity phosphatase
238	 66.47	+1	261654..262676	-	340	148238574	kpsF	SynWH7803_0238	-	polysialic acid capsule expression protein
239	 64.01	0	262742..263947	+	401	148238575	-	SynWH7803_0239	-	hypothetical protein
240	 62.23	0	263944..266331	+	795	148238576	uvrD	SynWH7803_0240	-	UvrD/REP helicase
241	 68.25	+1	266336..268489	-	717	148238577	-	SynWH7803_0241	-	selenophosphate synthase/FAD/NAD(P)-binding domain-containing protein
242	 64.44	0	268486..269562	-	358	148238578	galE	SynWH7803_0242	-	UDP-glucose 4-epimerase
243	 65.99	+1	269636..270961	+	441	148238579	hisS	SynWH7803_0243	-	histidyl-tRNA synthetase
244	 63.13	0	270997..272439	+	480	148238580	ugd	SynWH7803_0244	-	UDP-glucose 6-dehydrogenase
245	 62.21	0	272436..273467	+	343	148238581	-	SynWH7803_0245	-	NAD dependent epimerase/dehydratase
246	 60.20	0	273520..273720	-	66	148238582	psbJ	SynWH7803_0246	-	photosystem II reaction center protein J
247	 55.83	0	273732..273851	-	39	148238583	psbL	SynWH7803_0247	-	photosystem II reaction center L
60.32	MEAN

4.87	STD DEV
